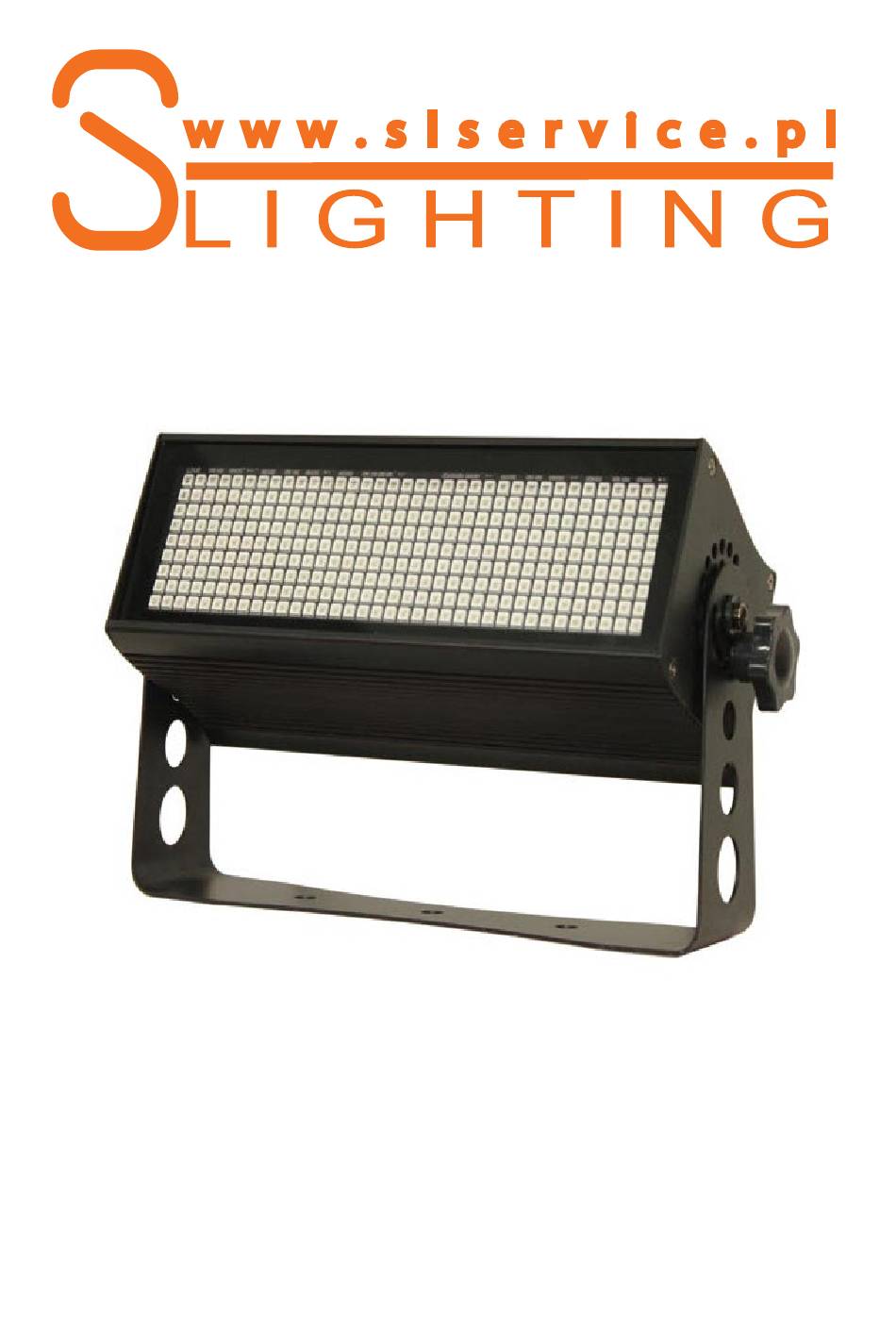

- Page 1 USER MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS ntroductIon afety InformatIon roduct InformatIon 3.1 S PecIfIcatIon 3.2 c leanIng and maIntenance 3.3 dMX-512 ISPlay menu functIonS and valueS... -
Page 3: I Ntroduction
- Do not use this device in high humidity conditions and at tempera- tures above 40°C. - Do not cover the ventilation slots when operating to avoid internal overheating. www.slservice.pl S-LIGHTING... -

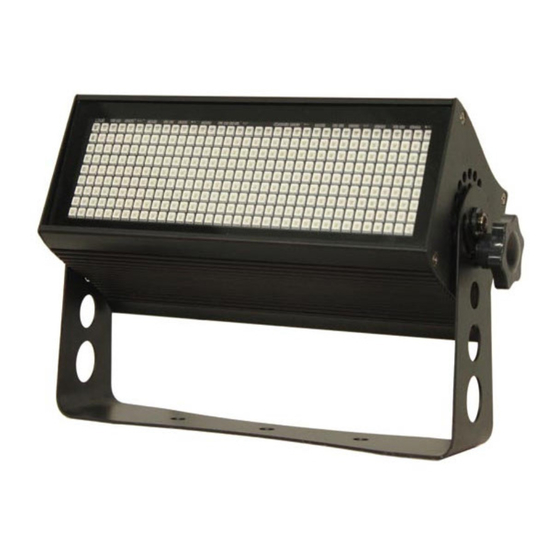

Page 4: P Roduct Information
DMX channels: 1/3/4/6/7/16 AC IN: powerCON AC OUT: powerCON DMX IN: XLR - 3 pin DMX OUT: XLR - 3 pin IP Rating: IP20 Cooling: Passive Height [cm]: 20 Width [cm]: 34 Depth [cm]: 10 Weight [kg]: 2.8 S-LIGHTING www.slservice.pl... -
Page 5: Leaning And Maintenance
If you have further questions, please contact your dealer. Before replacing a fuse, disconnect the power cord! Always replace with the same type and rating of fuse! www.slservice.pl S-LIGHTING... - Page 6 If extending this lifespan is vital, lower the operating temperatu- re by improving the ventilation around the product and reducing the ambient temperature to an optimal operating range. In addition, limiting the overall projection intensity may also help to extend the LEDs’ lifespan. S-LIGHTING www.slservice.pl...
-
Page 7: Dmx-512
Grounding the common may cause a ground loop, and your device may perform erratically. Test cables with an ohm meter to verify correct polarity and to make sure the pins are not grounded or shorted to the shield or each other. www.slservice.pl S-LIGHTING... - Page 8 (female) 3-pin connector to the input connector of the next device consisting of a (male) 3-pin connector. Then, proceed to connect from the output as stated above, to the input of the following device (and so on). S-LIGHTING www.slservice.pl...
-
Page 9: Isplay Menu
Value Clear Display Mode Auto Temp Unit CS Celsius Degree Fahrenheit Degree Channel Mode Channel 1Ch Channel 3Ch Channel 4Ch Channel 6Ch Channel 7Ch Channel 16Ch Pixel 3 Pixel 9 Key Mode Key Lock Key UnLock Load Default www.slservice.pl S-LIGHTING... - Page 10 Lightning Effect (slow <--> fast) 215-255 Spike Effect 0-255 Master Dimmer 0-255 Red Segment Intensity 0-255 Green Segment Intensity 6CH Mode 0-255 Blue Segment Intensity 0-255 Flash duration (0 <--> full on) 0-255 Strobe Rate (0 <--> 30 Hz) S-LIGHTING www.slservice.pl...
- Page 11 / Segment 4 Intensity 0-255 Green 2 / Segment 5 Intensity 0-255 Blue 2 / Segment 6 Intensity 0-255 Red 3 / Segment 7 Intensity 0-255 Green 3 / Segment 8 Intensity 0-255 Blue 3 / Segment 9 Intensity www.slservice.pl S-LIGHTING...
