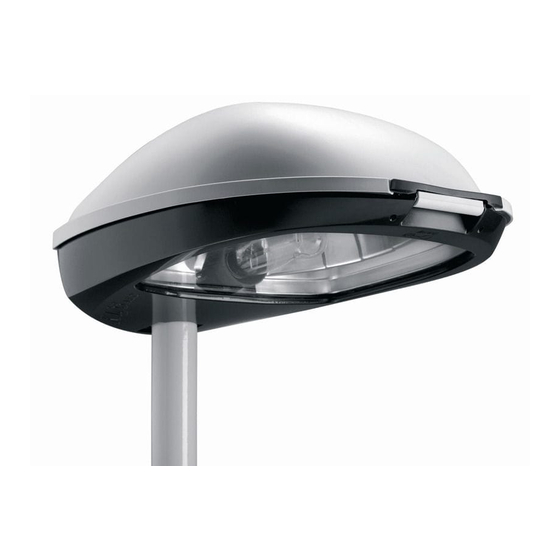

AEC ILLUMINAZIONE Kaos 1 Mounting And Maintenance Instructions

Made in Italy
KAOS_IM_ENG - Rev.09 of 03/05/16

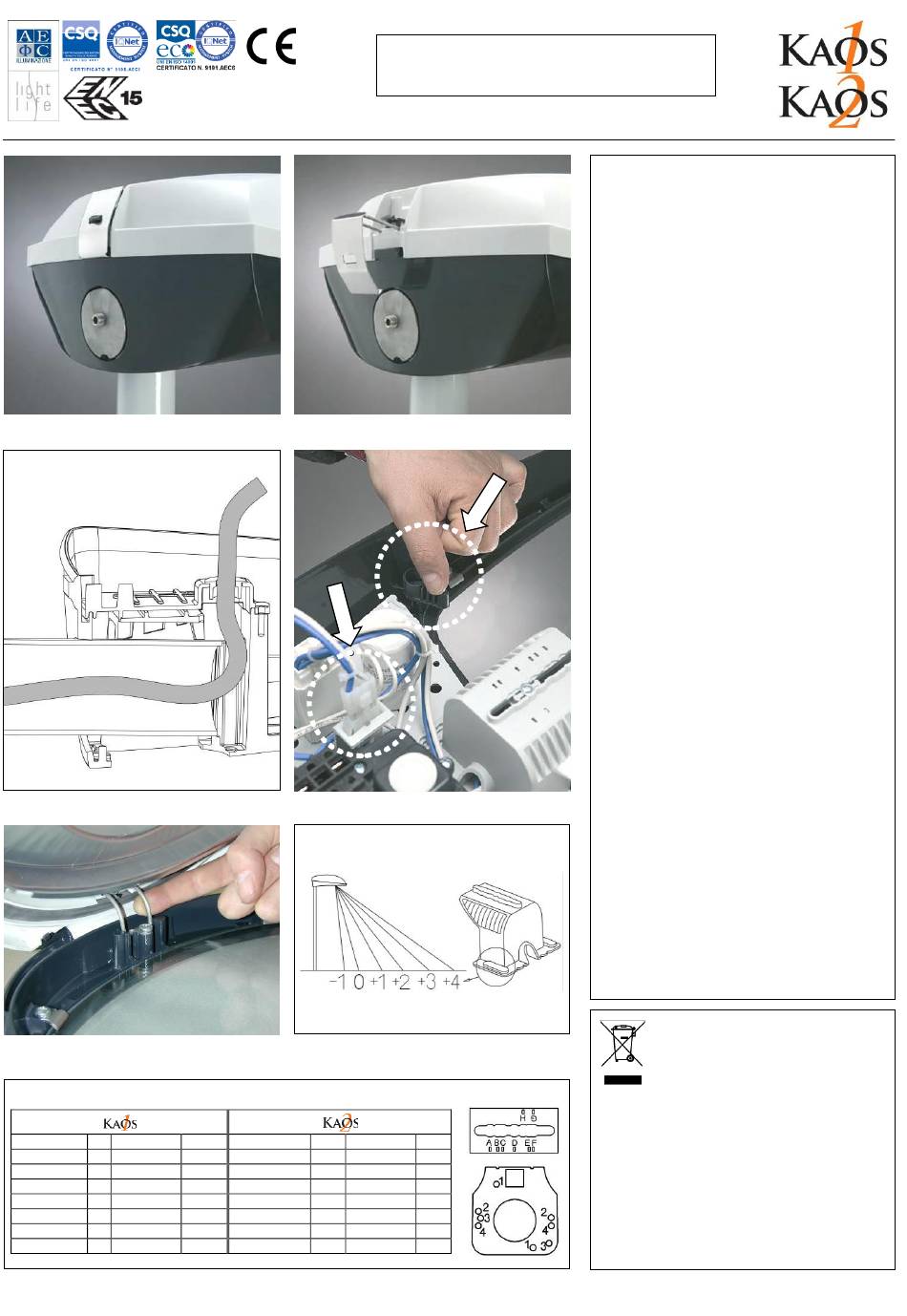

Pic. 1
Pic. 3
Pic. 5

Lamp positions

LAMP POS LAMP
70W SHP-E A4 70W MHL-E
70W SHP-T B3 70W MHL-T
100W SHP-E F4 100W MHL-E
100W SHP-T H3 100W MHL-T
150W SHP-E G2 150W MHL-E
150W SHP-T H3 150W MHL-T
80W MBF A4 125W MBF
A
POS LAMP POS
A3 100W SHP-E B1 100W MHL-T
B3 100W SHP-T C4 150W MHL-T
A3 150W SHP-E D1 250W MHL-E
H3 150W SHP-T C4 250W MHL-T
A3 250W SHP-E D1 400W MHL-T
H3 250W SHP-T E4 250W MBF
C4 400W SHP-T G4
Mounting AND MAINTENANCE
INSTRUCTION
Pic. 2
B
Pic. 4
Pic. 6
LAMP POS
C4
C4
D1
D4
G4
D1

MOUNTING AND MAINTENANCE

Pole head and spigot mounting bracket.
To mount the luminaire, turn properly the aluminium
shutter fixed on the frame.
The pole head connection system is suitable for pole
d.60mm or d.76mm and bracket d.42mm or d.60mm:
the system allow to install bracket parallel to the
ground or with an inclination of 5°, 10°, 15°.
The luminaire must be fixed to the pole by the
stainless steel 12MA grub screw inserted in the
aluminium shutter: the grub screw must be tightened
by a set screw wrench 6mm applying a twisting
moment of 20Nm.
To avoid the grub screw loosen, we supplied a further
stainless steel 12MA nut to be clamped on the grub
screw with an adjustable wrench of 19mm and
applying a twisting moment of 20Nm.
To gain access to electrical parts, push the secure
button which is in the middle of the stainless steel
closing hook, than lift it and open the cover [Pic. 1-2].
The cover must be blocked in vertical position by the
central hinge.
To connect the luminaire to the electrical line, punch
the press cable membrane directly with the cable
[Pic. 3].
The feeding of the fitting have to be done with a
bipolar cable with nominal diameter between 7 and 13
mm.
When it is necessary, you can take away the gear
disconnecting it (A) and turning the knobs (B) [see
Pic. 4].
To reinsert the gear plate, put it in the right position
than turn the knobs till the end and reinsert the
connector.
To close the luminaire, draw the blocking spring
[Pic. 5].
The optic of the luminaire has been projected to
function without incline the fitting.
The lamp holder block can be placed in 6 different
positions in order to adapt the photometrical solid to
the road width [Pic. 6].

INFORMATION TO THE CUSTOMERS

Directive 2002/96/EC (Waste Electrical and
Electronic Equipment
information for users.
This product complies with EU Directive 2002/95/EC.
The crossed-out wastebasket symbol on the appliance
means that at the end of its useful lifespan, the product
must be disposed of separately from ordinary
household wastes. The user is responsible for
delivering the appliance to an appropriate collection
facility at the end of its useful lifespan. Appropriate
separate collection to permit recycling, treatment and
environmentally compatible disposal helps prevent
negative impact on the environment and human health
and promotes recycling of the materials making up the
product. For more information on available collection
facilities, contact your local waste collection service.
