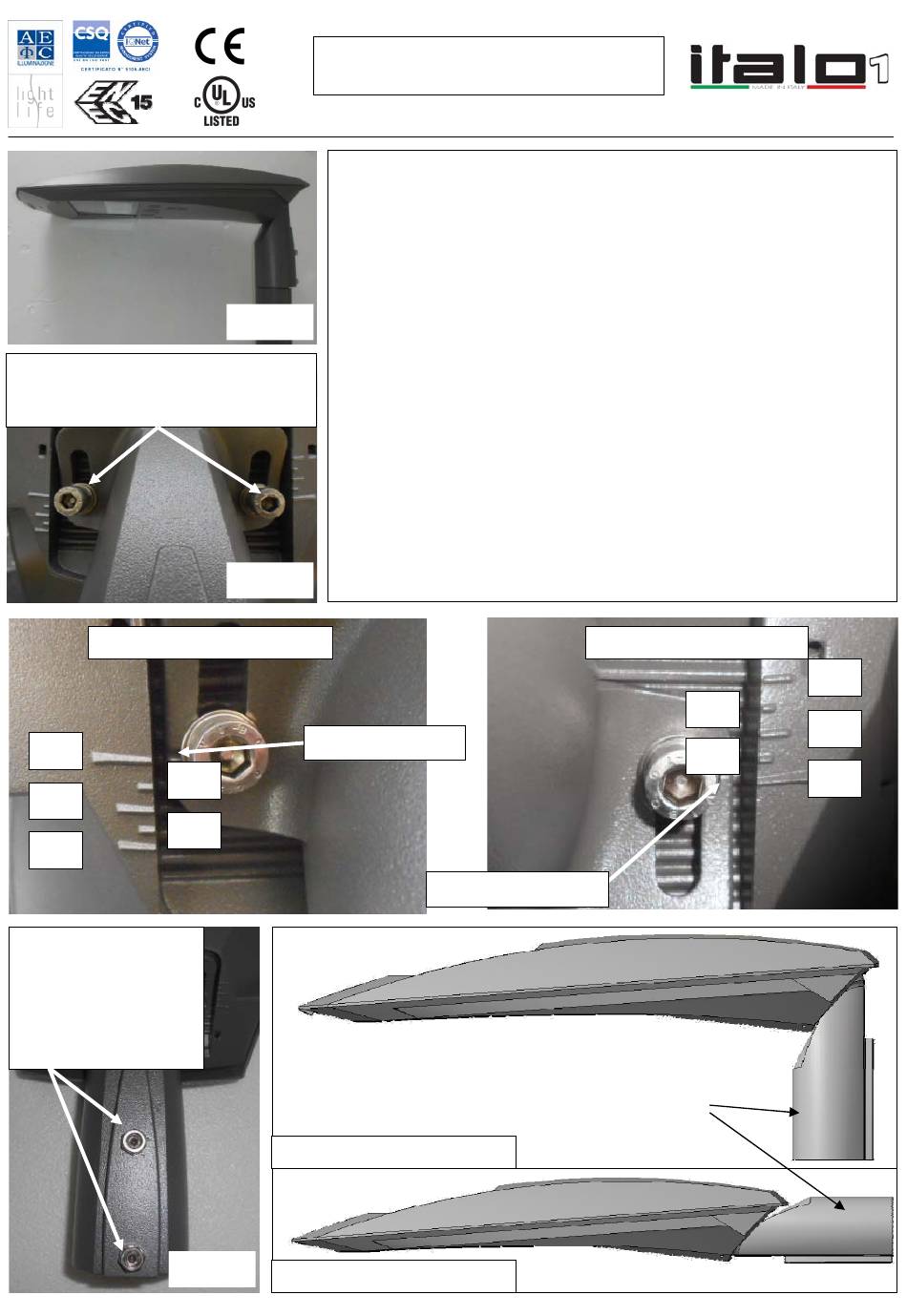

ITALO_IM_ENG - Rev.08 of 27/10/14
M8 (5/16") screws + split washer and plain
washer Set screw wrench: 6mm (1/2")
Twisting moment: 10Nm
Pic. 3A – Post-top mounting
0°
10°
15°
20°
M8 Grub screws
Set screw wrench: 4mm
Twisting moment: 8Nm
--------------------------------
M8 nuts
Adjustable wrench: 13mm
Twisting moment: 8Nm
MOUNTING AND MAINTENANCE
Post-top or bracket mounting
ITALO 1 is equipped with an universal attachment (post-top or bracket mounting)
according to the ordered version:
Place correctly the attachment as indicated in Pic. 5A (Post-top) or in Pic. 5B
Pic. 1
(Bracket).
Fix the attachment to the luminaire with the two M8 screws as indicated in Pic. 2.
Possible to tilt:
Use the proper sign as indicated in Pic. 3A and 3B.
The regulation of the luminaire can be done loosing the two screws (Pic. 2).
Fix the attachment to the post-top or to the bracket as indicated in Pic. 4.
To avoid any possible unscrewing of grub screws, two M8 nuts have to be
tightened on the grub screws as indicate in Pic. 4.
Pic. 2
Sign reference
5°
Pic. 5A – Post-top mounting
Pic. 4
Fig. 5B – Arm mounting
INSTRUCTION
MOUNTING AND MAINTENANCE INSTRUCTION
Attachment Ø33-60mm. Ø1-3/8" - 2-3/8"
-
-
Attachment
Ø60-76mm. Ø2-3/8" - 3"
-
Post-top mounting:
-
Bracket mounting:
Sign reference
0°, +5°, +10°, +15°, +20°
0°, -5°, -10°, -15°, -20°
Pic. 3B – Bracket mounting
-15°
-5°
ATTACHMENT
Page 1 of 4
-20°
-10°
0°
Advertisement
Related Manuals for AEC ILLUMINAZIONE ITALO 1
Summary of Contents for AEC ILLUMINAZIONE ITALO 1
- Page 1 ITALO_IM_ENG - Rev.08 of 27/10/14 Page 1 of 4 MOUNTING AND MAINTENANCE INSTRUCTION Post-top or bracket mounting ITALO 1 is equipped with an universal attachment (post-top or bracket mounting) according to the ordered version: Attachment Ø33-60mm. Ø1-3/8" - 2-3/8" Attachment Ø60-76mm.
- Page 2 MOUNTING AND MAINTENANCE INSTRUCTION ITALO_IM_ENG - Rev.08 of 27/10/14 Page 2 of 4 Electrical line connection To gain access to the electrical line, unlock the closing hook (A – Pic. 6) and lift the upper frame up to the action of the hinge (Pic. Luminaire with cable gland: follow the directions in Pic.
- Page 3 If the luminaires switches-off when the system is still fed, the activity of the protection device should be checked looking at signaling LED. To check this, use the appropriate tool asked to AEC Illuminazione. LED ON _ Right functioning of the SPD...
- Page 4 The device has developed in compliance with the current standards; it is necessary that the installation is done properly, according with the instructions supplied. The present instruction paper has to be kept for any future maintenance operation on the luminaire. Non compliance with the above will automatically release AEC Illuminazione Srl from any responsibility.
