AGA GateMaster Smart Hub User Manual

Introduction

AGA GateMaster Smart Hub is an easy to use device and application that allows control of a driveway
gate from a smartphone. It can handle various remote-control frequencies (300M, 315M, 330M, 433M,
868M) and create a virtual remote control to operate the gate. A camera may be added and viewed
from the smartphone.

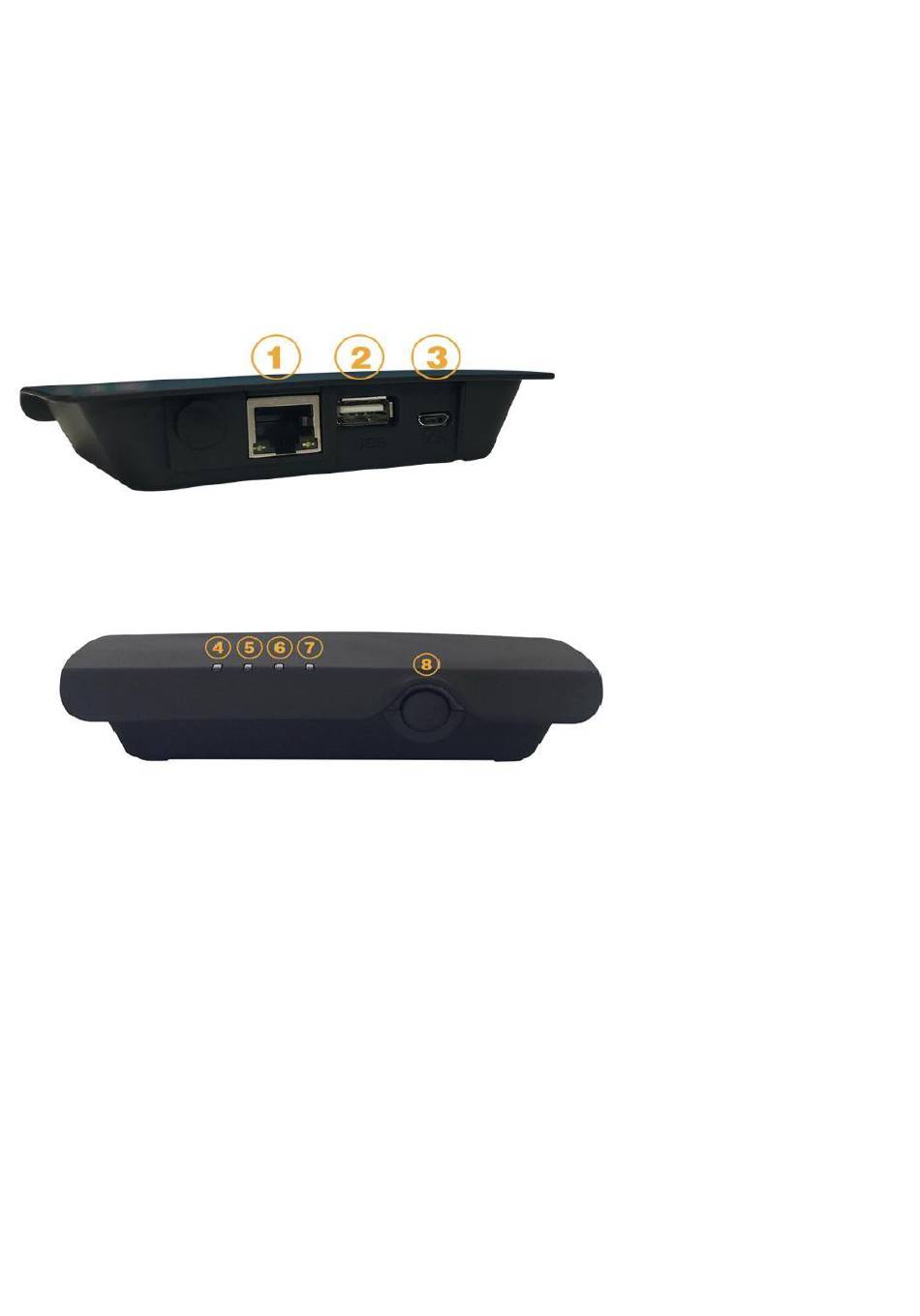

Product Configuration

① Home router terminal
② Software update terminal
③ Micro USB power port
④ Yellow light on: System is working normally
⑤ Green light on: Transmitting control signal
⑥ Blue light on: Device signal received
⑦ Red light on: Wireless LAN connection error
⑧ Wi-Fi Set and Reset button

Technical data:

Power supply: DC 5V/1A
Dimensions: 4-1/2 x 3-3/4 x 1 inches (115 x 95 x 25 mm)
Working current: 5V/180mA
Communication mode: RF
Interface: RJ45,10/100M
Transmit distance: 450 ft (150 M)
Frequency: 300Mhz, 315Mhz, 330Mhz, 433.92 Mhz
Components: Hub, network cable, USB power adaptor, USB connect cable
Wi-Fi Control of a Driveway Gate

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AGA GateMaster Smart Hub and is the answer not in the manual?

Questions and answers

Summary of Contents for Amazing Gates AGA GateMaster Smart Hub

  • Page 1 Wi-Fi Control of a Driveway Gate Introduction AGA GateMaster Smart Hub is an easy to use device and application that allows control of a driveway gate from a smartphone. It can handle various remote-control frequencies (300M, 315M, 330M, 433M, 868M) and create a virtual remote control to operate the gate. A camera may be added and viewed from the smartphone.
  • Page 2 Installation and operation Connect power cable to micro USB port 3 and turn the power on Connect Wi-Fi router data port to Smart Hub terminal 1 using data cable, provided in the package X-House APP download and install Go to the App Store or Google Play and find X-House by Giant Alarm System and install it on your smartphone OR Scan the QR code provided on the bottom of the Smart Hub device Register and login to account Register an account with an email address...
  • Page 3 Scan the barcode with your smart phone or tablet to take you to our YouTube page where you can find our latest install and troubleshooting videos to assist you in the setup of your GateMaster system. Amazing Gates of America, LLC 8617 Paseo Alameda NE...
