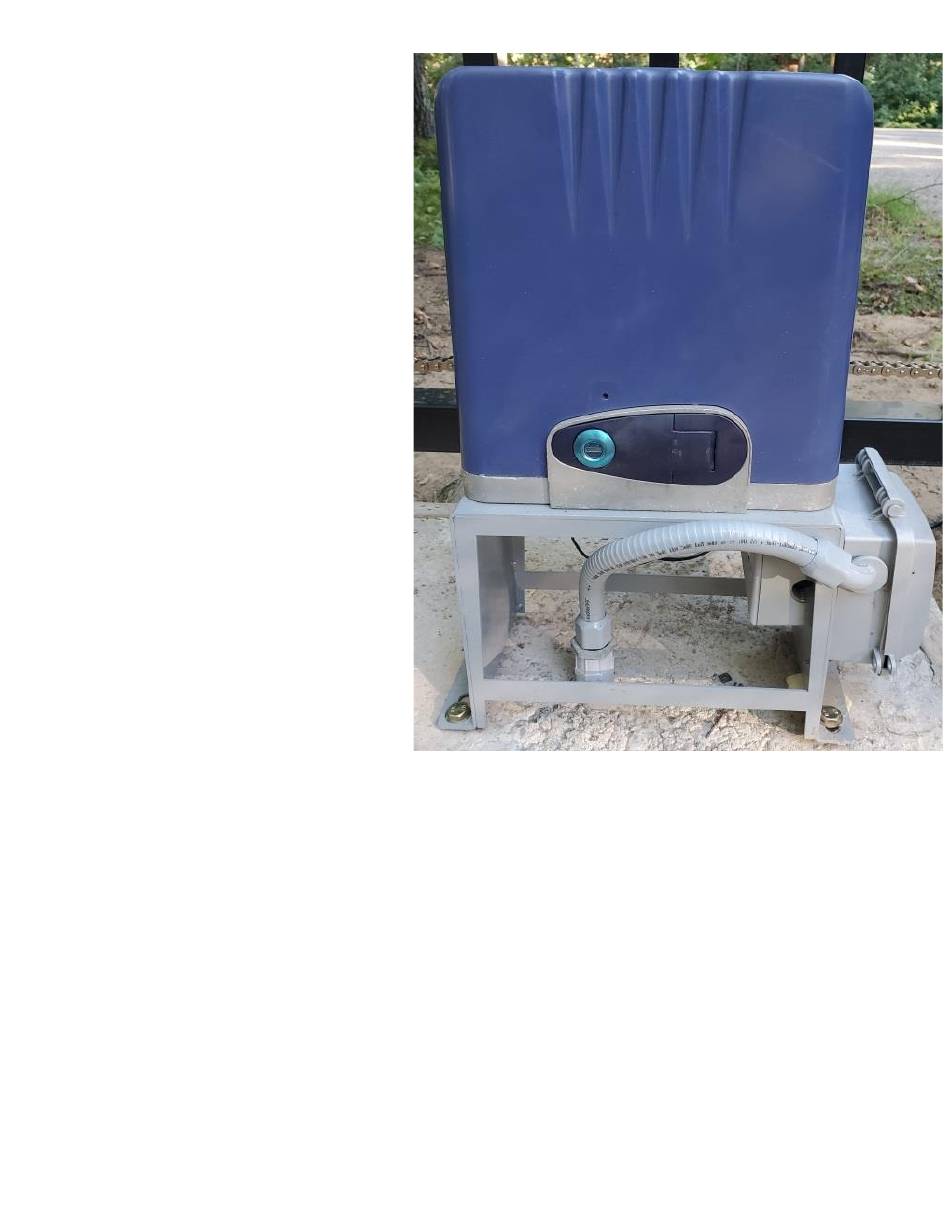

Amazing Gates AG2000
Sliding Gate Opener
Installation Manual
9-25-2020
Thank you for purchasing the Amazing Gates AG2000 sliding gate opener.
Please read this manual completely before installation and follow all safety
precautions. This product complies with the recognized technical
standards and safety regulations.
1
Advertisement
Related Manuals for Amazing Gates AG2000
Summary of Contents for Amazing Gates AG2000
- Page 1 Sliding Gate Opener Installation Manual 9-25-2020 Thank you for purchasing the Amazing Gates AG2000 sliding gate opener. Please read this manual completely before installation and follow all safety precautions. This product complies with the recognized technical standards and safety regulations.
- Page 2 Failure to follow installation and safety instructions can result in hazards developing due to improper assembly. You agree to properly install this product and that if you fail to do so Amazing Gates of America, LLC (“AGA”) shall in no event be liable for direct, indirect, incidental, special or consequential damages or loss of profits whether based in contract tort or any other legal theory during the course of the warranty or at any time thereafter.
- Page 3 • Installation must be carried out using the safety devices and controls prescribed by the UL 325 standard. Class Rating The Amazing Gates 2000 Slide Operator is intended for use with vehicular slide gates in single family residential applications. The operator is system certified to be in compliance with UL 325, current edition, as of publication date.
-
Page 4: Technical Specifications & Features
Technical Specifications & Features Specifications: • Motor: 24VDC • Absorbed motor power: 370W • Gate moving speed: 7.9“/second • Max gate weight: 1100 lbs • Max torque: 18.44 ft lb/f • Environmental conditions: From 5°F to 104°F • Protection class: IP44 •... - Page 5 C. The gate must be installed in a location so that enough clearance is supplied between the gate and adjacent structure-es when opening and closing to reduce the risk of entrapment. D. The gate must be properly installed and work freely in both directions prior to the installation of the gate opener. Do not over-tighten the opener clutch or pressure relief valve to compensate for a damaged gate.
-
Page 6: Installation Overview
➢ Before starting installation, ensure that there is no point of friction during the entire movement of the gate and there is no danger of derailment. ➢ Ensure that the Warning Signs are present. Installation Overview Power Considerations The recommended power for this gate operator system is 110-120V AC. The integrated transformer steps the power down to 24Vdc to operate the control panel and operator arms. -
Page 7: Installation Procedures
Installation procedures 1. The default limit setting is for the gate in the closed position. Before installation, please make sure gate is closed. 2. Prepare one or more conduits for the electrical cables. Cable conduits have to pass through the hole in the base plate. 3. - Page 8 Refer to the figures below Installation of the Chain 1. Start with the gate in the closed position 2. The package contains 20 feet of #40 chain. 3. Place one of the ends of the chain section on the top of the gear temporarily. Install the chain, connecting one section at a time and make sure it is level.
-
Page 9: Control Board Wiring
The Operator is on the LEFT side of the driveway, from the inside looking out When the gate is OPEN, the RED South Limit Pole Magnet lines up with the operator. When the gate is CLOSED, the BLUE North Pole Magnet lines up with the operator. From the INSIDE looking OUT, IF the gate Slides OPEN to the RIGHT: The RED North Limit Pole Magnet is to the LEFT and the BLUE South Limit Pole Magnet is to the RIGHT The Operator is on the RIGHT side of the driveway, from the inside looking out... - Page 10 The RED Wire to the motor connects to Terminal 16 The BLACK Wire to the motor connects to Terminal 15 NOTE: When it is operating and wired correctly, when the gate is opening, the blue indicator LED lights up and when the gate is closing, the red indicator LED lights up. The Infrared, Swipe, Start and Ped functions will only work when the gate is going in the correct direction.
- Page 11 1. ANT terminal: Antenna connection 2. PED terminal: Used for connecting an external device control for opening pedestrian mode. The gate will open partially. PEDESTRIAN ACCESS IS NOT RECOMMENDED. 3. Infrared 2 terminal: Used for connecting a safety device like a photo eye. Infrared 2 is used for a photo eye or safety edge in the BACK of the gate, so that when the gate is OPENING if something blocks the beam the gate will stop.
- Page 12 4. Infrared 1 terminal: Used for connecting a safety device like a photo beam or an edge sensor. The photo beam shoots across the driveway opening. If something blocks the beam or the safety edge encounters pressure, the gate will stop and reverse. Diagram 8 Connect terminal ⑦...
- Page 13 Terminal ⑩ and ⑪ to supply power for the wired keypad. 6. START Terminal: Single button control mode switch, used for controlling the gate “Open-Close- Stop-Open-Close” cyclically. (Note: Holding the button for a long time may affect some other function.) Diagram 9 Example for a push button;...
- Page 14 Diagram 12 The control board accepts 24VDC of battery power input. Therefore, connect two 12V batteries in series to create 24V of current. First connect battery 1 “+” to battery 2 “-” Then connect battery 1 “-” to terminal ⑬ Then connect battery 2 “+”...
- Page 15 successful, the indicator LED on the board will flash four times and the buzzer will sound once. Note: After you press the LEARN button, if you don’t press a button on the remote within 5 seconds, the indicator LED will turn on and the Control Board will exit the learn mode. Program the ONE BUTTON function on the Control Board **NOTE: This will make it easier to test the operator ** To change the P8 Function setting from 00 to 01:...
- Page 16 (Note: 0000 is the default code for programming) (Note: The blue backlight will light when in programming mode) Press 55#; keypad will beep once to confirm This sends a signal to the receiver on the operator control board. For a single gate press 01# For a double gate press 02# Press and release the red Learn button on the operator control board.
- Page 17 Connect Out/N.O. (Black) on the photo eye to IR1 (4) on the control board. Connect Power + (Brown) on the photo eye to 24v (10) on the control board. Connect Negative – (Blue) on the photo eye to COM (11) on the control board. Connect Common (Yellow) on the photo eye to COM (7) on the control board.
- Page 18 - When you Power ON, the exit sensor will calibrate and signal the gate to open - P4 Function controls auto close time after SWIPE; changing it to “0” turns off auto close Wiring Instructions for Exit Sensors: Amazing Gates Exit Probe Blue --- “SWIPE” (5) Green --- “COM” (7) Red --- “24Vdc”...
- Page 19 Com --- “COM” (7) Power + --- “24V” (10) Power - --- “GND” (11) Note: Programming P4 controls auto close time seconds after SWIPE; changing it to “0” turns off auto close. Installing a Wired Keypad or Intercom A wired keypad or an intercom can activate the gate by a relay which is two wires completing a circuit. They can get their power from their own transformer plugged into a 110V AC power source or they can get their power from the operator control board.
- Page 20 Diagram 16 Control Board Functions and Settings Status Indicator LED When the board has power, the status indicator LED is lit Motor open-close The Blue LED lit up means the gate is Opening The Red LED lit up means the gate is Closing instruction Remote Transmitters Encoding format: Proprietary rolling code.
- Page 21 LEARN Remote Press the Learn button at least 1 second and then release; the LED indicator will go out; now press the button of the remote control; if Transmitter Code LED indicator blinks 4 times, the transmitter succeeded in being “Learned”...
- Page 22 Limited and Limits: These determine when motor will stop running after reaching the Resistance functions open & close limits Meeting an Obstacle or Resistance: If the gate encounters resistance when opening, the gate will stop. If the gate meets resistance when closing, the gate will stop then reverse.
- Page 23 Digital Display Settings Note: Only change settings and connect remote transmitters when the gate is not running and the auto close timer is not counting down Note: When the board is powered on, the digital display will self-check from 00-99 and sound the buzzer.
- Page 24 0, 1 High Speed 0 (OFF) 0 = Disable High Speed (Recommended) 1 = Activate Hi Speed Mode, disables P0,PA,PB settings Auto close time for 0 - 99s Delays Auto Close for a SWIPE connection number of seconds after opening via SWIPE connection Pedestrian mode 0 - 99s...
- Page 25 learning process, the digital display will show the working time of the complete working cycle, and after the gate moves to the closed position, another long beep can be heard and the display goes off. The board will automatically set the high speed and slow speed working time based on how much time you set for slow speed in PA and PB.
- Page 26 Amazing Gates of America, LLC 8617 Paseo Alameda NE Albuquerque, NM 87113 Customer Service 800-234-3952 Technical Support 505-404-2219...
