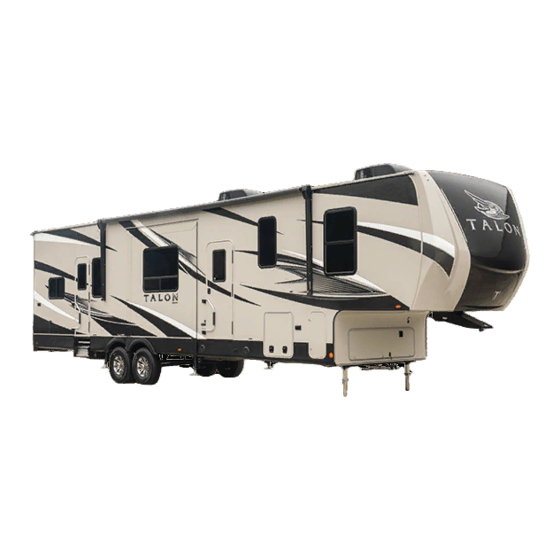

Page 1 2021 Fifth Wheel Toy Hauler Owner’s Manual A subsidiary of Thor Industries, Inc. 0304307.2021...
Page 3: Table Of Contents
Table of Contents Section 1: Warranty & Service Factory Tours Options and Equipment Dealer Responsibility Customer Relations To Contact Us About This Manual Warranty Packet Safety Alerts Reporting Safety Defects Customer Responsibility Change Of Address/Ownership Suggestions For Obtaining Service Obtaining Service For Separately Warranted Items Obtaining Service At Our Customer Service Facility Parts and Accessories Section 2: Occupant Safety...
Page 4 Table of Contents Stowable Entrance Door Step (if so equipped) Entrance Door Rear Backup Camera Prep Campsite Hook-Up LCI 3.0 Leveling System (if so equipped) Auto Leveling Touch Pad Linc Remote OneControl Touch Panel Linc Remote Control Troubleshooting Stabilizer Jacks OneControl Touch Panel Emergency Stopping Manual Stabilizer Jacks (if so equipped)
Page 5 Table of Contents Section 5: Slideout Systems Electric Slide Room(s) (if so equipped) Slideout Overlap-Outside General Slideout Troubleshooting Checklist Flush Floor Slideout Schwintek In-Wall Slideout System Norco Slideout System Power Gear Slideout System Fig.1 Slideout Controller Power Gear Slim Rack Slideout System Power Gear Ram Slideout System Section 6: Electrical System The Electrical System...
Page 6 Table of Contents Fuel Tank(s) (if so equipped) Fuel Station (if so equipped) Master/Emergency Disconnect Switch Typical Fuel Pump Switch Locations on the Command Center To Dispense Fuel Fuel Gauge Dual Tank Fuel Gauge and Selector Switch Single Tank Fuel Gauge and Selector Switch Exhaust Gas Fumes Propane Gas System Propane Gas Container...
Page 7 Table of Contents Water Heater Operating instructions Water heater bypass High altitude deration Pressure & temperature relief valve Draining and winterization Black Tank Flush (if so equipped) Tank Heaters (if so equipped) Outside Shower (if so equipped) Faucets Bathroom Tub / Shower Black/Grey Water System and Tanks Black and Grey Tank Drains Black/Grey Tank Drain and Valves...
Page 8 Table of Contents Bed Storage Prop Rod (if so equipped) Gas Struts (if so equipped) Power Bunk Bed (Cargo Bay) Bed Operation Loft Sleeping Area (if so equipped) Section 13: Exterior Cleaning The Exterior Frame E-Z Lube or Super-Lube Axle (if so equipped) Exterior Roof and Sidewall Vents Windows Exterior Ladder (if so equipped)
Page 9 WARNING: Read all instructions in this manual and component manufac- turer supplied information before using your RV. This manual has been provided by your recreational vehicle manufacturer for the sole pur- pose of providing instructions concerning the operation and maintenance of this recreational vehicle.
Page 11: Section 1: Warranty & Service
Section 1: Warranty & Service Congratulations! Thank you for selecting a Jayco recreation vehicle. We are excited to welcome you to our growing RV family. We are committed to being the most respected name in RVs. We invite you to drop by our Visitors Center located in Middlebury, Indiana. Jayco recreation vehicles are manufactured for use as temporary living quarters for rec- reation, camping and travel uses, all as defined by the bylaws of the Recreation Vehicle Industry Association (RVIA).
Page 12 Section 1: Warranty & Service NOTE: Please provide the following information when contacting us for assistance: Customer name and current location. Phone number where you can be reached. 17-digit chassis Vehicle Identification Number (VIN) or 9-digit Serial. The current vehicle mileage (motorhomes). Your date of purchase.
Page 13: To Contact Us
Section 1: Warranty & Service Obtaining weekend or after business hours repair assistance If an authorized Jayco dealer is not located nearby, contact your selling dealer for assistance. If your dealer is closed, check with the campground staff or telephone yellow pages for an RV repair facility.
Page 14: Warranty Packet
Section 1: Warranty & Service Warranty Packet There are components that are excluded from the vehicle warranty, or are warranted sepa- rately by their own individual manufacturer’s limited warranty. The Warranty Packet con- tains these component manufacturer supplied manuals or information sheets, warranty cards and/or registrations.
Page 15: Reporting Safety Defects
Section 1: Warranty & Service Indicates a potentially hazardous situation that, if not avoided, may result in death or serious injury. Reporting Safety Defects In the United States: If you believe that your recreation vehicle has an alleged defect which could cause a crash or cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA), in addition to notifying our Cus- tomer Service Department.
Page 16: Customer Responsibility
Section 1: Warranty & Service Customer Responsibility It is important you read and understand all instructions and precautions before operating the recreation vehicle. Even if you are an experienced RV’er we encourage you to thoroughly read this Owner’s Manual, as well as the information contained in your Warranty Packet and Chassis Guide (motorized only).
Page 17: Obtaining Service For Separately Warranted Items
Section 1: Warranty & Service Please be aware that all service shops require notification of any issues with their repairs within a specified time limit. Make sure you are familiar with their repair policies. Obtaining Service For Separately Warranted Items Your selling dealer is responsible for servicing your recreation vehicle before delivery, and has an interest in your continued satisfaction.
Page 18 Section 1: Warranty & Service JAYCO TOWABLE LIMITED WARRANTY WHAT AND WHO IS COVERED This Limited Warranty covers only recreational vehicles sold in, and that remain in, the United States, U.S. Territories and Canada and used for the intended purpose of recreational travel and camping.
Page 19 Section 1: Warranty & Service THIS EXCLUSION OF CONSEQUENTIAL AND INCIDENTAL DAMAGES SHALL BE INDEPENDENT OF ANY FAILURE OF THE ESSENTIAL PURPOSE OF ANY WARRANTY, AND THIS EXCLUSION SHALL SURVIVE ANY DETERMINA- TION THAT THIS LIMITED WARRANTY OR ANY IMPLIED WARRANTY HAS FAILED OF ITS ESSENTIAL PURPOSE.
Page 20 Section 1: Warranty & Service If you need assistance, you may contact Jayco, at 903 S. Main Street, P.O. Box 460, Middle- bury, Indiana 46540, Attn: Customer Service, (800) 283-8267. NOTE: Jayco does not control the scheduling of service work at the independent, authorized dealerships.
Page 21 Section 1: Warranty & Service • the effects of condensation or moisture from condensation inside or outside the RV; mold or any damage caused by mold to the inside or outside of the RV; • imperfections that do not affect the suitability of the RV for its intended purpose of •...
Page 22 Section 1: Warranty & Service EVENTS DISCHARGING JAYCO FROM OBLIGATION UNDER WARRANTY Certain things completely discharge Jayco from any obligation under this warranty and void it. By way of example, the following shall discharge Jayco from any express or implied warranty obligation to repair or replace any defect that results from: any rental or other busi- ness or commercial use or purchase of the RV (as defined in this warranty), any RV titled or registered in the name of any business or business association (such as a corporation or lim-...
Page 23 Section 1: Warranty & Service THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE. ACCEPTANCE OF WARRANTY When you request or accept the performance of repairs under the terms of this Limited War- ranty, you are confirming the acceptance of all terms of this Limited Warranty, including, by way of example, warranty limitations and disclaimers, the forum selection clause and the clause reducing the time period within which suit must be filed for breach.
Page 24 Section 1: Warranty & Service Notes:...
Page 25: Section 2: Occupant Safety
Section 2: Occupant Safety Secondary Means of Escape (Exit Window) Your recreation vehicle has been equipped with a window(s) that serves as a secondary means of escape. The window(s) will allow a quick exit from the vehicle during an emer- gency if access to the main entrance door is not available.
Page 26: Fire Safety
Section 2: Occupant Safety Lever style latch Remove the screen by pulling the red tab (upper rightarrow). Pull the lever out from the sash clamps. Swing the lever out so it is positioned straight out from the win- dow. Push the lever (and window) out to open and exit the vehicle. Fire Safety If a fire does start, follow these basic safety rules: Call 911 and evacuate the vehicle immediately.
Page 27: Smoke Alarm
Section 2: Occupant Safety Do not check the pressure, test or practice using the fire extinguisher by squeezing the trigger, even briefly. The fire extinguisher is not rechargeable or refillable. Once used, it will gradually lose pressure and will not be fully charged for use in an emergency.
Page 28: Combination Carbon Monoxide /Propane Alarm
Section 2: Occupant Safety When the battery becomes weak, the alarm will “beep” about once a minute indicating a low battery. This warning should last for 30 days. You MUST replace the battery once the alarms low battery warning (beep) starts to assure continued protection. When the battery is removed from the alarm, the battery flag will pop up;...
Page 29 Section 2: Occupant Safety Do not cover or obstruct the carbon monoxide/propane alarm with any- thing that could prevent gas from entering the alarm. This alarm is not designed to detect smoke, fire or gases other than car- bon monoxide and propane. The carbon monoxide detector installed is intended for use in ordinary indoor locations of recreation vehicles.
Page 30 Section 2: Occupant Safety fumes, adhesives, lacquer, kerosene, glues, wine, liquor, most cleaning agents and the pro- pellants of aerosol cans. High temperatures can activate glue and adhesive vapors. If you close up a recreational vehicle on a hot day, the chemicals used in its construction may be detected for months after the vehicle was constructed (for more information, refer to Sec.
Page 31 Section 2: Occupant Safety If problems are identified during this inspection, have the alarm serviced immediately. Note any combustion equipment not inspected by the technician and consult the manufacturer’s instructions or contact the manufacturer directly for more information about carbon monox- ide safety and this alarm.
Page 32: Formaldehyde
Section 2: Occupant Safety Formaldehyde Some components in the recreation vehicle contain formaldehyde-based adhesives that may release formaldehyde fumes into the air for an unknown period of time. Individuals who are allergic to formaldehyde gas fumes may experience irritation to eyes, ears, nose and throat. Indoor air quality may also be affected by leaving your vehicle closed for a period of time.
Page 33 Section 2: Occupant Safety Proper ventilation or the use of a dehumidifier (customer supplied) will assist in controlling the condensation. Suggestions to eliminate warm moist air: Crack open windows and roof vents to allow warm moist air to escape. Open the bath roof vent (if so equipped) approximately ½” when showering. Use the range hood fan (if so equipped) when cooking or washing dishes.
Page 34 Section 2: Occupant Safety Notes:...
Page 35: Section 3: Pre-Travel Information
Section 3: Pre-Travel Information Tow Vehicle If you plan to tow your recreation vehicle with a tow vehicle you already own, or if you plan to purchase a new one, make sure the Gross Vehicle Weight Rating (GVWR) or your recreation vehicle does not exceed your tow vehicles towing rating.
Page 36: Occc Label (Yellow)
Section 3: Pre-Travel Information OCCC Label (Occupant and Cargo Carrying Capacity The upper portion of this yellow label is feder- ally required and includes the maximum Occu- pant & Cargo Carrying Capacity that may be placed in or on the trailer as it was manufac- tured and weighed before leaving the factory.
Page 37: Loading Your Recreation Vehicle
Section 3: Pre-Travel Information Loading Your Recreation Vehicle Never load the RV in excess of the GAWR for either axle. Over- loading your RV may result in adverse handling characteristics and damage to the RV. DO NOT EXCEED YOUR GVWR! This means you should weigh your RV as loaded for your normal travel to determine the actual weight.
Page 38: Rear Bumper
Section 3: Pre-Travel Information Rear Bumper The rear bumper of your RV is not designed to carry cargo. Items that extend beyond the bumper OR weigh over 100 lbs. (45kg) will place undo strain on the bumper. The 100 lb. bumper capacity includes the weight of the spare tire (if so equipped).
Page 39: Fifth Wheel Pin Box
Section 3: Pre-Travel Information Fifth Wheel Pin Box The fifth wheel factory installed pin box is not interchangeable. Maintain the proper pin box weight on the hitch. Fifth Wheel Pin Box Height There is no recommended hitch height for fifth wheels; usually the fifth wheel pin box is adjustable for variance in trucks and truck suspension systems.
Page 40: Weighing Your Tow Vehicle And Rv
Section 3: Pre-Travel Information White Ground Blue Electric Brakes Green Running Lights Black Auxiliary +12V battery charge line Stop & left turn Brown Stop & right turn Yellow Back up Lights The connector plug may build up corrosion with extended use. It should be cleaned peri- odically to insure good electrical contact.
Page 41 Section 3: Pre-Travel Information Weigh the RV including the tongue weight, while detached from the tow vehicle. This actual overall weight must be less than or equal to the GVWR for safe operation. If the overall weight is greater than the GVWR, some contents must be removed until the actual overall weight is less than or equal to GVWR.
Page 42 Section 3: Pre-Travel Information Notes:...
Page 43: Section 4: Vehicle Operation
Section 4: Vehicle Operation Towing If your RV is equipped with the Command Control Bluetooth system, make sure you turn off your battery disconnect switch according to the following instructions. BEFORE TOWING YOUR RV ON THE ROADWAY: TURN OFF THE BATTERY DISCONNECT SWITCH! Certain components inside the RV can unexpectedly activate which could result in personal injury or property damage.
Page 44: Rv Brake System
Section 4: Vehicle Operation When descending a long hill, drop down into a lower gear or range. Avoid conditions that require excessive and prolonged use of your brakes. Apply and release brakes at short inter- vals to allow them to cool. The tow vehicle transmission and engine will help in controlling downhill speed and can lengthen brake life.
Page 45: Brake Controller (Customer Supplied)
Section 4: Vehicle Operation The tow vehicle battery is the primary source of power for your RV’s electric brake opera- tion. To ensure available power when needed, keep your tow vehicle battery and charging system working properly. Brake Controller (customer supplied) The brake controller should be installed in the tow vehicle to work in conjunction with the RV electric brakes.
Page 46: Towing Behind Your Rv
Section 4: Vehicle Operation NOTE: A battery (customer supplied) must be installed to activate the breakaway switch. When the trailer is attached to the tow vehicle, this bat- tery will typically be charged by the tow vehicle. Disc Brakes (if so equipped) If your RV is equipped with disc brakes, see the manufacturer’s owner’s manual for detailed safety and maintenance information.
Page 47: Stowable Entrance Door Step (If So Equipped)
Section 4: Vehicle Operation Stowable Entrance Door Step (if so equipped) Do not try to lift the steps while the door is closed. This may cause dam- age to the steps and the door. When returning steps to the stored position: adjustable feet may have to be retracted to fit inside the door opening.
Page 48: Entrance Door
Section 4: Vehicle Operation Lift the steps and rotate up into the doorway. Steps will automatically latch into brackets on each side of the door frame as they are lifted in place. 10. Close the entrance/screen door Entrance Door Always hold onto the entrance door when opening or closing it. Damage caused because you failed to do so is not covered by the Limited Warranty.
Page 49: Campsite Hook-Up
Section 4: Vehicle Operation Campsite Hook-Up Refer to Electrical Systems section before connecting the shore line power cord (when using full hook-up) OR before starting the generator (if so equipped) or operating the vehicle on 12-volt power when dry camping. Refer to Fuel and LP System section before using the LP system.
Page 50 Section 4: Vehicle Operation Failure to act in accordance with the following warnings may result in serious personal injury or death! Never use the auto leveling system to lift the RV off the ground. Lift- ing the RV so the wheels are not touching the ground will create an un- stable and unsafe condition.
Page 51: Auto Leveling Touch Pad
Section 4: Vehicle Operation The OneControl touch screen or Leveling App will show the specific error. Refer to troubleshooting section of the LCI Ground Control 3.0 manual to clear the error. Auto Leveling Touch Pad NOTE: Refer to the Lippert Ground Control 3.0 manual included in our warranty packet for complete instructions on the following procedures.
Page 52: Linc Remote
Section 4: Vehicle Operation OneControl Touch Panel Press the button at the bottom of the touch panel to power up the display. Select MyRV Control Panel from the menu listing on the screen. Then select the Leveler icon. The following functions can be operated using the One- Control Touch Panel inside the RV.
Page 53: Troubleshooting
Section 4: Vehicle Operation At the top of the Touch Panel screen press the “CONNECTED” icon quickly 6 times. A GEAR icon will appear at the top of the screen that says “OPTIONS”. Press this GEAR icon. Screen display changes to “Select Operation” with arrows on the left side of the screen.
Page 54: Emergency Stopping
Section 4: Vehicle Operation Manual Stabilizer Jacks (if so equipped) To lower each jack, insert the jack crank onto the applicable stabilizer jackshaft. Turn the crank clockwise to lower each leg until it contacts the ground and stabilizes the RV. To raise each jack, insert the jack crank onto the applicable stabilizer jack shaft and turn the crank counter-clockwise.
Page 55: Emergency Towing
Section 4: Vehicle Operation Place the second warning indicator 100 feet behind the recreation vehicle in the center of the lane and toward approaching traffic. Place the third warning indicator 100 feet in front of the recreation vehicle in the center of the lane and away from the traffic approaching from behind.
Page 56: Wheel Lug Nut Diagrams
Section 4: Vehicle Operation Check and tighten wheel lug nuts regularly to make sure they did not loosen during travel. Wheel lug nuts must be applied and maintained at the proper torque levels to prevent loose wheels, broken studs and possi- ble separation of the wheel(s) from your recreation vehicle.
Page 57 Section 4: Vehicle Operation Wheel Lug Nut Torque Values Prior to travel and after excessive braking, wheel lug nuts should be checked for torque. Torque readings must fall within the Final Torque Values in chart above. Torque specifications should be checked using a proper torque wrench. If the torque falls below the Final Torque Values, additional torque is required.
Page 58: Tires
Section 4: Vehicle Operation • Damaged tools must not be used and must be removed from service for evaluation and either reported and re-calibrated or replaced. Do not use accessories or handle extensions unless specifically allowed by the torque wrench manufacturer. Do not use the torque wrench as the primary means of tightening or loosening fasteners.
Page 59: Changing A Tire
Section 4: Vehicle Operation Tire Pressure Failure to follow proper inflation guidelines may result in tire failure, which, under certain circumstances can cause loss of vehicle control or accidents that may result in property damage, bodily injury and/or death. You must follow the manufacturer’s inflation guidelines for maximum load capacity; under-inflation is just as dangerous as over-inflation.
Page 60: Spare Tire Carrier (If So Equipped)
Section 4: Vehicle Operation Tire Replacement Any service or warranty coverage on tires is to be handled by the tire manufacturer or the store representing the brand installed on your recreation vehicle. They are not to be returned to your dealer or recreation vehicle manufacturer. If you have questions regarding your tires, contact the tire manufacturer.
Page 61: Bumper Mount
Section 4: Vehicle Operation NOTE: If your spare tire is a flush mount application, it must make contact with the underside of the recreational vehicle to insure maximum road clear- ance and stability in travel. Raising and lowering the hoist The crank handle to raise and lower the tire will be located (fastened to the sidewall) in a basement compartment of the recreational vehicle.
Page 62: Bumper Mount
Section 4: Vehicle Operation Remove the lug nuts holding the tire in place. Remove the support bracket from the bottom lug. Pull the tire from the tire carrier. To install the tire on the tire carrier Place the tire on the carrier with the top lug bolt in- serted into one of the holes in the tire rim and the bottom lug bolt in the center of the rim.
Page 63: Cargo Ramp Door
Section 4: Vehicle Operation Cargo Ramp Door Do not load or unload your RV without first blocking all wheels to pre- vent trailer movement. Movement during loading or unloading may cause the cargo ramp door to shift and tongue jack to bend. Failure to properly block wheels may result in property damage or serious injury.
Page 64: Manual Ramp Door
Section 4: Vehicle Operation Inspect all ramp door components each trip for wear or damage. Contact your RV dealer for a service appointment if repairs are needed. Automated Ramp Door (if so equipped) Your RV may be equipped with an automated ramp door. Follow all precautions and warn- ings listed previously for the manual ramp door.
Page 65: Cargo Ramp Door Capacity
Section 4: Vehicle Operation The cables used to hold the ramp door in the patio configura- tion MUST be removed from the door when not in use. The cables are stored in a toolbox, which is inside the garage area recessed into the floor. If the cables are not removed when the door is closed, they will interfere with the door latch mechanism preventing the door from closing and pos- sibly damaging the mechanism...
Page 66: Weight Distribution
Section 4: Vehicle Operation These guidelines must be followed when loading the cargo area: DO NOT EXCEED YOUR GVWR! This means you should weigh your RV as loaded for your normal travel to determine the actual weight. If you exceed the GVWR, you MUST remove items from the RV, or drain liquids, then re-weigh the vehicle to ensure you have achieved a safe weight.
Page 67: Air Vents
Section 4: Vehicle Operation Load all vehicles/equipment evenly from side to side in the cargo bay. Secure all vehicles/items to prevent load shifts during transit. After loading, weigh the trailer at the hitch, each axle, and each wheel. Observe all trailer gross, axle, and tire ratings.
Page 68: Manual Ramp Door
Section 4: Vehicle Operation Unlatch and swing the Tailgater Kitchen (if equipped) (attached to the rear of the RV) out of the way to lower the rear ramp door. (Refer to the Tailgater Kitchen section) Manual Ramp Door Patio support cables are attached to the ramp door and door jamb. The door is made to close with the support cables attached.
Page 69: Retractable Screen Wall (If So Equipped)
Section 4: Vehicle Operation When returning the cargo door to the stowed po- sition, be sure all safety pins used to secure the rails during transit are in place and secure with the safety clip in place. Failure to do so could result in damage to the rail and door.
Page 70: Patio Deck - Side (If So Equipped)
Section 4: Vehicle Operation Patio Deck – Side (if so equipped) Caution should be taken not to exceed patio capacity, and to maintain even weight distribu- tion. Maximum capacity is 10 people 1800 lbs. (816 Kg) and an evenly distrib- uted load when in the patio position.
Page 71: Awnings (If So Equipped)
Section 4: Vehicle Operation off the gap between the railing and the door jamb (Fig 8). Before returning the patio deck to the stored position, the rails must be lifted up to release them from the locking slots in the mounting brackets, and then they can be laid down on the deck.
Page 72: Operating The Awning(S)
Section 4: Vehicle Operation Electric Patio Awning With Remote Control NOTE: The electric awning requires connection to a 120-volt power source**. Make sure you have sufficient power available before operating your awning (refer Electrical Systems, Calculating electrical load). **Certain awnings (Reatta, Reatta XL & Embark) require a 12VDC power source.
Page 73 Section 4: Vehicle Operation NOTE: If your RV is equipped with a touch screen control system, the awning controls may be found on the touch screen. Programming the Single Channel Remote (if so equipped) Press the UP and DOWN buttons simultaneously until the motor jogs.
Page 74 Section 4: Vehicle Operation Notes:...
Page 75: Section 5: Slideout Systems
Section 5: Slideout Systems Electric Slide Room(s) (if so equipped) The mechanical components of the slide out are gear driven. Electric powered slideout room systems have a manual override to allow you to extend or retract the slideout room(s) in case of a power loss.
Page 76: General Slideout Troubleshooting Checklist
Section 5: Slideout Systems To retract the slideout, press the in section of the slideout control switch and hold it until the slideout is fully retracted. Operating the switch after the room is fully extended or retracted may damage the switch and motor.
Page 77: Schwintek In-Wall Slideout System
Section 5: Slideout Systems NOTE: For long-term storage it is recommend the room be closed (retracted). Trouble shooting the flush floor slideout Refer to the general troubleshooting check list before proceeding. Electric Operation NOTE: Install transit bars (if so equipped) on the slideout room during storage and transportation.
Page 78 Section 5: Slideout Systems The in-wall slideout system requires no maintenance or adjustments. This system has two vertical columns with a drive motor located at the top of each column. The right and left motors are synchronized by a circuit board.Schwintek slideouts are typically used on both towables and motorhomes.
Page 79 Section 5: Slideout Systems This slideout system requires very little maintenance. It contains a pre-lubed bearing that is lubricated when the room is moved in and out. Do not spray oil or grease on the rails while the room is extended. Trouble shooting the in-wall slideout system Checking Fuses: The in-wall slide requires a minimum 30-amp fuse.
Page 80 Section 5: Slideout Systems The red and green LED’s will flash indicating you are in override mode. Release the mode button. Using either a wall or command center panel switch, press and hold the switch toward the word IN or RETRACT until the unit comes in completely. This will allow you to get the recreation vehicle to a service center to have the slideout malfunction diag- nosed.
Page 81: Norco Slideout System
Section 5: Slideout Systems Repeat this process for both sides of the slide room. Physically push/ pull the room back into the opening; keep both sides relatively even. The room must be travel locked to keep the room in place for road travel. DO NOT MOVE THE RV UNLESS THE MOTORS ARE PLUGGED IN TO THE CONTROLLER AND THERE IS BATTERY POWER TO THE RV.
Page 82: Power Gear Slideout System
Section 5: Slideout Systems Norco Slideout Manual Operation Locate the included flexible shaft in your own- er’s packet. Attach flexible shaft to the 1/4” hex fitting on the end of the motor. Attach 1/4” socket & ratchet, or drill to the other end, and turn in the proper direction to move the room.
Page 83 Section 5: Slideout Systems If the room does not move when the switch is pressed, check the following: Make sure the slideout system is turned on. Battery is fully charged and connected. Transit bars have been removed (if so equipped). When the motor brake is disengaged the slideout room WILL NOT lock into place and will not be sealed.
Page 84: Power Gear Slim Rack Slideout System
Section 5: Slideout Systems The room is now free to move. Using either a 5/8” or 3/4” wrench or socket, crank the room either in or out completely. If the slideout system is supplied with a gearbox override (optional), use the crank handle to move the room.
Page 85 Section 5: Slideout Systems Turn ON the on/off switch or key. Press and hold the OUT button (Fig 4). To retract, press and hold the IN button. There will be a slight delay be- fore the room begins moving. The GREEN LED should be solid ON when room is in motion.
Page 86 Section 5: Slideout Systems -Check all connections at control box and motor. -Bad or loose connec- Excessive -Check the harness for bro- tion Major Battery Volt- ken wires. -Defective harness -Put 12.0 VDC direct to -Open or shorted motor the motor. If it does not run replace the motor.
Page 87 Section 5: Slideout Systems NOTE: After overriding the system, the room control will need to be re- programmed by an OEM authorized dealer. Emergency Retract Mode Use this procedure when there is NO loss of power or electrical problem with the system. Remove the touchpad (Fig 4) from the wall.
Page 88 Section 5: Slideout Systems Repeat steps 1-4 for the other side. Place a socket wrench with a 3-inch extension and a 5/8” deep well socket (Fig 12) through the motor access opening and seat the socket onto the coupler (Fig 13). One person alternating from side to side of the room can retract a 1500 lb.
Page 89: Power Gear Ram Slideout System
Section 5: Slideout Systems Power Gear Ram Slideout System Typically used for Class C motorhomes. Manual Override Procedure The system has been equipped with 3/4” hex override couplers located on the drive compo- nent of the system. Due to the size and weight of some rooms, assistance may be needed to push the room in.
Page 90 Section 5: Slideout Systems 12. Return the brake release lever back to the “engaged” position (parallel to the spring lock lever). Pressing the bent end of the spring lock lever will allow the brake le- ver to be moved. 13. Plug the motor connector back in again. 14.
Page 91: Section 6: Electrical System
Section 6: Electrical System The Electrical System The RV electrical system is comprised of two independent electrical systems. One operates off of 12-volt DC power and the other off of 120-volt 60hz AC power. All installations have been made in compliance with industry standards applicable on the date of manufacture. Because the electrical equipment and associated circuitry are engineered into a dedicated system specific to your RV, do not make unauthorized changes or add fixed appliances to it.
Page 92: Command Center
Section 6: Electrical System Command Center The command center is typically located inside the entrance door or in the living area of the RV, and contains switches and controls for various electrical functions. Command center applications, con- figurations and components will vary by model. Command Center Panel or Command Center Panel with Switch Modules Items found on these panels may include:...
Page 93: Gfci Receptacle
Section 6: Electrical System GFCI Receptacle There is a ground fault current interrupter (GFCI) engineered into the electrical system. It is designed to reduce the possible injury caused by electric shock. The GFCI will not protect against short circuits or circuit overloads. Test all GFCI receptacles monthly: Push in the GFCI “TEST”...
Page 94: Bmpro Rvmaster System (If So Equipped)
Section 6: Electrical System NOTE:Switches that are turned on with the LCI One Control App or the LCI One Control touchscreen, override switches at the command center panel on the wall. If you were to turn on a device with the app or the touch- screen and then the touchscreen or the app were to fail for some reason;...
Page 95 Section 6: Electrical System ○ Interior and Exterior Lights ○ RV Slide-out Rooms ○ Power Awnings ○ Generator ○ TV and Bed Lifts ○ HVAC thermostat ○ Gas and Electric water heaters ○ Fresh Water, Black water, Gray water tank levels ○...
Page 96 Section 6: Electrical System To replace the remote on the wall bracket: ○ Hook the top of the remote back on the top of the wall bracket. ○ Push the bottom of the remote back in place. You will again hear an audible snap as it attaches to the mount.
Page 97 Section 6: Electrical System Menu Display (between arrow buttons) use the arrow keys to scroll through the following selections: Menu Display shows A1 or A2 (awnings) Cycle between awnings with the arrows. Press and hold EXT or RET to extend or retract the ○...
Page 98 Section 6: Electrical System Pairing a smart device to the RVMaster app Download and install the BMPro RVMaster app from Google Play Store or the Apple App Store. When you start the app it will tell you to press the Menu Display arrow keys until the small display shows PA.
Page 99 Section 6: Electrical System Rotating the tires: TPMS sensors – DO NOT MOVE WITH THE TIRES! • The TPMS sensor on the front tire (on either side of the trailer) STAYS at • the front tire position when rotating tires. The TPMS sensor on the middle tire (on either side of a 3 axle trailer) •...
Page 100 Section 6: Electrical System Installing tire sensors Tire sensors come already paired to the RVMaster system from the factory. Sensors come on a card (F) that shows where each sensor should be installed on the RV. The top of the card represents the “hitch” end of the RV. Top left sensor would install on the front driver side tire.
Page 101: Testing The Campsite Power Connection
Section 6: Electrical System ○ When a motor is in operation, motor control is disabled on any other device run- ning the RVMaster app. Climate Screen Shows the thermostat to control heating and cooling in the RV, and fan speed Lights Screen Turn lights on and off along with ability to dim certain lighting with sliders.
Page 102 Section 6: Electrical System Connecting the Power Cord Do not hook up the power cord to any receptacle until you have verified proper polarity and grounding. DO NOT plug the shore power cord into a campsite receptacle(s): That has reverse polarity With non-functioning ground circuits That shows outward signs of heat damage.
Page 103: Inverter (If So Equipped)
Section 6: Electrical System The shore power cord should be unplugged when the recreation vehicle is left unattended When you are ready to leave, reverse the power cord connection process. Use care to pre- vent damaging the power cord electrical connection pins when connecting or disconnecting the shore power cord.
Page 104: Power Converter
Section 6: Electrical System STATUS LED FLASHES AMBER, DISPLAY LED IS OFF - If the unit is in Inverter • Mode, and you plug in shore power, the STATUS LED will begin flashing AMBER and the unit will switch to Bypass Mode within 20 seconds of detecting an AC input. If the STATUS LED is RED and DISPLAY LED is OFF, the display will show an error •...
Page 105: Converter With Charge Wizard (If So Equipped)
Section 6: Electrical System It is important that the fluid level of any connected batteries be checked on a regular basis. All batteries will “gas” and lose some fluid when continuously connected to any charging source (does not apply to “gel-cell” batteries). Before checking for converter output voltage, the battery cables must be disconnected at the battery.
Page 106: 12-Volt Dc System
Section 6: Electrical System BOOST MODE: Green LED is on solid. Output voltage is 14.4VDC to rapidly charge the battery up to 90% of full charge. STORAGE MODE: Green LED flashes every 6-8 sec- onds. Output voltage has been reduced to 13.2VDC; the RV battery is fully charged and converter is maintaining the charge.
Page 107: 12-Volt Dc Outlet
Section 6: Electrical System The fuse panel label should be kept permanently affixed to your recreation vehicle. Fuses will not offer complete protection of the electrical system in the event of a power surge or spike. 12-Volt DC Outlet There may be one or more 12-volt DC power outlets in your recreation vehicle. When the 12-volt DC outlet is used as a power source for an electric appliance, make sure the appli- ance operates on 12-volt DC power and that it consumes less than 60 watts (5 amps) of power.
Page 108: Battery Disconnect Switches
Section 6: Electrical System (12.0 + 3.0) 15.0 amps per hour. This does not include any 12-volt lights, or any other 12- volt component. If the furnace and refrigerator in this example operated constantly, a 75 amp-hour battery would become fully discharged in 5 hours. The auxiliary battery should be installed in parallel with the battery in your tow vehicle.
Page 109: Load Center
Section 6: Electrical System Load Center The Load Center contains 12VDC fuses and 120VAC circuit breakers for almost all of the electrical appliances and circuits in the RV. The 120V main breaker may be located in this panel and will turn off all 120-volt power to the RV. Locations will vary by model. Refer to the diagram inside the load center for specific fuse assignments.
Page 110: Approximate Electrical Load Ratings
Section 6: Electrical System Replacement circuit breakers must be of the same voltage, amperage rating and type. Never use a higher rated replacement circuit breaker; doing so may cause a fire by overheating the RV wiring. Maintenance At the beginning of the camping season, inspect the circuit breakers and replace as needed. Test by turning each circuit breaker “off”...
Page 111: 120-Volt 50 Amp Ac Electric System (If So Equipped)
Section 6: Electrical System 120 VOLT SYSTEM Air Conditioner 18 AMPS Coffee Maker 6-12 AMPS Converter (each) 8 AMPS DVD System 3 AMPS Fireplace 15 AMPS Hair Dryer or Curling Iron 10-14 AMPS Microwave 15 AMPS Refrigerator 6 AMPS Satellite Receiver 2 AMPS 2-4 AMPS Vacuum Cleaner...
Page 112: Generator
Section 6: Electrical System 50 amp Power Cord Do not hook up the power cord to any receptacle until you have verified proper polarity and grounding. Polarity indicators can be purchased in most electrical and hardware stores. Do not use any cheater plug, adapter or extension cord to reconfigure incoming AC power or break the continuity of the circuit connected to the grounding pin.
Page 113 Section 6: Electrical System Before Starting the Generator Make sure the carbon monoxide detector is working. Turn “off” air conditioners and all other appliances. Check for fuel, exhaust and coolant leaks. STOP the generator immediately if there is a fuel, exhaust or coolant leak and have it repaired! CARBON MONOXIDE IS DEADLY! Do not run the generator when your RV is indoors or in a confined space.
Page 114: Solar Prep (If So Equipped)
Section 6: Electrical System For better performance and engine life, especially in colder weather, let the generator engine warm up for two minutes before turning “on” 120-volt appliances. Maintenance With the exception of simple items such as normal maintenance (i.e., oil changes, etc.), all service work should be done by a repair facility authorized by the generator OEM.
Page 115: Replacing Light Bulbs
Section 6: Electrical System Replacing Light Bulbs Before replacing a bulb, be sure the light is off. Replacement light bulbs must be of the type, voltage and wattage listed on the lamp fixture. Use of incorrectly sized bulbs can overload lamp circuits and may create a fire hazard by overheating the fixture.
Page 116 Section 6: Electrical System Notes:...
Page 117: Section 7: Fuel & Propane System
Section 7: Fuel & Propane System Using the Fuel Station (if so equipped) Automotive Fuel Safety Your recreational vehicle may be equipped with a single factory-installed fuel tank that sup- plies fuel to the optional fuel station and/or optional generator. It is critical to understand the danger associated with fuel.
Page 118: Fuel Filler Cap
Section 7: Fuel & Propane System Fuel Filler Cap Remove the fuel filler cap by slowly turning it counterclockwise and waiting for any “hiss” noise to stop. Then unscrew the cap all the way. To close the fuel filler cap, securely turn the cap clockwise until you hear clicking sounds. If you need to replace the fuel tank filler cap, use only a cap specified for your fuel station.
Page 119: Fuel Station (If So Equipped)
Section 7: Fuel & Propane System Fuel selection The factory-installed fuel tank must be filled with the fuel type recommended by the genera- tor manufacturer (if so equipped) or with the fuel type recommended by your aftermarket vehicle and/or equipment manufacturer (if no generator is installed). The fuel tanks are specifically made for unleaded gasoline.
Page 120: To Dispense Fuel
Section 7: Fuel & Propane System NOTE: Both the inside fuel pump switch and the master/ emergency disconnect switch must be turned on to dispense fuel. NOTE: When the fueling station is not in use, the fuel pump switch and the master/emergency disconnect switch should both be turned “OFF”.
Page 121: Fuel Gauge
Section 7: Fuel & Propane System minutes have elapsed (pressing this switch two times turns off the timer and the pump). Outside the vehicle, insert the fuel nozzle into the receiving tank and squeeze the nozzle handle to dispense the fuel. Make sure the grounding clip is attached to the compo- nent or vehicle being fueled.
Page 122: Propane Gas System
Section 7: Fuel & Propane System To avoid breathing exhaust gases, follow these precautions: Always shut OFF the tow vehicle engine, generator engine (if applicable), etc., while refueling. Do not run the tow vehicle engine, generator engine (if applicable), etc., in con- fined areas, such as a closed garage, any longer than needed to move your RV in or out of the area.
Page 123: Propane Gas Container
Section 7: Fuel & Propane System Propane Gas Container DOT propane cylinders must be transported and stored in an up- right position so the pressure relief device will function properly. Laying a DOT propane cylinder on its side may potentially create a very dangerous situation.
Page 124: Servicing Or Filling
Section 7: Fuel & Propane System NOTE: Tanks are to be installed, fueled and maintained in accor- dance to State and Local codes, rules, regulations or laws. Propane is a true gas compressed into a liquid form. As the fuel is released from the con- tainer, it changes to vapor which is then used for the op- eration of the appliances.
Page 125: Maintenance
Section 7: Fuel & Propane System The propane piping system is designed for use with propane only. Do not connect natural gas to this system. This label should be kept permanently affixed to your RV. Refer to your Warranty Packet for more information on the LP gas system components.
Page 126: Propane Regulator
Section 7: Fuel & Propane System Propane Regulator Propane regulators must always be installed with the regulator vent facing downward. Regulators that are not located in baggage compartments have been equipped with a protective cover. Make sure the regulator vent faces downward and (if applicable) the cover is in place to minimize vent blockage that could result in excessive gas pressure causing fire or explosion.
Page 127: Using The Propane System
Section 7: Fuel & Propane System Propane Leak Test Leaks may be found easily with a soapy water solution. Do not use a solution containing ammonia or chlorine when locating leaks. These products are corrosive to copper gas lines and brass fittings, which could result in deterioration of the copper and brass components. Apply the soapy solution to the outside of the gas piping fittings.
Page 128: Calculating Propane Gas Usage
Section 7: Fuel & Propane System It is especially important that cooking appli- ances not be used for comfort heating, as the danger of asphyxiation is greater when the appliance is used for long periods of time. FAILURE TO COMPLY MAY RESULT IN DEATH OR SERIOUS INJURY.
Page 129: Traveling With Propane
Section 7: Fuel & Propane System Traveling With Propane NOTE: Some states prohibit propane appliances to be operated during travel, especially in underground tunnels. Know the laws for the areas where you travel. Use care when fueling your motor fuel tanks and/or propane containers.
Page 130: Main Supply Hose
Section 7: Fuel & Propane System Place the second cylinder on the A-frame bracket so the cylinder valve is pointed to the roadside of the recreation vehicle. Secure the second cylinder to the A-frame using the bolts, nuts and washers provided. Attach the second 24”...
Page 131: Section 8: Plumbing System
Section 8: Plumbing System Plumbing System There are two different water systems in your recreation vehicle: The fresh water system consists of the fresh water holding tank, faucets and con- nections, water pump, outside shower assembly (if so equipped), water heater, tub/ shower, and water purification system (if so equipped).
Page 132: Command Center
Section 8: Plumbing System Operation Press only one tact switch at a time. As you push either the FRESH, BLK GREY1 or GREY2 switch, one or more LED lights will illuminate (from left to right) indicating the content level for that tank. When pushing the “BATT” switch, the LED lights illuminate from left (lowest) to right (highest) to indicate the estimated auxiliary battery condi- tion.
Page 133: Fresh Water System
Section 8: Plumbing System NOTE: This light will not appear on touchscreens, RV remote controls or on a WiFi app, it will only appear on the Command Center switch panel. Fresh Water System All water contains contaminant and mineral particles that can cause fresh water system odors.
Page 134: Water Purification System (If So Equipped)
Section 8: Plumbing System 12-volt Water Pump and Switch There must be sufficient 12-volt DC power to run the water pump when your recreation vehicle is not hooked up to city water. Once activated, the water pump (also known as the demand pump) will self-prime, and provide water.
Page 135: Draining The Fresh Water System
Section 8: Plumbing System Remove the O-ring from the groove in the housing and wipe clean. Coat with petro- leum jelly. Replace the O-ring in the groove, making sure it is properly seated. Install the new filter cartridge. Replace the canister housing (hand tighten is normally sufficient). 10.
Page 136: Utility Center - 2 Valves (6 In 1)
Section 8: Plumbing System Open the “low point drains” by turning, then pulling the handles up. They are installed at the lowest point of the water lines. A la- bel is placed on the outside of the RV to indicate where the drains are located.
Page 137 Section 8: Plumbing System Never leave the recreation vehicle unattended while filling the fresh water system. Water running continuously while the RV is unattended can result in major water damage to RV which will not be covered under your warranty. WATCH YOUR MONITOR PANEL –...
Page 138 Section 8: Plumbing System Turn the appropriate (12-volt gas or 120-volt electric) water heater control switch ON. The water heater must be full of water before turning it ON. To verify water heater is full, open hot water faucets, turn pump ON, and when water comes out in a steady stream the water heater should be full.
Page 139 Section 8: Plumbing System White valve should be pointing toward the pump as shown. Black valve should be pointing toward the clear suction hose. Place the clear hose into a container of sanitizer solution (or antifreeze if winterizing). Turn the pump ON, and sanitizer or antifreeze will be drawn out of the container and into the water lines.
Page 140: Sanitizing The Plumbing System
Section 8: Plumbing System Operation: Normal Mode operation allows water to flow into the water heater. Hot water bypass valve handle (B) should point toward the water heater. Cold water bypass valve (A) should point toward the water heater. Bypass Mode operation diverts the flow of water around the water heater keeping water out of the water heater.
Page 141 Section 8: Plumbing System NOTE: Fresh water tank sizes vary by model; contact your dealer or Customer Service for your specific tank size. Put the sanitizer solution in the fresh water tank. Place the end of the clear plastic tub- ing (found inside the basement access panel or at the water pump) into a container of chlorine solution.
Page 142 Section 8: Plumbing System NOTE: To thoroughly sanitize the fresh water tank, the unit should be driven around for a short while allowing the solution to splash the sides and top of the tank. 15. After sanitizing, drain the chlorine solution from the fresh water system. See Draining the Fresh Water System.
Page 143: Winterizing (With Utility Center)
Section 8: Plumbing System Drain the system again, but do not drain the water heater. Water heater bypass valves should be set to BYPASS mode. Do not remove water heater drain plug. Close low point drains and fresh water tank drain. Low point drains for hot and cold water lines are located inside the basement access cover.
Page 144: Air Pressure Method
Section 8: Plumbing System NOTE: The water heater must be drained to prevent damage from freez- ing. It is recommended the water heater be drained and bypassed during the winterization process particularly if introducing RV antifreeze into the plumbing system. Do not drain the water heater while it is hot or under pressure! Antifreeze should be kept out of the water heater.
Page 145: Winterizing With Antifreeze Method
Section 8: Plumbing System RV water filter should be removed for winterizing. Refer to Water Purification System section. Your RV may have one of two types of filters: Full System Canister Filter (if so equipped): On full system canister water filters, remove the canister, take out the filter, and reattach the empty canister.
Page 146 Section 8: Plumbing System Automotive antifreeze (ethylene glycol) and windshield washer antifreeze (methanol) are poisonous. Never use these products in your fresh water sys- tem. These products are harmful and may be fatal if swallowed. NOTE: Antifreeze should never enter the hot water heater or the water filter.
Page 147: Nautilus P2.5 Uni-Dock Utility Center
Section 8: Plumbing System (Be sure to have a container available for capturing system fluid.) Turn the macerator pump ON. Run the pump until antifreeze begins to discharge from the dump connector on the end of the flexible hose. Turn the macerator pump OFF. Drain the hose by holding it at a sloped angle to remove excess water, return hose to the stored location.
Page 148 Section 8: Plumbing System Use the pump to siphon fill or sanitize the fresh water tank from a bucket Connect to city water at the camp site to supply water to RV fixtures Winterize the plumbing lines and fixtures Bypass the hot water heater when winterizing to avoid damage to the water heater Rinse the black tank to help control odors and prevent waste buildup Connect up to (3) coax lines with SAT, CABLE and AUX SAT input is wired only to the wall plate for the satellite receiver.
Page 149 Section 8: Plumbing System “POWER FILL TANK” (Pressurized fresh water source) Connect the fresh water hose to the City water connection inlet on the utility center. Set the color coded valves to POWER FILL TANK setting: Green handle pointing left Blue handle pointing down Water heater bypass lever - NORMAL Connect the other end of the hose to a pressurized fresh water source...
Page 150 Section 8: Plumbing System To disconnect: Turn off water at the pressurized source first, disconnect hose from the water source, (to release pressure off the system) then disconnect the hose at the city water con- nection on utility center last. “SANITIZE”...
Page 151 Section 8: Plumbing System Prepare a chlorine solution using 1/4 cup of household bleach (sodium hypochlorite solution) to one gallon (3.785 liters) of water in a container. Prepare one gallon of solution for every 15 gallons of tank capacity. This will result in a residual chlorine concentration of 50 ppm in the water system.
Page 152 Section 8: Plumbing System 12. Set the valves to the DRY CAMPING setting. Green valve points down Blue valve points to the right Water Heater Bypass valve is still set to BYPASS. 13. Turn the water pump ON and sanitized water will flow into the water lines from the water tank (when a fixture is opened).
Page 153 Section 8: Plumbing System Run water through all faucets (hot and cold, including outside shower and outside kitchen) until chlorine smell is gone. Turn all faucets and outside shower off, turn pump OFF. Drain the fresh water system again. If the RV has the full system canister water filter, remove the canister, reinstall the filter, and reattach the canister.
Page 154: Winterizing The Plumbing System
Section 8: Plumbing System Open faucets and check that the chlorine smell is gone. 10. Drain the system one more time. 11. Replace the water filter: Canister filter: Turn off water valves at the canister filter. Remove canister lid, put filter back into canister, and replace the canister lid.
Page 155: Winterize With Air Pressure
Section 8: Plumbing System If the recreation vehicle is going to be stored in a non-temperature controlled environment with a risk of temperatures reaching 32°F (0°C) or lower, the plumbing system must be winterized with RV antifreeze. Repairs due to freez- ing are not covered under the terms of the Towable Limited Warranty.
Page 156: Winterize The Black Tank Flush
Section 8: Plumbing System Cartridge Water Filter: Remove the cartridge filter and replace it with a bypass hose (supplied with your RV). NOTE: Filters should be replaced at the beginning of the camping season or if they have been exposed to contaminated water, sanitizer or antifreeze. Turn the (color) valve handles to the TANK FILL position.
Page 157: Draining The Spray Port (If So Equipped)
Section 8: Plumbing System NOTE: If the RV has a macerator system, you need to open the bypass valve for the macerator under the RV. This will allow the black tank to drain through the 4” sewer hose. Attach a garden hose to the TANK FLUSH inlet at the utility center. Attach the other end of the hose to a pressurized water source.
Page 158 Section 8: Plumbing System Level the RV and drain the fresh water plumbing system. Refer to Draining the Fresh Water System. Water heater should be empty after draining the plumbing system. The drain plug must be removed from the water heater (Fig 1). Water heater bypass valve should be set to NORMAL.
Page 159 Section 8: Plumbing System Water can accumulate in the flexible hose and dump connector of the macera- tor system. When winterizing the RV, antifreeze must be added to the macera- tor system. Winterize the Macerator system (if so equipped) Ensure all waste tanks are empty. Pour RV antifreeze into the toilet and down into the black water tank.
Page 160: Water Heater
Section 8: Plumbing System Water Heater The water heater manufacturer has preset the sensing limit to maintain the water temperature when the water heater is activated. Hydrogen gas may result if you have not used the water heater for two weeks or more.
Page 161: High Altitude Deration
Section 8: Plumbing System High altitude deration Operation of the water heater at high altitudes may require derating. If the water heater is not properly derated, lack of sufficient oxygen for combustion may produce improper burner operation. Pilot outage caused by burner lift-off or sooting from a yellow burner may occur, indicating the possibility of carbon monoxide.
Page 162 Section 8: Plumbing System Notes:...
Page 163: Black Tank Flush (If So Equipped)
Section 8: Plumbing System Black Tank Flush (if so equipped) The black tank flush (no fuss flush) inlet is typically located on the utility center panel labeled as “Tank Flush”. The location may vary depending on your model. Attach a garden hose (con- nected to a pressurized fresh water source) to the black tank flush inlet.
Page 164: Tank Heaters (If So Equipped)
Section 8: Plumbing System Tank Heaters (if so equipped) Your recreation vehicle may be equipped with heaters for the fresh, gray, black water tanks and the water lines or drain lines. The larger tank heaters are 120VAC and attach directly to the tanks.
Page 165: Faucets
Section 8: Plumbing System If dry camping, be sure the 12-volt water pump is ON. Remove the handheld shower from its holder. Turn ON the hot and cold faucet knobs, and adjust the water temperature as desired. To activate the handheld shower turn ON the sprayer head attachment (some models). To turn off the water always close the hot/cold control (faucet) knobs.
Page 166: Black/Grey Water System And Tanks
Section 8: Plumbing System water to clean. Do not use gritty or abrasive particle soaps or scouring compound to clean ABS plastic. Avoid using “Citrus” or biodegradable cleaners which contain “D-Limonene”. They will damage plastic materials. Contact your dealer for repair or replacement. Black/Grey Water System and Tanks Water from the sinks and shower flows into the gray water (or wastewater) holding tank.
Page 167: Black And Grey Tank Drains
Section 8: Plumbing System ratings and/or the RV GAWR or RV GVWR. Potential damage to suspension components, such as springs, tires and axles, could result. If you are dry camping and cannot immediately empty your holding tanks, reduce your vehicle speed until you reach a dumping station. When connected to the sewer drain line at a campground, keep the black tank drain valve closed until the holding tank is at least ¾...
Page 168: Toilet (If So Equipped)
Section 8: Plumbing System Close the sewer hose housing dust cap. You can locate dump stations throughout the United States and Canada in Woodall’s, Rand McNally Camp Guide, Good Sam Camp Guide, KOA Kampgrounds Camp Guide and vari- ous other publications. Some fuel stations also have dump stations.Please contact your RV dealer for assistance in the purchase and installation of a sewer hose or sewer hose extension (if needed).
Page 169 Section 8: Plumbing System If there is not a sufficient amount of water used during flushing, the waste materials may not evacuate properly from the drain line to the tank. Clogged tanks and pipes could eventu- ally occur. For added convenience and better sanitation system performance, it is advisable to always have four to six inches (10 - 15 cm) of water in the toilet.
Page 170 Section 8: Plumbing System Notes:...
Page 171: Section 9: Heating & Cooling
Section 9: Heating & Cooling Air Conditioner The air conditioning system is controlled by a thermostat. Cooled air enters the RV through the grill. Make sure you have sufficient power available before operating the air conditioner. Do not operate the air conditioner without the return air filter. Operating the system without the filter allows the lint and dirt that is normally stopped by the filter to accumulate on the cooling coil of the air conditioner.
Page 172: Furnace
Section 9: Heating & Cooling NOTE: For RV models with touch screens, the powered roof vent(s) may be controlled on one of the selectable screens on the touch screen. Furnace The furnace installed in your recreation vehicle is controlled by a 12-volt DC thermostat. Depending on your model, there may be up to two thermostats enabling you to control the temperature to your comfort level.
Page 173: Section 10: Appliances
Section 10: Appliances Microwave To prevent damage, remove the turntable from the microwave when trav- eling. Make sure you are connected to a 120-volt power source. Never use the microwave cavity for storage. The microwave cavity should always be empty when not in use. For details on operation, cleaning and safety information, refer to the manufacturer’s user guide.
Page 174: Cooktops, Range And Oven (If So Equipped)
Section 10: Appliances Cooking With Propane (if so equipped) See the Propane System Section for important safety instructions. Refer to the manufactur- er’s owner’s manual for detailed operating and safety instructions for all propane appliances. Cooktops, Range and Oven (if so equipped) For detailed operating and safety information, refer to the manufacturer’s user guide.
Page 175: Range Hood (If So Equipped)
Section 10: Appliances Do not use aluminum foil on the electric range cooktop, as this material will damage the cooktop surface if it melts. Do not use aluminum foil under any circumstances on the electric range cooktop. Gas Drop-In Cooktops (if so equipped) Depending on your model, it may be equipped with either a 2 burner or 3 burner cooktop.
Page 176: Refrigerator
Section 10: Appliances Whenever the stove in the RV is being used: The range hood MUST be turned on, and the inner flap MUST be unsnapped and free to move. Failure to do so can create an asphyxiation hazard by restricting air flow to this vent. Refrigerator The refrigerator is not intended for quick freezing or cooling.
Page 177 Section 10: Appliances Converter output (12VDC) is not intended for normal operation of the 3-way refrigerator. When the camping trailer is parked and the power cord is plugged in, set the 3-way refrigerator to “AC power.” The “DC mode” is to be used only when traveling and will pull power from the auxiliary battery charge line (if so equipped).
Page 178: Water Heater - See Plumbing Section
Section 10: Appliances IMPORTANT: Do not allow the Stainless Steel Cleaner and Polish to come into con- tact with any plastic parts such as the trim pieces, dispenser covers or door gaskets. If unintentional contact does occur, clean plastic part with a sponge and mild detergent in warm water.
Page 179: Exterior Refrigerator
Section 10: Appliances NOTE: Outdoor cooking warning label should not be removed from the RV. Exterior Refrigerator Your recreational vehicle may be equipped with an exterior refrigerator in the front storage compartment, or in the outside kitchen (if so equipped). For information on use and safety, refer to the manufacturer’s user guide.
Page 180 Section 10: Appliances The grill requires proper ventilation. It is designed for RV outdoor use only. NEVER put lava rocks or charcoal or anything else on or under the grate. Grill is designed so it does not require those items. Serious injury or property damage can occur by placing foreign objects on the grate.
Page 181: Section 11: Electronics
Section 11: Electronics Winegard Air 360 Plus System (if so equipped) The Winegard Air 360 Plus system is a fixed omnidi- rectional TV/FM antenna, plus Wi-Fi, and 4G extender. The antenna enclosure is 8 inches high and 17 inches in diameter.
Page 182: Opening The Router Box
Section 11: Electronics This router box, can receive a cellular data connection (through the use of a SIM card sup- plied by your cellular provider or through Winegard). The Winegard SIM card comes pre- installed in the ceiling router box. A second antenna in the rooftop enclosure will also pick up any wireless Wi-Fi signals in the immediate area and distribute those signals through the ceiling mounted Winegard Gateway router box.
Page 183 Section 11: Electronics Replace the box back in the ceiling mounting plate and slide it towards the plastic lever and it should lock in place without pressing the tab. Bluetooth control: NOTE: You MUST turn the power switch (Fig 3) ON or there will be no cellular or Wi-Fi signals from the 4GLTE/Wi-Fi router box.
Page 184 Section 11: Electronics Winegard has two free apps that can be downloaded for Android or IPhone to help locate TV and Satellite signals: TV Signal Finder and HD Tower Finder. These apps will help you determine HDTV tower lo- cations and satellite dish pointing coordinates. It uses the device camera to help set the angle on your satel- lite dish or show you a graphic representation of the TV towers located in your area.
Page 185: Section 12: Interior
Section 12: Interior Cleaning The Interior To keep the value of your recreation vehicle, perform regular maintenance using the proper materials and procedures. Using the wrong cleaner may result in damage to the surfaces in your vehicle. Check with the manufacturer’s information for the recommended cleaning agent.
Page 186 Section 12: Interior Fill a spray bottle with water and a tiny amount of soap. Then spray a lint-free towel with the mixture and use the towel to wipe down each slat. While cleaning, try not to bend the slats. They can also be soaked in a bathtub to loosen up any debris so the slats can be wiped down easily.
Page 187: Sleeper Sofa And Dinette
Section 12: Interior NOTE: Oil based soaps and cleaners are not recommended. No abrasive cleaners or alcohol cleansers should be used. If other cleaner solutions are used, first try on a spot in an inconspicuous area. Sleeper Sofa and Dinette The sofa(s) in your recreation vehicle are designed to offer both ample seating and additional sleeping capacity.
Page 188: Pantry Or Hutch (If So Equipped)
Section 12: Interior Booth Dinette (if so equipped) The dinette is designed to seat up to four adults. Depending on your model, there may be a storage area in the dinette bench. To access this storage, remove all the cushions and lift up on the bottom seat support.
Page 189: Countertops
Section 12: Interior Countertops To prevent permanent damage Always use hot pads or trivets under hot pans, dishes, or heat producing appli- ances. Use a cutting board to prevent unnecessary damage to the countertops. Do not cut directly on the solid surface countertop. Avoid harsh chemicals such as drain cleaners, oven cleaners, etc.
Page 190: Bed Storage
Section 12: Interior To care for the vinyl floor covering, use a damp mop with water and a mild cleaner on the entire floor. DO NOT SOAK THE FLOORING. Use care to avoid wetting the carpet edges. To avoid problems of “yellowing” linoleum, the flooring manufacturer recommends avoid- ing cleaners that contain oil based solvents (i.e.
Page 191: Gas Struts (If So Equipped)
Section 12: Interior Gas Struts (if so equipped) On certain models, the bed platform may be equipped with gas struts to assist with easy ac- cess to storage area. Grasp the end ledge at the foot of the bed and lift carefully. Two gas struts will hold the bed platform open allowing access to the storage area.
Page 192: Bed Operation
Section 12: Interior Allow anyone to ride or occupy the bed(s) while the RV is in motion. ALWAYS: Exercise care when loading cargo/vehicles in the cargo area to avoid damage to the bed mechanism. Secure loads properly in the cargo area to avoid damage to the bed mechanism from shifting or falling loads.
Page 193: Loft Sleeping Area (If So Equipped)
Section 12: Interior tinues lowering until it also reaches an adjustable stop. When raising the beds, the bottom bed will rise until it meets the upper bed, then both will rise to the highest point. The upper bunk can be stowed in the travel position at the ceiling while allowing the sofa seats to adjust to a usable height.
Page 194 Section 12: Interior Exercise extreme care when climbing up or down the ladder (either steel or wood) used for entering or exiting the loft bed. Closet door MUST be securely closed and latched before using the lad- der. Make sure the ladder is securely in place prior to climbing to or from the loft.
Page 195: Section 13: Exterior
Section 13: Exterior Cleaning The Exterior To protect your recreation vehicle’s exterior finish, wash it often and thoroughly. For recreation vehicles with painted exterior graphics, if desired you may wash and wax your vehicle 60 days after purchase. The exterior paint needs time to cure before any wax is applied to the exterior surface.
Page 196 Pour warm water on the gasket to melt the ice. Wipe off the water thor- oughly after opening the slideout or door. To prevent the weather stripping from freezing, treat it with a silicone spray.
Page 197: Frame
Section 13: Exterior Damaged paint To prevent corrosion, touch up small cracks and scratches in the paint coat as soon as pos- sible with touch-up film or paint. Carefully check the body areas facing the road and the tires for damage to the paint coat caused by flying stones, etc. Use the closest automotive paint (available locally) match possible when touch-up paint is needed.
Page 198: Windows
Section 13: Exterior Windows Any ventilating window may permit water inside, especially during heavy rainstorms. Con- densation will also cause water to accumulate on windows and in the tracks. The window “glass” can normally be cleaned with a sponge and water. Use glass cleaner to remove wax, oil, grease, dead insects, etc.
Page 199: Sealants
Section 13: Exterior LADDER CAPACITY MAXIMUM 300 lbs. (136 kg) DO NOT exceed the ladder maximum weight rating. The maximum rating includes the person's weight PLUS weight of items carried. When climbing: • Always face the ladder. • Climb slowly with weight centered between side rails. •...
Page 200: Toy Hauler - Sealant Diagram
Section 13: Exterior If you notice water inside the recreation vehicle, immediately have the dealer check for the source of the leak. Failure to correct the leak may result in serious damage to your recreation vehicle, and this damage may not be warrantable. If you have questions and/or need assistance with sealing your recreation vehicle, consult with your recreation vehicle dealer.
Page 201: Section 14: Travel/Camping/Storage Checklists
Section 14: Travel/Camping/Storage Checklists Travel Checklist Following is a preliminary list of items that need to be checked before leaving your home or campsite. This is a general list, which you may want to customize as you determine your own needs. Safety Make sure you follow all safety precautions noted in this owner’s manual and in any manufacturer’s operators manual when preparing to travel.
Page 202: Rv Storage
Section 14: Travel/Camping/Storage Checklists Before leaving the campsite Check the area under the RV after overnight parking and look for water or other fluid leaks. If leaks are detected, find the cause and correct it immediately. Turn off propane tanks. Empty black and gray holding tanks, rinse as needed (if so equipped).
Page 203 Section 14: Travel/Camping/Storage Checklists Close the propane cylinder valve(s). We recommend using a propane cylinder cover, and to make sure the propane regulator is covered. If is equipped with a gas/ electric DSI range, light a range gas burner to consume any gas remaining in the lines.
Page 204 Section 14: Travel/Camping/Storage Checklists Notes:...
Page 205: Section 15: Additional Information
Section 15: Additional Information Featured Components Quick Reference Chart Your recreation vehicle may be equipped with some of the items listed below. This is a partial listing and it is not intended to cover all components. All information is the latest available at the time of publication.
Page 206 Section 15: Additional Information Thermostat Coleman Mach www.airxcel.com/coleman-mach Toilet Thetford Corp. www.thetford.com See manufacturers’ user guide Winegard Company www.winegard.com TV Antenna King Jack www.kingconnect.com Water Heater, Tank DSI Atwood Greenbrier www.atwoodmobile.com Girard Systems www.greenrvproducts.com Water Heater, Tankless Truma AquaGo www.truma.com Water Pump, 12V Shurflo East www.shurflo.com...
Page 207: Vehicle Maintenance Record
Section 15: Additional Information Vehicle Maintenance Record Make: Model: Model Year: Vehicle Serial#: Service Performed Mileage Work Performed Notes Date...
Page 208: Ownership Notification
Section 15: Additional Information Jayco Ownership Notification Fax Form To: (800) 825-7876 ATTENTION! Federal record keeping laws require that we maintain a file of owners of our product. Your cooperation in filling out this from will be appreciated. □ □ Change of Owner Transfer of Limited Warranty (If Applicable - see limited...
Page 209 Section 15: Additional Information Notes:...

THOR Jayco TALON 2021 Owner's Manual

General Slideout Troubleshooting Checklist

Fuel Tank(S) (if so Equipped)

Quick Links

Troubleshooting

Need help?

Questions and answers

Related Manuals for THOR Jayco TALON 2021

Summary of Contents for THOR Jayco TALON 2021

Table of Contents
