Alemite 7345 Service Manual

Description

High-capacity reel models 7345 and 7346 are
designed to handle high volume air, water, fuel and
petroleum in service truck and stationary applications.

Operation

Each model reel is spring-powered and self-
retracting. When the hose is extended, the reel can be
latched on either of two ratchet sections per revolution
of the sheave. A pull releases the latch from the ratchet
and allows the hose to retract onto the reel.
WARNING
Do not exceed the lowest pressure rat-
ing of any component in the system.
Never point a control valve at any portion of
your body or another person. Lubricant dis-
charged at high velocity can penetrate the skin
and cause severe injury. Should any fluid appear
to puncture the skin, get medical care immedi-
ately.
Ensure all components are in operable condi-
tion. Replace any suspect parts prior to opera-
tion. Personal injury can occur.
Hold the delivery hose securely until the reel is
securely latched or fully retracted. Uncontrolled
retraction can result in personal injury.
Reel Delivery Hose
Model Description
7345 1 1/4 " ID x 1 3/4" OD
7346 1 1/2 " ID x 2" OD
Table 1 Delivery Hose Capacity
This document contains confidential information that is the property of Alemite LLC
670971
and is not to be copied, used, or disclosed to others without express written permission.
Service Guide
High-Capacity Reel
Maximum Length
of Hose
50 ft 15 m
Alemite LLC
167 Roweland Drive, Johnson City, Tennessee 37601
www.alemite.com
©
Copyright 2009 by Alemite LLC
Inlet
Reel Model
(Swivel)
7345 1 1/4 " NPTF (f)
1 1/2 " NPTF (f)
with 2" Victaulic
7346 1 1/2 " NPTF (f)

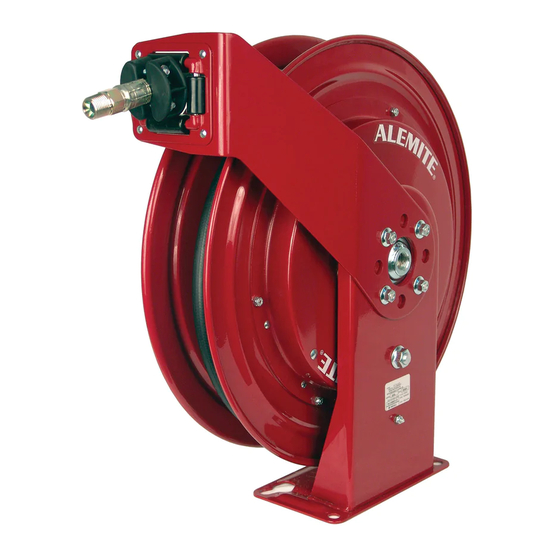

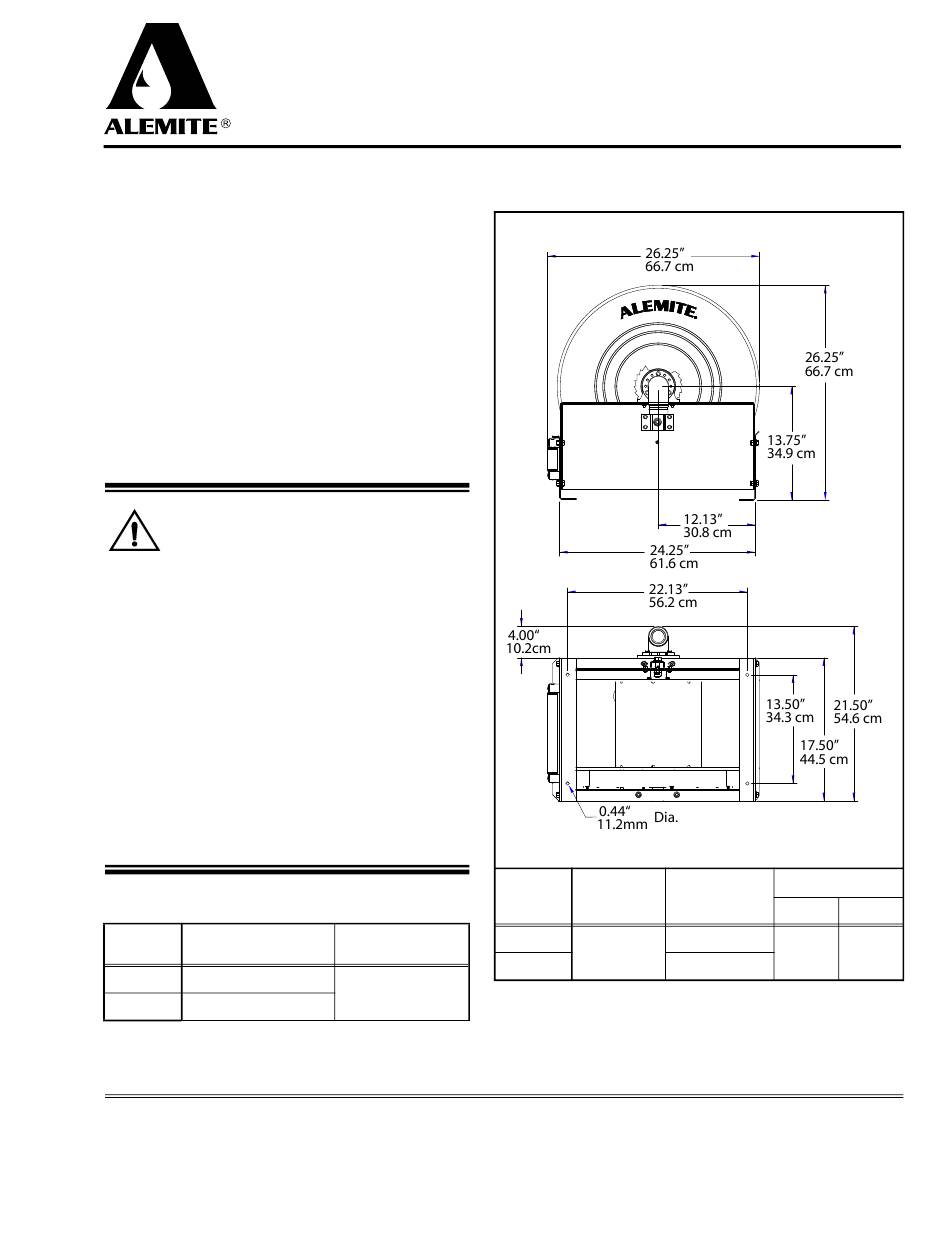

Figure 1 High-Capacity Reel Models 7345 and 7346
7345
7346
Reel Max. Pressure
Outlet
psi Bars
300 35
SER 7345
Revision (10-12)
