Alemite 7342 Service Manual

High-capacity reel
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Description
WARNING
Should reel model 7342 be used to deliver
gasoline or aircraft fuel, the:
• delivery and connecting hose must contain a
grounding wire
• entire fuel delivery system must be properly
grounded
This prevents the build-up of static electricity.
Personal injury can occur due to fire and/or explo-
sion.
NOTE: The reel is grounded at the swivel
with a wave washer. See Figure 2.
High-capacity hose reel model 7342 is designed to:
• deliver fuel (such as diesel fuel, aircraft fuel, and
gasoline) and lubricating oils.
• mount to a lubrication truck or to a ceiling* or wall.
This reel mounts as a single unit or in banks of as
many as required. See Figure 4 for details.
NOTE: The Hose Guide Arms can attach to the
Base Assembly in five (5) different positions.
This model reel is spring-powered and self-retracting.
When the hose is extended, the reel can be latched on
either of two ratchet sections per revolution of the sheave.
A pull releases the latch from the ratchet and allows the
hose to retract onto the reel.
This model reel manages a maximum length of
delivery hose as indicated in Table 1.
Delivery Hose Description
3/4 "ID Single-Wire Braid
1 "ID Single-Wire Braid
1 "ID Fuel
Table 1 Delivery Hose Capacity for Reel Model 7342
This document contains confidential information that is the property of Alemite LLC
670784
and is not to be copied, used, or disclosed to others without express written permission.
Service Guide
High-Capacity Reel
Maximum Length of Hose in Feet
70
50
Alemite LLC
167 Roweland Drive, Johnson City, Tennessee 37601
www.alemite.com
Copyright
Inlet (Swivel)
1 " NPTF (f)
1 " NPSM (f) *
* A bushing (included) allows the outlet to be reduced to 3/4 " NPTF (f)

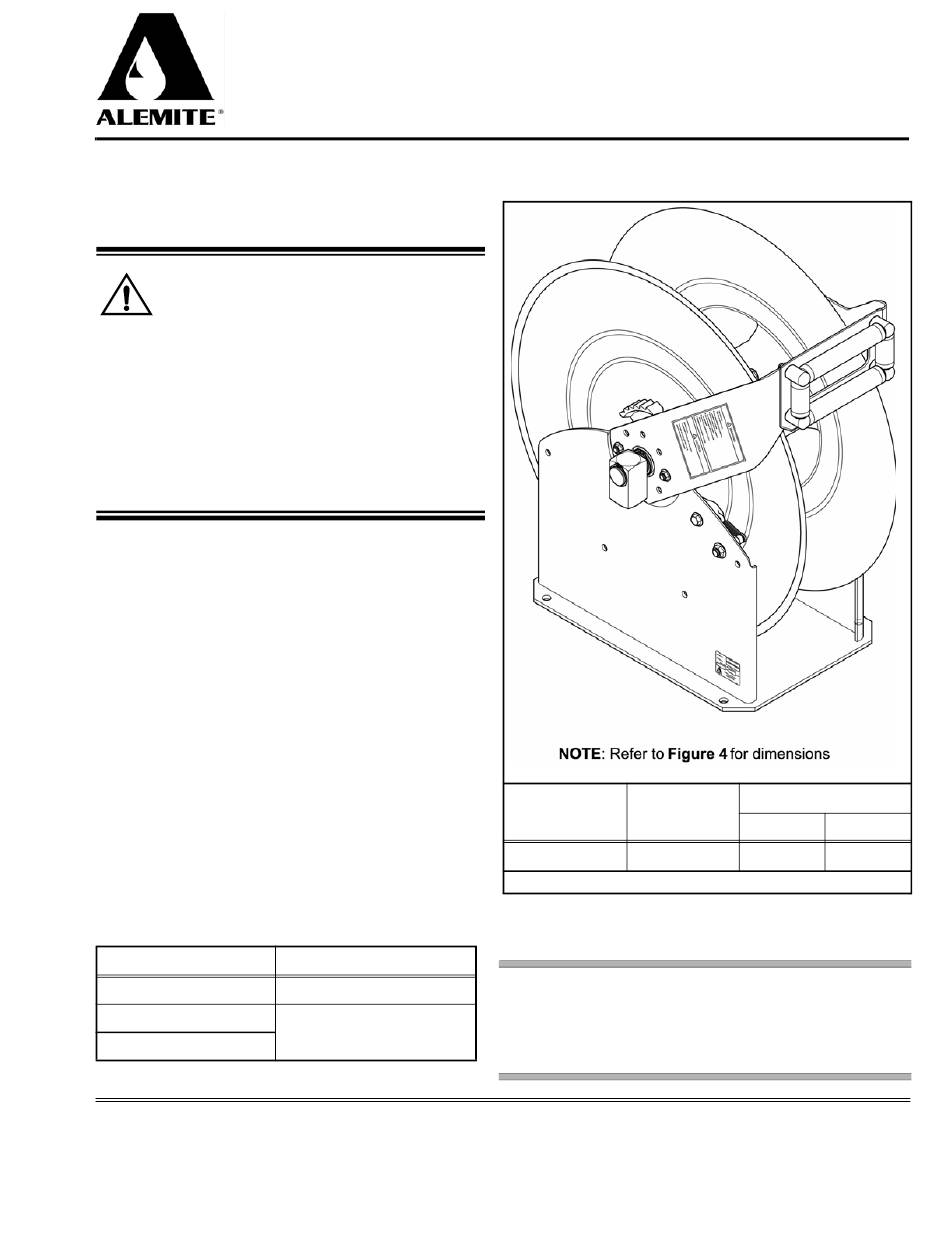

Figure 1 High-Capacity Reel Model 7342
* The base of the reel must be at a height no greater
than 16 feet (4.9 m) from the floor to comply with the
warranty.
©
2010 by Alemite LLC
Reel Max. Pressure
Outlet
psi
1000
CAUTION
SER 7342
Revision (10-13)
7342
Bars
69

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7342 and is the answer not in the manual?

Questions and answers

Related Manuals for Alemite 7342

Summary of Contents for Alemite 7342

  • Page 1 167 Roweland Drive, Johnson City, Tennessee 37601 www.alemite.com © Copyright 2010 by Alemite LLC SER 7342 This document contains confidential information that is the property of Alemite LLC 670784 Revision (10-13) and is not to be copied, used, or disclosed to others without express written permission.
  • Page 2 SER 7342 High-Capacity Reel Figure 2 High-Capacity Reel Model 7342 - Exploded View Revision (10-13) Alemite LLC...
  • Page 3 High-Capacity Reel SER 7342 Item Numeric Order Part No. Description Notes Part # (Item #) Nut, Flange 5/16 " -18 14534 Sheave Assembly 50876 339464 Shaft and Flange Assembly (21) 171000-5 339521 Key, Square 171007-32 (37) Screw, 5/16 " -18 x 3/4 "...
  • Page 4 SER 7342 High-Capacity Reel IMPORTANT: Prior to performing any main- Hose Guide Assembly tenance procedure, the following safety pre- 7. Remove Nuts (12) that secure Post and Shaft cautions must be observed. Personal injury Assemblies (17) and (18) to Hose Guide Plate (16).

  • Page 5: Base Assembly

    High-Capacity Reel SER 7342 18. Remove Square Key (4) from the Shaft and Flange 27. Remove Screw (31) that secures the Pawl and Shaft Assembly. Assembly to the Base Assembly. • Remove the Pawl and Shaft Assembly from the 19. Remove Nuts (1) that secure Bearing Housings (26) to Base Assembly.
  • Page 6 SER 7342 High-Capacity Reel 3. Install Extension Spring (23) into the eye on the Pawl 16. Tighten the Nuts on the opposite Bearing alternately and onto Spring Post (22). and evenly. 4. Secure the Spring Post to the Base Assembly with 17.
  • Page 7 34. Tighten the Long Arm Nuts, the Short Arm Screws, and the 38. Check to ensure the Swivel Body moves freely. hose guide assembly Nuts securely. Figure 3 High-Capacity Reel Model 7342 - Section View (w/o Reducing Bushing) Alemite LLC Revision (10-13)

  • Page 8: Bench Test

    SER 7342 High-Capacity Reel Reel Mount Bench Test While facing the Ratchet, turn the reel in a clockwise HINT: Should the reel mount to the ceiling or a wall, it may be advantageous to lessen direction and allow the Ratchet to latch the Pawl.
  • Page 9 High-Capacity Reel SER 7342 Figure 4 Space Required for Banked Reels (with Bolt Pattern Dimensions) Delivery Hose Attachment Once the Sheave Assembly is secure: 8. Install the delivery hose through the guide assembly. 7. Screw the delivery hose (with thread sealant) into Bushing (7) [if used] as required.
  • Page 10 SER 7342 High-Capacity Reel Checking Spring Tension 10. Install U-Bolt (10) onto the delivery hose and to the Sheave Assembly. 18. Check to ensure the tension on the power spring 11. Install Washers (9) and Wing Nuts (8) onto the U-Bolt.
  • Page 11 High-Capacity Reel SER 7342 Reel Operation Latch Lockout Over-Rotation of the Reel WARNING IMPORTANT: Do not extend the hose from the reel too rapidly. Too much velocity (when Do not exceed the lowest pressure rating the hose is fully extended) can cause the reel of any component in the system.

  • Page 12: Troubleshooting Chart

    High-Capacity Reel Reel Packages Hose reel model 7342 is included in the reel packages listed below. IMPORTANT: The Power Spring tension is preset at the factory for most installations. Once the reel pack- age is installed and the system is pressurized, refer to the section entitled Checking Spring Tension.
