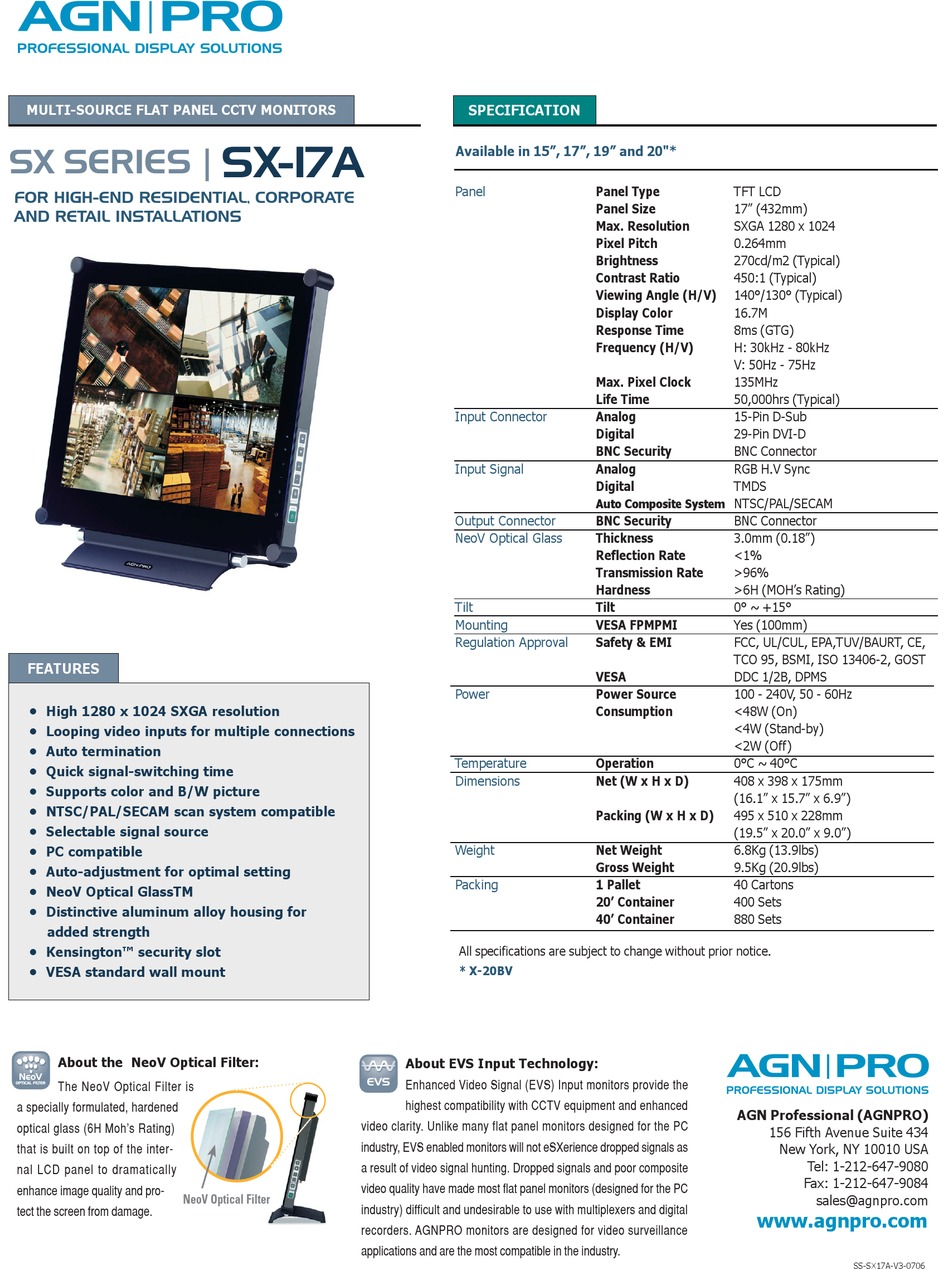

Agnpro SX-17A Specifications

PROFESSIONAL DISPLAY SOLUTIONS
MULTI-SOURCE FLAT PANEL CCTV MONITORS
SX SERIES |
FOR HIGH-END RESIDENTIAL, CORPORATE
www.agnpro.com
AND RETAIL INSTALLATIONS
FEATURES
• High 1280 x 1024 SXGA resolution
• Looping video inputs for multiple connections
• Auto termination
• Quick signal-switching time
• Supports color and B/W picture
• NTSC/PAL/SECAM scan system compatible
• Selectable signal source
• PC compatible
• Auto-adjustment for optimal setting
• NeoV Optical GlassTM
• Distinctive aluminum alloy housing for
added strength
• Kensington™ security slot
• VESA standard wall mount
About the NeoV Optical Filter:
NeoV
The NeoV Optical Filter is
OPTICAL FILTER
a specially formulated, hardened
optical glass (6H Moh's Rating)
that is built on top of the inter-
nal LCD panel to dramatically
enhance image quality and pro-
NeoV Optical Filter
tect the screen from damage.
SX-17A
EVS
video clarity. Unlike many flat panel monitors designed for the PC
industry, EVS enabled monitors will not eSXerience dropped signals as
a result of video signal hunting. Dropped signals and poor composite
video quality have made most flat panel monitors (designed for the PC
industry) difficult and undesirable to use with multiplexers and digital
recorders. AGNPRO monitors are designed for video surveillance
applications and are the most compatible in the industry.
SPECIFICATION
Available in 15", 17", 19" and 20"*
Panel
Input Connector
Input Signal
Output Connector
NeoV Optical Glass
Tilt
Mounting
Regulation Approval
Power
Temperature
Dimensions
Weight
Packing
All specifications are subject to change without prior notice.
* X-20BV
About EVS Input Technology:
Enhanced Video Signal (EVS) Input monitors provide the
highest compatibility with CCTV equipment and enhanced
Panel Type TFT LCD
Panel Size 17" (432mm)
Max. Resolution SXGA 1280 x 1024
Pixel Pitch 0.264mm
Brightness 270cd/m2 (Typical)
Contrast Ratio 450:1 (Typical)
Viewing Angle (H/V) 140°/130° (Typical)
Display Color 16.7M
Response Time 8ms (GTG)
Frequency (H/V) H: 30kHz - 80kHz
V: 50Hz - 75Hz
Max. Pixel Clock 135MHz
Life Time 50,000hrs (Typical)
Analog 15-Pin D-Sub
Digital 29-Pin DVI-D
BNC Security BNC Connector
Analog RGB H.V Sync
Digital TMDS
NTSC/PAL/SECAM
Auto Composite System
BNC Security BNC Connector
Thickness 3.0mm (0.18")
Reflection Rate <1%
Transmission Rate >96%
Hardness >6H (MOH's Rating)
Tilt 0° ~ +15°
VESA FPMPMI Yes (100mm)
Safety & EMI FCC, UL/CUL, EPA,TUV/BAURT, CE,
TCO 95, BSMI, ISO 13406-2, GOST
VESA DDC 1/2B, DPMS
Power Source 100 - 240V, 50 - 60Hz
Consumption <48W (On)
<4W (Stand-by)
<2W (Off)
Operation 0°C ~ 40°C
Net (W x H x D) 408 x 398 x 175mm
(16.1" x 15.7" x 6.9")
Packing (W x H x D) 495 x 510 x 228mm
(19.5" x 20.0" x 9.0")
Net Weight 6.8Kg (13.9lbs)
Gross Weight 9.5Kg (20.9lbs)
1 Pallet 40 Cartons
20' Container 400 Sets
40' Container 880 Sets
