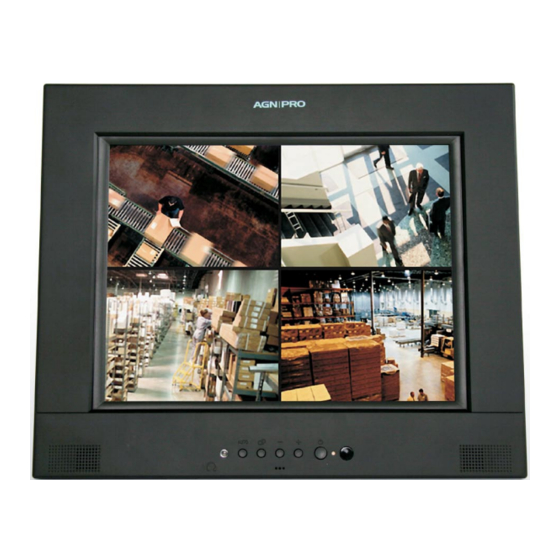

Agnpro EP-14AV Specifications

PROFESSIONAL DISPLAY SOLUTIONS
FLAT PANEL SECURITY MONITOR FOR CCTV
EP SERIES |
THE AFFORDABLE ALTERNATIVE TO CRT
www.agnpro.com
FEATURES
• 14" TFT LCD (equivalent to 15" CRT in viewable area)
• Composite / S-Video / VGA Inputs
• Resolution: XGA 1024x768
• Contrast Ratio: 200:1 (typical)
• Vesa Standard Mounting
• Security Industry Compatibility
Designed to work with Multiplexers
°
and Digital Recorders
• EVS Input Technology
° Enhanced video output and stable signal
• Wall or Arm Mount Available
EP14AV
SPECIFICATION
EP Series: Available in 14", 15", 17" and 19" TFT LCD
Panel Panel Type
Max. Resolution
Pixel Pitch
Contrast Ratio
Brightness
Display Colors
Response Time
Wide Viewing Angle
Inputs Input Type
Video Standard
Connectors Composite
S-Video
VGA
Digital (DVI-D)
EVS Input Technology Enabled
Protective Glass NeoV Optical Filter
Special Features
Tilt Angle
Mounting VESA FPMPMI
Regulation Safety & EMI
Approval
Power Power Source
Consumption
Dimensions Net (W X H X D)
Packing (W X H X D)
Weight Net Weight
Gross Weight
All specifications are subject to change without prior notice.
About EVS Input Technology:
EVS
Enhanced Video Signal (EVS) Input monitors provide the highest compatibility with CCTV
equipment and enhanced video clarity. Unlike many flat panel monitors designed for the PC
industry, EVS enabled monitors will not experience dropped signals as a result of video signal hunting.
Dropped signals and poor composite video quality have made most flat panel monitors (designed for the
PC industry) difficult and undesirable to use with multiplexers and digital recorders. AGNPRO monitors
are designed for video surveillance applications and are the most compatible in the industry.
14" TFT LCD
XGA 1024 x 768
0.279mm
200:1 (typical)
200 cd/m2 (typical)
262,144
45 ms total
120°H / 110°V
Composite / S-Video / VGA
NTSC/PAL
RCA Jack In
BNC adaptor included
4-Pin Mini Din
15-Pin D-Sub
N/A
Yes
N/A
Picture Frame Stand
0°-45°
Yes (100mm)
FCC, UL/C-UL, TUV/GS,
CE, TCO '99, EnergyStar
100 - 245 Volts, 50 - 60Hz
< 48W (On)
< 5W (Off)
15 .5" x 13" x 2.75"
18.75" x 18" x 10"
11.8 lbs (5.36kg)
13.6 lbs (6.2kg)
PROFESSIONAL DISPLAY SOLUTIONS
AGN Professional (AGNPRO)
156 Fifth Avenue Suite 434
New York, NY 10010 USA
Tel: 1-212-647-9080
Fax: 1-212-647-9084
sales@agnpro.com
www.agnpro.com
SS-EP14AV-V12-0706
