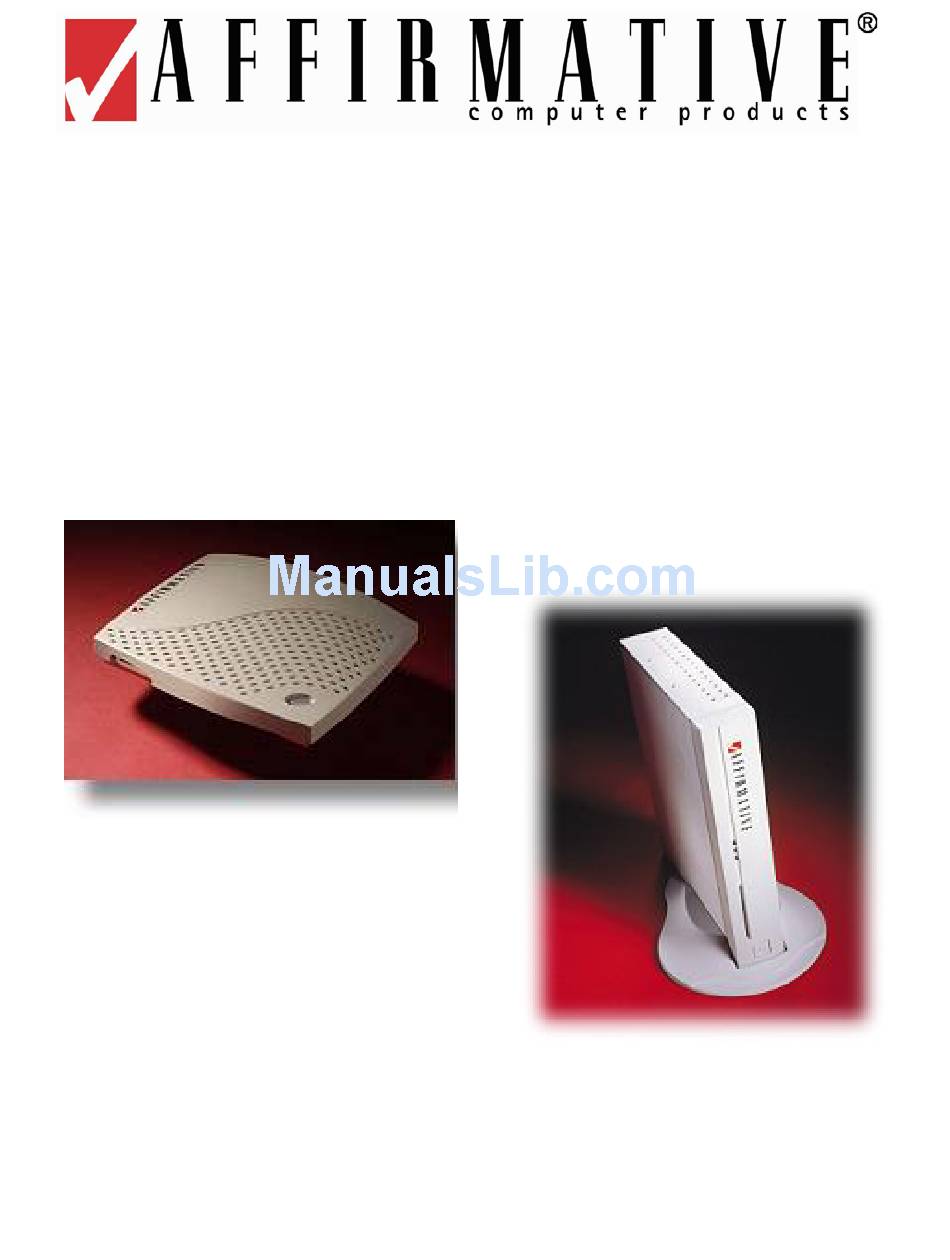

Page 1 YEStation User's Guide for Windows-Based Terminals Models 22xx and 2613P with CE.net 4.2 22xx 2613P Copyright 2004 Affirmative Computer Products ® May 2004...
Page 3: General Terms And Conditions
SOFTWARE DEFECTS WILL BE CORRECTED. In the event that a Software Product fails to comply with the warranty set forth above, Affirmative Computer Products will replace the product. End User must, however, return all copies of the Software, along with proof of purchase, to Affirmative Computer Products within 90 days from the Software purchase date.
Page 4: Copyright And Trademarks
Note: Information in this document is subject to change without notice. Trademarks Notice • ® YEStation  i s a registered trademark of Affirmative Computer Products • YESterm/IP™ is a trademark of Affirmative Computer Products • ® Microsoft is a registered trademark of Microsoft ®...
Page 5: End User License Agreement (Eula)
End User License Agreement (EULA) EULA for Microsoft Windows CE Operating System for Windows-based Terminal Devices Version 1.5. IMPORTANT! READ CAREFULLY This End User License Agreement (EULA) is a legal agreement between you (either an individual or a single entity) and the manufacturer (MANUFACTURER) of the special purpose computing device (SYSTEM) you acquired which includes certain Microsoft software product(s) installed on the SYSTEM and/or included in the SYSTEM package (SOFTWARE).
Page 6 following special provisions apply. In order to use the SYSTEM in connection with Windows NT Server, Terminal Server Edition, you must possess (1) a Client Access License for Windows NT Server, Terminal Server Edition and (2) an end user license for Windows NT Workstation or an end user license agreement for Windows NT Workstation for Windows-Based Terminal Devices (please refer to the end user license agreement for Windows NT Server, Terminal Server Edition for additional information).
Page 7 Authenticity), and the recipient agrees to the terms of this EULA. If the SOFTWARE is an upgrade, any transfer must include all prior versions of the SOFTWARE. • Termination Without prejudice to any other rights, MANUFACTURER or MS may terminate this EULA if you fail to comply with the terms and conditions of this EULA.
Page 8 than Canada, or to any person or entity subject to U.S. export restrictions without first obtaining a Commerce Department export license. You warrant and represent that neither the BXA nor any other U.S. federal agency has suspended, revoked, or denied your export privileges. 7.
Page 9 If you acquired this EULA in Canada, this EULA is governed by the laws of the Province of Ontario, Canada. Each of the parties hereto irrevocably attorns to the jurisdiction of the courts of the Province of Ontario and further agrees to commence any litigation which may arise hereunder in the courts located in the Judicial District of York, Province of Ontario.
Page 10 This Page Intentionally Left Blank.
Page 11: Table Of Contents
Table of Contents Installing Your Terminal...1 22xx... 1 Mounting... 1 Cabling... 2 Power On and Boot Up... 3 Multi-user Login... 4 Power Off... 4 2613P ... 4 Mounting... 4 Cabling... 6 Power On and Boot Up... 6 Multi-user Login... 7 Power Off...
Page 12 Advanced ... 29 Control Panel... 30 Date/Time ... 31 Date/Time... 31 SNTP ... 31 Desktop Style... 32 Display... 32 Display... 33 Background ... 33 Edgeport... 34 FTP Update... 34 ICA Settings... 35 Hotkeys... 35 Preferences ... 36 Server Location ... 37 Firewall Settings...
Page 13 Connection... 62 New ... 62 Options... 62 Info... 63 Keys... 63 YESwireless Settings... 63 Status ... 63 Configuration... 64 Encryption ... 65 About ... 65 Connection Manager...67 Configure ... 68 Add ... 68 Edit... 68 Delete... 69 Startup... 69 Failover ... 69 Connections...
Page 14 Microsoft Internet Explorer... 91 Microsoft Remote Desktop Client ... 92 PMail (WBT Shell) ... 94 PPPoE... 94 Terminal Emulation (2212 only)... 96 Virtual Private Network ... 97 VNC Viewer ... 98 YESterm IP Emulators (2213 and 2613P models)... 99 Display Connections... 100 Setup...
Page 15: Installing Your Terminal
• DO NOT USE any AC-DC adapter other than the one provided with the terminal or acquired from Affirmative Computer Products or its distributors 22xx Mounting The 22xx terminal can be placed horizontally on a flat surface, or it can be mounted vertically on a wall. A self- adhesive template and four #3, ½-inch wood screws are included with every terminal.
Page 16: Cabling
User Guide for Model 22xx/2613P with CE.net 4.2—Installing Your Terminal Another possibility is shown here. We have done some testing with the provided screws, and have the following suggestions: • In soft wood, such as pine, no pilot holes are needed. •...
Page 17: Power On And Boot Up
2. The translucent Power button will change from faint orange to light green. 3. You will see the message Starting System. Please Wait … on a black screen. 4. After several seconds, you will see the Affirmative Computer Products logo screen with the message Loading at the bottom.
Page 18: Multi-User Login
User Guide for Model 22xx/2613P with CE.net 4.2—Installing Your Terminal Multi-user Login Newer firmware allows the terminal to be configured for multiple users (see Properties|Control Panel|Security|Enable Multiuser at step 6.b.i above, is: If Auto Login is not enabled, you will see a login dialog box asking for User Name and Password. a) Enter a user name and password.
Page 19 User Guide for Model 22xx/2613P with CE.net 4.2—Installing Your Terminal Mounting the 2613P on a desk or a wall Mounting the 2613P under a table...
Page 20: Cabling
1. Turn on the terminal after all cable connections have been made. 2. The Power and Network Connection lights should come on immediately. 3. After several seconds, you will see the Affirmative Computer Products logo screen with the message Loading at the bottom.
Page 21: Multi-User Login
User Guide for Model 22xx/2613P with CE.net 4.2—Installing Your Terminal Multi-user Login Newer firmware allows the terminal to be configured for multiple users (see Properties|Control Panel|Security|Enable Multiuser at step 5.b.i above, is: If Auto Login is not enabled, you will see a login dialog box asking for User Name and Password. a) Enter a user name and password.
Page 22 User Guide for Model 22xx/2613P with CE.net 4.2—Installing Your Terminal This Page Intentionally Left Blank.
Page 23: Wbt Setup Wizard
WBT Setup Wizard The WBT Setup Wizard is used for the terminal initial setup. The wizard runs when: • A terminal is first booted up after being received from the factory. • A terminal is reset to factory defaults and then rebooted. •...
Page 24 User Guide for Model 22xx/2613P with CE.net 4.2—WBT Setup Wizard Welcome Screen 1EULA Dialog Box Please read the license agreement carefully before you click on Accept.
Page 25 • Select Yes to use the IP address information supplied by the DHCP server. Then the next screen will be the Name Servers dialog box. • Select No to use static IP address information Then the next screen will be the Specify an IP Address dialog box.
Page 26 User Guide for Model 22xx/2613P with CE.net 4.2—WBT Setup Wizard • For identification purposes by network management software, we recommend that you enter a unique name in the Terminal Name field. If you do not see this dialog box, because you are not specifying an IP address, you can enter a terminal name later in Control Panel>System.
Page 27 User Guide for Model 22xx/2613P with CE.net 4.2—WBT Setup Wizard Desktop Area/Refresh Freq. Dialog Box We recommend that you do not change the display parameters here. If you enter a setting that your monitor cannot support, you will be faced with an unusable screen when you reboot the terminal. Instead, complete your journey through the Wizard, and then go to Control Panel>Display.
Page 28 LPT1 and Network options. Note: The default printer type for the LPT1 port is Extended Capabilities (ECP). If your printer requires a different type, the terminal BIOS setting must be changed. Contact Affirmative Computer Products Technical Support for information. •...
Page 29 • Select the printer model. If your model is not shown here, try to find a compatible printer in the list. It may be that your printer is compatible with a model from a different manufacturer. If that is the case, go back, change the manufacturer selection, and then choose the compatible model from that drop-down list.
Page 30 User Guide for Model 22xx/2613P with CE.net 4.2—WBT Setup Wizard You are given the opportunity to begin the configuration of another printer. If you select Yes, you will repeat the dialog boxes 6a-6e for that printer. If you select No, you will go on to the Finish dialog box. •...
Page 31: Display Styles
User Guide for Model 22xx/2613P with CE.net 4.2—Display Styles Display Styles You can choose one of three display styles (see Configure Terminal Properties|Control Panel|Desktop Styles) to be used during configuration and terminal operation. NOTE: In the remainder of this document, a reference to the Ctrl key actually means the LeftCtrl key, a reference to the Alt key actually means the LeftAlt key, and a reference to a click actually means a mouse left click.
Page 32: Desktop Properties
User Guide for Model 22xx/2613P with CE.net 4.2—Configure Terminal Properties Desktop Properties A limited set of Desktop properties are accessed by right-clicking anywhere on the Desktop. Desktop Right-Click Menu Click on Properties to see the Display dialog box. Display Dialog Box This dialog box is identical to the box opened from Control Panel>Display.
Page 33: Task Manager
User Guide for Model 22xx/2613P with CE.net 4.2—Display Styles Task Manager Select Task Manager to open the Task Manager dialog box. Task Manager Dialog Box In this box, you will see a list of all active tasks (sessions, utilities, etc.) You can maximize or end a task from this box.
Page 34: Show Desktop
User Guide for Model 22xx/2613P with CE.net 4.2—Configure Terminal Properties Screen Keyboards Menu Select either of the two keyboards shown here. Keyboard Large KB These images show the keyboard layouts, but the Large KB is actually much bigger than shown here. Show Desktop Show Desktop Icon A single click on this icon will minimize the current session or utility and display the Desktop.
Page 35: Network Status
Network Status A double-click on this icon opens the Network Status box, applicable for both wired and wireless network connections. Note: If you are using a wireless connection, this box must be open or a session must be active in order to ping into the terminal or to enable eProManager remote management.
Page 36: Thinprint Client
User Guide for Model 22xx/2613P with CE.net 4.2—Configure Terminal Properties ThinPrint Client You will see this icon only if the ThinPrint Client is enabled in Control Panel>ThinPrint. This box is identical to the box opened from the ThinPrint icon in Control Panel. See Properties|Control Panel|ThinPrint for an explanation of this box.
Page 37: Connection Manager
Taskbar and Start Menu Properties Dialog Box Make your choices here. If you check both Auto hide and Always on top, Auto hide will override. Note: The Advanced properties are not supported. Connection Manager Connection Manager is identical in both the Desktop and WBT styles, except for access to Control Panel and Shutdown control.
Page 38: Wbt (Windows Based Terminal) Shell
Power switch on the front panel. WBT (Windows Based Terminal) Shell The Windows Based Terminal display style presents the kind of screens that you normally see in Affirmative Computer Products YEStations that use older versions of Windows CE or CE.net operating systems.
Page 39: Navigation
Connection Manager Screen in WBT Style To open Connection Manager in WBT style, use one of the following methods: • This is the default screen at bootup, unless you have Autostart sessions. • Press Ctrl+Alt+End at any time. Navigation • To access Control Panel, press F2 while in Connection Manager.
Page 40: Kiosk Style
User Guide for Model 22xx/2613P with CE.net 4.2—Configure Terminal Properties • To activate non-Autostart connections: o In Connection Manager>Connect, highlight the connection name and click on Connect. o In Connection Manager>Connect, double-click on the connection name. • To close a YESterm IP session: o Go to the Sign On screen, open the File menu, and activate Close All (display session only) or Close.
Page 41: Configure Terminal Properties
User Guide for Model 22xx/2613P with CE.net 4.2—Configure Terminal Properties Configure Terminal Properties All of your terminal properties (not to be confused with connection properties) are accessible from Start>Settings in Desktop style. You will see the following menu. Settings Menu Control Panel is also accessible in the WBT and Kiosk modes, but Network Connections can only be accessed here.
Page 42: File
User Guide for Model 22xx/2613P with CE.net 4.2—Configure Terminal Properties you have a Cisco wireless adapter card in the PCMCIA slot (2613 P only), you will see a CISCO1 connection and icon. Multiple adapters can be connected to network(s) at the same time, but a wired connection will generally take precedence in terminal operation and there may be some strange results.
Page 43: Edit
User Guide for Model 22xx/2613P with CE.net 4.2—Configure Terminal Properties Edit This menu is not used. View Network Connections View Menu This menu, or one of the icons, controls the manner in which information is displayed in this window, much like a View menu in Windows Explorer.
Page 44: Control Panel
User Guide for Model 22xx/2613P with CE.net 4.2—Configure Terminal Properties Control Panel Almost all terminal properties are configured in Control Panel. Invoke this window: • From Start>Settings>Control Panel in the Desktop display mode (see • By pressing the F2 key in the Terminal Connection Manager window in WBT Shell display mode. •...
Page 45: Date/Time
User Guide for Model 22xx/2613P with CE.net 4.2—Configure Terminal Properties These icons and property sub-sets will be discussed here in alphabetical order, as they appear in Desktop style. Double-click on an icon to open the associated property dialog box. Date/Time In Desktop Shell style, the time is displayed in the also be invoked by double-clicking on the time in the Desktop System Tray.
Page 46: Desktop Style
User Guide for Model 22xx/2613P with CE.net 4.2—Configure Terminal Properties This dialog box allows the terminal to sync the local Current Time, shown in the Date/Time dialog box, with a timeserver on the Web. Obviously, it only works if you have a Web connection (but you do not need a browser session).
Page 47: Display
User Guide for Model 22xx/2613P with CE.net 4.2—Configure Terminal Properties Display • Desktop Area and Refresh Frequency. Use the scroll list to select the terminal display resolution. The terminal will support resolutions and frequencies from 600x480x60 up to1280x1024x60 if the monitor will support them.
Page 48: Edgeport
User Guide for Model 22xx/2613P with CE.net 4.2—Configure Terminal Properties Edgeport Serial devices can be used with your terminal through an Edgeport USB-to-COM adapter. This status box will show you the Edgeport status: Device ready or Device not installed. FTP Update Use the FTPUpdate dialog box if you wish to update your terminal's firmware or download a wallpaper file from an FTP server.
Page 49: Ica Settings
User Guide for Model 22xx/2613P with CE.net 4.2—Configure Terminal Properties ICA Settings Click on this icon to see the Global ICA Client Settings window with four settings sheets that can be invoked by activating their individual tabs. These settings will be used for all Citrix ICA connections that are added to the terminal.
Page 50: Preferences
User Guide for Model 22xx/2613P with CE.net 4.2—Configure Terminal Properties ALT-BACKTAB CTRL+9 But you may want to change this mapping. If so, execute the following procedure: 1. Click on the drop-down arrow for the hot-key combination that you want to change. 2.
Page 51: Server Location
User Guide for Model 22xx/2613P with CE.net 4.2—Configure Terminal Properties Server Location The information entered in this sheet is used to help locate available Citrix servers and published applications. Server location (also called server browsing) provides a method for a user at a network-connected Citrix ICA Client to view a list of all MetaFrame servers on the network that have ICA connections configured for that network protocol, or a list of all published applications.
Page 52: Configuring A Default Socks Proxy Server
User Guide for Model 22xx/2613P with CE.net 4.2—Configure Terminal Properties Firewall Settings Sheet Configuring a Default SOCKS Proxy Server In the Proxy drop-down list, select SOCKS. 1. In the Proxy Address box, enter the SOCKS proxy server’s IP address or DNS name. 2.
Page 53: Input And Volume
Locale. Use the scroll list to select a language and number of keys for the keyboard. Default is OEM 122 USA, which is the setting required if the Affirmative Computer Products 122-key keyboard is used with the terminal. If “122” is not shown, the number of keys is assumed to be 101.
Page 54: Internet Settings
User Guide for Model 22xx/2613P with CE.net 4.2—Configure Terminal Properties • Speed. Use the slider control to set the speed of the cursor movement on screen vs. the movement of the mouse. • Button Configuration. Use the radio buttons to select "Right Handed" or "Left Handed" for your clicking convenience.
Page 55: Lpd Settings
User Guide for Model 22xx/2613P with CE.net 4.2—Configure Terminal Properties LPD Settings The Berkeley versions of the UNIX™ operating system provide printer spooling with a collection of programs: lpr (assign to queue), lpq (display the queue), lprm (remove from queue), and lpc (control the queue). These programs interact with an autonomous process on network print servers called the line printer daemon (LPD).
Page 56: Network
User Guide for Model 22xx/2613P with CE.net 4.2—Configure Terminal Properties Network The Network utility lets you control the terminal IP address, name server addresses, and global ICA client settings, as well as providing the useful ping function. Note: With a wireless adapter, many of the items in this dialog box are invalid. In that case, only Client IP Address, Ping IP Address, and Global ICA Client Settings can be used from this utility.
Page 57: Advanced Network
User Guide for Model 22xx/2613P with CE.net 4.2—Configure Terminal Properties Advanced Network Activate this button to configure name server settings if you are using a static IP address for the terminal. • Enable DNS. Activate this check box to enable the following three fields for the DNS setting. •...
Page 58: Options
User Guide for Model 22xx/2613P with CE.net 4.2—Configure Terminal Properties • IP, Name or Web Site. Enter the network name or the IP address of the device to be pinged. • Count. Enter the desired number of ping attempts. • Timeout.
Page 59 LPT1, COM1/2 (2613P only), and Network options. Note: The default printer type for the LPT1 port is Extended Capabilities (ECP). If your printer requires a different type, the terminal BIOS setting must be changed. Contact Affirmative Computer Products Technical Support for information on changing the BIOS.
Page 60 User Guide for Model 22xx/2613P with CE.net 4.2—Configure Terminal Properties • If you select a COM port, you can configure the properties later in Connection Manager by creating a bogus Dial-Up connection (see Creating a New Connection|Dial-Up • Select a printer manufacturer from the manufacturer drop-down list. After you select the manufacturer, the right-hand drop-down list will provide a list of models for that manufacturer.
Page 61 User Guide for Model 22xx/2613P with CE.net 4.2—Configure Terminal Properties • Model Name. If you chose User Defined in the previous dialog box, #2, you will see this dialog box #2a. Enter the model name, in the Model Name field, that corresponds to the printer driver on your Windows Terminal Server.
Page 62: Rdp Settings
User Guide for Model 22xx/2613P with CE.net 4.2—Configure Terminal Properties You are given the opportunity to begin the configuration of another printer. If you select Yes, you will repeat the above dialog boxes for that printer. If you select No, you will go on to the Finish dialog box. •...
Page 63: Local Resources
User Guide for Model 22xx/2613P with CE.net 4.2—Configure Terminal Properties Local Resources • Remote computer sound. Note: This feature works only with a Windows 2003 server. o Bring to this computer. Map the audio (sound) from the server to the terminal. o Do not play.
Page 64: Screen Keyboard
User Guide for Model 22xx/2613P with CE.net 4.2—Configure Terminal Properties This properties sheet is only useful if you are connecting to a Windows 2003 server. If so, you can optimize performance and desktop appearance by selecting connection speed and enabling/disabling desktop parameters. Default parameters vary depending upon the chosen connection speed.
Page 65 NOT change the password unless you are the administrator. If you forget the password, it will be difficult to recover. There are two methods of recovery if you forget the password. o Contact your distributor or Affirmative Computer Products get a super password. o Use Remote Management software to change the password settings.
Page 66: Enable Multiuser Control
User Guide for Model 22xx/2613P with CE.net 4.2—Configure Terminal Properties Enable Multiuser Control Check this box to allow multiple users on this terminal. By default there is only one user, called Administrator, and that user has all rights. But you can set up multiple users, assigning each one specific Control Panel and connection rights.
Page 67: Modify User
User Guide for Model 22xx/2613P with CE.net 4.2—Configure Terminal Properties Modify User Highlight a user name and click on this button to modify the settings for that user. Modify User Account Dialog Box You can modify any or all of the user settings here, except for User Name. If you want to change the name, you will have to delete this user account and add a new one with the desired name.
Page 68: User Permission
User Guide for Model 22xx/2613P with CE.net 4.2—Configure Terminal Properties User Permission Highlight a user name and click on this button to establish permissions for that user. Individual User Permission Dialog Box By default, an individual user will be assigned the permissions set under Group Permissions for that group. But these default permissions can be overridden by checking and unchecking permission boxes here.
Page 69: System
User Guide for Model 22xx/2613P with CE.net 4.2—Configure Terminal Properties This sheet only provides descriptive information to an SNMP manager. • System Name. This is the Network Name shown in System. • UUID. This is the Product Identification shown in System. •...
Page 70: Thinprint
• OEM Software Version. This is the version of the firmware installed in this terminal. If you contact Affirmative Computer Products Tech Support about a problem, please have this version, including the build number, available. •...
Page 71: Touchsetup
User Guide for Model 22xx/2613P with CE.net 4.2—Configure Terminal Properties ThinPrint Client Configuration Dialog Box 6. For information on using this window, go to http://www.thinprint.com/download/information/manuals/englisch/dot_print_client_winCE_e_01.pdf Web. NOTE: Do not enable ThinPrint if you want to do standard local printing through a Citrix server. TouchSetup Only the USB-attached ELO Touch screen is supported.
Page 72: Usb Storage Management
User Guide for Model 22xx/2613P with CE.net 4.2—Configure Terminal Properties USB Storage Management Click on Enable to allow local USB storage devices to be seen internally. Local storage may be useful to store email, email attachments, web pages, or downloaded files. File Management There is a limited amount of file management available in your terminal, with several methods to transfer and store files:...
Page 73 User Guide for Model 22xx/2613P with CE.net 4.2—Configure Terminal Properties New Folder Screen 4. In the Address field, change the path from \Windows\Desktop\New Folder to simply \. 5. Press the PC Enter key. You will see the My Computer file structure screen. My Computer File Structure Screen 6.
Page 74: Usb-Attached Storage
User Guide for Model 22xx/2613P with CE.net 4.2—Configure Terminal Properties There is no drag and drop capability between storage folders in the My Computer root. If you want to move files among folders, or from external storage to an internal folder, or vice versa, use Cut, Copy, and Paste from the Edit menu.
Page 75: Vnc Server Settings
User Guide for Model 22xx/2613P with CE.net 4.2—Configure Terminal Properties VNC Server Settings VNC (Virtual Network Computing) is, in essence, a remote display system which allows a device with an installed VNC client to view a computing 'desktop' environment from anywhere on the Internet. It is platform- independent;...
Page 76: Connection
User Guide for Model 22xx/2613P with CE.net 4.2—Configure Terminal Properties If you check Auto start…, the two entry fields will be opened. • VNC server. Enter the network name or the IP address of the device that you wish to view, along with the display number on the device (display 0 always works for me).
Page 77: Info
User Guide for Model 22xx/2613P with CE.net 4.2—Configure Terminal Properties Info VNC Connection Information Box This information-only box provides some details about your session. Keys VNC Viewer Keys Menu Computer hot key combinations are typically trapped locally in the terminal, rather than being passed on to the VNC server.
Page 78: Configuration
User Guide for Model 22xx/2613P with CE.net 4.2—Configure Terminal Properties • Title. You may configure several different profiles (see Configuration), usually associated with connections to different wireless access points. Each profile must have a unique name, and that name will be shown in the dialog box title.
Page 79: Encryption
User Guide for Model 22xx/2613P with CE.net 4.2—Configure Terminal Properties Encryption Wired Equivalency Protocol (WEP) is a data privacy mechanism based on 64-bit or 128-bit encryption. To use WEP encryption, all points in the wireless network must enable WEP and have the same 40-bit or 104-bit key setting.
Page 80 User Guide for Model 22xx/2613P with CE.net 4.2—Configure Terminal Properties This Page Intentionally Left Blank.
Page 81: Connection Manager
Connection Manager It is tempting to use the terms “connection” and “session” interchangeably, but we do try to maintain a distinction in this document. • Connection. A connection defines the parameters used to establish and control communication between a server and a YEStation client. •...
Page 82: Configure
User Guide for Model 22xx/2613P with CE.net 4.2—Connection Manager Configure The Configure tab allows five basic functions. Desktop Connection Manager Configure Tab Activate the Add button to create a new connection. A New Connection dialog box is displayed. New Connection Dialog Box Click on the drop-down arrow to see the list of possible connections.
Page 83: Delete
Delete Activate the Delete button to delete the highlighted connection. When you activate this button, a Confirm Connection Delete dialog box is displayed. Activate the Yes button to complete the deletion. Activate No to cancel the deletion. Startup Activate the Startup button to specify the Autostart connection option when the terminal boots up. The Connection Startup dialog box displays after the Startup button is pressed.
Page 84 User Guide for Model 22xx/2613P with CE.net 4.2—Connection Manager Click on FailOver to display the FailOver dialog box. A list of all connections eligible for use as backup connections is shown in the left-hand box; browser connections cannot be used for backup, although they can initiate fail-over backup if they are set for Autostart but fail to start.
Page 85: Connections
Connections WBT Connection Manager Connections Tab The Connections tab is used to make or end network connections with the server(s). As you add new connections, they are listed in alphabetical order. • Connect. Highlight the connection and activate the Connect button to make a network connection. You can also make a connection by double-clicking on it.
Page 86: Moving Among Sessions
User Guide for Model 22xx/2613P with CE.net 4.2—Connection Manager Moving among Sessions You do not have to return to Terminal Connection Manager to go to another active session. Alternate methods are: • Press Ctrl+Alt+UpArrow to proceed to the next session. •...
Page 87: Creating A New Connection
User Guide for Model 22xx/2613P with CE.net 4.2—Creating a New Connection Creating a New Connection All connections except Inbox are created in the Configure tab of Connection Manager. Click on Add to see the New Connection dialog box. Then click on the drop-down arrow to see the list of possible connections. Note: Some of the items that may be seen in the drop-down list are not “connections”...
Page 88: Network Connection
ICA operation and features, please refer to the Windows Based Terminal Administrator's Guide for Citrix ICA Client at http://www.affirmative.net/pub/icaceUG.pdf. When you click on OK after selecting Citrix ICA Client, a Setup Wizard with a series of dialog boxes will be invoked.
Page 89 User Guide for Model 22xx/2613P with CE.net 4.2—Creating a New Connection 5. If your server or application is not found for some reason, you can type in the IP address or application name in the upper box or you may want to choose an alternate server location. •...
Page 90 User Guide for Model 22xx/2613P with CE.net 4.2—Creating a New Connection Type a valid user name, domain, and password. If you leave these fields blank, you are prompted for your user name, domain, and password whenever the ICA connection connects to the Citrix server. Smart Card logon is not supported.
Page 91: Dial-In Connection
User Guide for Model 22xx/2613P with CE.net 4.2—Creating a New Connection concern. Medium results in less bandwidth consumption than when using High. Compression of sound data provides greater bandwidth efficiency but reduces sound quality somewhat. This value is recommended for most LAN-based connections. Low offers the most efficient use of bandwidth but also decreases sound quality severely.
Page 92: Dial-In Device
User Guide for Model 22xx/2613P with CE.net 4.2—Creating a New Connection If you have a 22xx terminal, you must have an Edgeport USB-to-Serial converter between your serial modem and a terminal USB port. When you choose Dial-in Connection in the Specify Connection Type dialog box, and click on Next, the Dial- In Devices dialog box displays.
Page 93: Dial-Up Client
User Guide for Model 22xx/2613P with CE.net 4.2—Creating a New Connection • Call Setup. Check the appropriate boxes and set the time to wait for connection or dial tone before canceling a call. • Extra Settings. A common problem is that some “Hayes-compatible” modems, including some from a very popular vendor, are not really 100% Hayes compatible.
Page 94: Dialing Properties
User Guide for Model 22xx/2613P with CE.net 4.2—Creating a New Connection Remote Connection Wizard Dialog Box #2 • Telephone Number. • Force local/long distance. Leave these boxes unchecked • Country/Area Code. Ignore these fields. • Telephone. Put the complete number, including area code, here. If you are making an international call, enter the international prefix (011) and the country code also.
Page 95: Configure
User Guide for Model 22xx/2613P with CE.net 4.2—Creating a New Connection All calls are treated as local calls. Ignore the Long Distance and International fields, and delete everything except G from the Local field unless you have to dial a numeral to get an outside line. In that case, add the numeral to the Local field (i.e.
Page 96: Tcp/Ip Setting
User Guide for Model 22xx/2613P with CE.net 4.2—Creating a New Connection • Call Setup. Check the appropriate boxes and set the time to wait for connection or dial tone before canceling a call. • Extra Settings. A common problem is that some “Hayes-compatible” modems, including some from a very popular vendor, are not really 100% Hayes compatible.
Page 97: Inbox (Desktop Shell)
User Guide for Model 22xx/2613P with CE.net 4.2—Creating a New Connection Remote Connection Wizard Dialog Box #4 Check "Finish" to complete the Dial-Up connection setup. Inbox (Desktop Shell) Inbox is the email client in Desktop Shell and is the connection exception; it is configured and opened from Start>Programs instead of from Connection Manager/ Inbox is almost identical to the Inbox email program found in Pocket PC devices.
Page 98: Service Definition (Wizard Dialog Box #1)
User Guide for Model 22xx/2613P with CE.net 4.2—Creating a New Connection 3. Select Add to see the Service Name dialog box. 4. From the Service type list, select POP3 Mail or IMAP4 Mail. 5. Enter a unique name for the service. This name cannot be changed later; if you later want to change the name, you will have to delete the service and add a new one with the desired name.
Page 99: Set General Preferences (Wizard Dialog Box #2)
User Guide for Model 22xx/2613P with CE.net 4.2—Creating a New Connection • Return Address. By default, the return address is set to username@POP3host or username@Servername, depending on the type of service you are using. If this is not your e-mail address, enter the correct address in the box.
Page 100: Other Service Options
User Guide for Model 22xx/2613P with CE.net 4.2—Creating a New Connection • Only synchronize… (IMAP4 only). Select to speed download time by preventing the complete download of the folder list every time you connect. • Get meeting requests (POP3 only). Select to download and store copies of meeting requests when getting full copies of messages.
Page 101: Create A Folder
User Guide for Model 22xx/2613P with CE.net 4.2—Creating a New Connection Create a Folder You can create a folder in a service, or you can create a subfolder under a service folder. The process is: 1. Highlight the service or folder under which you wish to create the new folder. 2.
Page 102: Reply To Or Forward A Message
User Guide for Model 22xx/2613P with CE.net 4.2—Creating a New Connection asked if you want to use the current connection. If you choose not to, you will need to disconnect from the current connection before you can check for new messages. The procedure is: 1.
Page 103: Check Inbox Status
User Guide for Model 22xx/2613P with CE.net 4.2—Creating a New Connection Check Inbox Status In list view, select Compose > Status. You can view details such as the number of messages to be sent, deleted, and copied, and the number of attachments to be downloaded. Include the Original Message in a Reply 1.
Page 104: Clear Messages And Folders
User Guide for Model 22xx/2613P with CE.net 4.2—Creating a New Connection Clear Messages and Folders When receiving mail from a POP3 or IMAP4 server, select the service that contains the folders and messages you want to clear, and then select Service > Clear All. All messages and folders that are linked to the selected service are cleared and memory space is expanded on the device without deleting messages on the server.
Page 105: Check Attachment Status
User Guide for Model 22xx/2613P with CE.net 4.2—Creating a New Connection • Embedded messages can be viewed as an attachment when using IMAP4 to receive e-mail. However, this feature does not work if TNEF is enabled so that you can receive meeting requests. Check Attachment Status •...
Page 106: Microsoft Remote Desktop Client
User Guide for Model 22xx/2613P with CE.net 4.2—Creating a New Connection • Name. This name will appear in the Connection Name list of Connections Manager. • Default Start Page. Check this box to use the default Start Page. If you want a unique Start url, leave the box unchecked and enter that url here.
Page 107 Windows 2000 Terminal Services & Windows NT 4.0 Terminal Server. • Issue #1. Microsoft has acknowledged licensing issues when Thin Clients like the Affirmative YEStation connect to a Windows 2000 Terminal Services server. Microsoft strongly recommends applying the Terminal Services Licensing Enhancement Update, which can be found by accessing Microsoft’s Knowledge...
Page 108: Pmail (Wbt Shell)
User Guide for Model 22xx/2613P with CE.net 4.2—Creating a New Connection Base Article: Q287687. Duplicate client licenses, inability for a thin client to connect, and other unknown repercussions could result if this update is not applied. • Issue #2. If your organization connects to a Windows 2000 or Windows NT 4.0 Terminal Server with a host name, the RDP Server parameter in the YEStation requires a fully qualified name.
Page 109 User Guide for Model 22xx/2613P with CE.net 4.2—Creating a New Connection • PPPoE Service Name. You can enter a service name or IP address here if necessary. • TCP/IP Settings. Click on this button to see the TCP/IP Settings dialog box. The default settings you see here seldom need changing.
Page 110: Terminal Emulation (2212 Only)
User Guide for Model 22xx/2613P with CE.net 4.2—Creating a New Connection Terminal Emulation (2212 only) The Terminal Emulation selection allows you to add PowerTerm connections for 3270, 5250, and ASCII terminal emulations. When you add a Terminal Emulation connection, the Connection Properties dialog appears.
Page 111: Virtual Private Network
User Guide for Model 22xx/2613P with CE.net 4.2—Creating a New Connection Virtual Private Network Follow the VPN Connection Wizard to configure a VPN connection. Enter a friendly name here. This name will be seen in the connection list of Connection Manager and in Start>Programs>Connections.
Page 112: Vnc Viewer
User Guide for Model 22xx/2613P with CE.net 4.2—Creating a New Connection The default settings you see here are commonly used to access a VPN server, and seldom need changing. Your network administrator will give you any changes that are necessary. Click on Finish to complete the VPN connection setup.
Page 113: Yesterm Ip Emulators (2213 And 2613P Models)
User Guide for Model 22xx/2613P with CE.net 4.2—Creating a New Connection 1. The first time that you add a VNC Viewer, you will see this dialog box. • VNC. Enter the network name or the IP address of the VNC server that you wish to view, along with the display number on the server (display 0 always works for me).
Page 114: Display Connections
User Guide for Model 22xx/2613P with CE.net 4.2—Creating a New Connection AS/400, with no need of any SSL option. The configuration of connections is made simple by a Wizard application that guides the user during the configuration process. Display Connections Significant characteristics of YESterm IP display connections are: •...
Page 115 Keyboard Type. Choose 101 Terminal if you are using the Affirmative Computer Products 1010T, 1019T, 1023T, or 1027T 101-key keyboard; choose 122 keys if you are using the Affirmative Computer Products 1220T, 1223T, or 1227T 122-key keyboard; otherwise, choose 101 PC.
Page 116: Printer Connections
User Guide for Model 22xx/2613P with CE.net 4.2—Creating a New Connection This concludes the configuration parameters covered by the wizard. However, you can customize many more parameters in each Display Connection by highlighting the connection name in the Configure tab of Connection Manager and activating Edit.
Page 117 User Guide for Model 22xx/2613P with CE.net 4.2—Creating a New Connection • Connection Name. This is the friendly name that will appear in the Terminal Connection Manager screen. • Device Type. Only 3287 (3270) or 3812 (5250) is available for TCP/IP devices. •...
Page 118 User Guide for Model 22xx/2613P with CE.net 4.2—Creating a New Connection This Page Intentionally Left Blank.
Page 119: Opening A Program
Opening a Program The items discussed in this section are not “Connections” in the strict sense defined in the section on Manager. These items are the Microsoft viewers and the Cisco utilities—more accurately called “Programs” since they do not invoke or configure connections to servers. They are included in this section for convenience since they are opened in WBT Shell from the New Connection drop-down list of Connection Manager/Configure.
Page 120: Microsoft Viewers
User Guide for Model 22xx/2613P with CE.net 4.2—Opening a Program 2. Obtain the username and password for your authentication server account from your system administrator. Note: The password is optional because not all host accounts on the authentication server are set up with a password.
Page 121 You can also view email attachments, files in USB storage, and files in shared network drives with the following procedure: 1. Click on Add in the Configure tab. 2. Select the desired viewer from the drop-down list. 3. Click on OK. 4.
Page 122 User Guide for Model 22xx/2613P with CE.net 4.2—Opening a Program This Page Intentionally Left Blank.
Page 123: Editing An Existing Connection
User Guide for Model 22xx/2613P with CE.net 4.2—Editing an Existing Connection Editing an Existing Connection Most connection properties are edited in the Configure tab of Connection Manager. Highlight the connection of interest and click on Edit. Any exceptions to this procedure will be explained below. Citrix ICA Client When you click on Edit, you will see an Edit Connection Details window with seven properties tabs.
Page 124: Microsoft Internet Explorer
Client. PPPoE When you click on Edit, you will be led through the same Remote Connection Wizard described in Creating a Connection|PPPoE. Terminal Emulation For detail on editing PowerTerm emulation connections, see the Affirmative Computer Products Web site at http://www.affirmative.net/pub/PowerTermUserGuide.pdf.
Page 125: Virtual Private Network
Manager>Configure>Add. Then you can edit parameters in the same way that you added the connection in Creating a New Connection|VNC Viewer. YESterm IP Emulators For details on editing YESterm IP emulation connections, see the Affirmative Computer Products Web site at http://www.affirmative.net/pics/archive/YESterm-IP_CE.pdf.
Page 126 User Guide for Model 22xx/2613P with CE.net 4.2—Editing an Existing Connection This Page Intentionally Left Blank.
Page 127: Firmware Upgrade Utilities
At the FTP server: 1. Ignore steps 2 and 3 if you are only upgrading your Desktop wallpaper. 2. Download the latest-version firmware from the Affirmative Computer Products Web site, per the Affirmative Computer Products Technical Support instructions. 3. Extract the downloaded file if it came in a compressed format: the extracted file should have a .bin extension.
Page 128: Upgrade Using Remote Central Management
User Guide for Model 22xx/2613P with CE.net 4.2—Firmware Upgrade Utilities 8. Enter the information in the fields. • Server Name. Enter the FTP server’s IP address. • Server Path Name. Depending upon how you have configured your FTP server, you may have to enter path information to the desired firmware .bin file.
Page 129: Troubleshooting Your Yestation
User Guide for Model 22xx/2613P with CE.net 4.2—Troubleshooting Your YEStation Troubleshooting Your YEStation The following table provides some solutions to common problems that can occur during setting up or using your YEStation terminal. Problems 1 The monitor screen is blank Your monitor can not display after advancing past the logo screen or after changing the display setting.
Page 130: Support
You are having erratic printing problems with a local parallel port printer Support Affirmative Computer Products offers Technical Support services for all the Affirmative products. You can access Affirmative Technical Support in one of the following ways: • via Phone •...
Page 131: Appendix 1. Specifications
Appendix 1. Specifications 22xx Models ITEM Processor Communication and Ports Embedded O.S. Video Memory Server Operating System Support User Guide for Model 22xx/2613P with CE.net 4.2—Appendix 1. Specifications SIS 550 200 MHz • Microsoft RDP and Citrix ICA protocol compliant. •...
Page 132 User Guide for Model 22xx/2613P with CE.net 4.2—Appendix 1. Specifications ITEM Optional Devices Software Features Temperature Environment Relative Humidity Operating Altitude Range Power Regulatory Compliance Dimension (WxDxH) Physical Characteristics Weight SPECIFICATIONS • USB storage • USB wireless LAN adapter • USB to COM port adapter •...
Page 133: 2613P Model
2613P Model ITEM Processor Communication and Ports Embedded O.S. Video Memory Server Operating System Support Optional Devices User Guide for Model 22xx/2613P with CE.net 4.2—Appendix 1. Specifications National Semiconductor Media Gx1 300 MHz with 5530A support chip • Microsoft RDP and Citrix ICA protocol compliant •...
Page 134 User Guide for Model 22xx/2613P with CE.net 4.2—Appendix 1. Specifications ITEM Software Features Temperature Environment Relative Humidity Operating Altitude Range Power Regulatory Compliance Dimension (WxDxH) Physical Characteristics Weight SPECIFICATIONS • Remote Management client • SNMP support • Time zone and SNTP support •...
Page 135: Appendix 2. Tcp/Ip Error Codes
User Guide for Model 22xx/2613P with CE.net 4.2—Appendix 2. TCP/IP Error Codes Appendix 2. TCP/IP Error Codes Here is a comprehensive list of standard TCP/IP error codes that can occur during network operation. Some of them are quite esoteric and may not be applicable to YEStation operation, but this list should include any networking error code that you encounter.
Page 136 User Guide for Model 22xx/2613P with CE.net 4.2—Appendix 2. TCP/IP Error Codes 10043 Protocol not supported. 10044 Socket type not supported. 10045 Operation not supported. 10046 Protocol family not supported. 10047 Address family not supported by protocol family. 10048 Address is already in use. If you attempt to set up a server on a port that is already is in use, you will get this error.
Page 137 User Guide for Model 22xx/2613P with CE.net 4.2—Appendix 2. TCP/IP Error Codes 10061 Connection refused. You will usually see this error when a server refuses a connection from a client, because the server is not listening on that port. 10064 Host is down.

This manual is also suitable for:

2213 2613p 2205 22 series

Affirmative 2212 User Manual

Installing Your Terminal

WBT Setup Wizard

Display Styles

Configure Terminal Properties

Connection Manager

Creating a New Connection

Opening a Program

Editing an Existing Connection

Firmware Upgrade Utilities

Troubleshooting Your Yestation

Appendix 1. Specifications

Appendix 2. TCP/IP Error Codes

Quick Links

Need help?

Questions and answers

Related Manuals for Affirmative 2212

Summary of Contents for Affirmative 2212

This manual is also suitable for:

Table of Contents
