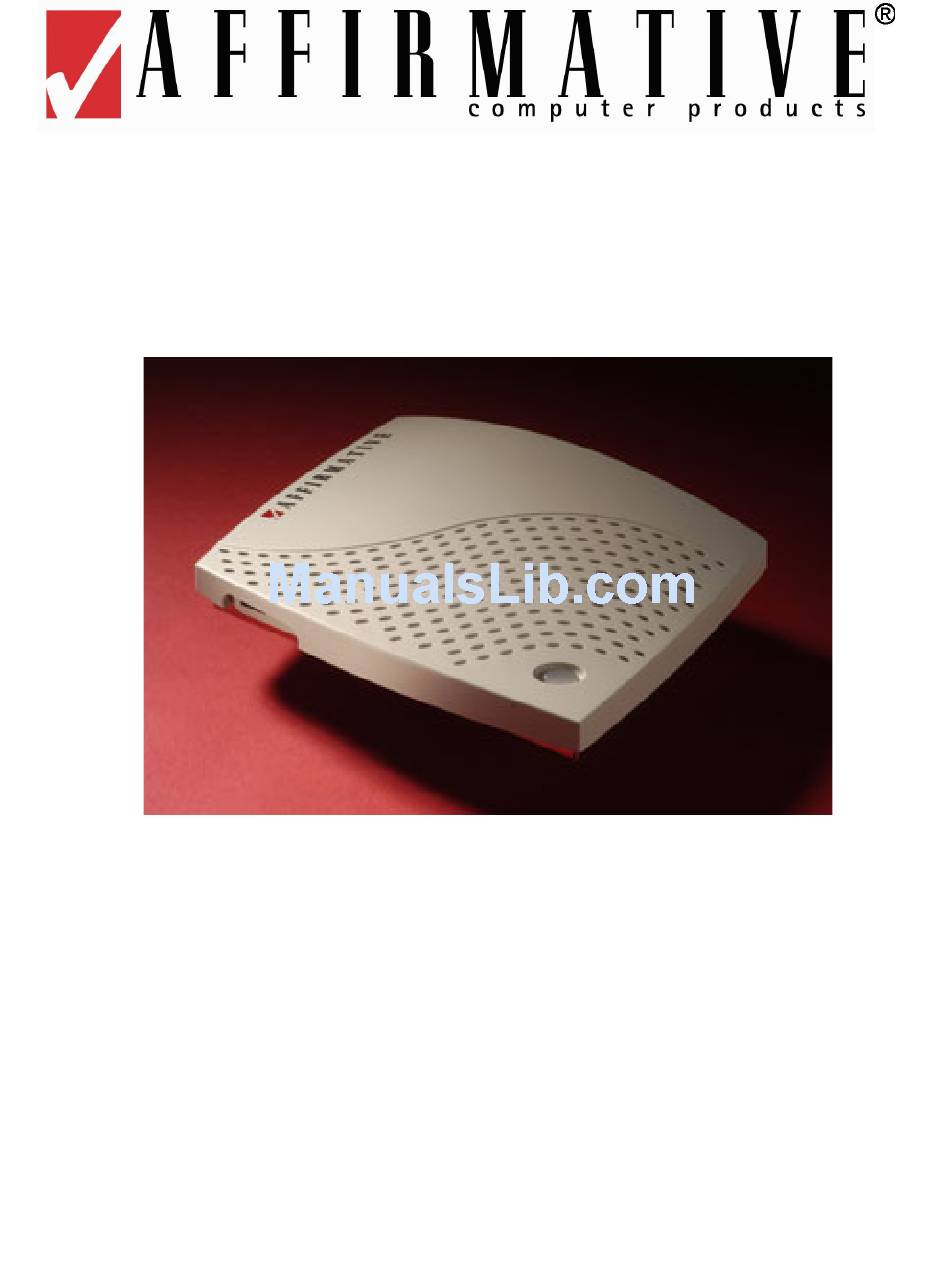

Page 1 YEStation User's Guide for Text Based Terminal Model 2209 Copyright 2003 Affirmative Computer Products ® October 2003...
Page 3 Warranty Limitations. End User’s sole remedy under any Warranty provided by Affirmative Computer Products shall be limited to the replacement or repair of the Product or, at Affirmative Computer Products’ sole discretion, a refund of the purchase price. AFFIRMATIVE COMPUTER PRODUCTS GRANTS NO WARRANTY, EXPRESS OR IMPLIED, OTHER THAN THE WARRANTIES STATED ABOVE.
Page 4: Copyright And Trademarks
Note: Information in this document is subject to change without notice. Trademarks Notice ® YEStation is a registered trademark of Affirmative Computer Products • YESterm/IP™ is a trademark of Affirmative Computer Products • Adobe®, the Adobe logo, Acrobat®, the Acrobat logo, and Acrobat Reader are trademarks or •...
Page 5: Table Of Contents
Table of Contents Installing Your Terminal...1 Mounting... 1 Cabling... 2 Power On and Boot Up ... 3 Terminal Setup ...5 Terminal Properties... 6 Network Settings... 7 Advanced Parameters... 8 Input Settings ... 9 Display Settings ... 10 Upgrade... 11 Security Settings ... 12 Connections...
Page 6 Connections Manager ...37 Configuration ... 37 Add... 38 Edit... 38 Delete ... 38 Startup ... 39 Connect ... 39 Connections... 40 Editing Terminal Properties ...41 General... 42 Network... 43 Ping Function ... 43 Advanced Parameters... 44 Hosts Table ... 45 DHCP Log File ...
Page 7 Appearance ... 69 Security Configuration... 70 Host Device Connection ... 70 Miscellaneous ... 70 Printer Sessions... 70 Connection (5250) ... 71 Connection (3270) ... 71 Input (5250) ... 72 Language... 72 Page Layout ... 72 Overrides... 73 Input (3270) ... 73 Language...
Page 8 Firmware Upgrades ...99 “Push” ... 99 “Pull”... 100 TBT Viewing Mode... 101 Non-TBT Viewing Mode... 103 Troubleshooting Your Terminal...105 Support... 106 Appendix 1. Specifications ...107 Appendix 2. TCP/IP Error Codes ...109 viii...
Page 9: Installing Your Terminal
Affirmative Computer Products or its distributors. Mounting The 2209 terminal can be placed horizontally on a flat surface, or it can be mounted vertically on a wall. A self-adhesive template and four #3, ½-inch wood screws are included with every terminal.
Page 10: Cabling
Drill 3/64” pilot holes and put super glue in the holes before inserting the screws. o Use longer screws with coarser threads. Cabling Please make all cable connections before turning on the power. The following figures show the 2209 rear and front connectors. 2209 Monitor Mounting...
Page 11: Power On And Boot Up
• In the default TBT viewing mode, the grey screen will be quickly followed by a blank black screen and then by a “green screen” displaying the Terminal Properties categories. If you have already configured some sessions, you will see a session green screen Bootup Terminal Properties Screen for TBT Viewing Mode 2209 Front Connectors...
Page 12 overlaid with the Connections tab of the configured some sessions to Autostart (see you will see a session green screen. Bootup Connections Manager Screen for WBT Viewing Mode • In the Desktop viewing mode, the black screen will be quickly followed by a blue screen and then the Desktop screen.
Page 13: Terminal Setup
Terminal Setup The 2209 can be operated in one of three viewing modes: TBT (Text Based Terminal), WBT (Windows Based Terminal), or Desktop. The default is TBT, which provides a familiar terminal “green screen” look, and the mechanics of TBT setup are covered here. However, the terminal properties and session properties are identical in the different viewing modes;...
Page 14: Terminal Properties
• Kernel Version. This is the version of the Linux kernel used on the terminal. • Software Version. This is the version of the firmware installed in this terminal. If you contact Affirmative Computer Products Tech Support about a problem, please have this version information available.
Page 15: Network Settings
WBT. The Windows Based Terminal mode presents the kind of screens that you normally see in an Affirmative Computer Products YEStation that uses the Windows CE operating system. More configuration options are accessible in the WBT and Desktop modes than in the TBT mode, so if you want to do some fine-tuning, you will have to switch to WBT or Desktop mode.
Page 16: Advanced Parameters
the following three fields for a specific IP address setting. o IP Address. Enter a static IP address in this field. If you have selected DHCP addressing, the assigned address will appear in grey in this field. o Subnet Mask. Enter the subnet mask of the local network. If you have selected DHCP addressing, the assigned subnet mask will appear in grey in this field o Default Gateway.
Page 17: Input Settings
previous screen. For typical networks, nothing need be entered here. But some networks will require that you enter the first three octets of the network IP address in Network and the IP address of the network gateway in Broadcast. Let your network administrator determine the need. •...
Page 18: Display Settings
Display Settings Property Sheet for TBT Viewing Mode • Video Resolution. Select your resolution, refresh frequency, and color depth here. Even in the TBT viewing mode, the Video Resolution settings will have an effect on the green screen font since higher resolutions provide more pixels per character. o Test Video Settings.
Page 19: Upgrade
Upgrade Upgrade Property Sheet for TBT Viewing Mode Use the Upgrade sheet if you wish to update your terminal's firmware from a YESmanager host. For more information, please refer to the Firmware Upgrades section...
Page 20: Security Settings
Select various levels of configuration, access, and shadowing security here. Security Settings Property Sheet for TBT Viewing Mode • Require Password…. Select Yes to enable password security for terminal configuration. Then enter and confirm a password in the boxes. Note: The password is designed to avoid any unreasonable change to the Terminal Properties Settings.
Page 21: Connections
powerful Remote Central Manager, the terminal’s screens can be viewed remotely, and full remote control of the terminal can be enabled. o View Only. Select Yes to allow the terminal screens to be viewed at the remote YESmanager console. o Full Control. Select Yes to allow full control of terminal functions from the remote YESmanager console.
Page 22 THIS PAGE INTENTIONALLY LEFT BLANK...
Page 23: Viewing Modes
Viewing Modes You can choose one of three viewing modes (see Terminal Setup|Terminal Properties) to be used during configuration and terminal operation. NOTE: In the remainder of this document, a reference to the Ctrl key actually means the LeftCtrl key, a reference to the Alt key actually means the LeftAlt key, and a reference to a click actually means a mouse left click.
Page 24: Connections Manager
• Pressing Ctrl+Alt+End, even from a blank screen. If you are using an Affirmative Computer Products 122-key keyboard and are in an active session, you can press the SetUp key. To get back to an active session from Terminal Properties, use the Esc key if no changes are to be •...
Page 25: Wbt (Windows Based Terminal)
The Windows Based Terminal mode presents the kind of screens that you normally see in an Affirmative Computer Products YEStation that uses the Windows CE operating system. More configuration options are accessible in the WBT and Desktop modes than in the TBT mode, so if you want to do some fine-tuning, you will have to switch to WBT or Desktop mode.
Page 26: Terminal Properties
Terminal Properties Terminal Properties Screen for WBT and Desktop Viewing Modes The Terminal Properties screen is exactly the same in the WBT and Desktop viewing modes. Note that there are more Properties tabs here than there are Category line items in the TBT Terminal Properties sheet.
Page 27: Connections Manager
The Connections Manager screen in the WBT viewing mode has two tabs and provides more control over launching and editing sessions than in TBT mode. Connections Manager Screen for WBT Viewing Mode Navigation • To access Terminal Properties, press F2 while in the Connections Manager screen. •...
Page 28: Desktop
session will get the same amount of space on the screen. To return to a single-session screen, move the input cursor to that session and again press Shift+Alt+F2. • If your display session is configured to hide the Menu and Tool bars, you can invoke the File menu by pressing Alt.
Page 29: Terminal Properties
Press F2 while in the Connections Manager screen. o Select it from the Start menu. o If you are using an Affirmative Computer Products 122-key keyboard and are in an active session, press the SetUp key • To open the Connections Manager screen, use either of the following methods: o Select it from the Start menu.
Page 30 o In the Connections Manager screen, highlight the session name and click on Connect. o Select it from the Start menu. • If your display session is configured to hide the Menu and Tool bars, you can invoke the File menu by pressing Alt.
Page 31: Creating An Emulation Connection
The 2209 terminal can easily support up to four concurrent TCP/IP connections with identical or unique hosts. In addition, YESterm/IP TN5250E supports the "Enhanced Display Auto- Signon and Password Encryption"...
Page 32: Tbt Viewing Mode
TBT Viewing Mode Select the Connections category in Terminal Properties to display the Connections Manager property sheet. In this sheet, you can add and edit emulation sessions. Connections Manager Property Sheet for TBT Viewing Mode Activate Add Session to see the session menu. Add Session Menu Select the desired menu type to begin the appropriate Add Wizard.
Page 33: Display Sessions
Use TN5250e protocol to connect to AS/400 or iSeries hosts. Use TN3270e protocol to connect to IBM mainframes. You will be led through two configuration screens. • Host Name/IP Address. If you have a local DNS or WINS server or are using a hosts table (see Editing Terminal Properties|Network|Advanced Parameters|Hosts the host network name.
Page 34 • Code Page. Choose the applicable country from the list. • Language. Choose a keyboard language. • Keyboard Type. Choose Terminal if you are using the Affirmative Computer Products 1010T, 1019T, 1023T, or 1027T 101-key keyboard; choose 122 keys if you are using the Affirmative Computer Products 1220T, 1223T, or 1227T 122-key keyboard;...
Page 35: Printer Sessions
You can have multiple local printers, but you must create a printer session for each one. If you want to create a session for extended local Print Screens have to edit it in non-TBT mode since the default in TBT mode is for standard host printing.. When you add a printer session, you will be led through three configuration screens.
Page 36 Printer Session Add Wizard Screen #2 • Host Code Page. Choose the applicable country from the list.
Page 37 If you can’t find one in the list, try Empty Driver. • Printer port. Choose LPT1 or Network, since the 2209 has no COM ports. • Port printer configuration. After you choose a printer port, you need to configure it.
Page 38 Network Printer Configuration Screen • Printer type-LPR. Choose LPR (Line Printer Remote) to assign print jobs to a network printer that is configured as an LPD server. o Host name/IP. If you have a local DNS or WINS server or are using a Hosts table (see Editing Terminal Properties|Network|Advanced Parameters|Hosts can type in the host network name.
Page 39: Non-Tbt Viewing Mode
Your sharp eye has immediately noticed that there are some non-emulation choices here. You can, if you wish, add these non-emulation choices to your Connections list. However, they cannot be activated until a license key, available from Affirmative Computer Products for a fee, is installed. Only emulation sessions will be discussed here.
Page 40 • Host Name/IP Address. If you have a local DNS or WINS server or are using a hosts table (see Editing Terminal Properties|Network|Advanced Parameters|Hosts the host network name. Otherwise, type in the IP address of the host. • Port Number. Use the default of 23 unless directed to do otherwise by your system administrator.
Page 41 • Host Code Page. Choose the applicable country from the drop-down list. • Keyboard Type. Choose 101 Terminal if you are using the Affirmative Computer Products 1010T, 1019T, 1023T, or 1027T 101-key keyboard; choose 122 keys if you are using the Affirmative Computer Products 1220T, 1223T, or 1227T 122-key keyboard;...
Page 42: Printer Sessions
You can have multiple local printers, but you must create a printer session for each one. After you choose a session type, a Setup Wizard will take you through three dialog boxes. • Host Name/IP Address. If you have a local DNS or WINS server or are using a hosts table (see Editing Terminal Properties|Network|Advanced Parameters|Hosts the host network name.
Page 43 Printer Setup Wizard Dialog Box #2 • Connection Name. This is the friendly name that will appear in the Connections Manager screen and at the bottom of your session screens and on the Taskbar (in Desktop mode). • Device Type. Only 3287 (3270) or 3812 (5250) is available for TCP/IP devices. •...
Page 44 AS/400 Host Print Transform, choose a driver here that is compatible with the local-attached or LAN printer. If you can’t find one in the list, try Empty Driver. This concludes the configuration parameters covered by the wizard. However, you can customize many more parameters in each printer session by highlighting the connection name in the Configure tab of Connection Manager and activating Edit.
Page 45: Connections Manager
Connections Manager Note: The terms “connection” and “session” are used interchangeably in this section. The Connections Manager window is used to manage or activate your terminal's emulation sessions in WBT and Desktop viewing modes. In WBT mode, Connections Manager has both a Connections tab and a Configuration tab.
Page 46: Add
Activate the Add button to create a new session. A New Connection dialog box is displayed. New Connection Dialog Box Click on the drop-down arrow to see a list of four possible emulation connections. See Creating an Emulation Connection for information on adding specific connections. As sessions are added, they will be displayed alphabetically.
Page 47: Startup
If there is only one configured session, this option is grayed out. Enable connection autostart. Check this box to automatically start the selected connection when • the terminal boots up. Enable Automatic reconnection. This is not supported in the 2209. • Connect Connection Startup Dialog Box...
Page 48: Connections
discussed. This allows you to start a session from Connections Manager even though the Connections tab is not available. Connections The Connections tab is used to make or end network connections with the server(s). Connect. Highlight the session name and activate the Connect button to make a network •...
Page 49: Editing Terminal Properties
Editing Terminal Properties If you are in TBT viewing mode, you can edit many terminal properties using the property sheets described in Terminal Setup. However, you can see a more comprehensive set of terminal properties in the Terminal Properties window of the WBT or Desktop viewing modes, and that comprehensive set will be discussed in this section.
Page 50: General
• Kernel Version. This is the version of the Linux kernel used on the terminal. • Software Version. This is the version of the firmware installed in this terminal. If you contact Affirmative Computer Products Tech Support about a problem, please have this version information available.
Page 51: Network
The Network property sheet lets you control the terminal IP address, name server addresses, and network speed, as well as providing the useful ping function. • Obtain an IP address from a DHCP Server. Select this radio button to enable DHCP addressing. •...
Page 52: Advanced Parameters
• . Enter the network name or the IP address of the device to be pinged. Address • Ping. Activate this button to begin the ping action. Results will be displayed in the scroll box. • Stop. After you start pinging, the ping action will continue until you press Stop. •...
Page 53: Hosts Table
static IP address. Activate this check box to enable the three fields for the DNS setting. Get the entries from your network administrator. If you have selected DHCP addressing and are not using a USB wireless LAN adapter, the assigned DNS information will appear in grey in these fields. •...
Page 54: Dhcp Log File
DHCP Log File Activate this button to see the DHCP Log File.box. DHCP Log File Box This file logs the steps encountered by the terminal in obtaining a DHCP address. DHCP Leases Activate this button to see the DHCP Lease File box. DHCP Lease File Box This file shows the current state of the DHCP address lease, as well as showing a list of the options configured at the DHCP server.
Page 55: Input
Locale. Use the scroll list to select a language and number of keys for the keyboard. Default is OEM 122 USA, which is the setting required if the Affirmative Computer Products 122-key keyboard is used with the terminal. If “122” is not shown, the number of keys is assumed to be 101.
Page 56: Display
Use the Display property sheet to configure the terminal's display screen properties. • Video Resolution. Use the drop-down list to select the terminal display resolution, and the radio buttons to select the color depth. The terminal will support resolutions from 600x480x8x60 up to1280x1024x16x75 if the monitor will support them.
Page 57: Desktop
o Enable Power Saving. If you check this box to enable power saving, you will activate the following three settings: Standby. Enter the number of minutes (1-999) for the Standby timeout. Standby acts much like a blank screen saver. Suspend. Enter the number of minutes (1-999) for the Suspend timeout.. Suspend turns off most terminal functions, such as the video sync signal.
Page 58 Show clock. Check this box to display the system clock. You can set the clock in the Misc. tab. o Show virtual desktops. Virtual desktops are not supported in the 2209. o Show network load. Check this box to display a small moving bar graph representing the load on the terminal network.
Page 59: Firmware
Use the Firmware properties sheet if you wish to update your terminal's firmware from a YESmanager host. For more information, please refer to the Firmware Upgrade Utilities section Firmware Property Sheet Security The 2209 provides four levels of security. Security Property Sheet...
Page 60 Authentication, enter and confirm a password in the boxes. You can also allow or forbid the user to change the user password. o Remote Authentication…. This is not supported in the 2209 terminal. Note: Even if a user password is required, the user can still access Terminal Properties without entering the correct password.
Page 61: Printers
These programs interact with an autonomous process on network print servers called the line printer daemon (LPD). Each 2209 terminal includes an LPD module that allows an LPR device on the network to assign print jobs to a local printer or network printer attached to the terminal. Check the Share local…using LPD/LPR box to enable LPD printing.
Page 62: Raw
Check the Share local…using RAW protocol box to enable RAW printing. Then check LPT1, since this is the only port available on a 2209 for RAW printing. There should be no reason to change the default port number, 9100.
Page 63 • Date and Time. You can enter the date and time here. Actually, the date may do you little good since it is not used for anything on a 2209, but the time may be useful if you have enabled the clock display (see Desktop) on the Taskbar.
Page 64 THIS PAGE INTENTIONALLY LEFT BLANK...
Page 65: Editing An Emulation Connection
Editing an Emulation Connection Editing an existing emulation connection is quite different in TBT and non-TBT viewing modes. Many more configuration parameters are accessible in non-TBT mode, and you may have to edit from one of those modes in order to get the emulation settings you need. Settings made in non-TBT mode remain in effect if you return to the TBT viewing mode.
Page 66: Connection
Connection Connection Property Sheet for TN5250e Display The properties on this property sheet were already configured in the Setup Wizard, although you can change them here if you wish General General Property Sheet for TN5250e Display Code Page YESterm/IP supports numerous language Code Pages. The Code Page selected here from the drop- down list should be the same one configured on the AS/400 for this specific device.
Page 67: Keyboard Language
Keyboard Language YESterm/IP supports several non-English keyboard languages. If you wish to use one of them, select it from the drop-down list. Keyboard Type YESterm/IP supports 3 different keyboard types (101 PC, 101 Terminal, and 122 Key) for several different languages. It is also possible to create a custom keyboard map, if desired. Activate Edit to get to the keyboard map page.
Page 68: Default
This button will erase any custom mapping that exists in this map. Everything goes back to defaults. Obviously, you want to be very careful around this key if you have done much custom mapping. Options This button opens a special dialog box where you can specify the Host Keyboard Language Option, and enable the Multinational character set.
Page 69: Miscellaneous
Miscellaneous • Euro Support. When this option is enabled, you will enter the Euro symbol when you press Alt+E. • Keyboard Buffer. This option enables Typeahead, but this option is of little use with a virtual keyboard. • Keyboard Clicker. If this option is enabled, you can hear an enhanced click every time you press a key on the keyboard.
Page 70: Default View
Default View • Standard. This selection provides the standard green screen “text” appearance for your session screens, duplicating terminal screens. Hot Spots are invisible unless the mouse cursor is placed over one of them, and then only that one Hot Spot is visible. If you are in TBT mode, the Standard view is most familiar to you.
Page 71: Attribute Settings
Display Emulation Screen with Advanced View and Hot Spot Either view can be overridden from the emulation screen Toolbars if desired. Attribute Settings Set the appearance of the attribute font on the screen. This includes properties such as foreground and background color, blinking, underscore, and the use of column separators.
Page 72: Hot Spot
Hot Spot Changes made in this property sheet affect all sessions. There is only one Hot Spot configuration per emulator, not one per session. Hot Spots are of little value if you are using the TBT viewing mode. Hot Spot Property Sheet A Hot Spot is an area of the session window on which you can single-click the left mouse button to execute a command or function.
Page 73 Emulation Screen with Standard View and Hot Spots Advanced View Hot Spots are displayed as raised buttons if the Advanced View option is selected in the Attributes tab or the emulation screen Toolbars. Advanced View is the most productive way to operate in non-TBT viewing mode since all menu items, Function Keys, sub-file options, and custom hot spots are always visible and accessible as raised buttons.
Page 74: Key Pad
1. Select the Function Key you want to modify. 2. Click on Edit. 3. If you want to send a Text String to the host every time you press the Function key, type it into the Text String field. 4. Select the Action from the Drop-Down List 5.
Page 75 Emulation Screen with Key Pad The Key Pad tab allows you to change the characteristics of the pop-up Key Pad. Changes made in this property sheet affect all sessions. There is only one Key Pad configuration per emulator, not one per session.
Page 76: Sign On (5250 Only)
Text String field. 4. Select the Action from the Drop-Down list 5. Select the command or the Recorded sequence from the Drop-Down list that you want to associate to the Hot Spot key. 6. Click on Accept. Click on Apply. To Remove a Key Pad button: 1.
Page 77: Advanced
should be enabled. To verify if this parameter is enabled, use the WRKSYSVAL command. To enable this parameter, you may use the following command CHGSYSVAL SYSVAL(QRMTSIGN) VALUE('*VERIFY') Advanced The Advanced property sheet allows enabling/disabling of several useful features. Appearance • Show Menu and Toolbar. If you want to eliminate the “Windows” look, uncheck this box. In addition to changing the appearance, this will also prevent the user from using Hot Spots or Key Pad, and from viewing the keyboard mapping.
Page 78: Security Configuration
Security Configuration YESterm/IP provides extreme flexibility in allowing, or prohibiting, the user to view and change the characteristics of the display screen. If you choose to show the Menu and Tool bars in Appearance above, you can choose to individually enable or hide every option item shown in the Menu bar, and its corresponding button in the Buttons bar.
Page 79: Connection (5250)
Connection (5250) Six of the seven parameters on this property sheet were already configured in the although you can change them here if you wish. The additional parameter is: Use this session to support…. If this session is used for •...
Page 80: Input (5250)
although you can change them here if you wish. The additional parameters are: • Use this session to support…. If this session is used for • Associate device. Usually a printer session is associated with a specific printer device name. However, there are some mainframe configurations with no "free"...
Page 81: Overrides
printer. Note: It is recommended that this feature be used only with laser printers. COR Override. This function corresponds to the IBM 3812 configuration parameter and defines • that a job with draft quality is printed in COR. Overrides If you wish to override the host system output settings, you can do so here. Note: If you are using an impact dot-matrix printer, it is recommended that you set Print Quality to Force Draft.
Page 82: Output
Form Feed command is sent to the printer. • Printer Driver. The PassThrough Drivers offered here, specifically developed by Affirmative, generate a standard text data stream. Everything is sent to the printer in text mode allowing better control of the printer and better performance.
Page 83: Printer Port
Printer Port Choose and configure the local or network printer port used in this session. Choose Parallel port or Lan printer, since the 2209 has no COM ports and direct USB printing is not supported in an emulation session. • Port printer configuration. After you choose a printer port, you need to configure it.
Page 84: Hpt (Hex Passthrough) (5250 Only)
configured as an LPD server. Host name/IP Address. If you have a local DNS or WINS server or are using a hosts table (see Parameters|Hosts type in the IP address of the LPD host. LPR queue name. This will be the queue name assigned at the LPD host to be used by LPR devices to assign print jobs.
Page 85: Advanced (5250 Only)
• Sequences. Enter the Leading Sequence and the Trailing Sequence you want to use. The default sequences are %& and %&; however, most printers use the reverse (&%). You can enter up to 4 characters for each sequence. • HPT Mode. Select one of four modes to define rather or not HPT prints spaces and rather or not it updates the column counter.
Page 86: Host Transform
• Queue Name/Queue Library/Default Port. These are host parameters and should be given to you by your host administrator. Host Transform When Host Print Transform is enabled, the host does the EBCDIC-to-ASCII conversion of the print stream, and the local Passthrough Driver is not used. •...
Page 87: How To
How To… Create a Custom Language Code Page This procedure is the same for either a display or a printer session. To do this, select one of the available Code Pages (the one that comes closest to the one you want to create) and click on Edit. Assuming that your base Code Page is International 5, the following screen will appea International 5 Code Page Table To read the table, use the left column for the first hex character of the EBCDIC code, and the top row...
Page 88 EBCDIC Code Page...
Page 89 ASCII Code Page for Terminal Font...
Page 90: Create A Custom Keyboard Map
Create a Custom Keyboard Map To do this, select, in Display Session Properties>General>Keyboard Keyboard Layouts (the one that best matches the one you want to create) and click on Edit. Assuming that you chose the 101 PC keyboard for U.S. English, the following screen will appear Select the key, or key plus modifier (Ctrl, Alt, Shift) to which you want to associate a specific action.
Page 91: Record A Keystrokes Sequence (Macro)
Custom Language Code Page Record a Keystrokes Sequence (Macro) If you regularly do the same things when you work with a host system, it is convenient to record the keystrokes you make and have YESterm/IP play them back when you want to do the same job again. Record/Playback allows you to do this.
Page 92: Play A Recorded Keystrokes Sequence (Macro)
2. Press Recrd. You will see, in the center of the Status bar, an R indicating Record mode and a countdown counter. For the first macro, this count starts at 8161. (Why 8161? I have no idea.) 3. Press the F key, Fx, that you wish to associate with the forthcoming macro. You will see the R in the status bar replaced by Fx.
Page 93: General
General This sheet allows you to select: • Variable Line Spacing. If you enable this function you must enter the Inch fractions. • Default Tray. • Permanent Save. You must check this box if you wish to save the driver changes. •...
Page 94: Escape Sequences
• Define the Default Code Page. If you want, you can also edit the Code Page by clicking on Edit Code Page. Select a value that you wish to modify, click on Edit, and a Code Page screen will appear where you can enter the new value. See instructions.
Page 95: Euro
Euro This sheet allows you to customize the Escape command used to print the EURO symbol. This special function allows you to print the EURO symbol even on those printers that are not EURO ready. Select the command you wish to customize, then activate Edit, and an Edit Passthrough Sequence dialog box will appear where you can enter the new value.
Page 96: Font Id
Font ID Driver Font ID Property Sheet This sheet allows you to customize the Escape commands used to call a Printer Font that has been associated with a Host System Font ID. To edit a Font ID, select the item, activate Edit, and an Edit Font ID and Sequence dialog box will appear where you can enter the new value.
Page 97: Emulation Operation
Emulation Operation Display Session Menu Bar Menu-bar commands of the display session window consist of commands and functions that are unique for each window (session). The system administrator may disable any or all of the Menu bar commands. See Connection|Non-TBT Viewing Mode|Display Sessions|Advanced|Security If you have a mouse, open the desired menu by left-clicking on the menu name.
Page 98: Edit
use. For more information on this function, please refer to TBT Viewing Mode|Display effective immediately, but some require that you exit the session and reopen it. • Print (r). This command prints the contents of the display screen to the printer designated in Editing an Emulation Connection|Non-TBT Viewing Mode|Display Sessions|General|Print •...
Page 99 things when you work with a host system, it is convenient to record the keystrokes you make and have YESterm/IP play them back when you want to do the same job again. Record/Playback allows you to do this. All your keystrokes can be saved in a macro file; when you play the file back (Playback), everything that happened will be reproduced exactly.
Page 100: View
Commands in the View menu are used to manipulate the Emulator display window • Toolbar-Menu (t). This toggle command hides or displays the Menu and Buttons toolbars. After you hide the toolbars, you will have to use LeftAlt and the Arrow keys to access menu options. Ruler (r).
Page 101 • repositioned as desired on the screen by dragging and dropping. Key Pad is only useful if you have a mouse. For more information on the Key Pad feature, refer to Editing an Emulation Connection|Non-TBT Viewing Mode|Display Sessions|Key • Contents (c). This command is not used in the TBT. •...
Page 102: Display Session Buttons Toolbar
The Buttons bar is displayed across the top of the application window to the right of the Menu bar. The Buttons bar provides quick access to commands you use on a regular basis, if you have a mouse. If you do not need it, you can hide it and the Menu bar to increase the size of your display window.
Page 103: Printer Session Menu Bar
Stop Recording. Duplicates the function of the menu Tools|Stop Recording command. Playback. Displays a list of available macros. Click on the one to be played, and that macro will then be executed. Ruler. Duplicates the function of the menu View|Ruler command.
Page 104: File (Alt)
File (Alt) • Connect (n). A printer session typically comes up in the connected state. But if, for some reason, the session is not connected, this command will attempt to connect the printer session to the host. • Disconnect (d). This command disconnects the printer session from the host. Properties…...
Page 105: Printer Session Buttons Toolbar
Printer Session Buttons Toolbar The Buttons bar is displayed across the top of the application window to the right of the Menu bar. The Buttons bar provides quick access, if you have a mouse, to commands you use on a regular basis. Printer Session Buttons Bar The command/button definitions are: Connect.
Page 106 THIS PAGE INTENTIONALLY LEFT BLANK...
Page 107: Firmware Upgrades
The push procedure is as follows: 1. Turn on the 2209. 2. Open YESmanager. 3. In the left pane of the YESmanager screen, you will see a list of all the Affirmative terminals found on your network. 4. Select the 2209 needing the upgrade.
Page 108: Pull
Files\Affirmative\YESmanager\htdocs. 2. Turn on the 2209. 3. Open YESmanager. 4. In the left pane of the YESmanager screen, you will see a list of all the Affirmative terminals found on your network. 5. Select the 2209 needing the upgrade. 6. Right click 7.
Page 109: Tbt Viewing Mode
TBT Viewing Mode 9. At the terminal, go to Terminal Properties>Upgrade. Upgrade Property Sheet for TBT Viewing Mode 10. In Upgrade Server, enter the IP address of the YESmanager console. 11. Leave Port at 9999. 12. Activate Query update server. You will see the Available Upgrade information filled in as shown in the next screen.
Page 110 Affirmative Computer Products Tech Support, the first thing they will ask you to do is to reset to defaults. So save yourself the aggravation and reset now.
Page 111: Non-Tbt Viewing Mode
Non-TBT Viewing Mode 9. At the terminal, go to Terminal Properties>Firmware. Firmware Property Sheet for Non-TBT Viewing Mode 10. In Upgrade Server, enter the IP address of the YESmanager console. 11. Leave Port at 9999. 12. Activate Get list. You will see the properties sheet updated with information similar to that shown in the next screen.
Page 112 Affirmative Computer Products Tech Support, the first thing they will ask you to do is to reset to defaults. So save yourself the aggravation and reset now.
Page 113: Troubleshooting Your Terminal
Troubleshooting Your Terminal The following table provides some solutions to common problems that can occur during setting up or using your Text Based Terminal. Problems 1 The monitor screen is blank Your monitor can not display after advancing past the logo screen or after changing the display setting 3 The mouse does not work 4 The keyboard does not respond...
Page 114: Support
7 The mouse cursor is jittery. Support Affirmative Computer Products offers Technical Support services for all the Affirmative products. You can access Affirmative Technical Support in one of the following ways: • via Phone o 480-946-1444 o 888-353-5250 • via Fax o 480-946-9250 •...
Page 115: Appendix 1. Specifications
Appendix 1. Specifications ITEM Processor Communication and Ports Embedded O.S. Video Memory Software Features Temperature Environment Relative Humidity SPECIFICATIONS SIS 550 200 MHz • 10/100 dual-speed Ethernet, Twisted Pair (RJ45). • One parallel port (DB-25 Female connector). • Enhanced ps/2 keyboard interface. •...
Page 116 ITEM Operating Altitude Range Power Regulatory Compliance Dimension (WxDxH) Physical Characteristics Weight SPECIFICATIONS • 0 to 10,000 feet (0 to 3050 meters) • Full range auto-sensing 100 ~ 240 VAC at 50 Hz ~ 60 Hz • 10 Watts • UL •...
Page 117: Appendix 2. Tcp/Ip Error Codes
Appendix 2. TCP/IP Error Codes Here is a comprehensive list of standard TCP/IP error codes that can occur during network operation. Some of them are quite esoteric and may not be applicable to YEStation operation, but this list should include any networking error code that you encounter. They should be useful in troubleshooting network errors, many of which are caused by incorrect configuration.
Page 118 10042 Bad protocol option. 10043 Protocol not supported. 10044 Socket type not supported. 10045 Operation not supported. 10046 Protocol family not supported. 10047 Address family not supported by protocol family. 10048 Address is already in use. If you attempt to set up a server on a port that is already is in use, you will get this error.
Page 119 10058 Cannot send after socket shutdown. 10060 Connection timed out. 10061 Connection refused. You will usually see this error when a server refuses a connection from a client, because the server is not listening on that port. 10064 Host is down. 10065 No route to host.
