Sharp SMD2499FS Installation Manual page 3

24" CONVECTION MICROWAVE DRAWER STANDARD MOUNT AND MEASUREMENTS

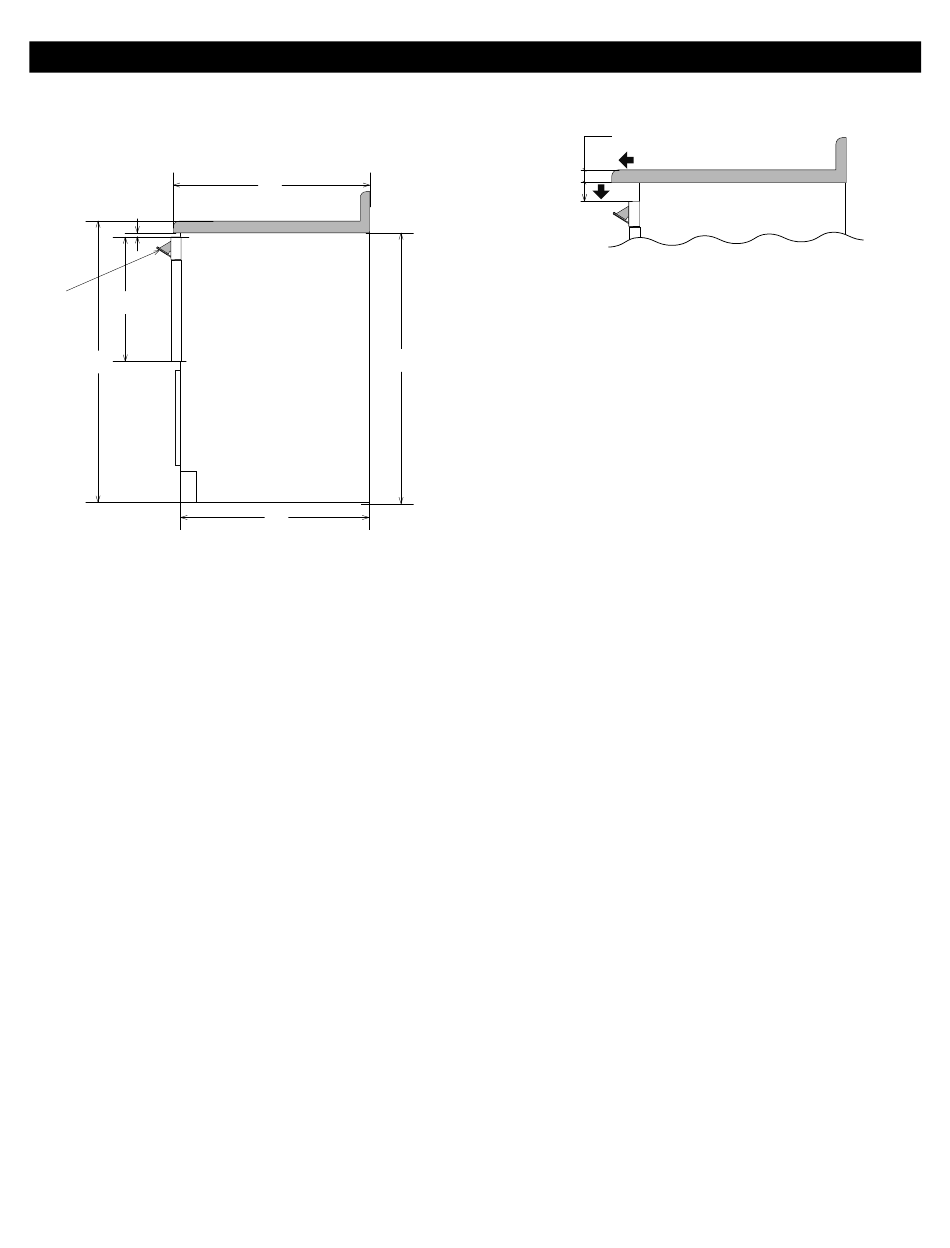

Figure 3 represents a typical standard cabinet. If installed in
custom cabinets with extended countertops, take into account
visibility and access to controls. See Figure 4.
B
E
C
D
A. 25" (635 mm)
B. / " (12.7 mm) minimum
1
2
C. 19 / " (495.3 mm)
1
2
D. 36" (914.40 mm)
E. Control panel shown in open position
F. 24" (609.60 mm)
G. 34 / " (876.30 mm)
1
2
A
F
Figure 3
G
3
Move oven location downward for
extended countertops
Extended countertops
Figure 4
E
