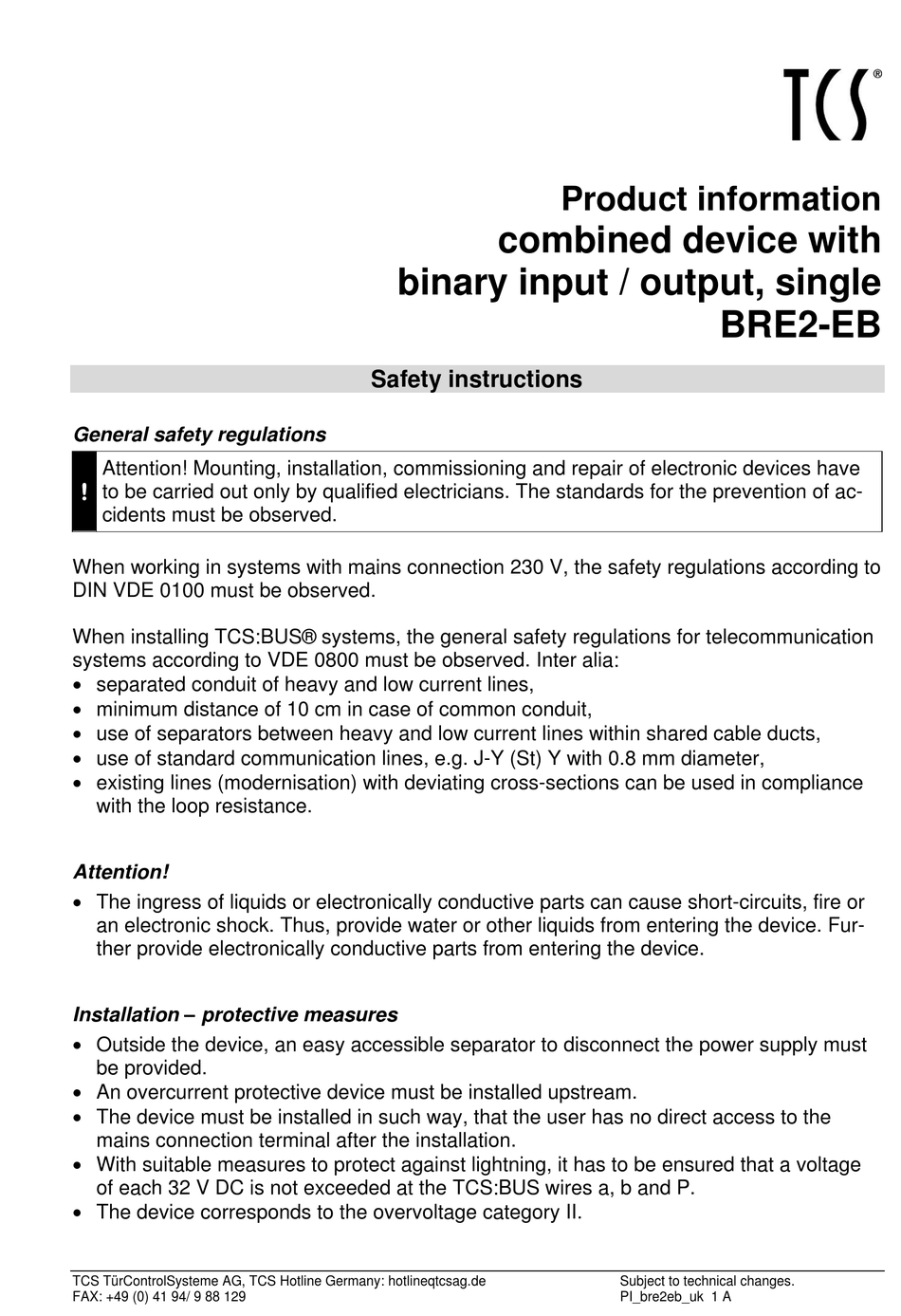

TCS BRE2-EB Product Information

General safety regulations
Attention! Mounting, installation, commissioning and repair of electronic devices have
!
to be carried out only by qualified electricians. The standards for the prevention of ac-
cidents must be observed.
When working in systems with mains connection 230 V, the safety regulations according to
DIN VDE 0100 must be observed.
When installing TCS:BUS ® systems, the general safety regulations for telecommunication
systems according to VDE 0800 must be observed. Inter alia:
 separated conduit of heavy and low current lines,
 minimum distance of 10 cm in case of common conduit,
 use of separators between heavy and low current lines within shared cable ducts,
 use of standard communication lines, e.g. J-Y (St) Y with 0.8 mm diameter,
 existing lines (modernisation) with deviating cross-sections can be used in compliance
with the loop resistance.
Attention!
 The ingress of liquids or electronically conductive parts can cause short-circuits, fire or
an electronic shock. Thus, provide water or other liquids from entering the device. Fur-
ther provide electronically conductive parts from entering the device.
Installation – protective measures
 Outside the device, an easy accessible separator to disconnect the power supply must
be provided.
 An overcurrent protective device must be installed upstream.
 The device must be installed in such way, that the user has no direct access to the
mains connection terminal after the installation.
 With suitable measures to protect against lightning, it has to be ensured that a voltage
of each 32 V DC is not exceeded at the TCS:BUS wires a, b and P.
 The device corresponds to the overvoltage category II.
TCS TürControlSysteme AG, TCS Hotline Germany: hotlineqtcsag.de
FAX: +49 (0) 41 94/ 9 88 129
combined device with
binary input / output, single
Safety instructions
Product information

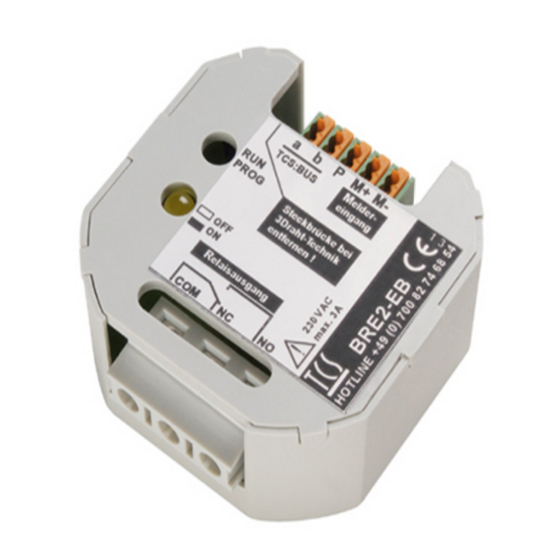

BRE2-EB
Subject to technical changes.
PI_bre2eb_uk 1 A
