Operating instructions manual
2
a/b
Communication+Video-systems
TLT 06
Door-telephone speech unit
The Door-telephone speech
unit for connection to a PABX
telephone system

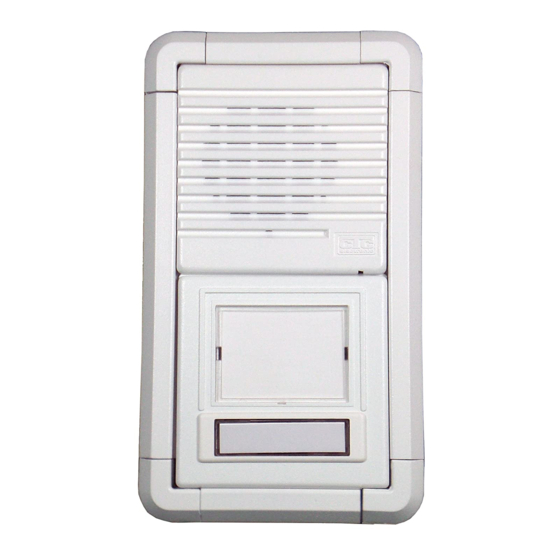

The TLT 06 is available as an individual
module or as a complete door station
with up to max. 6 buttons.
It is attached to a PABX telephone
system and permits a speech connection
between telephone's and the TLT 06 door
station.
Nearly every PABX telephone system
with an analogue extension can be used.
The voltage supply of the TLT 06 unit is
provided from the PABX telephone
system.
Advertisement
Summary of Contents for balcom TLT 06
- Page 1 TLT 06 door station. Nearly every PABX telephone system with an analogue extension can be used. The voltage supply of the TLT 06 unit is provided from the PABX telephone system.
- Page 2 DOOR = Door-opener switch apparatus there is speech connection. If nobody reports at the Speaker Volume extension to be called, the TLT 06 goes offline after some call Connection adjustment cycles. In case of the apparatus being occupied, the busy tone Buttons recognition also puts the device offline..
- Page 3 Replace the handset ( on-hook ) The behavior of the TLT 06 after putting the telephone on-hook can vary and is dependent on the used PABX telephone system. If the period of the reciept tones seems to be too long, the following short-cut can help. Instead of just putting the telephone on-hook press the star (*) button of the keypad first and then put the telephone on-hook.
- Page 4 Lift the Handset of any telephone on the PABX. Here is a practicle example to demonstrate how the programming functions. Dial the Internal extension number of the TLT 06 and wait until aconnection is built up. The situation is assumed...
