Introduction

SPARKlink is a sensor interface with two ports to accept
PASPORT sensors and a USB connection to a computer running
SPARKvue software. The built-in temperature and voltage probe
ports and included probes enable measurement right out of the
box with no additional sensors.
SPARKlink works with SPARKvue software running on you
computer to collect data for display and analysis.

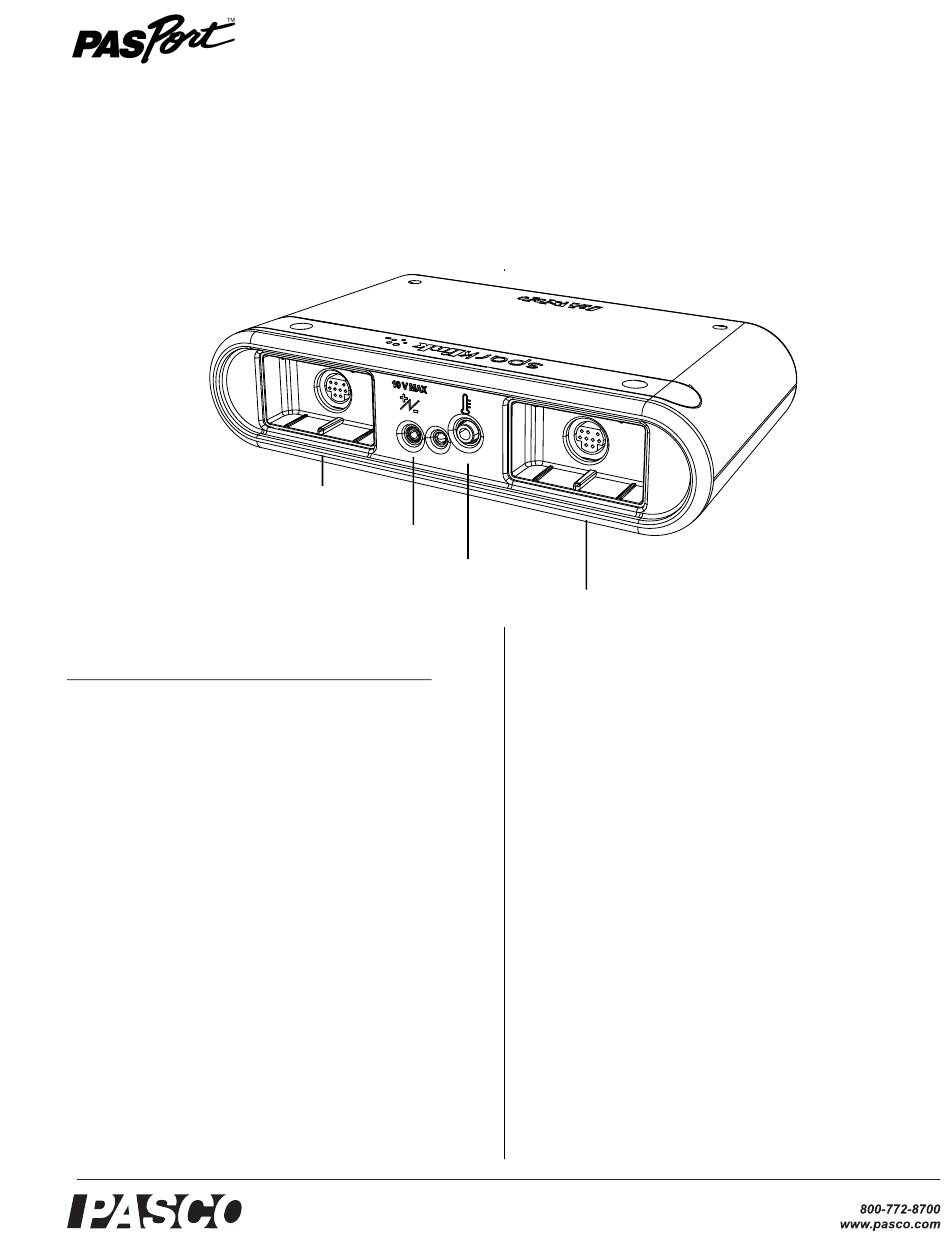

SPARKlink
PASPORT
port
voltage
port
temperature
®
PS-2009
port
PASPORT
port
Connecting SPARKlink to your
computer
1. Connect the included USB cable to the USB port on the back
of the SPARKlink.
2. Connect the other end of the USB cable to a USB port on
your computer.
3. Start SPARKvue. (If necessary, install SPARKvue on your
computer.)
Note: SPARKlink includes a port for external power, however it is not
necessary for operation because power is supplied from the computer
through the USB cable.
Connecting Sensors to
SPARKlink
Do one or more of the following to connect any sensors that you
would like to use:
• Connect one or two PASPORT sensors to the PASPORT
ports.
