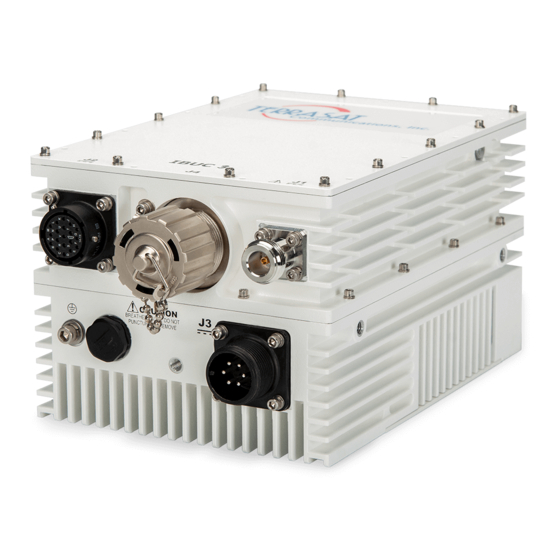

Terrasat IBUC 3 Operation Manual

Intelligent block upconverter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

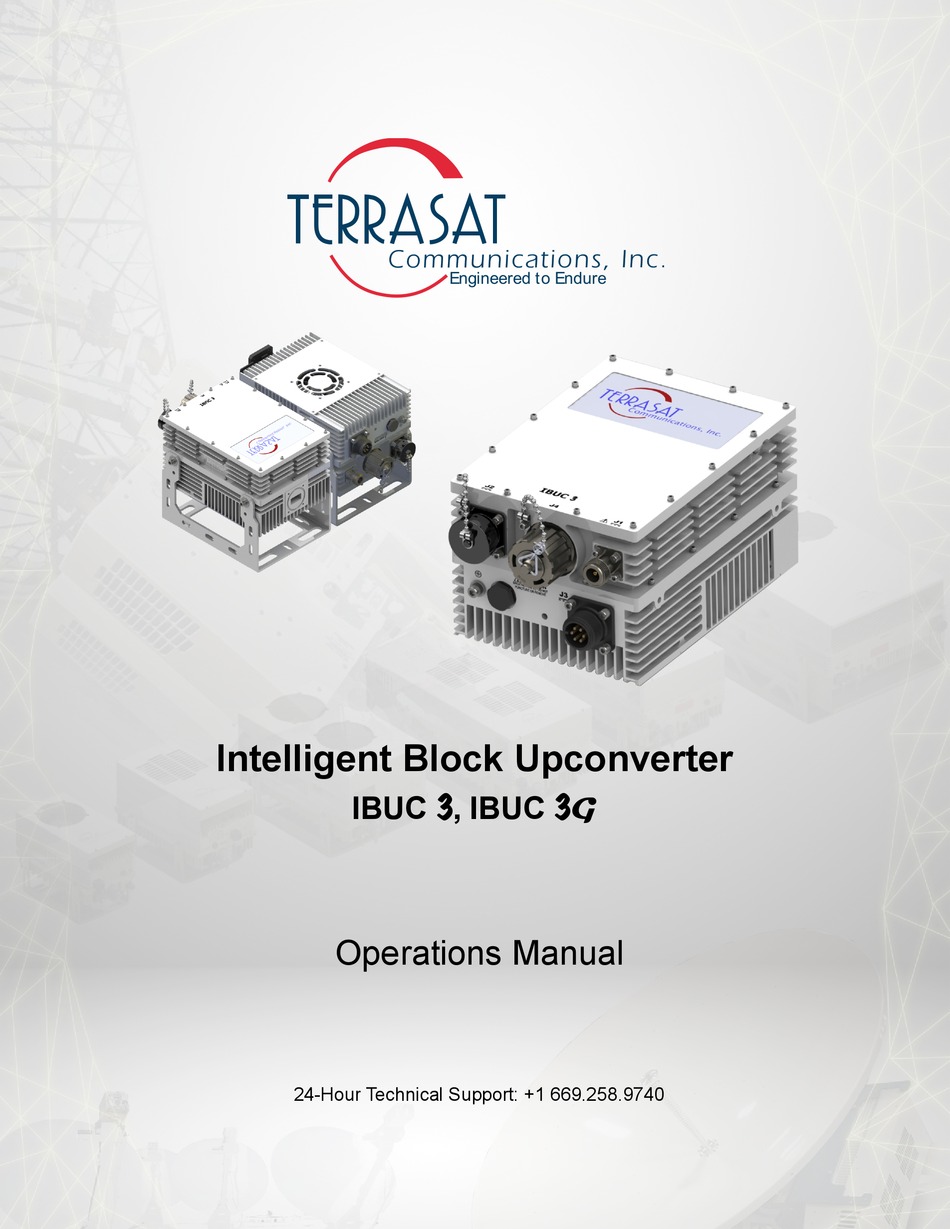

Engineered to Endure
Intelligent Block Upconverter
IBUC 3, IBUC 3G
Operations Manual
24-Hour Technical Support: +1 669.258.9740

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IBUC 3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Terrasat IBUC 3

Summary of Contents for Terrasat IBUC 3

  • Page 1 Engineered to Endure Intelligent Block Upconverter IBUC 3, IBUC 3G Operations Manual 24-Hour Technical Support: +1 669.258.9740...
  • Page 2 This document is provided to customers who have purchased Terrasat Communications, Inc. equipment. This document is copyright protected and no part of this manual may be reproduced, transcribed, or translated into any language or transmitted in any form whatsoever without the prior written consent of Terrasat Communications, Inc.

  • Page 3: Table Of Contents

    Engineered to Endure ABLE ONTENTS Preface Conventions and References ....................P-1 Cautions and Warnings ..................... P-2 Trademarks........................P-2 Electrical Safety Notice ....................P-2 Chapter 1, Introduction Block Upconverters........................1-1 Reference Documents ......................1-2 Warranty Information....................... 1-5 Chapter 2, Functional Description Introduction ..........................
  • Page 4 Engineered to Endure Setting the Tx and Rx Frequencies ................... 3-17 Transmit Power Alignment....................3-18 Transmit RF Output Adjustment with Modem or Converter (70 MHz to L-band) ..3-18 Final Checks..........................3-19 Chapter 4, Operations Introduction..........................4-1 Start-up Checklist........................4-1 Turning On the IBUC ......................
  • Page 5 Engineered to Endure Chapter 6, Troubleshooting Maintenance ..........................6-1 Transceiver Fault Isolation ....................6-1 Site-Related Problems....................... 6-1 M&C Checks ........................6-1 Power Supply Checks ....................... 6-2 Transmit Power Setting ....................6-2 Common Problems ......................6-3 Tx Output is Disabled ....................... 6-3 Incorrect Frequency Settings ....................
  • Page 6 Engineered to Endure General..........................7-17 Service and Maintenance ......................7-23 Standard Maintenance......................7-23 Fault Isolation ........................7-23 M&C Functions ........................7-28 User Interfaces ........................7-28 RS485 in ASCII Mode...................... 7-29 TCP/IP via Ethernet Cable....................7-30 Repair Policy........................7-30 Appendix A, Part Numbering Schema Identifying the Part and Serial Numbers..................
  • Page 7 Engineered to Endure Appendix E, Legacy Binary Command Message Structure Command Set ........................... E-1 Legacy Response Message Structure ..................E-3 Data Field Definitions......................E-5 Appendix F, ASCII Command/Response Structure Command Set ........................... F-1 Common Commands ......................F-4 Transmit-Only Commands ....................F-24 Redundancy Commands ......................
  • Page 8 Engineered to Endure...
  • Page 9 Table 2.5 Basic System Requirements..................2-13 Table 3.1 Recommended Test Equipment .................. 3-3 Table 3.2 Terrasat Outdoor Power Supplies ................3-5 Table 3.3 Interface Connector Schedule ..................3-10 Table 3.4 Pin Assignments for M&C Interface Connector J2 ............ 3-11 Table 3.5 Pin Assignments for DC Power Connector J3 ............
  • Page 10 Engineered to Endure Table F.3 Error Response Table....................F-2 Table F.4 Default Values for the TAH, TAL, and TBT Commands .......... F-33 Table F.5 Band Numbering......................F-35 Table F.6 Default Values for the TFR Command............... F-37...
  • Page 11 Engineered to Endure IGURES Figure 2.1 Front Panel of a IBUC or IBUC 3G................2-6 Figure 2.2 DC-powered Low-Power IBUC Block Diagram ............ 2-10 Figure 2.3 DC-powered IBUC Block Diagram................ 2-11 Figure 2.4 DC Low Power IBUC System Configuration............2-15 Figure 2.5 DC Power IBUC System Configuration ..............
  • Page 12 Engineered to Endure viii...
  • Page 13 Engineered to Endure REVISION HISTORY Revision Date Description 1/26/2021 Initial Public Release...
  • Page 14 Engineered to Endure...

  • Page 15: Preface

    R E F A C E This manual provides information about the Terrasat Communications, Inc. line of intelligent block upconverters. Conventions and References Before you start using this manual, it is important to understand the typographical conventions and terms used in the documentation.

  • Page 16: Cautions And Warnings

    WARNING indicates a potentially hazardous situation that, if not avoided, could result in death or serious injury. Trademarks Terrasat Communications Inc. is a registered trademark. Also, other product names mentioned in this manual may be trademarks or registered trademarks of their respective companies and are hereby acknowledged.

  • Page 17: Chapter 1, Introduction

    H A P T E R NTRODUCTION HAPTER This manual is intended for users of Terrasat Communications, Inc. block upconverter systems including the IBUC 3 and IBUC 3G. It contains information about • Installation, operation, and maintenance of IBUC 3 and IBUC 3G systems. •...

  • Page 18: Reference Documents

    Environmental Tests for Telecommunications Equipment. Part 1-1: Classification of environmental conditions. Storage. Equipment Engineering (EE): Environmental Conditions and ETS 300 019-1-2 Environmental Tests for Telecommunications Equipment. Part 1-2: Classification of environmental conditions. Transportation. IBUC 3, IBUC 3 Operations Manual: Introduction...
  • Page 19 Engineered to Endure Satellite Operation Standards (Continued) Table 1.1 Equipment Engineering (EE): Environmental Conditions and Environmental Tests for Telecommunications Equipment. Part 1-4: ETS 300 019-1-4 Classification of environmental conditions. Stationary use at non- weather protected locations. Equipment Engineering (EE): Environmental Conditions and ETS 300 019-2-1 Environmental Tests for Telecommunications Equipment.
  • Page 20 Audio/video, information and communication technology equipment - Part 1: Safety requirements (IEC 62368-1:2014, modified) Information technology equipment - Safety - Part 22: Equipment EN 60950-22:2017 installed outdoors EN 60529:1991/A2:2013/ Degrees of protection provided by enclosures (IP Code) AC:2019-02 IBUC 3, IBUC 3 Operations Manual: Introduction...

  • Page 21: Warranty Information

    (6) In no event shall Terrasat be liable to buyer for any indirect, special, or consequential damages or lost profits arising from the use of the equipment or...
  • Page 22 Warranty seals are designed to break upon internal access. Access to the internal Note: electronic components without prior written approval will void the warranty. For more information about returning a product for repair, see Repair Policy page 6-6 IBUC 3, IBUC 3 Operations Manual: Introduction...

  • Page 23: Chapter 2, Functional Description

    IBUC 3 models: • IBUC 3: All of the original features of the IBUC 2 but in an even smaller, more cost-effective package that is ideal for applications where compact size, light weight, and low thermal dissipation are critical factors.

  • Page 24: System Components

    Figure 2.5 page 2-16 for typical equipment configurations. The IBUC 3 and IBUC 3G are available in a variety of frequency bands as listed in Table 2.1 Table 2.2. The IBUC houses the IF interface (demux), the upconverter, the monitor and control (M&C) card, a DC-to-DC converter and associated circuitry and a solid state power amplifier (SSPA) assembly.

  • Page 25: Table 2.1 Ibuc 3 Transmit Frequency Plans

    Engineered to Endure IBUC 3 Transmit Frequency Plans Table 2.1 Signal Standard Ku-band (Band 1) Full Ku-band (Band 2) L-band 950 MHz to 1450 MHz 950 MHz to 1700 MHz (Inverting) LO frequency — — (Inverting) L-band — — (Non-Inverting) LO frequency 13.050 GHz...

  • Page 26: Table 2.2 Ibuc 3G Transmit Frequency Plans

    Engineered to Endure Table 2.2 IBUC 3G Transmit Frequency Plans Signal Standard Ku-band (Band1) Full Ku-band (Band 2) L-band 950 MHz to 1450 MHz 950 MHz to 1700 MHz LO frequency — — (Inverting) LO frequency 13.050 GHz 12.800 GHz (Non-Inverting) RF frequency 14.000 GHz to 14.500 GHz...

  • Page 27: Dc Supply

    J1 or input J3. For higher-power units (such as Ku-band 25 watts and above), DC power delivery is restricted to the external power connector J3. Terrasat IBUCs have several supply voltage options. The standard configuration is 48 VDC. However, a 24 VDC option is available for lower power units. Refer to the...
  • Page 28 Engineered to Endure For more information about connector types, breather valve system and mounting Note: options, refer to sections: System Cabling Requirements page 3-10, System Pressurization page 3-9 Antenna Mounting page 3-7 respectively. Figure 2.1 Front Panel of a IBUC or IBUC System Components...

  • Page 29: Monitor And Control

    (f) in units of dBc/Hz. An internal phase-locked Local Oscillator provides excellent phase noise when locked to an external 10 MHz reference. Single sideband phase noise using an external reference signal is listed in Table 2.3. IBUC 3, IBUC 3 Operations Manual: Functional Description...
  • Page 30 Engineered to Endure Table 2.3 External 10 MHz Reference Signal Parameters Condition External Reference IBUC 3, IBUC 3G 10 Hz -115 dBc/Hz -50 dBc/Hz 100 Hz -140 dBc/Hz -65 dBc/Hz 1 kHz -150 dBc/Hz -80 dBc/Hz 10 kHz -155 dBc/Hz...
  • Page 31 Engineered to Endure The external 10 MHz reference signal is routed to the multiplier circuitry where its level is first detected and an alarm issued if the signal is low. However, if the signal level is low and the system is equipped with the optional internal 10 MHz signal, the system will automatically switch to the internal 10 MHz signal.

  • Page 32: Figure 2.2 Dc-Powered Low-Power Ibuc3 Block Diagram

    Engineered to Endure DC-powered Low-Power IBUC3 Block Diagram Figure 2.2 2-10 IBUC 3, IBUC 3 Operations Manual: Functional Description...

  • Page 33: Figure 2.3 Dc-Powered Ibuc3 Block Diagram

    Engineered to Endure Figure 2.3 DC-powered IBUC3 Block Diagram System Components 2-11...

  • Page 34: Software

    Engineered to Endure Software The IBUC 3, IBUC 3G monitors and controls numerous parameters and has features which simplify installation, use, and enhance system performance. Some of these key features include: • Monitor and Control The IBUC can be monitored and controlled through several interfaces including RS232, RS485, Ethernet port, an optional hand-held terminal, or via an FSK link with compatible modems.

  • Page 35: System Configurations

    F-28. • Transmit Key Line Both IBUC 3 and IBUC 3G are Transmit Key Line compatible, enabling significant power reduction by directly turning off the IBUCs internal SSPA. This feature further increases the IBUC 3 lineup compatibility with Communications- On-The-Move (COTM) and emergency response applications in the field.
  • Page 36 Certain considerations must be made when selecting the IFL because appropriate shielding and signal levels are required for normal system operation. The IBUC 3 and IBUC 3G are designed to operate with a -30 dBm Tx L-band input signal to achieve rated power at maximum gain/minimum attenuation.

  • Page 37: Figure 2.4 Dc Low Power Ibuc System Configuration

    Engineered to Endure DC Low Power IBUC System Configuration Figure 2.4 System Components 2-15...

  • Page 38: Figure 2.5 Dc Power Ibuc System Configuration

    Engineered to Endure Figure 2.5 DC Power IBUC System Configuration 2-16 IBUC 3, IBUC 3 Operations Manual: Functional Description...

  • Page 39: Storage Information

    Engineered to Endure Storage Information There are no storage limitations on the IBUC 3 or IBUC 3G, or Redundant (1+1) interfaces for redundant systems other than avoiding excessive exposure beyond the - 45 ºC to +65 ºC external ambient temperature.
  • Page 40 Engineered to Endure 2-18 IBUC 3, IBUC 3 Operations Manual: Functional Description...

  • Page 41: Chapter 3, Installation

    Terrasat recommends retaining and re-using all shipping cartons and foam forms if the equipment will be stored or reshipped. The cartons should be clearly marked to indicate that they contain fragile electronic equipment.

  • Page 42: Furnished Items

    Furnished items with IBUC 3 Figure 3.1 A. An IBUC 3 or IBUC 3G with an integrated solid state power amplifier (SSPA) 1. Product documentation on CD 2. Waveguide gaskets and hardware (waveguide units only) 3.

  • Page 43: Accessories

    Consider the following when preparing to install the ODU. Tools Have available a standard electrician’s toolkit and any tools listed in the antenna manufacturer’s installation instructions. Test Equipment Terrasat recommends the equipment or its equivalent listed in Table 3.1 installation and system alignment. Recommended Test Equipment Table 3.1...

  • Page 44: Mounting Considerations

    Engineered to Endure (American Wire Gauge) stranded copper wire to ground the IBUC 3 or IBUC 3G to the antenna frame and to the lightning protection ground rod. For higher power units with an external power supply, Terrasat recommends using an isolation filter to reduce power line interference.

  • Page 45: Grounding

    • X-band 150 W to 175 W Indoor Power Supply Terrasat offers a 1000 watts indoor power supply unit (PSUI) which provides 48 VDC power. The 1000 watts PSUI can power C-band and X-band units through 125 watts, Ku-band units through 80 watts, and Ka-band units through 40 watts. Each indoor PSUI is packaged in a rack-mountable chassis which occupies one rack unit (1.75 in.)

  • Page 46: Antenna Recommendations

    • Electrical Grounding Grounding of the IBUC 3 or IBUC 3G and PSUI units is recommended to prevent possible damage from lightning or other induced electrical surges. Terrasat recommends using 3/0 or 4/0 AWG stranded copper wire for bonding the IBUC and the PSUI to the earth ground (or grounding rod), using the most direct or shortest route.

  • Page 47: Antenna Mounting

    The IBUC has a variety of mounting options: on the focal point, the boom arm, the antenna back structure, or in the hub (depending on the antenna type). Figure 3.2 depicts photographs of actual installations. Note: Figure 3.2 IBUC 3 Field Installation General Requirements...

  • Page 48: Figure 3.3 Location Of Mounting Holes

    Engineered to Endure The IBUC 3 or IBUC 3G have mounting holes on both sides of the unit that can be used to attach the IBUC to the antenna. For the location of these mounting holes, see Figure 3.3. Location of Mounting Holes Figure 3.3...

  • Page 49: System Pressurization

    Engineered to Endure Optional mounting brackets are available that aid in attachment to antennas. The mounting slots identified in Figure 3.5 page 3-9 give you additional flexibility when attaching the IBUC to the antenna. Ensure that the threads of the bolts used for mounting the IBUC have been dipped in Note: the included Permatex anti-seize lubricant.

  • Page 50: System Cabling Requirements

    Engineered to Endure System Cabling Requirements Cables and Connectors Interface connectors for the IBUC 3 or IBUC 3G and their mates are listed in Table 3.3. Additional mating connectors and/or cables can be ordered from Terrasat as optional items. Table 3.3...

  • Page 51: Table 3.4 Pin Assignments For M&C Interface Connector J2

    Local government agencies may waive this requirement with the use of Plenum cables which are standard cables encased in solid Teflon. Check codes for your area. Equipment outages due to faulty installation are not covered by the Terrasat warranty. Note: Terrasat recommends following OEM procedures when making cables and connectors.

  • Page 52: Table 3.5 Pin Assignments For Dc Power Connector J3

    VDC connection to Common. The operating voltage is integrated into the model number of each IBUC. For more Note: information about the model number of your particular model IBUC, see Appendix A, Part Numbering Schema. 3-12 IBUC 3, IBUC 3 Operations Manual: Installation...

  • Page 53: Cable And Waveguide Connections

    Engineered to Endure J4 – Industrial Ethernet Connector The industrial Ethernet connector is an IP67-rated RJ45 Cat. 5e interface with a locking protective cover. The connector is configured as described in Table 3.6. Table 3.6 Pin Assignments for Ethernet Connector J4 Function TCP/IP Tx(+) TCP/IP Tx(–)
  • Page 54 Apply the tape to all connectors that may be exposed to moisture. Applying the Anti-Seize Lubricant Terrasat recommends applying anti-seize lubricant to screws and bolts that could be exposed to weathering or corrosive environments. The lubricant prevents galling, seizing, and corrosion during assembly and aids in future disassembly. A 5 g pouch of Permatex anti-seize lubricant is included with the installation kit for this purpose.

  • Page 55: Figure 3.7 Applying The Anti-Seize Lubricant

    Engineered to Endure Figure 3.7 Applying the Anti-Seize Lubricant 4. Spread the lubricant to a thin film without any lumps. 5. Reassemble the parts using normal torque values. 6. Wipe off any excess material with a disposable towel. Waveguide Connections If necessary, connect a section of flexible waveguide between the orthogonal mode transducer (OMT) transmit port and the IBUC Tx RF output (or optional Rx reject filter).

  • Page 56: Basic System Alignment

    ODU. Before attempting any signal changes, carefully evaluate the possible effects of the transmitted signal. 3-16 IBUC 3, IBUC 3 Operations Manual: Installation...

  • Page 57: Setting The Tx And Rx Frequencies

    2. Use a spectrum analyzer to ensure that the 10 MHz reference signal is present at the modem. WARNING DC power will be present on the cable. Terrasat recommends the use of a DC block when using a spectrum analyzer. 3. Connect the LNB to the demodulator’s Rx input by attaching the coaxial cables from the Rx L-band output on the LNB to the demodulator’s Rx L-band input port.

  • Page 58: Transmit Power Alignment

    3. Check that the 10 MHz reference signal is present and within the range of +5 dBm though –12 dBm. The IBUC 3 and IBUC 3G require a 10 MHz reference signal to operate. Check Note: the model number of your IBUC to determine whether an external 10 MHz signal is required.

  • Page 59: Final Checks

    Engineered to Endure 5. Measure the RF output with a power meter connected to the attenuator attached at the waveguide output. For accuracy, measure pure carrier (that is, continuous wave or CW) and the frequency allotted to you by the satellite network operations center (NOC).
  • Page 60 Engineered to Endure 3-20 IBUC 3, IBUC 3 Operations Manual: Installation...

  • Page 61: Chapter 4, Operations

    H A P T E R PERATIONS HAPTER This chapter describes general operation of the IBUC 3 and IBUC 3G. Introduction After the IBUC has been mounted and connections verified, the antenna must be aimed towards the appropriate satellite. Follow the antenna manufacturer’s instructions, using the coordinates (azimuth, elevation, and polarity) provided by the satellite operator.

  • Page 62: Turning On The Ibuc

    RS232, RS485 or Telnet, refer to Chapter F, ASCII Command/ Response Structure. 1. Establish a connection with the IBUC 3 or IBUC 3G by using the steps provided Appendix C, Embedded Web Pages. 2. Navigate to the Transmit Configuration tab as shown on page C-10.
  • Page 63 Engineered to Endure When conditions cause the automatic shut-off of the Tx Output signal, the Tx Output is muted and the Tx Output level displayed on the Sensors Tab (shown page C-9) reads -96.0dBm. This is not the actual reading. 4.

  • Page 64: Setting The Tx Frequency (L-Band)

    Setting the Tx Frequency (L-band) Changing the L-band frequency will cause a change to the RF frequency. To set the L- band frequency, 1. Establish a connection with the IBUC 3 or IBUC 3G by using the steps provided Appendix C, Embedded Web Pages.

  • Page 65: Configuring Alarm States

    Each alarm that is user configurable can be set as a major event, a minor event, or be disabled. 2. Establish a connection with the IBUC 3 or IBUC 3G by using the steps provided Appendix C, Embedded Web Pages.

  • Page 66: Configuring The External Mute

    The Tx Output Level is “captured” when ALC is enabled. Note: Terrasat units enable you to offset the target by using the attenuation control without having to first disable the ALC or AGC. : Set the output power level to 40 dBm and enable ALC. From this point Example forward, the ALC algorithm will maintain the output level at 40 dBm.

  • Page 67: Common Errors

    You can communicate with the IBUC to determine what is causing the fault, and then clear the fault condition. 1. Establish a connection with the IBUC 3 or IBUC 3G by using the steps provided Appendix C, Embedded Web Pages.

  • Page 68: Time Stamp Data Is Incorrect

    IBUC. Satellite Network Operations Center Doesn’t Recognize Signal The IBUC 3 or IBUC 3G appears to be transmitting a signal, but the satellite network operations center (NOC) cannot identify your carrier.

  • Page 69: Transmit Power In Saturation

    2. Increase the attenuation setting of the IBUC. Tx Input/Output Level Verification To verify the Tx IF Input level, 1. Establish a connection with the IBUC 3 or IBUC 3G by using the steps provided Appendix C, Embedded Web Pages.
  • Page 70 4. If, after setting the output to your expected level, you are still having transmission problems, check the flexible waveguide and antenna feed for obstructions. Also check the alignment of the antenna. 4-10 IBUC 3, IBUC 3 Operations Manual: Operations...

  • Page 71: Chapter 5, Monitor And Control Features

    IBUC 3 and IBUC 3G offer. Introduction You must first establish a communication link with the IBUC to be able access any of the M&C interfaces. M&C Interfaces The IBUC 3 or IBUC 3G offer the following M&C interfaces: • RS232 • Hand-held terminal •...

  • Page 72: Figure 5.1 Hand-Held Terminal

    The Hand-held terminal (HHT) shown in Figure 5.1 is an optional item that can be used to access the IBUC 3 or IBUC 3G via the J2 connector for local monitor and control. No additional configuration of the IBUC is necessary. Hand-held Terminal Figure 5.1...

  • Page 73: Multifunction Led

    Appendix D, Hand-Held Terminal Menu Tree. Multifunction LED The multifunction LED is mounted on the IBUC 3 and IBUC 3G housing and provide visual indications of IBUC status. LED colors and modes are as follows: • Flashing Green - No alarms •...

  • Page 74: Frequency Shift Keying (Fsk) Modem Interface

    650 KHz ±5% FSK Deviation ±60 KHz nominal (+60 KHz mark) Deviation Tolerance ±50 KHz minimum; ±70 KHz maximum Output Level - 5dBm to -15 dBm Output Impedance 50 Ω IBUC 3, IBUC 3 Operations Manual: Monitor and Control Features...

  • Page 75: Rs485

    Engineered to Endure Transmitter Link Specifications Table 5.2 Start Tone 710 KHz Start Tone Time 10 ms Table 5.3 Receiver Link Specifications Locking Range ±32.5 KHz Input Impedance 50 Ω Input Sensitivity - 15dBm Synchronization is maintained by the following method: 1.

  • Page 76: Ascii Mode

    1. For a list of ASCII codes, see For GET Commands, the format is as follows: <address/command[CR] Example: <0001/COI[CR] For SET Commands, the format is as follows: <address/command=xxx[CR] Example: <0001/CPE=1234[CR] IBUC 3, IBUC 3 Operations Manual: Monitor and Control Features...

  • Page 77: Legacy Binary Mode

    5.6. Data Packet Byte Configuration Table 5.6 Byte 1 Byte 2 Byte 3 Byte 4 Byte 5 Byte 6 Byte 7 IBUC 3 Command Data Byte 1 Data Byte 2 Data Byte 3 Data Byte 4 Checksum Address Where: •...

  • Page 78: Ethernet

    Structure. Ethernet Using Ethernet, you can communicate with the IBUC 3 or IBUC 3G through Telnet (ASCII), the onboard Web server (HTTP), or through SNMP. The IBUC uses a static IP addressing structure and does not support DHCP (Dynamic Host Control Protocol).

  • Page 79: Web Server

    Appendix SNMP The IBUC 3 and IBUC 3G supports both version 1.0 & 2.0c of the SNMP protocol. The SNMP agent listens on Port 161 for messages and uses Port 162 for transmitting trap information. SNMP can be configured from the HHT, RS232, Telnet, Web pages, FSK and the RS485 interfaces (ASCII Mode required for FSK and RS845).

  • Page 80: Power Measurement

    TERRASAT-TC-MIB.MIB Power Measurement The IBUC 3 and IBUC 3G are capable of accurately reading the input and output power for a single carrier in either continuous signal mode (CSM) or in burst mode. The dynamic range for input power is from -55 dBm to -20 dBm and for output power the dynamic range is from rated power to 20 dB below rated power.

  • Page 81: Input Power Overdrive Protection

    Input Power Overdrive Protection To ensure that output stage transistors achieve saturation, and thus, maximum performance, the IBUC 3 and IBUC 3G allow for input overdrive. The Input overdrive point allows for 6 dB overdrive at 0 dB attenuation in Gallium Nitride FET (GaN) based units and 2dB overdrive at 0dB attenuation in Gallium Arsenide (GaAs) based units.
  • Page 82 3. ALC Operation ALC Operation uses no input protection. The output level is automatically controlled by the attenuators. As the input level increases, ALC attenuates to maintain the same level. 5-12 IBUC 3, IBUC 3 Operations Manual: Monitor and Control Features...

  • Page 83: Chapter 6, Troubleshooting

    Transceiver Fault Isolation Use the information in this section to assist in determining whether a Terrasat unit is faulty. The intent is to determine a “Go” or “No Go” situation based on alarms indicated through the M&C ports, as well as by measuring certain signals using test...

  • Page 84: Power Supply Checks

    J1 or J3 connector. Transmit Power Setting There have been several cases reported to Terrasat Technical Support where the transmit power has been turned up to or near saturation while transmitting a digital carrier. This most likely will result in spectral distortion, re-growth, and intermodulation products for multi-carrier operation.

  • Page 85: Common Problems

    IBUC Tx Output verification procedure that follows. 5. Disconnect the spectrum analyzer from the coaxial cable. IBUC 3 Transmit Output Verification This check assumes that the L-band, 10 MHz, and DC inputs (for DC-powered IBUCs) are at the correct levels.

  • Page 86: Damaged Cables

    Causes a major alarm (Synthesizer Out of Lock). Power amplifier is muted and the IBUC is Out-of-Lock automatically shut-off. Check the 10 MHz reference signal level and whether the 10 MHz reference signal is enabled at the modem. IBUC 3, IBUC 3 Operations Manual: Troubleshooting...

  • Page 87: Antenna Is Pointed Toward Wrong Satellite Or Is Misaligned

    Engineered to Endure Table 6.1 Possible Scenarios for IBUCs with an External 10 MHz Reference Signal 10 MHz Reference Phase-Locked Local Results Signal Level Oscillator Unit is operating normally. No alarms are Within Specifications Locked present. Causes a major alarm (Synthesizer Out of Lock).

  • Page 88: Bad Orthogonal Mode Transducer And/Or Antenna

    When the fault is cleared, the LED should be flashing green. Repair Policy The Terrasat IBUC 3, IBUC 3G and PSUI are not field repairable. In the event that a failure has been detected, it might be necessary to return the defective unit to the factory or a factory-authorized service center.

  • Page 89: Returned Material Authorization (Rma)

    315 Digital Drive Morgan Hill, CA 95037 U.S.A. • After the unit is received at Terrasat, an initial evaluation will be performed. If the unit is found to be in-warranty, the unit will be repaired and returned at • no charge.
  • Page 90 Engineered to Endure IBUC 3, IBUC 3 Operations Manual: Troubleshooting...

  • Page 91: Chapter 7, Transmit Redundant Systems

    YSTEMS HAPTER The IBUC 3 and IBUC 3G can be installed and configured as a redundant system providing automatic switching to a standby unit if the primary unit fails. The outdoor power supplies are configured in pairs to provide full system redundancy.

  • Page 92: Interface For Tx Redundant (1+1) Systems

    Engineered to Endure Interface for Tx Redundant (1+1) Systems The Tx 1+1 interface module is a passive unit. The module divides the frequency shift keying (FSK), 10 MHz reference and L-band signals, as well as routes the Ethernet connection to the IBUCs through an Ethernet switch. It supports various interface connectors and includes a bank of LEDs for visual indication of alarm conditions.

  • Page 93: Figure 7.2 Ibuc 3 Redundant System Diagram

    J4 J4 Ethernet Ethernet Ethernet Splitter Splitter J1 J1 J2 J2 J3 J3 J4 J4 J5 J5 J6 J6 J7 J7 J8 J8 J9 J9 IBUC 3 Redundant System Diagram Figure 7.2 IBUC 3, IBUC 3 Operations Manual: Transmit Redundant Systems...

  • Page 94: Component Description

    Ethernet activity for both IBUCs, the RJ45 user interface (J8), the 19-pin user interface (J9), the auxiliary user interface (J10), the status of both IBUCs, as well as which is IBUC 3 or IBUC 3G online. Figure 7.3 is a block diagram of a Tx 1+1 interface module.

  • Page 95: Waveguide Switch

    Engineered to Endure Ethernet Ethernet Splitter Interconnect Ethernet Switch Figure 7.3 Tx 1+1 Interface Module Block Diagram Waveguide Switch Redundant systems are provided with the waveguide switch. A switch cable, which is used to connects the Tx Interface to the switch, is also included. Software Tx Redundant systems monitor and control several parameters and have key features to simplify installation and usage, as well as enhance system performance.

  • Page 96: Installation And Setup

    Chapter 5, Monitor and Control Features. Installation and Setup The redundant Terrasat outdoor unit (ODU) consists of two IBUCs mounted on a common plate, redundant power supplies, and a set of interconnection cables. It can also include an RX 1+1 redundant system.

  • Page 97: System Cabling Requirements

    Engineered to Endure System Cabling Requirements Tx 1+1 System Both the A: side IBUC and the B: side IBUC connect to the interface module via a coaxial cable connection (J1) carrying the L-band, 10 MHz reference and FSK M&C signals, where appropriate. The J2 connector on the IBUC connects to the interface module that provides the M&C interface.
  • Page 98 2. A mating M&C connector for J3 is provided with the Tx 1+1 system. Terrasat offers a range of outdoor PSUIs to support all IBUC power levels. Power supplies have an auto-ranging AC front end that will work with both 115 VAC and 230VAC.

  • Page 99: Table 7.2 Pin Assignments For M&C Interface Connectors J1, J2, And J3

    Engineered to Endure J1, J2 and J3 The A: side Tx Output (J1), Tx Input (J2), and B: side Tx Output (J3) connectors are Type-N connectors. Pin Assignments for M&C Interface connectors J1, J2, and J3 Table 7.2 Reference Designator Function TX A: OUTPUT, L-BAND, 10 MHz, FSK TX INPUT, L-BAND, 10 MHz, FSK...

  • Page 100: Table 7.4 Pin Assignments For M&C Interface Connectors J5, J7, J8, And J10

    Pin Assignments for M&C Interface Connector J9 Function RS485(+) RS485(-) HAND-HELD TERMINAL POWER(+) A: HAND-HELD TERMINAL, RS232 RXD A: HAND-HELD TERMINAL, RS232 TXD HAND-HELD TERMINAL, RS232, RS485 COMMON TCP/IP TX(+) TCP/IP TX(-) 7-10 IBUC 3, IBUC 3 Operations Manual: Transmit Redundant Systems...

  • Page 101: Cable And Waveguide Connections

    Engineered to Endure Pin Assignments for M&C Interface Connector J9 Table 7.5 TCP/IP RX(+) TCP/IP RX(-) A: IBUC ALARM OUTPUT Normally Open A: IBUC ALARM OUTPUT Common A: IBUC ALARM OUTPUT Normally Closed B: IBUC ALARM OUTPUT Normally Open B: IBUC ALARM OUTPUT Common B: IBUC ALARM OUTPUT Normally Closed B: HAND-HELD TERMINAL, RS232 RXD B: HAND-HELD TERMINAL, RS232 TXD...

  • Page 102: Water-Resistant Wrap

    Water-Resistant Wrap Terrasat recommends applying water-resistant wrap (such as mastic tape) to all outdoor connectors to prevent water entry and subsequent water damage. Mastic tapes are designed to flow and self-heal if cut or punctured. When applied spirally with the proper tension, mastic tape forms a tight, continuous coating that permits little or no moisture absorption or penetration.

  • Page 103: Grounding

    Engineered to Endure 6. Connect one coaxial cable between the J1 connector of the Tx 1+1 interface module and the J1 connector of the A: side IBUC and another coaxial cable between the J3 connector of the Tx 1+1 interface module and the J1 connector of the B: side IBUC.

  • Page 104: Tx Redundancy/Psui Grounding Recommendations

    • Electrical Grounding Grounding the IBUC 3, IBUC 3G and PSUI units is recommended to prevent possible damage from lightning and/or other induced electrical surges. Terrasat recommends that 3/0 or 4/0 AWG (American Wire Gauge) stranded copper wire be used to bond the IBUC and the PSUI to the earth ground (grounding rod), using the most direct (or shortest) route.

  • Page 105: Test Equipment

    Tx Power Alignment Transmit L-band Input Adjustment with Modem or Converter WARNING DC power might be present on the cable. Terrasat recommends the use of a DC block. To set the power level of the modulator output: 1. Use a spectrum analyzer to measure the power level of the L-band signal at the output of the coaxial cable that connects to the Tx 1+1 interface module at J2 (Tx L-band).

  • Page 106: Final Checks

    Make sure all connections are secure. Once the system has been aligned and is operating satisfactorily, it will require infrequent and simple maintenance procedures as described in Maintenance page 6-1. 7-16 IBUC 3, IBUC 3 Operations Manual: Transmit Redundant Systems...

  • Page 107: M&C Setup

    FSK signals between the IBUC and modem that are multiplexed on the IFL coaxial cable. Use only the J8, J9, or J10 connectors when attempting to communicate with the Note: IBUC 3. • The J8 connector (labeled User Interface – Ethernet) carries TCP/IP. •...
  • Page 108 Informations Tab, you can select from the following Web pages: • Alarm • Sensor • Transmit Config • Interface Config • System Config • Alarm Config • Redundancy Config • Alarm Log 7-18 IBUC 3, IBUC 3 Operations Manual: Transmit Redundant Systems...
  • Page 109 Engineered to Endure The Sensor tab enables monitoring of various IBUC parameters. Alarms are color coded where solid green indicates OK – no alarms, , yellow indicates a warning, and red indicates an alarm condition. The “Configuration” pages provide access for changing factory default settings to suit specific site or network requirements.
  • Page 110 In the previous example, is the address of the IBUC followed <0001/ by the desired command. Nothing is returned for the CPE command. If there is no error then it was successful. 7-20 IBUC 3, IBUC 3 Operations Manual: Transmit Redundant Systems...
  • Page 111 Engineered to Endure Most recent RS232 to RS485 converters have the capability of performing a automatic line turn around. In such cases, a terminal emulation program will function normally. If such capabilities are not present, the terminal emulation program will not function. In these cases, a network management program is required to handle this handshaking requirement.

  • Page 112: Figure 7.5 Multifunction Leds For A Tx 1+1 System

    Activity J8 – indicates Ethernet activity on User Interface port J8. Activity J9 – indicates M&C activity on User Interface port J9. Activity Aux – indicates Ethernet activity on the Auxiliary User Interface port J10. 7-22 IBUC 3, IBUC 3 Operations Manual: Transmit Redundant Systems...

  • Page 113: Service And Maintenance

    The information contained in this section should suffice in determining whether a Terrasat redundant system is faulty. The intent is to determine a “GO” or “NO GO” situation based on alarms indicated through the M&C ports, as well as measuring certain signals using test equipment.
  • Page 114 3000 amperes rising to peak in 8 ?s and decaying to half value in 20μs. To ensure uninterrupted service, Terrasat recommends the use of a line conditioner and/or UPS based on the expected AC power at the site.
  • Page 115 Engineered to Endure When enabled, warm standby mode uses the A: side unit as the primary unit and the B: side unit as the standby unit. In a protected system, redundancy control is shared. The interface module that links the two units has no microprocessor of its own and acts only as a conduit to split signals, transfer communications channels, and to produce a summary alarm.
  • Page 116 Doing so will enable protected mode. 2. Before upgrading a transmit redundant (Tx 1+1) system, ensure that you have downloaded the latest firmware from the Terrasat website at: https://terrasatinc.com/resources/firmware-updates/ Transmit Power Setting There have been several cases where the transmit power has been turned up to or near saturation while transmitting a digital carrier.
  • Page 117 3. The RF power should be between rated power and rated power –25 dB. If it is not, the IBUC is defective and should be returned to the factory for repair. The Terrasat Repair Policy on...

  • Page 118: M&C Functions

    User input fields are reflected by the corresponding digit and a colon (such as 0:) as shown in the HHT Menu Tree on page D-3 for Tx systems. 7-28 IBUC 3, IBUC 3 Operations Manual: Transmit Redundant Systems...

  • Page 119: Rs485 In Ascii Mode

    Engineered to Endure Hand-held Terminal Figure 7.6 • Frequency Shift Keying: FSK is multiplexed onto the IF cable by means of an FSK-modulated signal. FSK for redundancy commands operates only in ASCII mode. For more information about commands and values available in ASCII mode for Tx redundant systems, see Appendix F.

  • Page 120: Tcp/Ip Via Ethernet Cable

    A: side IBUC and the B: side IBUC. Repair Policy The Terrasat transmit redundant systems are not repairable in the field. In the event that a failure has been detected, it may be necessary to return the defective unit to the factory.

  • Page 121: Appendix A, Part Numbering Schema

    P P E N D I X UMBERING CHEMA HAPTER The charts in this appendix illustrate the part numbering schema used for Terrasat Communications, Inc. Products. Identifying the Part and Serial Numbers Figure A.1 illustrates the difference between the unit’s part number and serial number.
  • Page 122 C Desert Tan 2 C AC Input MilSpec Connector (H/MS3106A22-22P-D-T(73) 200 - 200 watts 300 - 300 watts 400 - 400 watts Part Numbering Schema for IBUC 3 & IBUC 3G Figure A.2 IBUC 3, IBUC 3 Operations Manual: Part Numbering Schema...
  • Page 123 Engineered to Endure PERATING OLOR PECIAL OWER UPPLY OWER PTIONS OLTAGE PTIONS PTIONS 9 Outdoor 24 24 VDC 11 600 watts Indoor 47 48 VDC 12 1000 watts Indoor Part Numbering Schema for IBUC with PSUI Systems Figure A.3 Decoding the Part Number...
  • Page 124 22370 X-Band HP IBR 22759 X-Band VHP IBR 22835 Ku-Band VHP IBR 23051 Ka-Band HP IBR 23092 C-Band VHP IBR 23097 Ka-Band IBUC 3 23106 Ku-Band IBUC 3 Part Numbering Schema for Transmit Redundant Tx(1+1) Systems Figure A.4 IBUC 3, IBUC 3...

  • Page 125: Establishing A Hyperterminal Session

    P P E N D I X SING YPER ERMINAL HAPTER This appendix describes how to use an RS232 connection and HyperTerminal to communicate with the IBUC. Establishing a HyperTerminal Session To communicate with the IBUC using an RS232 connection and HyperTerminal, 1.
  • Page 126 5. From the “Connect Using“ drop-down menu, choose the COM port where RS232 is connected (in this example, it is COM1), and then click OK. The COM1 Properties Window shown in Figure B.3 appears. IBUC 3, IBUC 3 Operations Manual: Using HyperTerminal...
  • Page 127 Engineered to Endure Figure B.3 Port Properties Window 6. In the Port Settings dialog box, choose the following options Bits per second: 9600 • Data bits: 8 • Parity: None • Stop bits:1 • Flow control: None • 7. Click Apply, and then click OK to save the settings. 8.
  • Page 128 Send line ends with line feeds Echo typed character locally ASCII Receiving • Wrap lines that exceed terminal width 11. Click OK to save the settings and to close the ASCII Setup dialog box. IBUC 3, IBUC 3 Operations Manual: Using HyperTerminal...
  • Page 129 Engineered to Endure 12. Click OK to save the new Properties. The properties window closes and there is a blank HyperTerminal window with a blinking cursor. 13. At the IBUC> prompt, type CPE=1234 and press Enter. This command logs you in to the IBUC.

  • Page 130: Using A Saved Connection

    2. Click Cancel when prompted to type a name and to choose an icon for the connection. 3. From the menu bar, choose File → Open. A list of previously saved HyperTerminal names appears. IBUC 3, IBUC 3 Operations Manual: Using HyperTerminal...

  • Page 131: Ending A Hyperterminal Session

    Engineered to Endure 4. Click the connection name you want to use, and then click Open. A blank HyperTerminal window with the previously saved settings appears. 5. Type CPE=1234 to log into the IBUC. If the password has been changed, use that value instead of the default 1234. Note: You can now enter ASCII commands at the prompt.
  • Page 132 Engineered to Endure IBUC 3, IBUC 3 Operations Manual: Using HyperTerminal...

  • Page 133: Introduction

    The embedded Web pages shown in this appendix are a user-friendly way to access the various monitor and control (M&C) features offered by the IBUC 3 and IBUC 3G. Most of the screen shots from the Web interface shown in this appendix are from a transmit redundant (Tx 1+1) system.
  • Page 134 The window shown in Figure C.2 appears Choosing the Internet Protocol (TCP/IP) Properties Figure C.2 7. Select “Use the following IP address”, set the IP Address to 192.168.1.100 and any appropriate gateway. IBUC 3, IBUC 3 Operations Manual: Embedded Web Pages...
  • Page 135 Engineered to Endure Typing the IP Address Figure C.3 8. Click OK 9. Using the host computer, activate a Web Browser window. 10. The IP address of the IBUC was assigned at the factory and is shown in the test data that accompanies the unit.

  • Page 136: Screen Shots

    Engineered to Endure Screen Shots Log In This page appears to prompt you to log in to the IBUC 3 or IBUC 3G. You can log in or log out from any of the tabs shown in Figure C.4. Type your password in the dialog box, and then click Login.
  • Page 137 Displays the unique serial number of the IBUC(s). • Firmware Version Displays the version number. The firmware version number of the IBUC is used mainly by Terrasat Technical Support personnel. • Hardware Version Displays the version number of the hardware.

  • Page 138: Alarm Tab

    For information about how to configure these alarms, see the Alarm Configuration page C-18. Alarm Status Tab Figure C.6 IBUC 3, IBUC 3 Operations Manual: Embedded Web Pages...
  • Page 139 Engineered to Endure From this page, you can view the following parameters: • Tx Output Indicates whether the IBUC 3 or IBUC 3G is currently transmitting. Options include: • Disabled • Muted (Alarm) • • Tx Output Low Indicates whether the Tx Output level is operating below a minimum threshold.
  • Page 140 IBUC. Options include: OK (indicates that the Synthesizer is locked and functioning properly) • Major • This alarm is always a major alarm and is not available for user configuration. Note: IBUC 3, IBUC 3 Operations Manual: Embedded Web Pages...

  • Page 141: Sensor Tab

    This alarm is only available for redundant systems. It does not appear on the Note: Alarm Status tab for single IBUC systems. Sensor Tab Use this tab to view real-time voltage, current, and power levels for the IBUC 3 and IBUC 3G. Sensor Tab Figure C.7 From this page, you can view the following parameters: •...

  • Page 142: Transmit Configuration Tab

    IBUC exceeds 85° C, the IBUC will shut down automatically. Transmit Configuration Tab Use this tab to configure transmission operating parameters for the IBUC 3 and IBUC 3G. Click Save Settings when you have completed entering data to ensure that your changes are saved and then implemented.

  • Page 143: Table C.1 Default Values For Power Monitor Frequency

    Engineered to Endure • Power Monitor Frequency Sets the Power Monitor Frequency which is the actual frequency at which you are operating. To ensure accurate readings, you must set your operating frequency which might be different from the factory default values listed in Table C.1.

  • Page 144: Table C.2 Default Values For The Burst Threshold

    Type a value within the range of 0.0 dB to 30.0 dB in 0.1 dB steps. After you click Save Settings, the gain of the unit will be reduced by that value. The default setting is 0.0 dB • C-12 IBUC 3, IBUC 3 Operations Manual: Embedded Web Pages...

  • Page 145: Interface Configuration Tab

    You can specify a frequency trimming value for IBUCs equipped with the optional internal 10 MHz reference signal Valid values: 0 – 4095 When the IBUC 3 or IBUC 3G is operating using an external 10 MHz reference Note: signal, this field is greyed-out and unavailable for user input.
  • Page 146 Sets the rate in seconds in which the Web page refreshes. The default is 0. Valid values: 0 to 3600 When set to 0 sec (the factory default), the Web page will not refresh. Note: C-14 IBUC 3, IBUC 3 Operations Manual: Embedded Web Pages...
  • Page 147 Engineered to Endure • RS485/FSK Address Sets a unique designator for the unit. Valid values for Legacy Binary: 1 to 15 Valid values for ASCII: 1 to 254 • RS485 Baud Rate Sets the baud rate at which data is sent. The default is 9600 baud. Valid values include: 1200, 2400, 4800, 9600, 38400, 57600, or 115200.

  • Page 148: System Configuration Tab

    Click Save Settings when you have completed entering data to ensure that your changes are saved and then implemented. Figure C.10 System Configuration Tab From this page you can configure the following parameters: C-16 IBUC 3, IBUC 3 Operations Manual: Embedded Web Pages...
  • Page 149 Engineered to Endure • System Password To change the system password, type a numerical value between 1 and 65535. The default password is 1234. Note: • Password Timeout Changes the time period during which you can log in to the system. Options include: 0 = No password timeout •...

  • Page 150: Alarm Configuration Tab

    Major • • Tx Input Threshold Low Sets the type of alarm produced when the lower Tx Input Threshold has been exceeded. Options include: Disable • Minor • Major • C-18 IBUC 3, IBUC 3 Operations Manual: Embedded Web Pages...
  • Page 151 Engineered to Endure • Tx Input Threshold High Sets the type of alarm produced when the higher Tx Input Threshold has been exceeded. Options include: Disable • Minor • Major • • Tx Output Threshold Low Sets the type of alarm produced when the lower Tx Input Threshold has been exceeded.

  • Page 152: Redundancy Configuration Tab

    The set IBUC location, set online IBUC, and other IBUC IP address are set individually. Click Save Settings when you have completed entering data to ensure that your changes are saved and then implemented. Redundancy Configuration Tab Figure C.12 C-20 IBUC 3, IBUC 3 Operations Manual: Embedded Web Pages...
  • Page 153 Engineered to Endure From this page you can configure the following parameters: • Set IBUC Location Specifies the physical location of each IBUC on the switch. In a redundant system, there must be an A: side IBUC and an B: side IBUC (not two A: side IBUCs nor two B: side IBUCs).

  • Page 154: Event Log Tab

    Event Log Tab Use this tab to view the event history of the IBUC 3 and IBUC 3G. When a fault occurs, an entry is added to the event log. Entries are timestamped to determine the order in which the events occurred.

  • Page 155: Menu Options

    P P E N D I X ERMINAL HAPTER The IBUC 3 and IBUC 3G offer an optional hand-held terminal (HHT) that enables you to access monitor and control functions from a simple menu system. These functions include: • Display parameters such as temperature, serial number, power level, and sensor feedback •...
  • Page 156 The HHT has eight menus and these menus are shown in Figure D.3 and the items in each menu are discussed in page D-4 through page D-7. IBUC 3, IBUC 3 Operations Manual: Hand-Held Terminal Menu Tree...
  • Page 157 Engineered to Endure Figure D.3 Hand-held Terminal Menu Tree Menu Options...

  • Page 158: Info & Sensors

    Displays or sets the Keyline feature. When enabled, the modem is able to Configure Keyline directly control the transmitter On/Off state Power Out Offset Displays or sets the offset power reading returned by the IBUC by ±3dB IBUC 3, IBUC 3 Operations Manual: Hand-Held Terminal Menu Tree...

  • Page 159: Alarm

    Engineered to Endure Alarm ECTION ESCRIPTION View Tx Alarms Displays current transmitter alarms View Misc Alarms Displays current miscellaneous alarms View Log Displays the unit alarm log Clear Log Clears the unit alarm log Displays or sets whether alarms configured for suppression are Suppress Faults suppressed Simulate Fault...

  • Page 160: Snmp

    Timezone Offset from -12h to +14h Power Supply Hz When enabled, applies a 50 Hz correction to AC-powered IBUCs. This (if AC Powered) command is not available for DC-powered IBUCs IBUC 3, IBUC 3 Operations Manual: Hand-Held Terminal Menu Tree...

  • Page 161: Redundancy

    Engineered to Endure Redundancy This menu item will appear only if the IBUC is part of a Tx 1+1 system and you are connecting through the interface box. ECTION ESCRIPTION Displays or sets the position this IBUC transmitter occupies on the Set IBUC Location waveguide switch Set Online IBUC...
  • Page 162 Engineered to Endure IBUC 3, IBUC 3 Operations Manual: Hand-Held Terminal Menu Tree...

  • Page 163: Command Set

    P P E N D I X EGACY INARY HAPTER OMMAND ESSAGE TRUCTURE Command Set The command set listed in Table E.1 is used on the RS485 and FSK links only when C4M=1. Commands Table E.1 ESCRIPTION ALUE Address IBUC Address 0x01 to 0x0F Request Status 0x01...
  • Page 164 It aims to maintain compatibility with previous versions of the software. However, the delay time might not be accurate when the EEPROM write command is being executed (delay time longer by a few ms). IBUC 3, IBUC 3 Operations Manual: Legacy Binary Command Message Structure...

  • Page 165: Table E.3 Response To Ibuc Commands 0X05 And 0X06

    Engineered to Endure Legacy Response Message Structure Data Field Definitions page E-5 for valid settings. Response to commands 0x01, 0x02, 0x03, 0x04, 0x08, and 0xFF Table E.2 ESCRIPTION ALUE Reports IBUC Address shifted Address 0x10 to 0xF0 left by 4 bits Reports Current Tx Output Power Level Byte 1 Reports Current Tx Output Power...

  • Page 166: Table E.4 Response To Ibuc Command 0X06 (When Data Byte 1 Of Command Message = 0X01

    Number of Writes to Temperature Memory after Data Byte 4 0x00 to 0xFF memory was cleared or unit rebooted Not Used Checksum Algebraic Sum of bytes 1-6 Sum of bytes IBUC 3, IBUC 3 Operations Manual: Legacy Binary Command Message Structure...

  • Page 167: Legacy Response Message Structure

    Engineered to Endure Data Field Definitions Table E.7 contains data field definitions. Data Filed Definitions Table E.7 ESCRIPTION IBUC Address Integer between 1 and 15 Tx Power Level Integer in 1/100 dBm Detect Threshold Integer in 1/100 dBm Carrier Frequency Integer in MHz Temperature Unsigned Integer in ºC...
  • Page 168 Engineered to Endure IBUC 3, IBUC 3 Operations Manual: Legacy Binary Command Message Structure...

  • Page 169: Appendix F, Ascii Command/Response Structure Command Set

    P P E N D I X ASCII C OMMAND ESPONSE TRUCTURE HAPTER Command Set This command set is used with RS232 and Telnet interfaces. It can be also used with RS485 and FSK when C4M=0. • Parameters are delimited by “< >” for clarity and are not part of the actual query or command.

  • Page 170: Table F.2 Alarm Flags

    This command is not in the command set. error = func not yet done This command has not been implemented. One of the parameters is formatted error = bad format in command incorrectly. IBUC 3, IBUC 3 Operations Manual: ASCII Command/Response Structure...
  • Page 171 Engineered to Endure Table F.3 Error Response Table (Continued) Code Error Message Description error = error accessing config storage Unable to access EEPROM. error = ODU fault Cannot switch, target unit has a major fault. error = Please enter valid password Incorrect password has been entered.

  • Page 172: Common Commands

    Query: EHI Response Values: EHI = <Event String>, <Event Type> Error Responses: 7, 19 Description: Clears the Event Log. Query: EHZ Response Values: EHZ = Event Log Cleared Error Responses: 7, 19 IBUC 3, IBUC 3 Operations Manual: ASCII Command/Response Structure...
  • Page 173 Engineered to Endure Description: Display the current state of the external 10 MHz source. When no external 10 MHz source is configured the <State> parameter will always be read as ‘1=10MHz within Range’. Query: C10 Response: <State> Error Responses: 7, 19 Parameters: <State>...
  • Page 174 Query: C4R Response: C4R=<Baud> Error Response: 7, 19 Command: C4R=<Baud> Response: C4R=<Baud> Error Response: 7, 19 Parameters: <Baud> Decimal number from predefined list [1200; 2400; 4800; 9600; 19200; 38400; 57600; or 115200] IBUC 3, IBUC 3 Operations Manual: ASCII Command/Response Structure...
  • Page 175 Engineered to Endure Description: Displays or sets the message response mode. Terse mode is used for computers where the response items are separated by commas and the message is terminated with <LF><CR>. Verbose is better suited for use with terminal emulations programs, such as Telnet or HyperTerminal.
  • Page 176 <Timeout> = 0 (Default) Decimal value in seconds [0 - 300]. If value 0 is selected, no timeout is configured. Description: Displays the model number and serial number of the IBUC 3 or IBUC 3G Query: CCM Response Values: CCM=<Model Number>,<Serial Number>...
  • Page 177 Engineered to Endure Description: Displays the M&C firmware version level. This is a read-only command. Query: CCS Response: CCS=FW IBA v<mm>.<nn>, <date> <time> Error Responses: 1, 7, 19 Parameters: <mm> Major revision number [0 to 99] <nn> Minor revision number [0 to 99] Description: Displays the number of total system operating hours.
  • Page 178 Command: CIC=<Public String>,<Private String>,<Trap String> Response: CIC=<Public String>,<Private String>,<Trap String> Error Response: 1, 2, 4, 5, 7 Parameters: <Public String>,<Private String>,<Trap String> = public, private, trap (Default) Community Strings used by SNMP protocol. F-10 IBUC 3, IBUC 3 Operations Manual: ASCII Command/Response Structure...
  • Page 179 Engineered to Endure Description: Displays the current consumption by the IBUC. Query: CID Response: DC Current=<Value> Amps Error Response: 1, 20 Parameter: <Value> Decimal number indicating current consumption in Amperes [0.0 - 25.0] Description: Displays or configures the IBUC network gateway address. This address will be sent to if the requested IP address does not reside on the local LAN segment.
  • Page 180 Description: Sets or displays SNMP Trap Target IP Address 2. Query: CIH2 Response: CIH2=<Trap Target IP Address> Command: CIH2=<Trap Target IP Address> Response: CIH2=<Trap Target IP Address> Parameter: <Trap Target IP Address> Target IP Address [1.0.0.0 to 223.255.255.254] F-12 IBUC 3, IBUC 3 Operations Manual: ASCII Command/Response Structure...
  • Page 181 Engineered to Endure Description: Displays or sets the Network Mask.. Query: CIM Response: CIM=<Netmask> Error Responses: 1, 2, 7, 18 Command: CIM=<Netmask> Response: CIM=<Netmask> Error Responses: 1, 2, 7, 18 Parameter: <Netmask> = 255.255.255.0 (Default) Network Mask [255.0.0.0 to 255.255.255.252] Description: Displays or sets the TCP port used for Telnet communication.
  • Page 182 Error Response: 1, 4, 7 Command: CIT1=<Mode> Response: CIT1=<Mode> Error Response: 1, 4, 7 Parameter: <Mode> = 1 (Default) 0 - Disable Traps 1 - Enable SNMPv1 Traps 2 - Enable SNMPv2c Traps F-14 IBUC 3, IBUC 3 Operations Manual: ASCII Command/Response Structure...
  • Page 183 Engineered to Endure CIT2 Description: Displays, enables or disables SNMP Trap service for Host 2. Query: CIT2 Response: CIT2=<Mode> Error Response: 1, 4, 7 Command: CIT2=<Mode> Response: CIT2=<Mode> Error Response: 1, 4, 7 Parameter: <Mode> = 1 (Default) 0 - Disable Traps 1 - Enable SNMPv1 Traps 2 - Enable SNMPv2c Traps Description: Displays or sets the minor alarm mask of the unit.
  • Page 184 Error Response: 1, 4, 7 Command: CM2=<Hex Mask> Response: CM2=<Hex Mask> Error Response: 1, 4, 7 Parameter: <Hex Mask> Major alarm mask [Hexadecimal value]. See Table F.1 page F-1 for available hexadecimal values. F-16 IBUC 3, IBUC 3 Operations Manual: ASCII Command/Response Structure...
  • Page 185 Engineered to Endure Description: Display or configure the alarm suppression mask. This command does not suppress alarms. You must set TAZ=1 to enable suppression.. Query: CMS Response: CMS=<Hex Mask> Error Response: 1, 4, 7 Command: CMS=<Hex Mask> Example: CMS=0x0008 will set the Tx Output Threshold High Alarm to suppressible.
  • Page 186 Description: Sets the password for the user who is logged in. The password does not take effect until the next login. Command: CPS=<New Password> Response: CPS=<New Password> Error Response: 1, 7, 20 Parameter: <New Password> = 1234 (Default) Decimal number [1 - 65535] F-18 IBUC 3, IBUC 3 Operations Manual: ASCII Command/Response Structure...
  • Page 187 Engineered to Endure Description: Displays or sets the login timeout. After the configured time period elapses with no user interaction, the session is dropped (ends). Query: CPT Response: <Timeout> Error Response: 1, 7 Command: CPT=<Timeout> Response: CPT=<Timeout> Error Response: 1, 7 Parameters: <Timeout>...
  • Page 188 Command: CTM=<Date> <Time> Response: CTM=<Date> <Time> Error Response: 1, 2, 4, 7 Parameters: <Date> Date used by IBUC unit [mm/dd/yyyy] (e.g.: 07/02/2020) <Time> Time used by IBUC unit [hh:mm:ss] (e.g.: 15:40:27) F-20 IBUC 3, IBUC 3 Operations Manual: ASCII Command/Response Structure...
  • Page 189 Engineered to Endure Description: This command displays the current input DC power supply voltage. Query: CVD Responses: DC Voltage=<DC Reading> Volts Error Responses: 1, 7, 20 Parameters: <DC Reading> Current DC input voltage [0.0 - 60.0 VDC] Description: Displays or sets the rate at which the Web page automatically refreshes. Query: CWR Response: CWR=<Refresh Rate>...
  • Page 190 Issuing the command CZZ=1 will prompt the IBUC to reset all internal parameters to Note: their default and then reboot the IBUC. Both commands will cause a momentary mute of the transmitter, and should be used with caution. F-22 IBUC 3, IBUC 3 Operations Manual: ASCII Command/Response Structure...
  • Page 191 Engineered to Endure Description: Disconnects the current Telnet session. Command: DCN Response: None Error Response: None Parameters: Description: Displays or sets whether the unit responds to commands. If EKO is disabled, you will receive no response to commands. However, responses are always returned to queries.

  • Page 192: Transmit-Only Commands

    Command: C4M=<Mode> Response: C4M=<Mode> Error Response: 1, 7 Parameters: <Mode>=0 (Default) 0 - ASCII Mode 1 - Legacy Binary Mode For more information, see Appendix E, Legacy Binary Command Message Structure. F-24 IBUC 3, IBUC 3 Operations Manual: ASCII Command/Response Structure...
  • Page 193 Engineered to Endure Description: Displays or sets the state of the external LED indicator. If disabled, the external LED indicator will remain off. Query: CLE Response: CLE=<State> Error Responses: 1, 4, 7 Command: CLE=<State> Response: CLE=<State> Error Responses: 1, 4, 7 Parameters: <State>...
  • Page 194 J2 pins [J,K]. Query: KLD Response: KLD=<Mode> Error Responses: TBD Command: KLD=<Mode> Response: KLD= <Mode> Error Responses: TBD Parameters: <Mode> 0 - Enable hardware lines 1 - Disable hardware lines F-26 IBUC 3, IBUC 3 Operations Manual: ASCII Command/Response Structure...
  • Page 195 Engineered to Endure Description: Display or configure the NTP Server IP address. Query: NTP Response: NTP=<IP Address> Error Responses: 1, 7 Command: NTP=<IP Address> Response: NTP=<IP Address> Error Responses: 1, 7 Parameters: <IP Address> IP address of the unit [1.0.0.0 to 223.255.255.254] Command Set F-27...
  • Page 196 <Temp> Internal temperature of the IBUC in degrees C [integer] <Synth> Synthesizer tuning voltage [decimal number] <Volt> DC power input voltage [decimal number] <Amp> DC power input current [decimal number] F-28 IBUC 3, IBUC 3 Operations Manual: ASCII Command/Response Structure...
  • Page 197 Engineered to Endure Description: Display or configure the data collection period for statistics. Query: SHP Response: SHP=<Period> Command: SHP=<Period> Response: SHP=<Period> Parameters: <Period> Period of data collection [1 to 1440 minutes]. If Period is selected to be 0 statistic collection will be disabled. Description: Clear the statistics history of the IBUC.
  • Page 198 Engineered to Endure Description: Displays or sets the output high power threshold based upon the IBUC 3 or IBUC 3 Rated Power Level (RPL). See Table F.4 page F-33. This item must be greater than the TAL setting. Query: TAH Response: TAH=<Value>...
  • Page 199 Engineered to Endure Description: Displays or sets the Tx simulated alarm setting. Query: TAS Response: TAS=<Setting> Error Responses: 1, 7 Command: TAS=<Setting> Response: TAS=<Setting> Error Responses: 1, 7 Parameter: <Setting> = 0 (Default) 0 - No alarm 1 - Simulate a Tx alarm Description: Enables the suppression of any alarms configured as suppressible.
  • Page 200 Response: TBL=<Value> Error Responses: 1, 7 Command: TBL=<Value> Response: TBL=<Value> Error Responses: 1, 7 Parameters: <Value> = - 60 (Default) Input power low alarm threshold [-60 dBm to -15 dBm] F-32 IBUC 3, IBUC 3 Operations Manual: ASCII Command/Response Structure...

  • Page 201: Table F.4 Default Values For The Tah, Tal, And Tbt Commands

    Engineered to Endure Description: Displays or sets the burst threshold based upon the IBUC 3 or IBUC 3 Rated Power Level (RPL). See Table F.4. This command only applies if the IBUC is configured for burst power monitoring. Query: TBT Response: TBT=<dBm>...
  • Page 202 Parameter: <Level> Decimal number representing L-Band input power level in dBm [-15.0 - -60.0] Description: Displays the RF frequency band of this IBUC 3 or IBUC 3 . See Table F.5 for more information about band numbers and corresponding frequency range.

  • Page 203: Table F.5 Band Numbering

    Engineered to Endure Table F.5 Band Numbering Band Number Band Name Frequency Standard C-band 05850 - 06425 Insat C-band 06725 - 07025 Extended Ku-band 13750 - 14250 Standard Ku-band 14000 - 14500 X-band 07900 - 08400 Full Ku-band 13750 - 14500 Extended C-band 05850 - 06650 Full C-band...
  • Page 204 Engineered to Endure Description: Displays the spectral inversion for this IBUC 3 or IBUC 3G. This is a read-only command. Query: TFI Response: TFI=<Value> Error Responses: 7, 19 Parameters: <Value> 0 - Non-inverted (low side LO) 1 - Inverted (high side LO) Description: Displays or sets the output power monitor frequency of the IBUC 3 or IBUC 3G.

  • Page 205: Table F.6 Default Values For The Tfr Command

    128133 13050 305310 30750 Description: Displays or sets the operating mode of the IBUC 3 or IBUC 3G. When using AGC or ALC, the IBUC power levels must be set prior to closing the loop. Query: TGC Response: TGC=<Control Type>...
  • Page 206 Error Responses: 7, 19 Parameter: <xx.xx>: AGC gain target in dB [decimal number] <yy.yy>: ALC level target in dBm [decimal number] Description: Displays or resets the gain control of the IBUC 3 or IBUC 3G. Query: TGR Response: TGR=<xx.x> Error Responses: 1, 7...
  • Page 207 0 - CSM 1 - Burst Description: Displays the current output power of the IBUC 3 or IBUC 3G. If TPM is set to burst, this will be the last valid burst sample of the output power. Use the TFR command to configure the desired frequency to be monitored.
  • Page 208 Engineered to Endure Description: Displays or sets the attenuator of the IBUC 3 or IBUC 3G. . Query: TPT Response: TPT=<xx.x> Error Responses: 1, 7 Command: TPT=<xx.x> Response: TPT=<xx.x> Error Responses: 1, 7 Parameter: <xx.x> Decimal number representing IBUC attenuation [00.0 - 16.0].
  • Page 209 Engineered to Endure Description: Displays or sets the state of the Tx output at power up. Query: TSP Response: TSP=<State> Error Responses: 1, 7 Command: TSP=<State> Response: TSP=<State> Error Responses: 1, 7 Parameter: <State> 0 – Tx output OFF 1 – Tx output ON Description: Displays or sets the state of the Tx output.
  • Page 210 (that is, with the transmit signal ON and the mute OFF) since leaving factory. Query: TTT Response: TTT=<Hours> Error Responses: 1, 7 Parameters: <Hours> Integer representing the total number of hours transmitter has been ready to transmit or transmitting. F-42 IBUC 3, IBUC 3 Operations Manual: ASCII Command/Response Structure...
  • Page 211 Engineered to Endure Description: Displays or configures the time zone offset. TZO can be set from -12 to 14 hours. Query: TZO Response: TZO=<±hh:mm> Error Responses: 1, 7 Command: TZO=<±hh:mm> Response: TZO=<±hh:mm> Error Responses: 1, 7 Parameter: <±hh:mm> Time zone offset [hh = hours, mm = minutes]. This parameter can assume positive or negative values.

  • Page 212: Redundancy Commands

    Definitions of error responses are found in Table F.3 page F-2. Applies only to Tx 1+1 Systems Note: Description: Displays the redundancy configuration of the IBUC 3 or IBUC 3G. Query: BAE Response: BAE=<Redundancy>, <Position>, <Clone> Error Response: 7, 19 Parameters: <Redundancy>...
  • Page 213 Engineered to Endure Description: Displays or sets the redundancy switching mode of operation. When configured for reverting, the units can switch between each other when a fault occurs multiple times unless both units are faulted. In non-reverting operation, when the A: side unit faults, a switch to the B: side unit will occur unless the B: side unit has faulted.
  • Page 214 Applies only to Tx 1+1 systems. Note: Description: Displays or sets the position of the IBUC 3 or IBUC 3G on the waveguide switch. This does not change the position of the waveguide switch, but instead tells the IBUC firmware to which port the Tx output is connected on the waveguide switch.
  • Page 215 Engineered to Endure Applies only to Tx 1+1 systems. Note: Description: Displays or sets the cloning configuration of a redundant pair. The following commands are always cloned: [BAM, BSM, BRM and BCL]. Such commands can only be changed from the Online/Master IBUC. All other commands can be individually set with cloning disabled.
  • Page 216 B: side unit is the standby unit. Query: BRM Response: BRM=<Mode> Error Response: 1, 7, 17 Command: BRM=<Mode> Response: BRM=<Mode> Error Responses: 1, 7, 17 Parameters: <Mode> = 0 (Default) 0 - Disable 1 - Enable F-48 IBUC 3, IBUC 3 Operations Manual: ASCII Command/Response Structure...
  • Page 217 Engineered to Endure Description: Displays or sets the switching type. When configured for manual switching, you can switch between units at will by using the BSW command regardless of any faults. While in manual mode, the units will not switch due to a fault. When configured for automatic operation, a switch will occur if a major fault occurs on the online unit unless the standby is also faulted.
  • Page 218 Response: BSW=<Switch Position> Error Response: 1, 7, 8, 17 Command: BSW=<Switch Position> Response: BSW=<Switch Position> Error Responses: 1, 7, 8, 17 Parameters: <Switch Position> 0 - A: Side 1 - B: Side F-50 IBUC 3, IBUC 3 Operations Manual: ASCII Command/Response Structure...
  • Page 219 Engineered to Endure Applies only to Tx 1+1 systems. Note: Description: Displays or sets the IP address of the other IBUC in a redundant (Tx 1+1) pair. The A: side IBUC should have the IP address of the B: side IBUC entered here. The B: side IBUC should have the IP address of the A: side IBUC entered here.
  • Page 220 Parameters: <IP Address> IP address of the unit [1.0.0.0 to 223.255.255.254] Any valid IP address can be used to point to the paired IBUC but, no multi-cast is Note: allowed F-52 IBUC 3, IBUC 3 Operations Manual: ASCII Command/Response Structure...

  • Page 221: Reference Drawings

    This chapter contains component specifications and outline drawings for the Terrasat Communications, Inc. line of C-band, X-band, Ku-band and Ka-band intelligent block upconverters (IBUC 3 and IBUC 3G), power supply units (PSUIs), low-noise block converters (LNBs), associated interface units and accessories supplied with IBUC 3 and IBUC 3G systems.

  • Page 222: Figure G.1 Fabrication Drawing, Fbd-21012-Xxxx, Rev A

    Engineered to Endure Fabrication Drawing, FBD-21012-XXXX, Rev A Figure G.1 IBUC 3, IBUC 3 Operations Manual: Component Specifications and Reference Drawings...
  • Page 223 Engineered to Endure Figure G.2 Fabrication Drawing, FBD-21984-XXXX, Rev B, page 1 of 2 Reference Drawings...
  • Page 224 Engineered to Endure Fabrication Drawing, FBD-21984-XXXX, Rev B, page 2of 2 Figure G.3 IBUC 3, IBUC 3 Operations Manual: Component Specifications and Reference Drawings...
  • Page 225 Engineered to Endure Figure G.4 Example Installation Drawing, IND-10521-0011, Rev A Reference Drawings...

  • Page 226: Data Sheets

    Engineered to Endure Data Sheets Refer to the datasheets in Terrasat, Inc. web site: www.terrasatinc.com Product specifications are subject to change without notice. To ensure that the latest information is available, contact Terrasat. IBUC 3, IBUC 3 Operations Manual: Component Specifications and Reference Drawings...
  • Page 227 Engineered to Endure Data Sheets...
  • Page 228 Engineered to Endure IBUC 3, IBUC 3 Operations Manual: Component Specifications and Reference Drawings...

  • Page 229: Appendix D, Glossary

    P P E N D I X LOSSARY HAPTER Glossary of Terms The following acronyms are used in Terrasat Communications, Inc. documentation: ° C Degrees Celsius ° K Degrees Kelvin One Rack Unit (1.75 in.)  Microsecond Alternating Current Automatic Gain Control...
  • Page 230 IBUC Intelligent Block Upconverter Indoor Unit Intermediate Frequency Interfacility Link Internet Protocol Kilogram Low Noise Block Converter Local Oscillator M&C Monitor and Control Maximum MCPC Multiple Carrier Per Channel Megahertz Management Information Base IBUC 3, IBUC 3 Operations Manual: Glossary...
  • Page 231 Engineered to Endure Minimum Millisecond MTBF Mean Time Between Failure Microwave Upconverter Nanosecond OCXO Oven-controlled Quartz Oscillator Outdoor Unit Orthogonal Mode Transducer Peak to Peak P1dB Power at the 1dB Compression Point Power Factor Corrected PLDRO Phase-Locked Dielectric Resonator Oscillator Phase-Locked Loop PLLNBC Phase-Locked Low-Noise Block Converter...
  • Page 232 Transfer Control Protocol/Internet Protocol Transmit Reject Filter Transmit User Datagram Protocol Upconverter Uninterruptible Power Supply Volts Alternating Current Volts Direct Current VSAT Very Small Aperture Terminal VSWR Voltage Standing Wave Ratio Variable Voltage Attenuator watts Waveguide IBUC 3, IBUC 3 Operations Manual: Glossary...
  • Page 233 INDEX Numerics 10 MHz reference signal DC block, 3-17 priority, 2-8 default transmit alarms, 5-3 alarm log Ethernet incorrect time stamp, 4-8 SNMP, 5-9 alarms default configuration, 5-3 antenna mounting options, 3-7 factory configuration ASCII commands IP address, 5-8 common, F-1 IP gateway, 5-8 attenuation, 2-12, 2-14 subnet mask, 5-8...
  • Page 234 IP gateway, 5-8 isolation filter, 3-4 saturation transmit power, 6-2 signal saturation L-band input, 2-7 avoidance, 4-9 sngle sideband phase nose, 2-7 SNMP M&C interfaces MIBs, 5-10 Ethernet solid-state power amplifier, 2-9 SNMP, 5-9 standards multifunction LED, 5-3 satellite operation, 1-2 RS232, 5-1 subnet mask, 5-8 mastic tape...
  • Page 235 Engineered to Endure I n d e x - 3...
  • Page 236 I n d e x - 4...
