HydroMist cool caddie FTC-P-18-5 User Manual

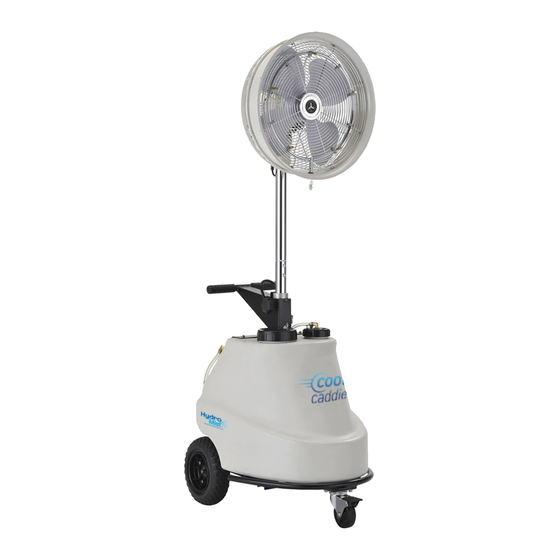

High-pressure self-contained misting system
Hide thumbs
Table of Contents

Advertisement

Quick Links

FTC-P-18-5
Carefully read and understand the entire user manual before attempting to install, operate, or
·
perform maintenance on this equipment.
·
Contact your supplier if you do not understand these instructions.
·
Failure to follow these instructions may lead to serious injury or death.
Retain these instructions for future reference.
·
All operators must read and understand this manual.
FTC-P-24-8
&
High-Pressure
Self-Contained
Misting System
User Manual
CAUTION
1
Cool Caddie User Manual
www.HydromistUSA.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the cool caddie FTC-P-18-5 and is the answer not in the manual?

Questions and answers

Related Manuals for HydroMist cool caddie FTC-P-18-5

Summary of Contents for HydroMist cool caddie FTC-P-18-5

  • Page 1 Cool Caddie User Manual www.HydromistUSA.com FTC-P-18-5 FTC-P-24-8 & High-Pressure Self-Contained Misting System User Manual CAUTION Carefully read and understand the entire user manual before attempting to install, operate, or · perform maintenance on this equipment. · Contact your supplier if you do not understand these instructions. ·...

  • Page 2: Table Of Contents

    Cool Caddie User Manual www.HydromistUSA. Table of Contents Overview of High-Pressure Misting System ....................3 Start-up and Operation Procedures ......................3 Maintenance ............................. 5 Oil Change Instructions ..........................6 Troubleshooting ............................8 Replacement Parts ..........................10 Consumable/Common Parts ........................10 Warranty ..............................

  • Page 3: Overview Of High-Pressure Misting System

    This fine mist will quickly evaporate through a process called flash evaporation reducing the temperature of the ambient air. Hydromist pairs the misting system with durable fans to reduce the temperature in the desired location.
  • Page 4 Cool Caddie User Manual www.HydromistUSA. 3. Connect to water supply or fill water tank. Once the hose is connected to the inlet at the back of the tank, turn on the water supply and allow the tank to begin filling. The unit may be operated with the water supply connected or disconnected. The approximate run time is 3 –...

  • Page 5: Maintenance

    Cool Caddie User Manual www.HydromistUSA. 6. Turning off the system. Turn the fan speed control knob to the “OFF” position. Turn off the pump by pressing the “OFF” button on the back of the unit. Maintenance 1. Nozzles. Always turn off the pump before removing the misting nozzles. Nozzles should be checked regularly to ensure good misting performance.

  • Page 6: Oil Change Instructions

    Cool Caddie User Manual www.HydromistUSA. Oil change instructions: Do not attempt to change the oil while the unit is plugged in and always allow the pump and motor to cool before performing the oil change. A) Remove the four screws holding on the back cover plate (See figure 3).
  • Page 7 Cool Caddie User Manual www.HydromistUSA. G) There are different ways to fill the pump with oil using the squeeze bottle. The two suggested options are horizontal and vertical bottle orientation. The horizontal method requires you to place the spout of the squeeze bottle directly over the top of the oil fill hole and GENTLY squeeze the bottle, allowing a stream of oil to drop down into the hole (See figure 7).

  • Page 8: Troubleshooting

    Cool Caddie User Manual www.HydromistUSA. Troubleshooting Problem Potential Cause Corrective Action Fan will not turn on. Power supply connections Confirm the control knobs are in the ON position. Confirm the power cords are connected. Confirm that the power supply is on. Confirm that power is present at the electrical outlet.
  • Page 9 Cool Caddie User Manual www.HydromistUSA.com Supply circuit breaker OFF. Confirm correct voltage and amperage is being supplied. No water supplied. Confirm the supply water is flowing to the tank. Inspect filter. Replace dirty filter which can restrict flow. Circuit interrupter is tripped. Press the reset button on the pump motor.
  • Page 10 Cool Caddie User Manual www.HydromistUSA.com Water sprays from nozzles after system is shut down. Anti-drip not functioning. Check integrity of anti-drip stopper and spring. Replace nozzles if necessary. Filter housing leaks. O-Ring failure. Inspect placement and integrity of O-ring. Replace if necessary. Figure 9 –...

  • Page 11: Replacement Parts

    Cool Caddie User Manual www.HydromistUSA.com Replacement Parts Please contact Hydromist for a complete repair parts drawing. Consumable/Common Parts Misting Nozzle F10-08-001 Water Filter F10-10-001 Gear Oil F02-06-001 Nozzle Plug F10-08-002 (Recommended for environments with humidity greater than 80%)

  • Page 12: Warranty

    HYDROMIST ONE (1) YEAR LIMITED WARRANTY All Hydromist products are warranted for a period of one (1) year for defects in workmanship and materials under normal use and service. This warranty is extended solely to the original purchaser. In order to initiate this warranty, the Product Registration Form must be completed and sent to Hydromist, along with a copy of the purchase invoice, within 30 days of purchase.

  • Page 13: Appendix

    Cool Caddie User Manual www.HydromistUSA.com Appendix Parts Diagrams...
  • Page 14 Cool Caddie User Manual www.HydromistUSA.com...
  • Page 15 Cool Caddie User Manual www.HydromistUSA.com Control Panel...
  • Page 16 Cool Caddie User Manual www.HydromistUSA.com Hydromist USA PO Box 1776 Cedar Park, TX 76813 www.HydromistUSA.com By: N. Douglas Date: 12/2019...
