Professional Fans Owner's Manual
misting & non-misting
HydroMistUSA.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F10-01-006 and is the answer not in the manual?

Questions and answers

Summary of Contents for HydroMist F10-01-006

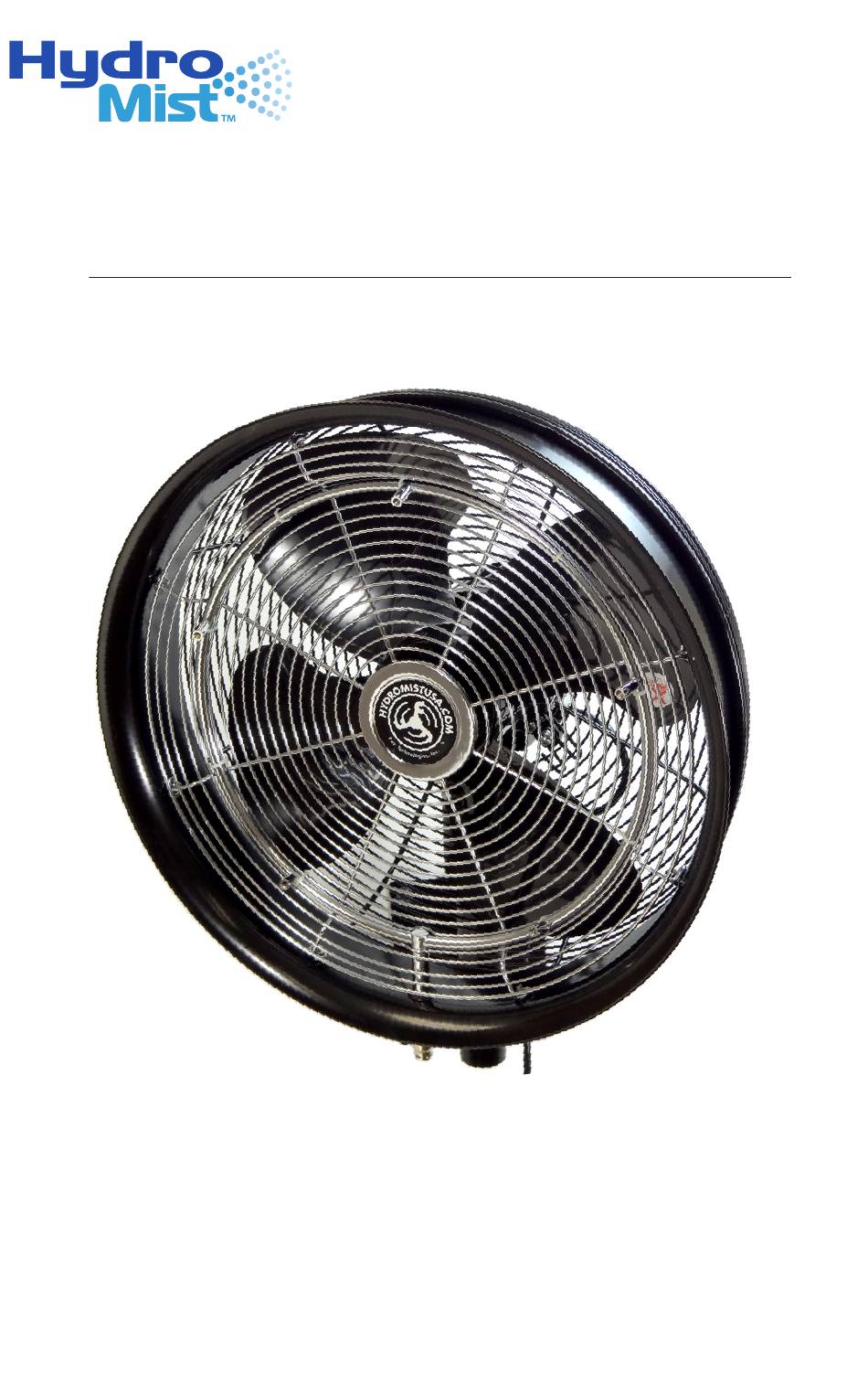

  • Page 1 Professional Fans Owner’s Manual misting & non-misting HydroMistUSA.com...
  • Page 2 The purpose of this document is to be informative, and as such is not guaranteed to be error-free. HydroMist takes steps to ensure that our information is correct and as error-free as is reasonable. Please let us know if you believe you found a typo or error.
  • Page 3: Table Of Contents

    Winterizing Instructions for Misting Fan Heads ..... . . 10 HydroMist One (1) Year Limited Warranty ......10...
  • Page 4: What's In The Box

    HydroMist HydroMistUSA.com What’s In the Box DESCRIPTION Fan Only ~or~ Fan with Misting Ring and Hose Adapter (only with misting fans) 5 or 8 Misting Nozzles (only with misting fans); 5 for 18" and 8 for 24" Wall Mounting Bracket...
  • Page 5: Assembly

    HydroMist HydroMistUSA.com Assembly Wall brackets and concrete sleeve anchors are supplied with all fan models. Lag screws for wood are not included. User is responsible for determining feasibility of wall material for appropriately securing the bracket. Sleeve anchors may cause certain materials, such as brick & sandstone, to crack.
  • Page 6 HydroMist HydroMistUSA.com 3. Using a 10 mm masonry bit, drill 45 mm (a bit more than 13/4 inches) deep holes into the wall at marked anchor points. 4. Thread anchors [ D ] onto the wall bracket [E] so that all washers and nuts are in front of it and sleeves are behind it.
  • Page 7: Operation

    HydroMist HydroMistUSA.com Operation Tilting Make sure fan is unplugged from power outlet and properly secured to a mounting bracket. Firmly move fan head to desired position. Tilt mechanism clicks at predefined angles for solid hold. Oscillation Press down on the oscillation knob (top of fan motor) to make the fan oscillate.
  • Page 8: Replacement Parts-18" Fan Head

    HydroMist HydroMistUSA.com Replacement Parts—18" Fan Head ITEM DESCRIPTION PART NO. 18" Front Guard F10- 1 0-055 Front Guard Screws F10- 1 0-056 3 white 18" Fan Blade F10- 1 0-057 3 black 18” Fan Blade F10- 1 0-061 Set Screw for 18" Fan Blade...
  • Page 9: Replacement Parts-24" Fan Head

    HydroMist HydroMistUSA.com Replacement Parts—24" Fan Head ITEM DESCRIPTION PART NO. 24" Front Guard F10- 1 0-064 Front Guard Screws F10- 1 0-056 24" Fan Blade F10- 1 0-066 Set Screw for 24" Fan Blade F10- 1 0-065 5 white 24" White Shroud...
  • Page 10: Winterizing Instructions For Misting Fan Heads

    HydroMist One (1) Year Limited Warranty All HydroMist products are warranted for a period of one (1) year for defects in workmanship and materials under normal use and service. This warranty is extended solely to the original purchaser. In order to initiate this warranty, the product registration form must be completed and sent to HydroMist, along with a copy of the purchase invoice, within 30 days of purchase.
  • Page 11: Available Professional Fan Models

    HydroMist HydroMistUSA.com Available Professional Fan Models PART NO. DESCRIPTION F10-01-006 24" Black Misting Fan Head with 8 Nozzles, Corded Control F10-01-007 24" White Misting Fan Head with 8 Nozzles, Corded Control F10-01-016 24" Black Misting Fan Head with 8 Nozzles, In-Line Control F10-01-017 24"...
