CentraMist Ceiling Fan Manual
360o Misting
PN: F10-01-018 (black) / F10-01-019 (white)
HydroMistUSA.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CentraMist series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HydroMist CentraMist series

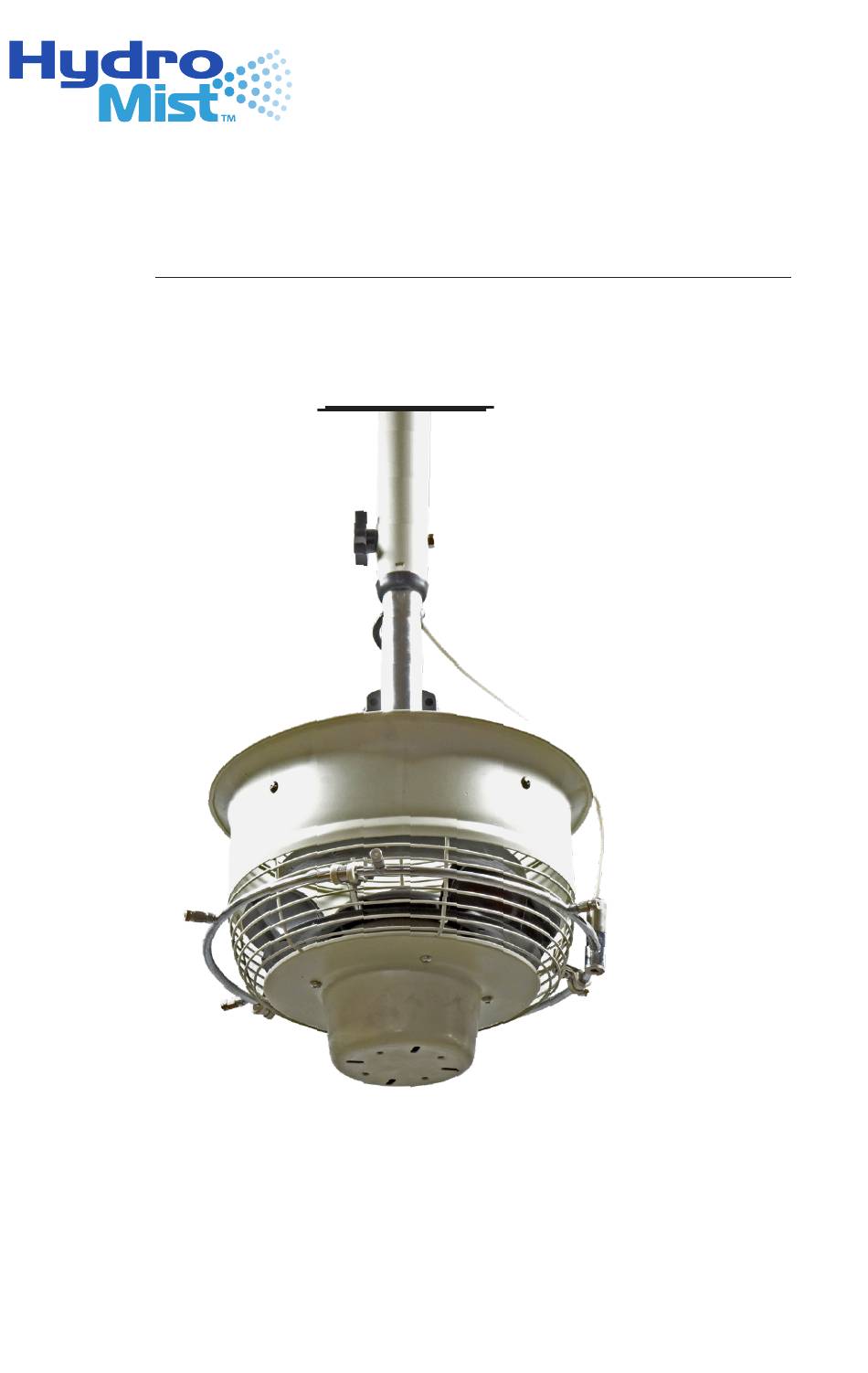

  • Page 1 CentraMist Ceiling Fan Manual 360o Misting PN: F10-01-018 (black) / F10-01-019 (white) HydroMistUSA.com...
  • Page 2 The purpose of this document is to be informative, and as such is not guaranteed to be error-free. HydroMist takes steps to ensure that our information is correct and as error-free as is reasonable. Please let us know if you believe you found a typo or error.
  • Page 3: Table Of Contents

    Available CentraMist Fan Models ....... . 10 HydroMist One (1) Year Limited Warranty ......11...
  • Page 4 HydroMist HydroMistUSA.com...
  • Page 5: Warnings

    HydroMist HydroMistUSA.com Warnings Read and follow all instructions before operating fan. Do not use fan if any parts are damaged or missing. Do not bend blades. Do not expose the fans to water from a high-pressure cleaner (pressure washer). Doing so could lead to electrical shock or damage to the motor.
  • Page 6: What's In The Box

    HydroMist HydroMistUSA.com What’s In the Box...
  • Page 7 HydroMist HydroMistUSA.com DESCRIPTION Upper Mounting Pole Height Adjusting Nut Height Adjusting Bolt Lower Mounting Pole Rubber Pole Grommets Pole-to-fan Mounting Screw Pole-to-fan Mounting Screw Washer Wire and Tube Routing Hole Power Cord Fan Head with Misting Nozzles (nozzles already installed)
  • Page 8: Assembly

    HydroMist HydroMistUSA.com Assembly 1. Attach Fan Head unit (10) to Lower Mounting Pole (4) using the Pole-to- fan mounting screws and washers (6), (7). 2. Push power wire (9) through one of the Wire and Tube Routing Holes (8) until the wire exits the end of the Upper Mounting Pole (1).
  • Page 9: Operation

    HydroMist HydroMistUSA.com 9. Slide the Clamping Bolt (13-C) into a Washer (13-A). 10. Insert the Clamping Bolt (13-C) into the curved slot in the Mounting Bracket (11), through the lower hole of the Upper Mounting Pole (1) and out through the curved slot on the other side of the Mounting Bracket (11).
  • Page 10: Misting

    Misting A high-pressure misting pump (sold separately) is required to use the misting function. See the misting pump’s manual for operating instructions. HydroMist recommends the quiet Digi-Pro pump. Winterizing Instructions for Misting Fan Heads 1. Remove all nozzles from fan ring. This allows the nylon hose and rings to completely drain, which prevents breakage due to freezing.
  • Page 11: Hydromist One (1) Year Limited Warranty

    HydroMistUSA.com HydroMist One (1) Year Limited Warranty All HydroMist products are warranted for a period of one (1) year for defects in workmanship and materials under normal use and service. This warranty is extended solely to the original purchaser. In order to initiate this warranty, the product registration form must be completed and sent to HydroMist, along with a copy of the purchase invoice, within 30 days of purchase.
  • Page 12 Document PN: F10- 1 8-001...
