FSD-C Series
Circular Single Blade
Combination Fire and
Smoke Damper
•
ES classified fire dampers with reduced smoke leakage characteristics to
BS EN 1366-2 (test standard) and BS EN 13501-3 (extended field of application)
•
Aerodynamically Air Control tested to BS EN 1751
•
Tested and assessed installation methods in differing support constructions
BS EN 1366-2
•
Rotatable cleats
®
•
Can be installed from one side of the fire separation without the need to fit a
secondary installation plate or provide fire-rated infill material
•
Replaceable thermal fuse element from outside of the duct.
•
Commissioning friendly
•
Blade Position Indicator
•
IP54 degree of protection
•
Test switch for periodic damper testing
•
LED green indication when lit indicates that a supply voltage is present and that the
temperature fuses are operational
•
Damper casings conform to BS EN 1506
•
CE marked complying with the requirements of EN 15650
M A N U F A C T U R E R S O F A I R , F I R E A N D S M O K E C O N T R O L P R O D U C T S
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for BSB FSD-C Series
Summary of Contents for BSB FSD-C Series

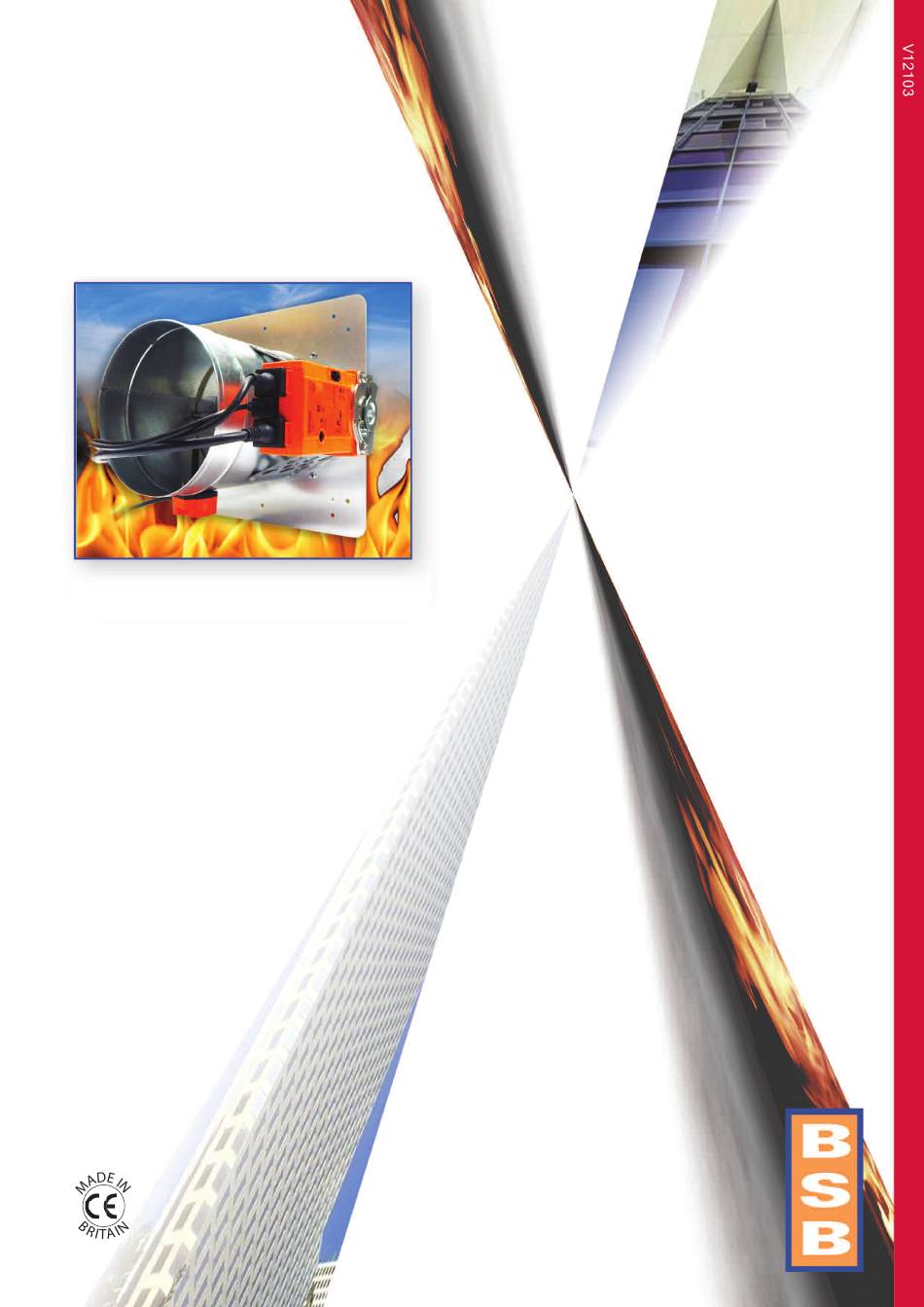

- Page 1 FSD-C Series Circular Single Blade Combination Fire and Smoke Damper • ES classified fire dampers with reduced smoke leakage characteristics to BS EN 1366-2 (test standard) and BS EN 13501-3 (extended field of application) • Aerodynamically Air Control tested to BS EN 1751 • Tested and assessed installation methods in differing support constructions BS EN 1366-2 •...
- Page 2 (wall or floor). To ensure that all testing and assessments are traceable back to initial fire test reports, the BSB FSD-C series is product certificated by the Loss Prevention Certification Board (LPCB). This means that in...
- Page 3 FSD-C Series Single Blade Combination Fire and Smoke Dampers – Introduction The FSD-C Series Range Typical Tender/Specification Text The BSB FSD-C series is available in the following case diameters: The BSB FSD-C combination Fire and Smoke Damper FSD-C100 - 100mm dia. FSD-C200 - 200mm dia.
-
Page 4: Installation Plate
EN 1366-2 achieving ES classification. Blade Galvanised 1.2mm one piece circular steel discs either side of the patented seal design providing a 5mm thick assembly affixed by blade brackets to the drive spindle. Grade 430 stainless steel blade option available. www.bsb-dampers.co.uk... - Page 5 Time / Temperature Curve - 300mm diameter. 67.5° from open Standard Curve 45° from open Free area = 91% BRE Test 279799 22.5° from open Velocity range 0 to 10 m/s Fully open 1200 1000 1100 1000 11 12 Velocity (m/s) Time (minutes) www.bsb-dampers.co.uk...
- Page 6 46mm Diameter 3.3mm Damper Free Area Flange Spigot Free Area Free Area Model Model Dia. Plate Size Size Length Model (mm) FSD-C100 FSD-C200 (mm) (mm) FSD-C125 FSD-C250 FSD-C100 FSD-C150 FSD-C300 FSD-C125 FSD-C160 FSD-C315 FSD-C150 FSD-C160 FSD-C200 FSD-C250 FSD-C300 FSD-C315 www.bsb-dampers.co.uk...
- Page 7 The addition of the PML actuator allows this tested product to become fully automatic in its operation via the fire detection system or one of the BSB control panels. To comply with the forthcoming revision of the fire damper test standard. Blade Leakage Graph...
- Page 8 Is the first damper of its type to achieve and exceed the requirements of classification EN1366-2. www.bsb-dampers.co.uk...
- Page 9 O7.5 X 60 LONG STEEL AT 600 CENTRES FIXINGS AT 600 CENTRES Blade Leakage Graph Case Leakage Graph Model FSD-C100 2000 1000 Leakage 1000 300mm dia. 200mm dia. 100mm dia. 0.01 Leakage (l/s/m Leakage (l/s/m See Page 5 for Pressure Drop Graphs www.bsb-dampers.co.uk...
-
Page 10: Installation Method
As a guide, this should take place annually. Please refer to BSB Operating and Maintenance instructions. Reference should be made to BS 9999 for more information. Records of damper installation and position shall be kept. -
Page 11: Motor Weights
FSD-C Series Single Blade Combination Fire and Smoke Dampers – Actuators BSB FSD-C-TF Electric Actuator Specifications BSB PML230-TF BSB PML24-TF DAMPER ENERGISED OPEN / SPRING CLOSED DAMPER ENERGISED OPEN / SPRING CLOSED Supply 230V AC 50/60 Hz Supply 24V AC/DC 50/60 Hz •... - Page 12 The cleats must not be the sole independent method of supporting the fire damper. www.bsb-dampers.co.uk...
- Page 13 The FD-C series damper must be installed as per BSB installation, operating and maintenance document to comply with CE marking. The use of cleats as the sole installation/support method will not comply with CE marking rules.
- Page 14 Electrical Mechanical Addressable For full details of the complete BSB Product Range, please refer to our individual product brochures, sales office or website. BSB Engineering Services Limited Unit 56, Trinity Trade Centre, Mill Way, Sittingbourne, Kent ME10 2PD, UK • Tel: +44 (0)1795 422609 For purchase orders and order related enquiries, please email: orders@bsb-dampers.co.uk...
