Drawing 9. 006-820-006-002 Cable Reel, Kt200 Parts List - PSR PAT ANTI-TWO-BLOCK Installation, Operator’s & Troubleshooting Manual

INSTALLATION, LATTICE CRANE

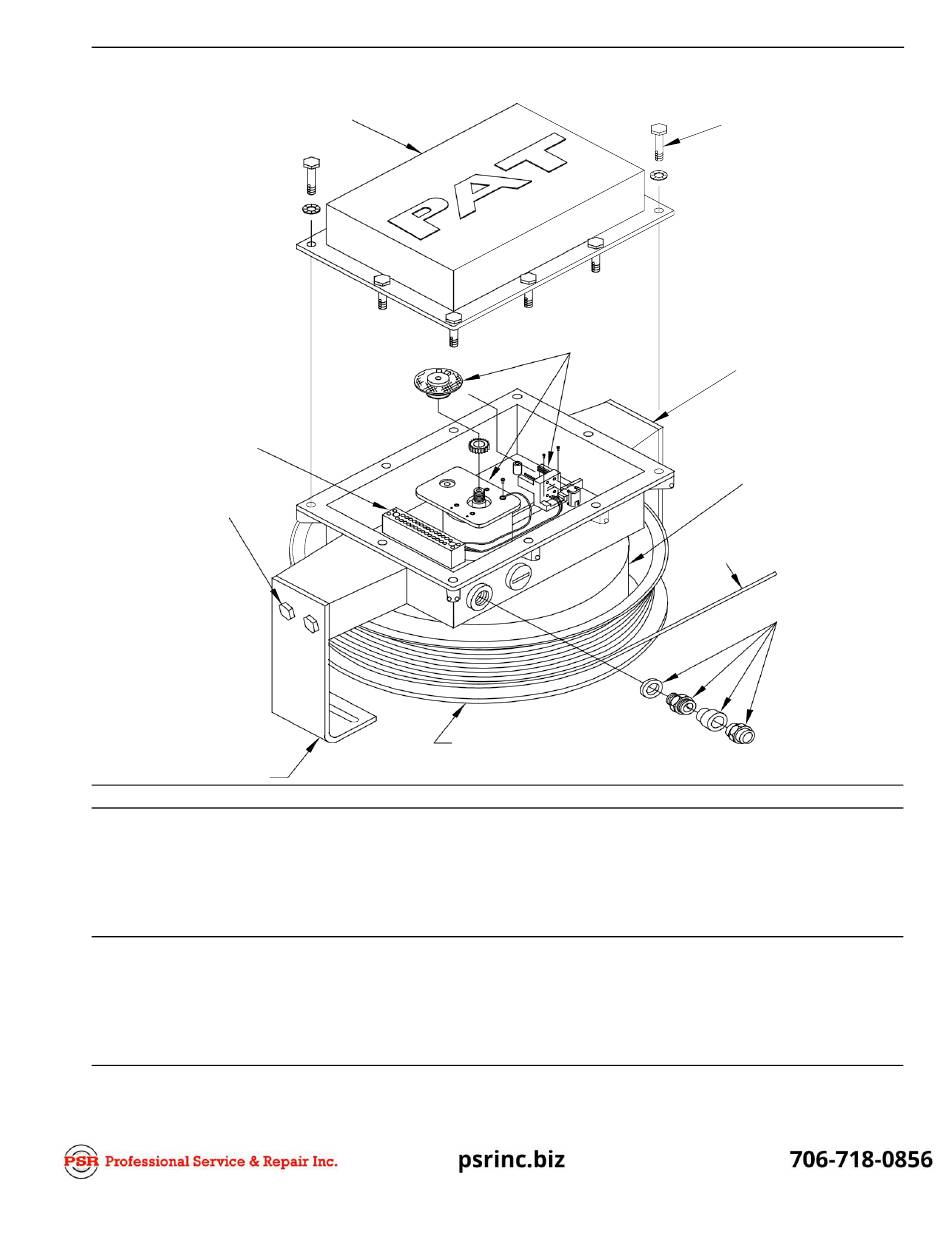

DRAWING 9. 006-820-006-002 CABLE REEL, KT200 PARTS LIST

5
7,8
10
NO. PART NO.
01 005-682-000-001
02 068-000-110-010
03 068-000-110-011
04 000-673-020-002
05 068-000-110-029
06 021-441-131-013
07 000-205-031-230
08 000-208-020-012
09 006-800-005-057
10 006-800-005-058
11 068-000-110-031
12 000-207-010-064
1
3
QTY DESCRIPTION
1 COVER, HOUSING
1 ASSEMBLY, SPRING W/ HOUSING
1 REEL, CABLE DRUM
139'
CABLE, LENGTH SENSOR, 1 CORE
1 TERMINAL STRIP W/ HIGH FREQ. ATTENUATOR
1 STRAIN RELIEF, PG13.5 RED/WHITE
4 SCREW, 12mm X 30 HEX
4 LOCK WASHER, 12mm TOOTH
1 BRACKET, MOUNTING WITH TWO HOLES
1 BRACKET, MOUNTING WITH SLOT
10 SCREW
10 FLAT WASHER, 6mm
11,1
13
9
2
4
17
6
