Drawing 8. Console, A2B, W/Lockout Key Switch Parts List - PSR PAT ANTI-TWO-BLOCK Installation, Operator’s & Troubleshooting Manual

INSTALLATION, OPERATOR'S & TROUBLESHOOTING MANUAL
16

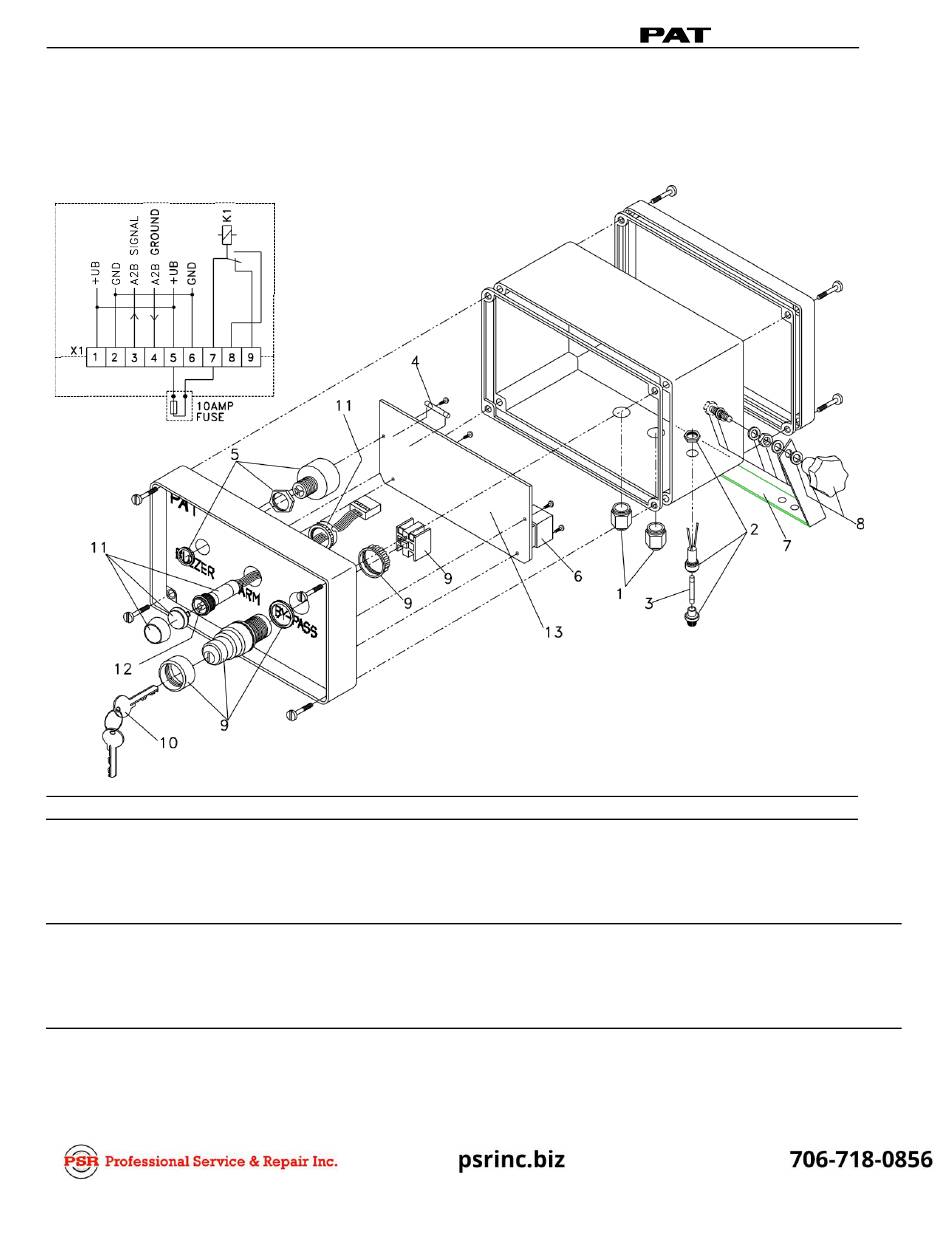

DRAWING 8. CONSOLE, A2B, W/LOCKOUT KEY SWITCH PARTS LIST

12V Console
24V Console
NO. PART NO.
01 021-441-131-011
02 000-314-022-012
03 000-313-062-002
04 000-313-061-001
05 000-323-010-525
06 000-304-140-122
07 000-304-140-241
08 005-600-005-006
09 005-600-011-004
10 024-350-100-661
11 031-300-101-131
12 558-000-110-006
13 000-311-020-012
14 000-311-020-024
QTY DESCRIPTION
2 STRAIN RELIEF, PG11, 8MM, RED+WHITE INSERT
1 FUSE HOLDER, A2B
1 FUSE, 10 AMP 1/4 x 1 1/4, 250V FAST ACTING
1 FUSE, 1 AMP 1/4 x 1 1/4, 250V
1 ALARM, A2B, EI10, EI20
1 RELAY, SHUT-OFF 12 V
1 RELAY, SHUT-OFF 24 V
1 BRACKET, MTG. A2B CONSOLE, COMPLETE SET
1 KNOB, ADJUSTING,(ALL)
1 KEY SWITCH
1 KEY
1 SWITCH, PUSH-BUTTON, A2B, EI
1 LAMP, 12V (A2B,EI CONSOLES)
1 LAMP, 24V (A2B,EI CONSOLES)
ANTI-TWO-BLOCK
