Drawing 1. 031-300-060-653 A2B Console Installation Kit - Parts List - PSR PAT ANTI-TWO-BLOCK Installation, Operator’s & Troubleshooting Manual

INSTALLATION, OPERATOR'S & TROUBLESHOOTING MANUAL
8

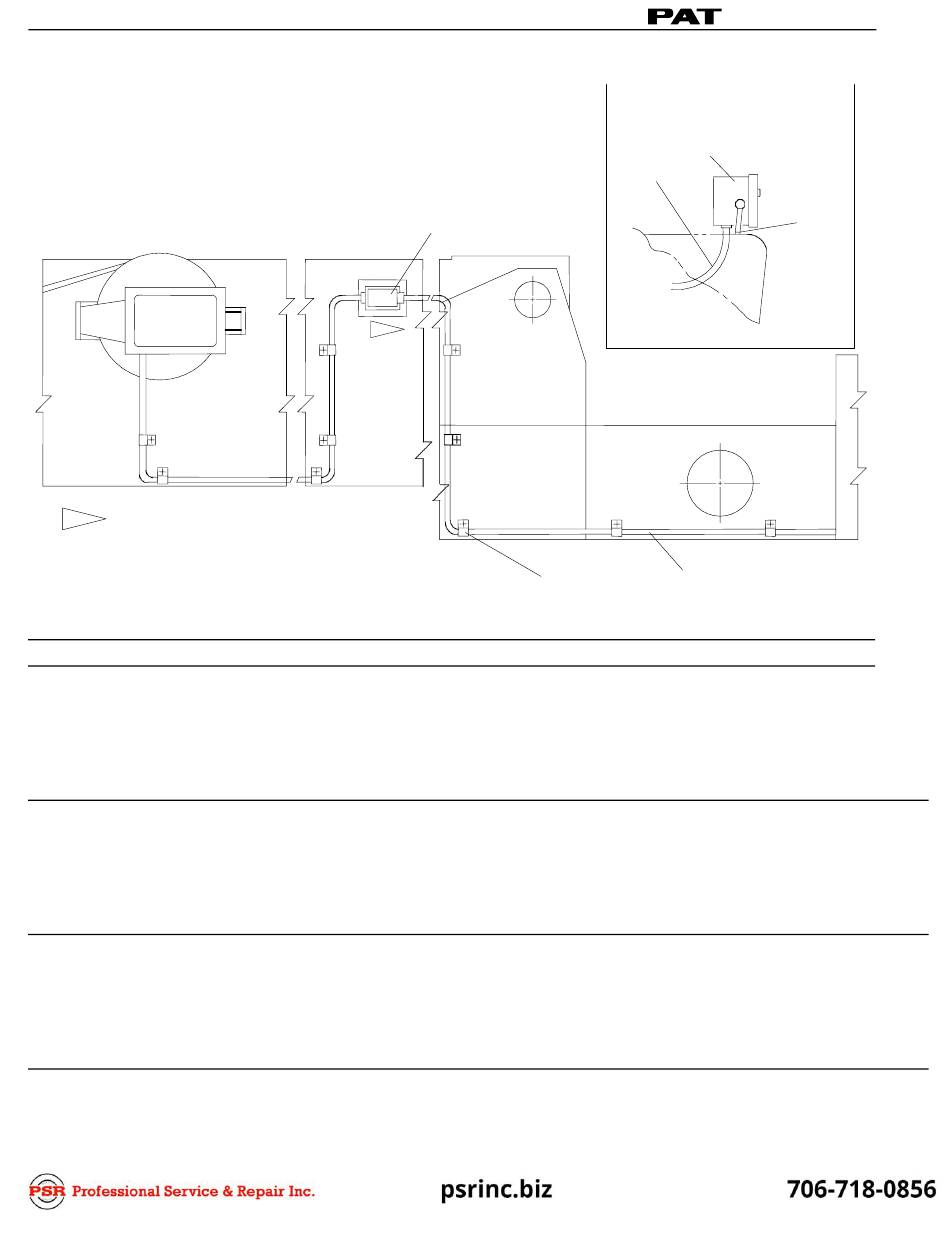

DRAWING 1. 031-300-060-653 A2B CONSOLE INSTALLATION KIT - PARTS LIST

P A T
CLEA N ELECTRI C A L CO NTA CTS A N D
1
CO NNECTO RS OF A LL FOREIGN
MA TERIA L SUCH AS GREA SE, OIL,
AND DIRT BEFORE CO NNECTI N G.
CO NTA CT CRA NE MA NUFA CTU RE R FOR WELDING INSTRUCTION
PRIOR TO WELDING ON THE BO O M.
NO. PART NO.
01 050-000-060-100
02 000-301-022-100
03 000-301-025-102
04 000-214-261-613
05 021-441-131-013
06 000-610-020-371
07 000-325-040-916
08 002-350-207-250
09 000-207-010-070
10 000-208-040-070
11 002-060-100-705
12 002-051-107-255
13 031-010-100-153
14 031-010-100-154
15 031-300-100-146
16 031-300-100-148
2,3,4,5
1
QTY DESCRIPTION
1 A2B CONSOLE, 12V W/ LOCKOUT KEY SWITCH
1 PLUG, 10 PIN
1 INSERT, 10 PIN FEMALE
1 REDUCER, PG16-13.5
1 STRAIN RELIEF, PG13.5 W/ RED/WHT INSERT
5 TIE WRAP, VINYL
5 CABLE CLAMP, 9/16"
5 STUD, 1/4-20 X 7/8 WELD
7 FLAT WASHER, 1/4
7 LOCK WASHER, 1/4
7 NUT, 1/4-20 HEX
2 SCREW, 1/4-20 X 1 HEX HEAD
2 TERMINAL, MALE .250 DC/MI 14-16 AWG
4 TERMINAL, FEMALE .250 DC/FI 14-16 AWG
14' CABLE, 4 X 1.5 S.S.
22' CABLE, 7 X 0.5 D.S.
VIEWOF CONS OLE
MOUNTE D IN CAB
13
1
14
15
16
TO PLUG
AT BOOM BASE
7,8,9,10,11
16
ANTI-TWO-BLOCK
9
10
11
12
TO CONSOLE
IN CAB
