4.
Assembly
4-1-3

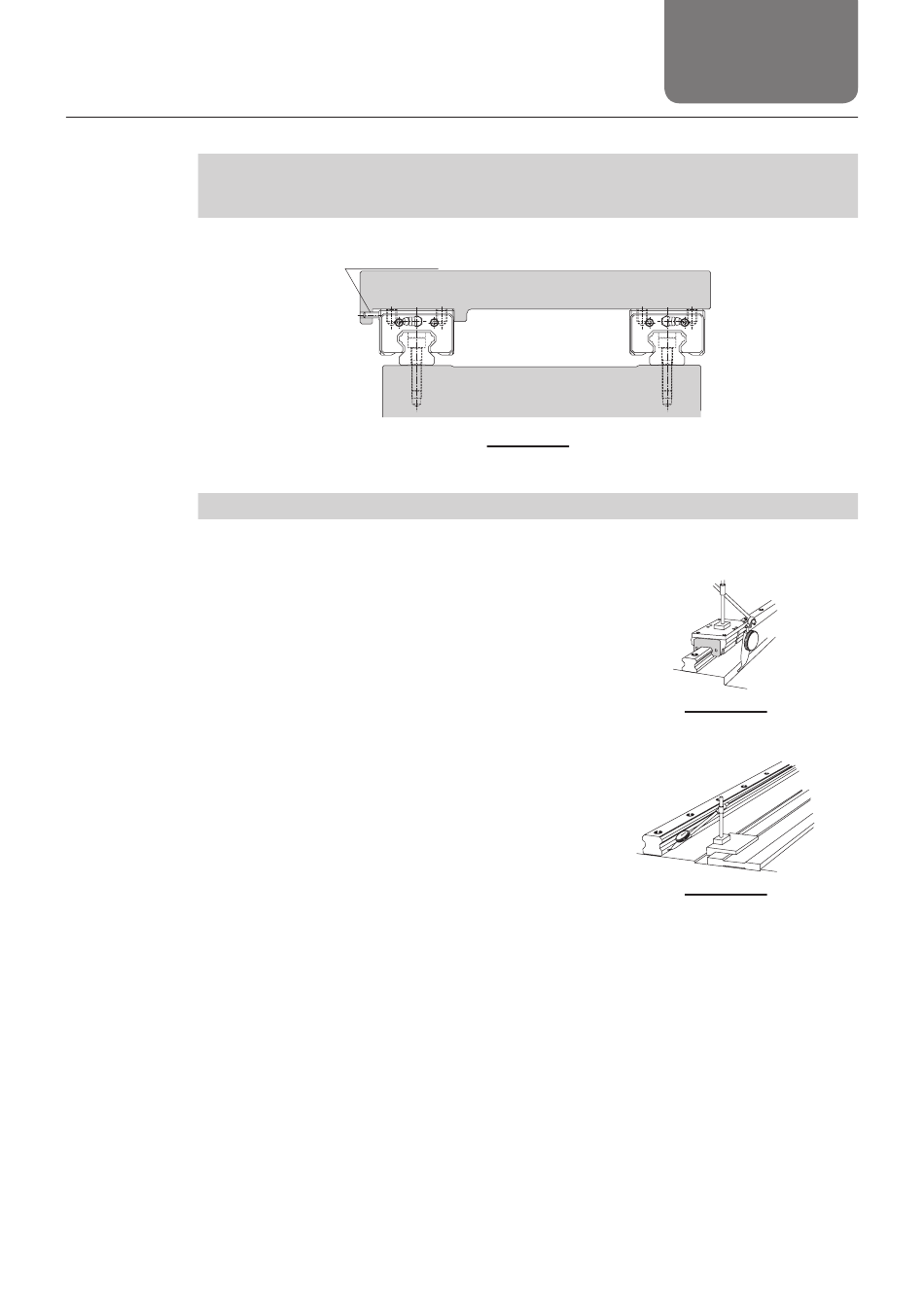

Example of Mounting the LM Guide When the Master LM Rail
Does Not Have a Reference Surface
Mounting the Master LM Rail
z Using a Temporary Reference Surface
You can use a reference surface provided near the LM
rail mounting position on the base to achieve straight-
ness of the LM rail from the rail end. In this method, two
LM blocks must be joined together and fixed to a mea-
surement plate, as shown in Figure 4-15.
z Using a Straight-edge
After temporarily fastening the mounting bolts, using a
straight-edge as a reference as shown in Figure 4-16,
use a dial gauge to check the straightness of the side
reference surface of the LM rail from the rail end, and at
the same time, fully fasten the mounting bolts.
To mount the subsidiary LM rail, follow the procedure
described on p. 4-3.
LM block set screw
Master rail
Figure 4-14
4-5
Table
Base
Subsidiary rail
Figure 4-15
Figure 4-16
