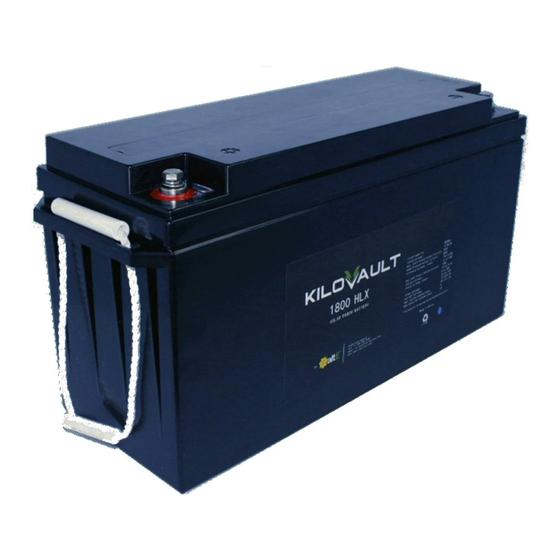

KiloVault HLX Series Installation And User Manual

Lithium iron phosphate deep cycle solar batteries
Hide thumbs Also See for HLX Series:
Table of Contents

Advertisement

Quick Links

Installation and User Manual
Revision: 2.1.0, 02/2021
KiloVault
®
LLC • 330 Codman Hill Road, Boxborough, MA 01719 • +1 (888) 218-5924 •
info@kilovault.com
•
www.kilovault.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HLX Series and is the answer not in the manual?

Questions and answers

Related Manuals for KiloVault HLX Series

Summary of Contents for KiloVault HLX Series

  • Page 1 Installation and User Manual Revision: 2.1.0, 02/2021 KiloVault ® LLC • 330 Codman Hill Road, Boxborough, MA 01719 • +1 (888) 218-5924 • info@kilovault.com • www.kilovault.com...
  • Page 2 Additionally, the illustrations in this manual are for demonstration only and are intended to help explain the KiloVault® HAB™ system concepts and installation instructions. Details may vary slightly depending upon the market region and the product version.

  • Page 3: Table Of Contents

    4.5.1 - HLX iT Screens & Operation 7.1 - Electrical 7.1.1 - Charge / Discharge Curve 7.2 - Environmental 7.3 - Physical KiloVault ® LLC • 330 Codman Hill Road, Boxborough, MA 01719 • +1 (888) 218-5924 • info@kilovault.com •...

  • Page 4: Features - Hlx & Chlx

    1 - About the HLX and CHLX batteries The KiloVault® HLX and CHLX series of solar lithium batteries are specifically designed and tested for the beating that serious hybrid, off-grid inverters, and solar charge controllers can throw at them. Compared to traditional deep cycle batteries, the HLX and CHLX series’...

  • Page 5: Battery Management System

    1.1.3 - CHLX Only CHLX Series lithium batteries include all the advantages of the HLX Series with the added benefit of cold weather operation. Internal heating technology allows the battery to continue charging, even when the ambient temperature is well below zero.

  • Page 6: Contact Us

    . They cannot be wired in a combination series & parallel configuration. Doing so will disrupt the coordination between CHLX batteries. 1.2 - Contact Us KiloVault® LLC 330 Codman Hill Road, Boxborough, MA 01719 +1 (888) 218-5924 info@kilovault.com www.kilovault.com...

  • Page 7: Warnings

    To avoid risk of shock or fire, ensure all wires are properly sized and in good condition. Verify all equipment to be connected to the batteries is turned off before making any electrical connections. KiloVault ® LLC • 330 Codman Hill Road, Boxborough, MA 01719 • +1 (888) 218-5924 • info@kilovault.com •...

  • Page 8: Before You Install Your Batteries

    Do not attempt to disassemble the batteries. This can cause personal injury and will void your warranty. KiloVault® batteries can be used in RV applications for electrical appliances ONLY. They can NOT be used to crank over motors in such vehicles.

  • Page 9: Location

    Please remember to remove the insulation in warmer months. Overheating the batteries will shorten their life and the BMS will shut down the battery in temperatures above 149°F (65°C). KiloVault ® LLC • 330 Codman Hill Road, Boxborough, MA 01719 • +1 (888) 218-5924 •...

  • Page 10: Cabling

    3.4 - Configurations The KiloVault® HLX series of batteries can be used 12 V, 24 V, 36 V, and 48 V configurations where one, two, three or four batteries are connected in series, plus to minus, in a row.
  • Page 11 Maximum HLX Configuration Maximum CHLX Series Configuration Maximum CHLX Parallel Configuration KiloVault ® LLC • 330 Codman Hill Road, Boxborough, MA 01719 • +1 (888) 218-5924 • info@kilovault.com • www.kilovault.com...

  • Page 12: Inverter/Charger Settings

    KiloVault Technical Support for guidance. Also, some chargers just have settings for broad battery types like; flooded, gel, agm or lithium. Before using these chargers on your battery, please contact KiloVault technical support for guidance. Note: If you cannot find a specific setting, remember to check the settings for guidance.

  • Page 13: Solar Charge Controller Settings

    3-stage charging, while the inverter/charger is set to 2-stage No Float. That way you’re floating your batteries for free with the sun. KiloVault ® LLC • 330 Codman Hill Road, Boxborough, MA 01719 • +1 (888) 218-5924 •...
  • Page 14 Maximum Charge Rate - 1200 1.25C, 80 A Maximum Charge Rate - 1800 1C, 150 A Maximum Charge Rate - 3600 C/2, 150 A KiloVault ® LLC • 330 Codman Hill Road, Boxborough, MA 01719 • +1 (888) 218-5924 • info@kilovault.com • www.kilovault.com...

  • Page 15: Battery Monitor Settings

    1.05 Recharge / Re-Bulk Volts (≈80% DoD) 12.25 V Self Discharge Rate ≤2% per month Temperature Coefficient 0 mV / °C KiloVault ® LLC • 330 Codman Hill Road, Boxborough, MA 01719 • +1 (888) 218-5924 • info@kilovault.com • www.kilovault.com...

  • Page 16: Generator / Automatic Generator Control Settings

    4.5 - HLX iT Bluetooth Mobile Application Disclaimer: The KiloVault® Bluetooth® mobile application is provided as is and is solely intended to gather general information. It is not intended to replace a voltmeter, ammeter, or any other testing / measurement device.

  • Page 17: Hlx It Screens & Operation

    Tap on any of the batteries shown. The Basic information screen will load, along with 4 menu tabs or buttons or icons at the top of the screen. KiloVault ® LLC • 330 Codman Hill Road, Boxborough, MA 01719 • +1 (888) 218-5924 •...
  • Page 18 Temperature Charging (LTC), High Temperature Discharging (HTD), High Temperature Charging (HTC). Location of the "⋮" Symbol Login Dialog Battery Information Button KiloVault ® LLC • 330 Codman Hill Road, Boxborough, MA 01719 • +1 (888) 218-5924 • info@kilovault.com • www.kilovault.com...
  • Page 19 (millivolts). The color of the numbers do not mean anything. They're always the same color. The difference between the highest and lowest should be 300mV or less. Tap anywhere to dismiss this screen. Battery Details Screen KiloVault ® LLC • 330 Codman Hill Road, Boxborough, MA 01719 • +1 (888) 218-5924 • info@kilovault.com •...
  • Page 20 Tap that button. The “Rename” dialog will appear. Type in the new name and tap “Confirm”. The battery is now renamed. Location of the "⋮" Symbol Login Dialog Rename Device Button Rename Dialog KiloVault ® LLC • 330 Codman Hill Road, Boxborough, MA 01719 • +1 (888) 218-5924 • info@kilovault.com • www.kilovault.com...
  • Page 21 HLX. Events are not saved into any kind of history. Tap the telephone tab (the fourth from the left) at the top of the screen, or swipe across to get to the KiloVault communications screen. Here you’ll find links to email or call KiloVault directly.
  • Page 22 A very briefly. If your known loads are close to 150 A continuous or have very high surge loads like pumps or HVAC systems, your loads may simply be too high for your bank. Please contact KiloVault about adding an additional parallel row of KiloVault batteries to your bank.
  • Page 23 12.25V. Multiply those values by 2 for a 24V system and 4 for a 48V system. ○ HAB iT, the KiloVault® mobile Bluetooth® application, enables you to view general information about the selected individual battery. It can help troubleshoot when attempting to detect the cause of the battery bank going off-line.
  • Page 24 ○ The KiloVault® batteries need a minimum of 250mA to be drawn or they will go into their power saving, standby mode. The simplest solution is to connect additional loads to reach at least 250mA (3 Watts).
  • Page 25 ○ If your HLX has a reset button, press it for 5 seconds. That should wake the HLX. Currently, only the 1800 HLX has a reset button. KiloVault ® LLC • 330 Codman Hill Road, Boxborough, MA 01719 • +1 (888) 218-5924 •...
  • Page 26 32°F (0°C), the heater will activate and speed up warming. 7 - Specifications These are HLX / CHLX specifications. Please see the Operation section for charger and other equipment settings. KiloVault ® LLC • 330 Codman Hill Road, Boxborough, MA 01719 • +1 (888) 218-5924 • info@kilovault.com •...

  • Page 27: Electrical

    Protection Cut Off @ 400 A 3600 - Maximum 30 minute Discharge Current 200 A 3600 - Rated Capacity 300 Ah Efficiency 94.50% KiloVault ® LLC • 330 Codman Hill Road, Boxborough, MA 01719 • +1 (888) 218-5924 • info@kilovault.com • www.kilovault.com...
  • Page 28 192 W Minimum Cell Balancing Voltage 3500 mV/Cell Maximum Cell Balancing Current 70 mA BMS Type Switching Shunt Resistor Internal Resistance ≤10mΩ KiloVault ® LLC • 330 Codman Hill Road, Boxborough, MA 01719 • +1 (888) 218-5924 • info@kilovault.com • www.kilovault.com...

  • Page 29: Charge / Discharge Curve

    149°F (65°C) with protection release at 122°F High Internal Temperature Charge Protection (50°C) 149°F (65°C) with protection release at 122°F High Internal Temperature Discharge Protection (50°C) KiloVault ® LLC • 330 Codman Hill Road, Boxborough, MA 01719 • +1 (888) 218-5924 • info@kilovault.com • www.kilovault.com...

  • Page 30: Physical

    3600 CHLX Battery Weight 84.2 lbs (38.2 kg) 3600 CHLX Shipping Weight 101.4 Lbs (46 kg) 3600 HLX/CHLX Depth 8.7 in (220 mm) KiloVault ® LLC • 330 Codman Hill Road, Boxborough, MA 01719 • +1 (888) 218-5924 • info@kilovault.com • www.kilovault.com...
  • Page 31 3 meters (9.8 ft). 9 - Disposal ● Do not incinerate. ● Please recycle in accordance with local laws and disposal services. KiloVault ® LLC • 330 Codman Hill Road, Boxborough, MA 01719 • +1 (888) 218-5924 • info@kilovault.com •...
  • Page 32 Product casing Product that has been opened, modified or tampered with ● Please see https://kilovault.com/kilovault-hlx-series/ for the complete provisions of the warranty. KiloVault ®...
