You can return to the standard mode anytime in the entire course of program setting by pressing "C+".
TIP: When you have tried all programs set, make sure setting is not dual – especially if you have used
block selection.

Manual device operation

1. Press "MANUAL" and select one of the three modes.
2. ON – the switch is permanently turned on.
OFF – the switch is permanently turned off.
AUTO – the switch works in accordance with the programs set.
3. After switch-over from manual (ON/OFF) to automatic (AUTO) mode,
CS4-16 will remain turned off or turned on until a change of program occurs.

12/24-hour mode

Press "C+" and " " simultaneously to choose between 12 and 24-hour modes.

Summer time

1. Press "C+" and "MANUAL" simultaneously to make the screen read "
2. Time will be set forward by one hour.
3. Press the buttons again to return to the original mode.

Reset button

Pressing RES/RCL will delete the currently set
value, but it will not erase the entire memory.

Technical details

Supply:
Max. load:
Min. time that can be set: 1 minute
Max. time deviation:
Battery capacity:
Ingress protection:
Operating temperature:
Caution!
The device must not be used for sockets rated at over 16 A. Inductive load switching is possible
up to 2 A. Use a dry cloth to clean CS4-16. Only clean the switch once the distribution system
has been turned off. Do not leave connected electrical appliances unattended.
ENSURE PROTECTION OF CS4-16 FROM WATER. DO NOT CLEAN USING SOLVENTS!!
A warranty period of 2 years applies.
Supplier: ELEKTROBOCK CZ s.r.o., www.elbock.cz
230 V/ 50 Hz
16 A, 3500 W
+/- 1minute/month
NiMH 1.2V >100 hours
IP20
-10 to +40 °C
" .
S

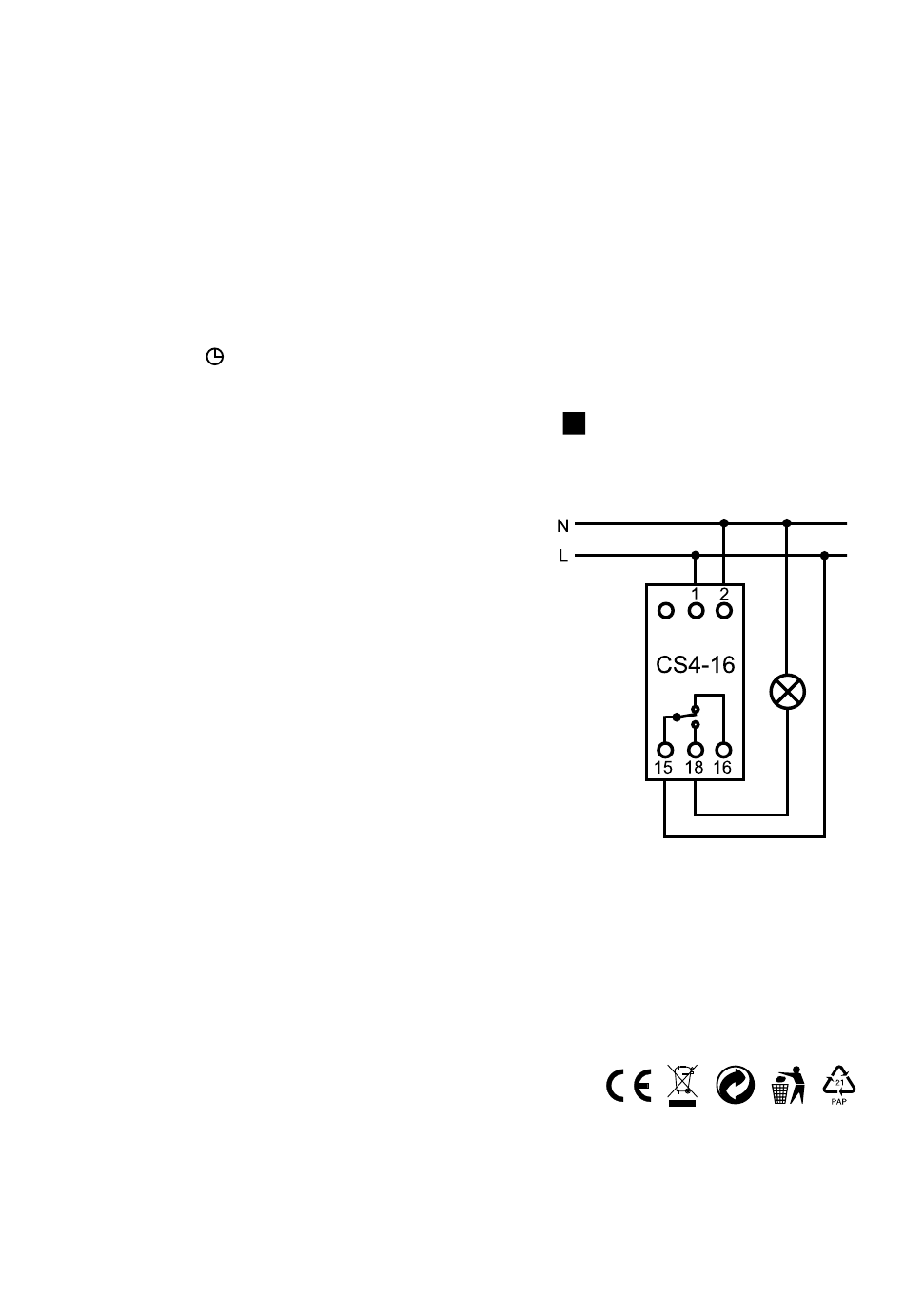

Wiring diagram

3
