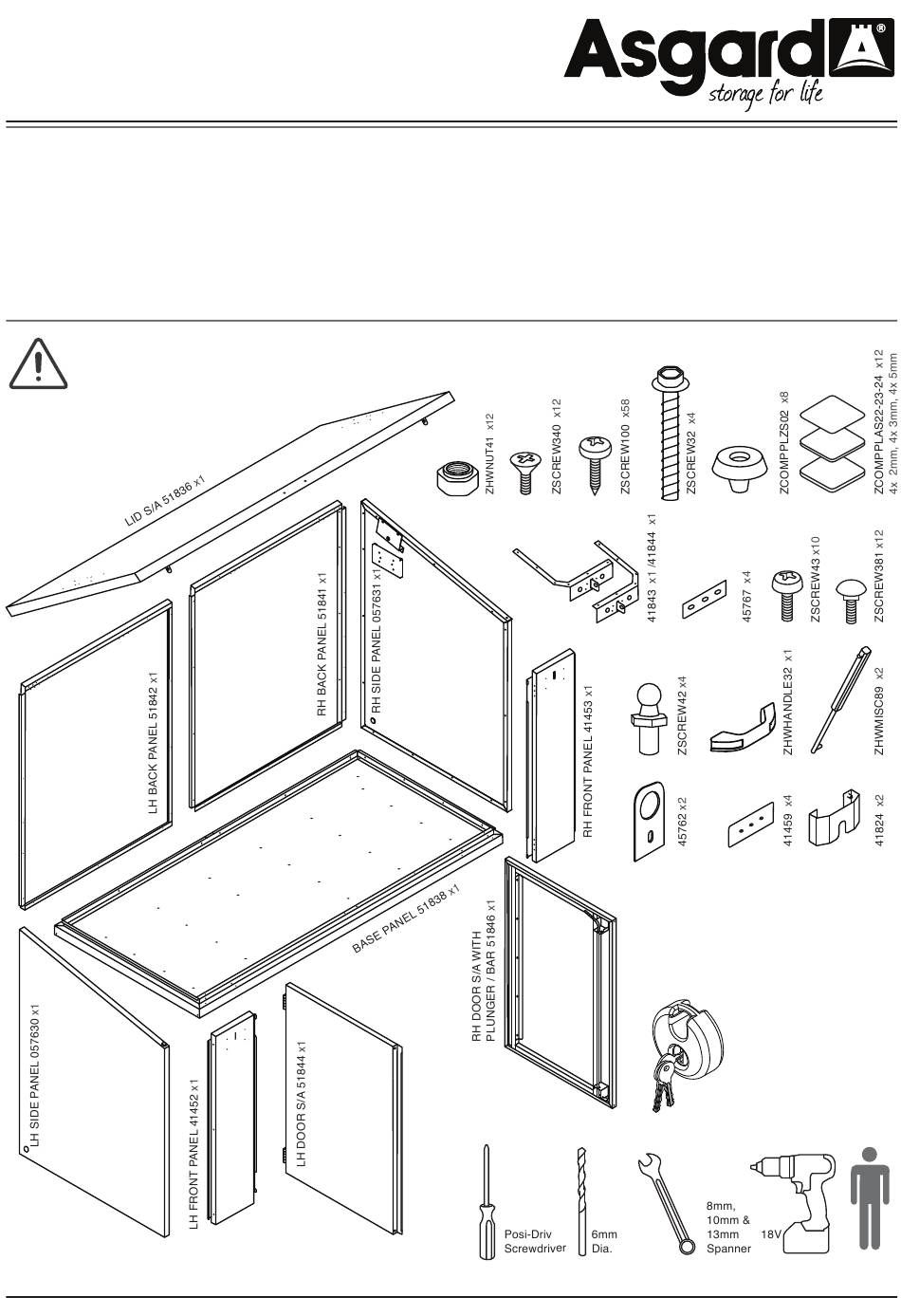

ACCESS E PLUS

BASE INSTRUCTIONS

Flat and firm base. Recommended: concrete, tarmac or paving flags.
Min. distance from walls/ shrubbery: 1000mm.
Min. base size (WxDxH) 2450mm x 1150mm x 50mm.

LEVELING THE UNIT

Correctly level the constructed unit using the shims (ZCOMPPLAS)
provided prior to fixing the unit to the ground. Slide the packing pieces
under the corners of the unit base as required until an equal gap has
been achieved around the door allowing for its smooth operation and
alignment.
Warning: some panels may weigh over
20Kg. Beware of manual handling
It is always recommended to anchor the unit in to the ground. Drill
through the four holes in the base of the unit using 6mm dia masonry drill
to a depth of 70mm. Screw in the anchor fixings. (These have a self
cutting thread). If not anchoring the unit, fit the 4 self-seal plugs
BEFORE BUILDING to block the fixing holes underneath. Fit 4
self-seal plugs in the side of base to stop water from entering the
unit.

TOOLS REQUIRED

Power driver POSI-DRIV screwdriver, 6mm dia. masonry drill and a
8mm, 10mm & 13mm socket or spanner.
For maintenance instructions of this product visit www.asgardsss.co.uk
2x 70mm disc padlocks
required. Not supplied.
Keys alike recommended.
x2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACCESS E PLUS and is the answer not in the manual?

Questions and answers

Summary of Contents for Asgard ACCESS E PLUS

  • Page 1 ACCESS E PLUS BASE INSTRUCTIONS It is always recommended to anchor the unit in to the ground. Drill Flat and firm base. Recommended: concrete, tarmac or paving flags. through the four holes in the base of the unit using 6mm dia masonry drill Min.
  • Page 2 PLEASE NOTE ALL SCREWS ARE FIXED FROM THE INSIDE IF YOU HAVE AN OPTIONAL RAMP, PLACE UNDERNEATH FRONT BASE PANEL AT THIS STAGE FIT SELF-SEAL PLUGS: 4X SIDE OF BASE. 4X BOTTOM OF BASE IF UNIT IS NOT BEING SECURED TO FLOOR...
  • Page 3 LID HINGE TO OUTSIDE OF UNIT...
  • Page 4 LEVEL SHED UNTIL DOORS ALIGN USING ZCOMPPLAS AS SUITABLE FIT SHROUDS (41824) ENSURE CORRECT ALIGNMENT AS HIGH UP AS BEFORE ATTACHING SHROUDS POSSIBLE (41824) REMOVE SCREWS FROM CHECK THE SHROUDS ARE SIDE WHERE ELETRICS FLUSH WITH THE SHED ARE TO BE FITTED ✔...
  • Page 5 FIT EYELET BRACKET TO RETAIN ELECTRIC CABLES FIT ELECTRICS TO MOUNTING PLATE, MAY REQUIRE ADDITIONAL DRILLING YOU MUST ENSURE YOUR BASE IS LEVEL AND THE LID ALIGNS CORRECTLY YOU MUST USE THE DOOR PLUNGER/ BAR ON THE BACK OF THE DOOR WHEN LOCKING YOUR SHED FAILURE TO DO SO MAY MAKE YOUR SHED LESS SECURE www.asgardsss.co.uk...
