Asgard TROJAN PLUS Quick Start Manual

TROJAN PLUS

BASE INSTRUCTIONS

Flat and firm base. Recommended: concrete, tarmac or paving flags.
Min. distance from walls/ shrubbery: 1000mm.
Min. base size (WxDxH) 2350mm x 1100mm x 50mm.

LEVELING THE UNIT

Correctly level the constructed unit using the shims (ZCOMPPLAS)
provided prior to fixing the unit to the ground. Slide the packing pieces
under the corners of the unit base as required until an equal gap has
been achieved around the door allowing for its smooth operation and
alignment.
Warning: some panels may weigh over
20Kg. Beware of manual handling
All manuals and user guides at all-guides.com
It is always recommended to anchor the unit to the ground. Drill through
the four holes in the base of the unit using 6mm dia masonry drill to a
depth of 70mm. Screw in the anchor fixings. (These have a self cutting
thread). If not anchoring the unit, fit the self seal plugs BEFORE
BUILDING to block the fixing holes from underneath.

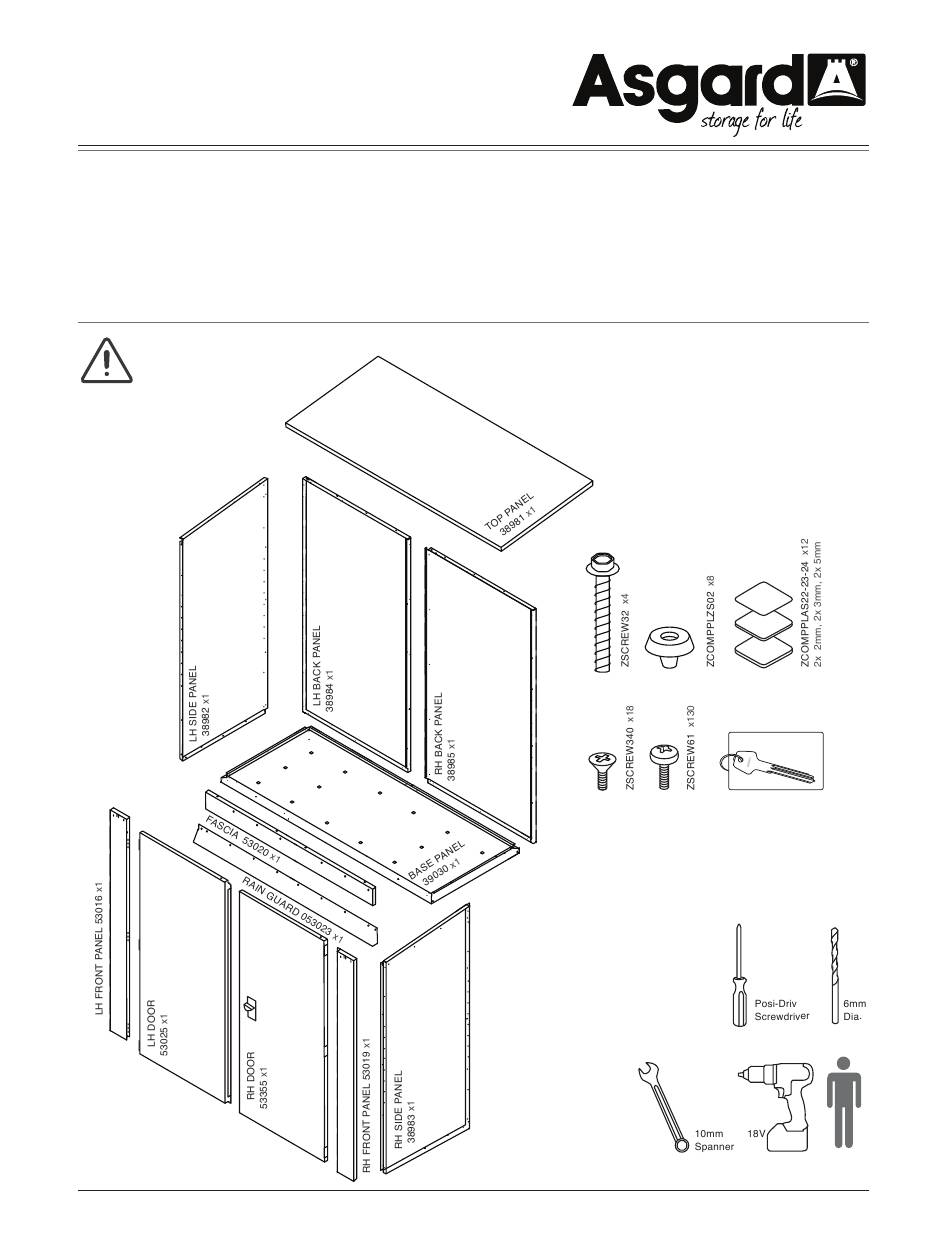

TOOLS REQUIRED

Power driver POSI-DRIV screwdriver, 6mm dia. masonry drill and a
10mm socket or spanner.
For maintenance instructions of this product visit www.asgardsss.co.uk
YOUR UNIQUE
KEY CODE
Warning: Please keep
this key card safe! Refer
to if replacement key is
required.
x2
