Asgard DOUBLE ENDED BIKE SHELTER Manual

DOUBLE ENDED BIKE SHELTER
BASE INSTRUCTIONS
Flat and firm base. Recommended: concrete, tarmac or paving flags.
Min. distance from walls/ shrubbery: 1000mm.
Min. base size (WxDxH) 1000mm x 2200mm x 50mm.
LEVELING THE UNIT
Correctly level the constructed unit using the shims (ZCOMPPLAS)
provided prior to fixing the unit to the ground. Slide the packing pieces
under the corners of the unit base as required until an equal gap has
been achieved around the door allowing for its smooth operation and
alignment.
Warning: some panels may weigh over
20Kg. Beware of manual handling
It is always recommended to anchor the unit to the ground. Drill through
the four holes in the base rails of the unit using 6mm dia masonry drill to
a depth of 70mm. Screw in the anchor fixings. (These have a self cutting
thread). Additional ZHWNUT42 and ZSCREW254 have been supplied for
bolting 2 units together using the side panels.

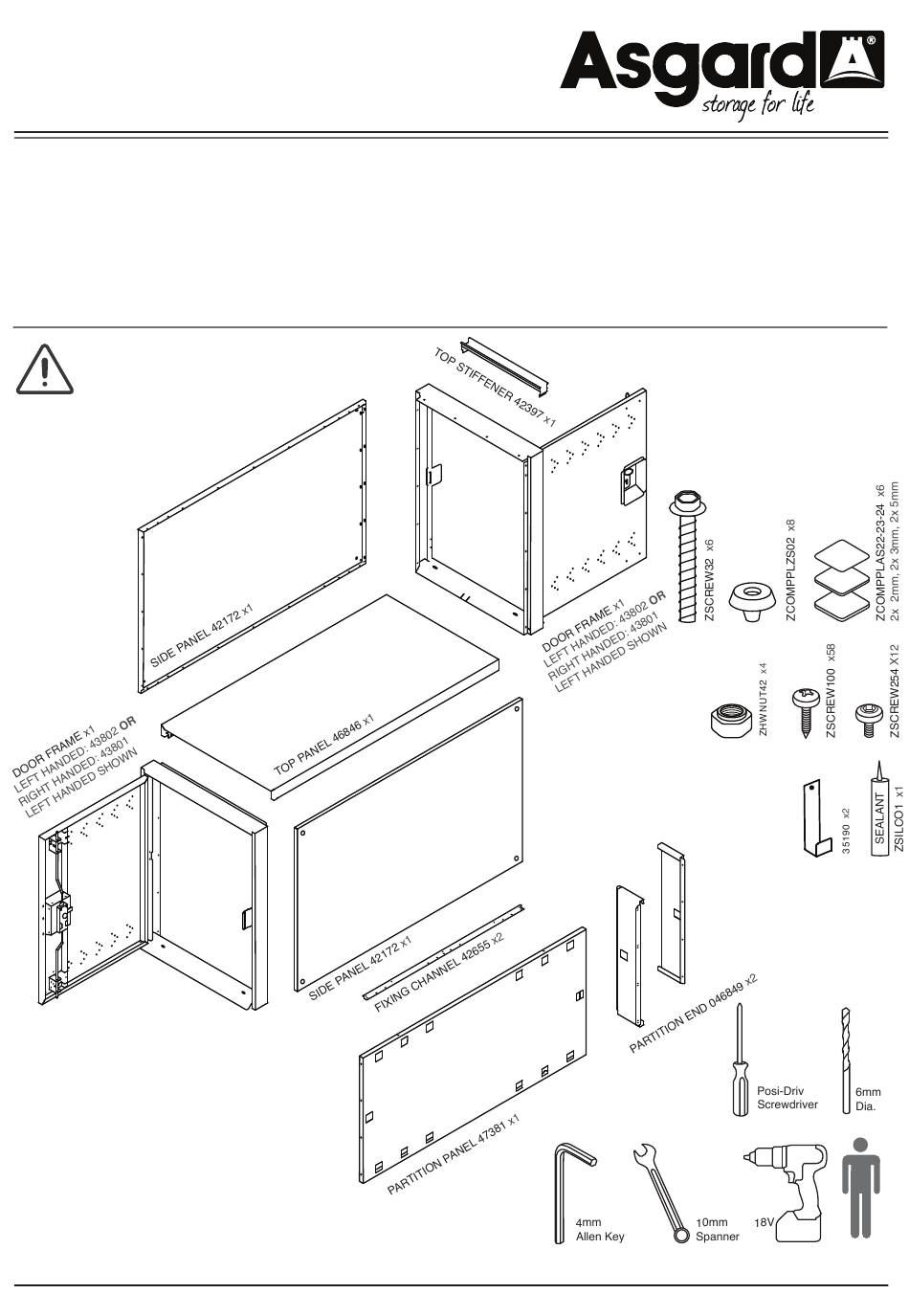

TOOLS REQUIRED
Power driver POSI-DRIV screwdriver, 6mm dia. masonry drill and a
10mm socket or spanner.
For maintenance instructions of this product visit www.asgardsss.co.uk
x2
