Note:
1. It's advised to turn off the filtration system as water circulation in pool may affect the robot movement pattern.
2. Move pool ladder, surface skimmer and other floating objects from the pool as it may obstruct the movement of the robot's float and, consequently, also the
movement of the robot.
3. If you are using saltwater pool, make sure all salt is dissolved before placing the robot into the water.

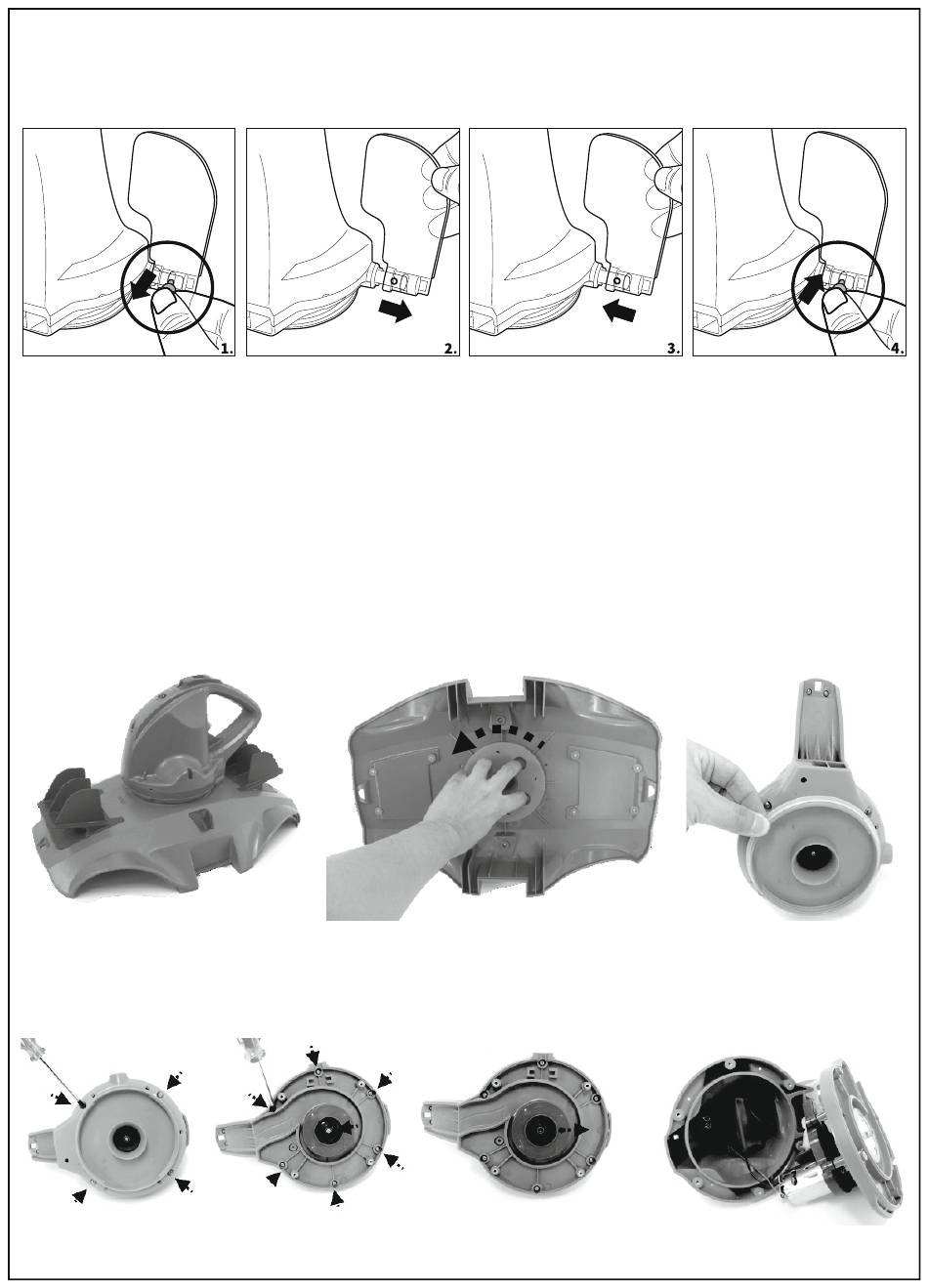

Flap replacement
Maintenance and Storage
1. Battery discharges on its own during storage. Make sure to fully-charge the robot before storage.
2. You must re-charge the battery at least once every three months when it is not in use.
• Unplug the external adaptor from the socket and then unplug the charging cable from the external adaptor and robot.
• Detach accessories from the robot. If necessary, rinse the robot and accessories with fresh water. DO NOT use detergent.
• Be sure to drain the water from the robot before storing it.
• Use a damp cloth to clean and dry the robot and its accessories.
• Store them in a well-ventilated area away from sunlight, heat, ignition sources, pool chemicals and from children. Ambient temperature for storage should be
10˚C – 25˚C (50˚F – 77˚F). NOTE: A higher storage temperature may reduce the battery life.

How to remove the battery pack

Recommended tools (not included): Screwdriver.
1. Release the top cover (preassembled with the swivel head). Turn the cover up side
down and release the swivel head by turning its bottom locking plate counter-clockwise.
Remove the swivel smoothing-ring.
2. Use the screwdriver to unscrew the 4 screws located on the bottom of the head to release
the bottom plate at first. Use the screwdriver to unscrew all the screws on the base as
shown. Remove the impeller and then pry up the base and remove it to expose head inside.
5
