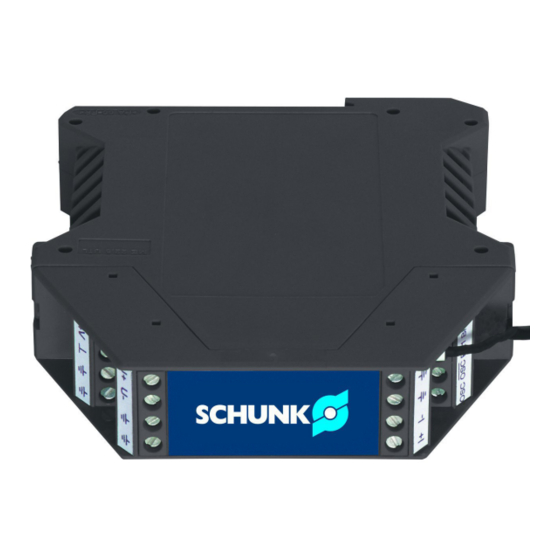

- Page 1 Translation of Original Operating Manual Assembly and Operating Manual APS-ME1 Electronic processor...
- Page 2 Imprint Copyright: This manual is protected by copyright. The author is SCHUNK GmbH & Co. KG. All rights reserved. Any reproduction, processing, distribution (making available to third parties), translation or other usage - even excerpts - of the manual is especially prohibited and requires our written approval.
-
Page 3: Table Of Contents
Personnel qualification.................. 6 Technical Data APS-M1E .................. 7 Assembly and settings ..................... 8 Mounting and connecting the electronic processor.......... 8 4.1.1 Connection diagram ................. 9 Calibrating the electronic processor.............. 10 01.00 | APS-ME1 | Assembly and Operating Manual | en | 1415570... -
Page 4: General
• Observe the applicable documents, Applicable documents 4] • Observe the ambient conditions and operating conditions, Environmental and operating conditions 5] 01.00 | APS-ME1 | Assembly and Operating Manual | en | 1415570... -
Page 5: Basic Safety Notes
• Structural changes should only be made with the written approval of SCHUNK. 01.00 | APS-ME1 | Assembly and Operating Manual | en | 1415570... -
Page 6: Personnel Qualification
• Before working with the product, the personnel must have read and understood the complete assembly and operating manual. • Observe the national safety regulations and rules and general safety instructions. 01.00 | APS-ME1 | Assembly and Operating Manual | en | 1415570... -
Page 7: Technical Data Aps-M1E
Oscillator voltage [VSS Sine] Oscillator Frequency [Hz] 4800 ±8% Output 1 [V] 0...10 permissible load RL [kOhm] ≥ 2 Output 2 [mA] 4...20 Load resistance [Ohm] 0...250 IP rating 01.00 | APS-ME1 | Assembly and Operating Manual | en | 1415570... -
Page 8: Assembly And Settings
Connect the cable shield to the functional earth (FE) of the Ø electronic processor. Connect shielded cable between electronic processor and Ø automation device, Connection diagram 9]. Maximum permissible cable length: 3 m. ✓ Fine-tune the standard signal. Ø 01.00 | APS-ME1 | Assembly and Operating Manual | en | 1415570... -
Page 9: Connection Diagram
Assembly and settings 4.1.1 Connection diagram Connection diagram Connector housing Electronic processor Socket housing Cable extension Automation device Sensor Wire colors: Blue Grey White Pink Yellow Black 01.00 | APS-ME1 | Assembly and Operating Manual | en | 1415570... -
Page 10: Calibrating The Electronic Processor
Open the gripper. Insert the gauge block corresponding to the Ø maximum gripper stroke. Close the gripper. Set the standard signal value corresponding to the inserted Ø gauge block on the gain potentiometer. 01.00 | APS-ME1 | Assembly and Operating Manual | en | 1415570... - Page 11 Set 0.303 V on the 0-point potentiometer. Ø Open the gripper. Insert gauge block with 33 mm thickness. Ø Close the gripper. Set 10 V on the gain potentiometer. Ø 01.00 | APS-ME1 | Assembly and Operating Manual | en | 1415570...
- Page 12 01.00 | APS-ME1 | Assembly and Operating Manual | en | 1415570...
