3M 6100 Quick Start Manual

Quick Start Guide

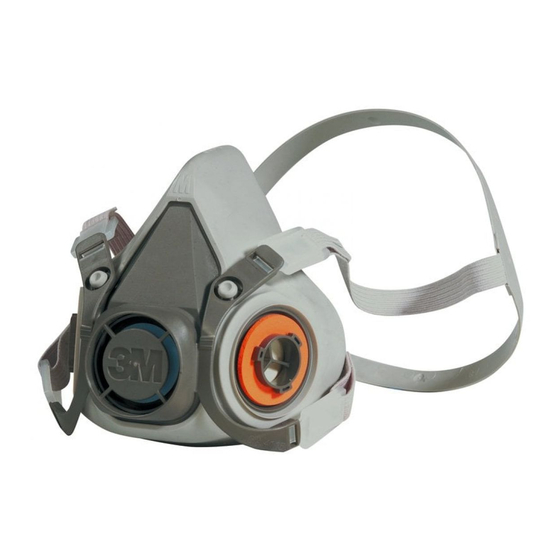

3M Half Facepiece Reusable Respirators 6100 (Sm)/6200 (Med)/6300 (Lg)
™
and 3M Particulate Filter 7093, P100. Optional 3M
™
6100/6200/6300
Notes:
• Before using these respirator systems, all users must read and understand the product User Instructions.
• Do not use with beards or other facial hair or other conditions that prevent a good seal between the
face and the faceseal of the respirator.
• Perform hand hygiene and use other applicable PPE as determined by your facility and/or infection
control policy.
Step 1: Inspection
Inspect all components according to the product User Instructions prior to each use. Check for cracks,
tears, holes, deformation or missing components.
Step 2 (optional): EVF Connection to Facepiece
2. Align the connector
1. Ensure the valve
cover of the 6000
Series facepiece is
clean,
uncontaminated
and undamaged.
The valve cover is
on the front of the
respirator and has
a large 3M logo.
There are four
breathing slots
surrounding the
logo.
7093 (x2)
3. Press the EVF
onto the valve
tabs and hooks on
cover. The EVF
the back of the EVF
should sit evenly
with the breathing
on the valve
slots of the valve
cover.
cover.
Tip: Installing the
EVF with either
hook at the top
position may help
with proper
alignment of the
EVF.
Exhalation Valve Filter 604
™
604 (Optional)
4. If the EVF is not
seated evenly on
the valve cover,
as shown above,
in Fig. 4, repeat
steps 2 & 3.
April 2021
5. Slowly rotate the
EVF clockwise
until rotation
stops. Pull
outward lightly
on the EVF to
confi rm a
complete
connection.
