Page 1

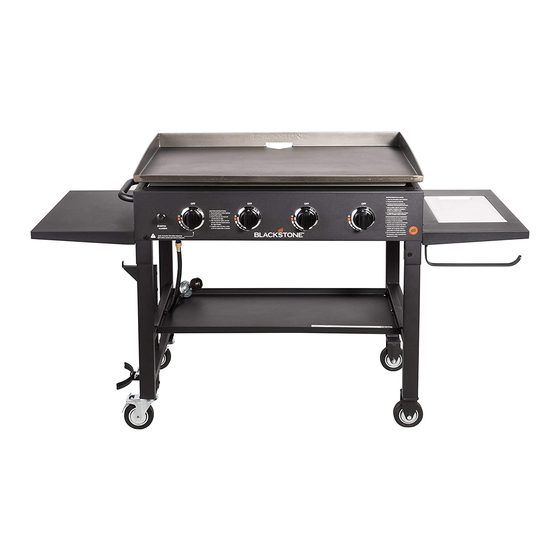

MODEL 1841 36" GRIDDLE COOKING STATION Parts & Assembly North Atlantic Imports LLC | 1073 West 1700 North Logan, UT 84321 | Blackstoneproducts.com...
Page 2
36” Griddle Cooking Station | Parts & Assembly SAFE T Y ALERT KE Y Before proceeding, make certain that you read and understand the Read and follow all of the notices Owner’s Manual included with found throughout the manual. your griddle. Hazardous fire or explosion may result if instructions are ignored.
Page 3
36” Griddle Cooking Station | Parts & Assembly PARTS & ASSEMBLY ILLUSTRATED PARTS LIST 01. Body (1 piece) 02. Griddle top (1 piece) 03. Left side shelf (1 piece) & Right side shelf (1 piece) 04. Bottom shelf (1 piece) 05.
Page 4
36” Griddle Cooking Station | Parts & Assembly WA R N I N G ASSEMBLY INSTRUCTIONS The manufacturer has made every effort to eliminate any sharp Please read all instructions thoroughly before proceeding. Make sure all edges. However, you should the plastic packing material is removed before assembling handle all components with care to avoid accidental injury.
Page 5
36” Griddle Cooking Station | Parts & Assembly STEP 0 2 Place the bottom shelf and secure it with one (1) large thumbscrew to between the two legs on the left. Use one (1) small thumbscrew to attach the shelf and the propane tank holder in between the two lockable castor wheels on the right.
Page 6
36” Griddle Cooking Station | Parts & Assembly STEP 05 Install the handle to the griddle body with four (4) M6X12 screws. STEP 0 6 Install the right side shelf on to the griddle body with two (2) M8 screws. Repeat this step with two (2) M8 screws on the left side of the unit.
Page 7
36” Griddle Cooking Station | Parts & Assembly STEP 0 8 Attach the metal hooks onto the front shelf with three (3) M4X10 scews and three (3) M4 nuts. Attach the bottle opener on the right side of front shelf with two (2) M6X12 screws and two (2) M6 nuts.
Page 8
North Atlantic Imports LLC | 1073 West 1700 North Logan, UT 84321 | Blackstoneproducts.com...
Page 9
MODÈLE 1841 STATION DE PATIO GRIDDLE DE 36" Pièces et assemblage North Atlantic Imports LLC | 1073 West 1700 North Logan, UT 84321 | Blackstoneproducts.com...
Page 10
Station de patio 36" | Pièces et assemblage CLÉ D'ALERTE DE Avant de continuer, assurez-vous de lire et de comprendre le mode SÉCURITÉ d'emploi fourni avec votre gril. Lisez et suivez tous les conseils qui Le non-respect des instructions se trouvent dans ce manuel. peut provoquer un incendie ou une explosion.
Page 11
Station de patio 36” | Pièces et assemblage PIÈCES ET ASSEMBL AGE LISTE DES PIÈCES ILLUSTRÉES 01. Corps (1 pièce) 02. Plaque chauffante (1 pièce) 03. Tablette latérale gauche (1 pièce) et tablette latérale droite (1 pièce) 04. Tablette inférieure (1 pièce) 05.
Page 12
Station de patio 36” | Pièces et assemblage AT T E N T I O N INSTRUCTIONS DE MONTAGE Le fabricant a tout mis en œuvre pour éliminer les bords Veuillez lire attentivement toutes les instructions avant de continuer. tranchants. Cependant, vous Assurez-vous que tout le matériel d’emballage en plastique est enlevé...
Page 13
Station de patio 36” | Pièces et assemblage É TAPE 02 Placez la tablette inférieure et fixez-la avec une (1) grande vis à molette située entre les deux pieds à gauche. Utilisez une (1) petite vis à oreilles pour fixer la tablette et le support du réservoir de propane entre les deux roues pivotantes verrouillables sur la droite.
Page 14
Station de patio 36” | Pièces et assemblage É TAPE 05 Installez la poignée sur le corps de la plaque chauffante à l’aide de quatre (4) vis M6X12. É TAPE 0 6 Installez la tablette latérale droite sur le corps de la plaque chauffante avec deux (2) vis M8.
Page 15
Station de patio 36” | Pièces et assemblage É TAPE 0 8 Fixez les crochets métalliques sur la tablette avant à l’aide de trois (3) écrans M4X10 et de trois (3) écrous M4. Fixez le décapsuleur sur le côté droit de la tablette avant à...
Page 16
North Atlantic Imports LLC | 1073 West 1700 North Logan, UT 84321 | Blackstoneproducts.com...
Page 17
MODELO 1841 36" PLANCHA ESTACIÓN DE COCINA Piezas y ensamblaje North Atlantic Imports LLC | 1073 West 1700 North Logan, UT 84321 | Blackstoneproducts.com...
Page 18
36” Plancha Estación De Cocina | Piezas y montaje LL AVE DE ALERTA DE Antes de continuar, asegúrese de leer y comprender el Manual SEGURIDAD del propietario incluido con su plancha. Lea y siga todos los avisos que se encuentran en el manual. Se pueden producir incendios o explosiones peligrosas si se ignoran las instrucciones.
Page 19
36” Plancha Estación De Cocina | Piezas y montaje PIE Z AS Y ENSAMBL AJE LISTA DE PIE Z AS ILUSTRADA 01. Cuerpo (1 pieza) 02. Plancha superior (1 pieza) 03. Estante lateral izquierdo (1 pieza) y estante lateral derecho (1 pieza) 04.
Page 20
36” Plancha Estación De Cocina | Piezas y montaje A D V E R T E N C I A INSTRUCCIONES DE MONTAJE El fabricante ha hecho todo lo posible para eliminar los bordes Lea atentamente todas las instrucciones antes de continuar. Asegúrese afilados.
Page 21
36” Plancha Estación De Cocina | Piezas y montaje PA SO 0 2 Coloque el estante inferior y asegúrelo con un (1) tornillo grande entre las dos patas a la izquierda. Use un (1) tornillo pequeño para sujetar el estante y el soporte del tanque de propano entre las dos ruedas giratorias de la derecha.
Page 22
36” Plancha Estación De Cocina | Piezas y montaje PA SO 05 Instale la manija en el cuerpo de la plancha con cuatro (4) tornillos M6X12. PA SO 0 6 Instale el estante lateral derecho en el cuerpo de la plancha con dos (2) tornillos M8.
Page 23
36” Plancha Estación De Cocina | Piezas y montaje PA SO 08 Fije los ganchos de metal en el estante delantero con tres (3) tornillos M4X10 y tres (3) tuercas M4. Fije el abrebotellas en el lado derecho del estante delan- tero con dos (2) tornillos M6X12 y dos (2) tuercas M6.
Page 24
North Atlantic Imports LLC | 1073 West 1700 North Logan, UT 84321 | Blackstoneproducts.com...
