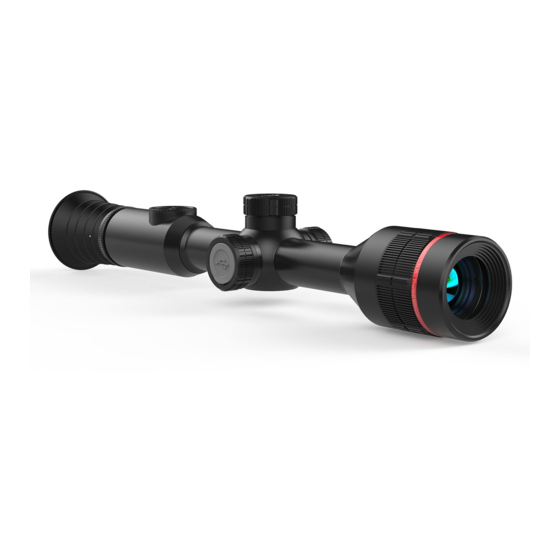

InfiRay Tube series User Manual

Infrared scope
Hide thumbs Also See for Tube series:

Advertisement

Table of Contents

Tube Series
User Manual
V1.0
InfiRay Technologies Co. Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tube series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for InfiRay Tube series

Summary of Contents for InfiRay Tube series

  • Page 1 Tube Series User Manual V1.0 InfiRay Technologies Co. Ltd.

  • Page 2: Specification

    Specification: TL35 Model Microbolometer Type Uncooled Resolution, pixels 384x288 Pixel Size, um ≤50 NETD, mk Frame Rate, Hz Optical Characteristics Objective Lens, mm Field of View, º 7.5x5.6 Magnification, x 3.0-12.0 Digital-zoom, x 1.0~ 4.0 Eye Relief, mm -4～+4 Diopter Adjustment, D Detection Range, m 1816 (Target size:1.7m×0.5m, P(n)=99%)

  • Page 3: Package List

    ⚫ Certificate 2. Introduction Tube series infrared scope is designed for outdoor and hunting. Base on the principle of Thermal Imaging, without external light source, ignoring strong light exposure, users can observe objectives (even hiding behind barriers: branches of tree, grass, bush) via Tube scopes, no matter it’s day or night, bad weather such as rain, snow, fog, haze and etc.
  • Page 4 ⚫ Long detection range; ⚫ High frame frequency: 50Hz; ⚫ Build-in storage, supports photographing and video recording ⚫ Build-in WIFI module for connecting App ⚫ Digital compass and gravity sensor; ⚫ Picture in Picture (PIP) ⚫ Defect pixel correction; ⚫ User-friendly interface; 4.

  • Page 5: Functions Of Buttons

    5. Functions of buttons Status/Current Button Short Press Long Press Rotate Operation mode —— —— Switch On Switched Off —— Main Menu Shutter calibration Switch Off/Standby —— —— Standby Exit Standby Power Exit to previous Button —— —— Advanced Menu menu without saving Locate defect pixel...

  • Page 6: Charging Battery

    Rotate Anti-clock wise: Move Right/Up 6.Charging Battery Tube series have double power supply system – built-in rechargeable lithium ion battery pack and a replaceable 18500 battery, the whole system supports standard working time: 15 hours. Please ensure the battery is fully charged before first time using.
  • Page 7 Switching Battery Power Supply Tube series support double power supply system: Built-in lithium ion battery pack and replaceable 18500 battery, also support USB port charging. ⚫ If there are two types of batteries in Tube, the status bar on top right of the image will...

  • Page 8: External Power Supply

    ⚫ When the device is operating, you can change the replaceable battery, then, the device will switch its power supply to build-in battery. 7.External Power Supply Tube series support external power supply, such as mobile power bank (5V). ⚫ Connect external power supply with USB port on Tube (9);...

  • Page 9: Fixed Installation

    For accuracy of shooting, please install Tube to proper location on your weapon. ⚫ For install Tube series, you need a jig to transfer it, such as the Picatinny rail adapter included in the package. Tube series designed as 30mm diameter pipe, suits 30mm standard clip on adapter, such as daylight scope.
  • Page 10 ⚫ Set Image mode: in home screen, short press Palette button (6) for switching image mode, modes are White Hot, Black Hot, Pseudo color, Red Hot and Target highlight. The top status bar updates as image mode switches. ⚫ Set screen brightness: In home screen, short press brightness button (4) to switch screen brightness in level 1–5, meanwhile brightness indication icon appears on the bottom of screen shortly, default brightness in level 3;...
  • Page 11 9.Zeroing Tube series require zeroing in “Freeze” method, suggest zeroing in operating temperature of scope: ⚫ Mount the scope on rifle with clip on adapter; ⚫ Set a target on the distance, such as 100m,200m etc.; ⚫ Adjust scope refer to the instructions in Charter 8 Basic Settings;...

  • Page 12: Digital Zoom

    “cover lens during calibration”, background calibration starts after 2s. 11. Digital Zoom Tube series scopes supports stepless digital zoom in 3.0-12.0, enlarge images 1-4 times. ⚫ In home screen, rotate the knob (7) to zoom in/out the image;...
  • Page 13 ⚫ The knob rotates once, the image zooms in/out 0.3 times. 12.Photography & Video recording Tube series have built-in 16GB storage for photography and video record. Graph and video files are named with time, suggest synchronize time and date in App settings before taking photograph and recording video.

  • Page 14: Status Bar

    ⚫ Connect device with PC via Type-C cable; ⚫ Switch on the scope; - Double click “This PC” on desktop, find and double click device named “Infiray”. Double click device named ‘Internal Storage’ to access built-in storage. ⚫ There are different folders in the storage, named with time, in the form: xxxx(year)xx(month)xx(day);...

  • Page 15: Shortcut Menu

    8. Video output status (no icon when video output switched off) 9. Wi-Fi status( : Wi-Fi off; : Wi-Fi On and connected) 10. Clock (Download App InfiRay Outdoor to set time in the app) 11. Replaceable battery status (18500 battery) 12. Built-in battery pack status Notice: when icon as green , means charges more than 20%, enough charges;...

  • Page 16: Advance Menu

    - Reticle Color: rotate rotary encoder knob (7) to select this option, short press knob to select reticle color as white, black, red, green; - Image Sharpness: rotate rotary encoder knob (7) to select this option, short press encode knob to select image sharpness 1-2-3-4-5; - Zeroing range: rotate rotary encoder knob (7) to select this option, short press knob to select default zeroing range;...
  • Page 17 ⚫ The location of cursor indicates selected options, selected icon will change from white to blue; ⚫ Same operations in second and third level menu; ⚫ In all menu interfaces, long press rotary encoder knob (7) to save modification and exit to previous level of menu, short press power button (5) will exit to previous level without saving.
  • Page 18 ⚫ Long press rotary encoder knob to enter Main Menu; ⚫ Select “Wi-Fi” function via rotating rotary encoder knob; ⚫ Short press rotary encoder knob to turn ON/OFF Wi-Fi; ⚫ When Turn ON/OFF, the icon changes either. When there is a slash on icon, means close, otherwise, without slash, means opening.
  • Page 19 Turn ON/OFF Compass function Compass ⚫ Select “Compass”; ⚫ Short press rotary encoder knob to Turn ON/OFF compass; ⚫ When compass is turned on, it will reveal in the center of top status bar. Turn ON/OFF gravity sensor ⚫ Select “Gravity Sensor” function; ⚫...
  • Page 20 Please set zeroing profile and range before zeroing. Tube series support zeroing in ranges 1-999 meters. ⚫ Select “Zeroing” in Main Menu; ⚫ Short press rotary encoder knob to enter next level menu of zeroing, reveal three zeroing ranges; ⚫ Rotate rotary encoder knob to select zeroing ranges, based on the ranges of target;...
  • Page 21 button simultaneously, image freeze and icon of freeze reveals on the screen. ⚫ Short press rotary encoder knob to switch direction on X-axis or Y-axis, the position of cursor> identified selected option; ⚫ Rotate rotary encoder knob to move reticle, clockwise to move cursor left or down, counter clockwise to move cursor right or up;...
  • Page 22 zeroing range; ⚫ Rotate rotary encoder knob to set each digit, short press rotary encoder knob to switch among hundreds, tens and units. ⚫ While finished setting, long press rotary encoder knob to save and exit to zeroing settings, while ranges changed either.
  • Page 23 Some defect pixels may reveal on the screen after long period of operation. Defect pixels are pixels that do not change brightness compare with others, they are either brighter or darker than surrounding pixels. The pixels defect correction function will remove these bad pixels. ⚫...
  • Page 24 pixels; ⚫ The PIP and its relevant information will move to top left of the screen when cursor moved to bottom left. ⚫ Once correction finished, a prompt reveals when long press rotary encoder knob, asking whether save or not. Select ‘Yes’ to save and exit, select ‘No’ to cancel saving and exit.
  • Page 25 Setting language, Units, Status autohiding, Factory reset, Info and etc. Select Language ⚫ Short press rotary encoder knob to enter submenu of General Setting; General ⚫ Select “language” option, short press rotary encoder knob Settings to enter submenu of language setting; ⚫...
  • Page 26 General Setting; ⚫ Select ‘units of measure’, short press rotary encoder knob to its submenu; ⚫ Rotate rotary encoder knob to select measuring units, short press rotary encoder knob to confirm, save and exit. Turn ON/OFF Status Auto Hiding ⚫ Short press rotary encoder knob to enter submenu of general setting;...
  • Page 27 General Setting; ⚫ Select “Factory Reset”, short press rotary encoder knob to enter submenu of this option; ⚫ Rotate rotary encoder knob to select Yes/No. “Yes” means reset to factory settings, “No” means cancel; ⚫ Short press rotary encoder knob to confirm selection; ⚫...
  • Page 28 ⚫ Short press rotary encoder knob to enter Submenu of ‘General Settings’ ⚫ Select ‘Info’; ⚫ Short press rotary encoder knob will reveal relevant information of scope: product model, version info of Hardware and Software, PN code and SN code; ⚫...

  • Page 29: Picture In Picture (Pip)

    , PIP image will be enlarged 2× synchronously. 17. Stadiametric Rangefinder Tube series have stadiametric rangefinder to estimate the range of a known object. ⚫ In home screen, long press brightness button (4) to switch On/Off rangefinder.
  • Page 30 18.Wi-Fi Tube series include Wi-Fi module to connect with external devices (PC, smart phone) wirelessly. ⚫ Switch on Wi-Fi on Main Menu (More details refer to Main Menu operations). ⚫ Search for Wi-Fi signal named “Tube_XXXXXX” on external devices, XXXXXX is six digits serial number that consist of numbers and letters.
  • Page 31 Tips: Search and update firmware of devices via App Infiray Outdoor. ⚫ You can get Infiray Outdoor App in official website: www.xinfrared.com; or search “Infiray Outdoor” in App store to download App; or scan the following QR code to download. ⚫...

  • Page 32: Maintenance

    20. Technical Inspection We suggest inspect the device every time before using it. ⚫ Appearance: no crack on the shell; ⚫ Status of object lens and eye piece (No crack, oil stain, dirt or other stains); ⚫ Status of rechargeable battery (charged before using) and electrical contact (No salt or oxidation).
  • Page 33 Fault Probable Cause Solution Can’t switch on the scope out of battery charge the battery USB cable broken change USB cable Can’t charge the scope with external power supply out of external power supply check external power supply if needed battery Image clear,...

This manual is also suitable for:

Tl35
