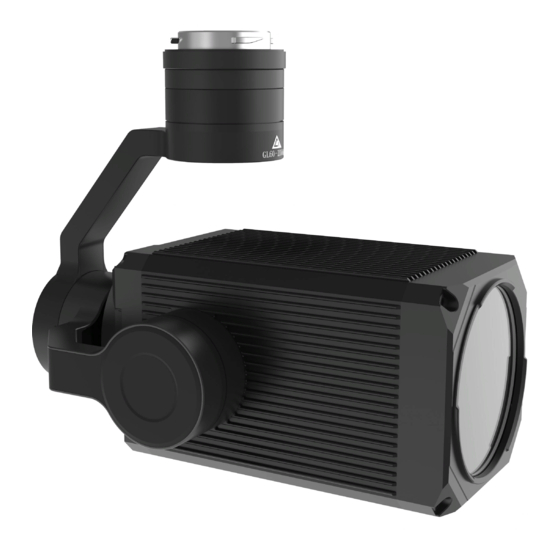

dji GL60-ZOOM User Manual

Gimbal spotlight
Hide thumbs

Advertisement

Quick Links

Download this manual

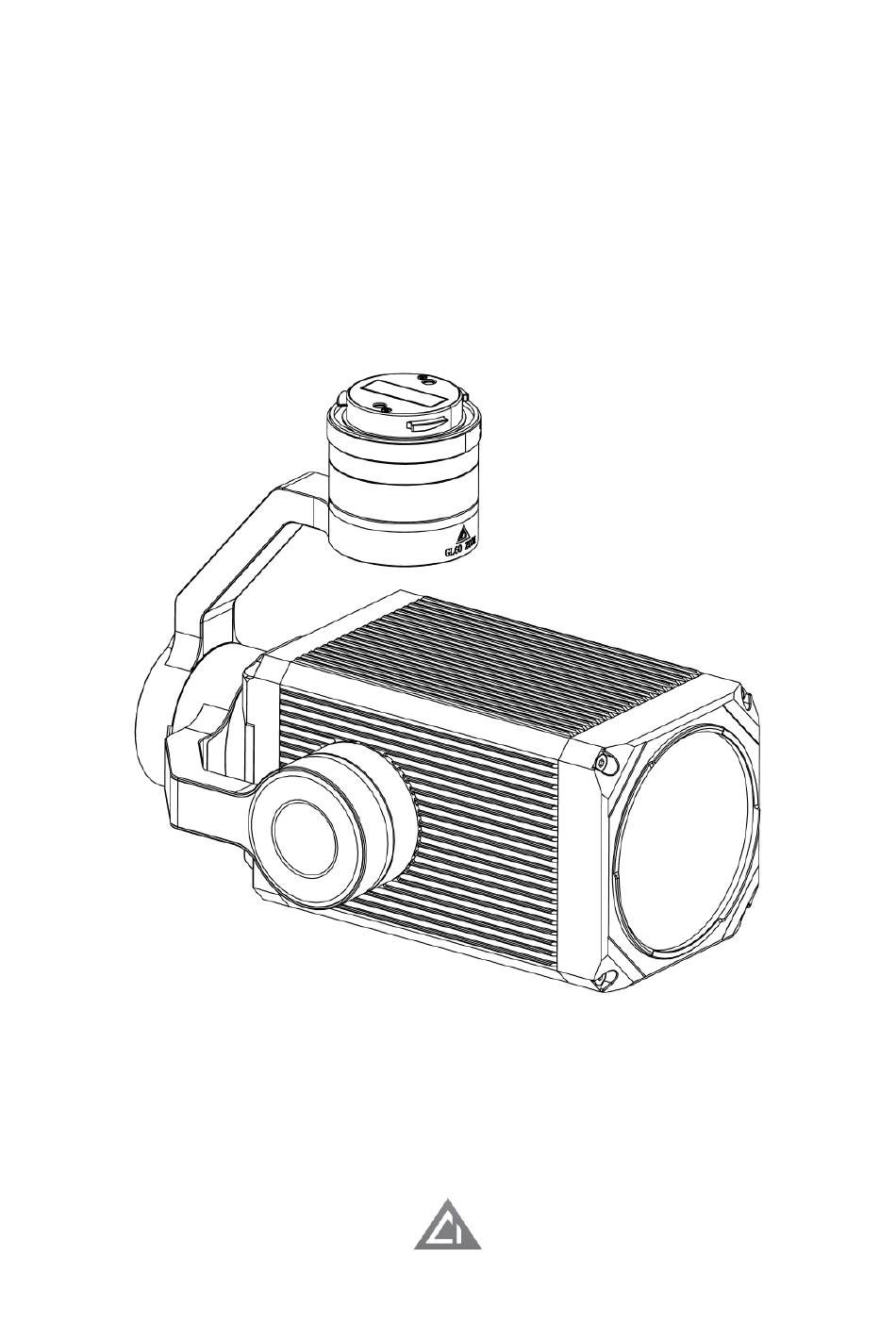

GL60-ZOOM Gimbal Spotlight
User Manual V1.0
2021.01.20

Advertisement

loading
Need help?

Need help?

Do you have a question about the GL60-ZOOM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for dji GL60-ZOOM

Summary of Contents for dji GL60-ZOOM

  • Page 1 GL60-ZOOM Gimbal Spotlight User Manual V1.0 2021.01.20...

  • Page 2: Table Of Contents

    Contents Ⅰ. Introduction of Gimbal Spotlight Ⅱ. Disclaimer and warning Ⅲ. The introduction of GL60 ZOOM Ⅳ. How to use the DJI Pilot Ⅴ. How to use the CZZN Ⅵ. To upgrade the firmware ⅰ. Online firmware upgrade ⅱ. TF card firmware upgrade...

  • Page 3: Ⅰ. Introduction Of Gimbal Spotlight

    It uses the DJI Skyport V2 universal adapter ring, no extra power, plug and play, perfect for DJI M300 RTK and M210 V2 UAVs. Ⅱ. Disclaimer and warning Thank you for purchasing our products. The content mentioned in this article is related to your safety, legal right and responsibilities.

  • Page 4: Ⅲ. The Introduction Of Gl60 Zoom

    NOTE: 1. The installation method of GL60 ZOOM is the same as that of DJI the PTZ camera. Please confirm whether the installation is correct before taking off. 2. When GL60 ZOOM works before the UAV takes off, its power will be limited below 50%;...
  • Page 5 It has an advanced automatic temperature control system. The attenuation of light after 1000 hours is less than 5%. ① ⑤ ④ ③ ② 1、Dust Cover 2、DJI SKYPORT V2.0 adapter ring 3、 Memory card slot 4、Triaxial stabilized Gimbal 5、Light export...
  • Page 6 Description of parameters Model GL60 ZOOM Electrical DJI SkyPort V2.0 Weight /g interface Size /mm L166*W110*H137 Power /W LED Power Luminous Flux 4000±3% FOV/° 7.5~33 7.2° 125lx Central illumination/Lux 100m 7.2° 28lx Pitch -110°~+30° Angle Controllable Horizontal Angle ±135° Angle Pitch -110.3°~+40°...

  • Page 7: Ⅳ. How To Use The Dji Pilot

    Ⅳ. How to use the DJI Pilot Click DJI Pilot to enter the main interface 2. Enter the main interface and the word GL60 ZOOM is displayed in the lower left corner, indicating that the LOAD identification of GL60 ZOOM is successful. You can proceed to the next step and click manual flight.
  • Page 8 GimbalⅠand GimbalⅡ, achieve the result of two Gimbals synchronization. 4. Click the menu bar and click the third-party load option to enter the GL60 ZOOM operation interface.
  • Page 9 Click the button to display real-time data, and a status display box will pop up in the upper left corner of the main interface to observe real-time temperature, power and other parameter states of GL60 ZOOM. 6. Click the switch button to control the on-off state of the light;...
  • Page 10 7. When H20 and GL60 ZOOM are used simultaneously, the Pitch adjustment button Roll adjustment button and Yaw adjustment button can be used to keep the spot in the center of the screen. Click the save fine adjustment button after a single fine adjustment. Each time the maximum fine adjustment range is ±5°.

  • Page 11: Ⅴ. How To Use The Czzn

    Ⅴ. How to use the CZZN 1. Click CZZN to enter the software interface. 2. Enter the main interface, and the words GL60 ZOOM are displayed at the bottom of the interface, indicating...
  • Page 12 that the load identification of GL60 ZOOM has been successful. You can proceed to the next step and click to enter the device. 3. Enter the operation interface, click the setting button in the upper right corner, and the menu bar pops up.
  • Page 13 4. Click the "General Settings" button in the menu bar and click the "Gimbal Light" option to open the suspend button of the GL60 zoom. (Tips: Open the suspend button is more convenient for users to use.) 5. Click "Yes" to jump to DJI Pilot software.
  • Page 14 6. Meaning of a symbol “ ”—— Turn on the light “ ”——Lights flashing “ ” 、 “ ” 、 “ ” 、 “ ” ——Fine-tuning Gimbal “ ”——Save fine tuning data “ ” — — Adjust the focal length “...
  • Page 15 7. When connecting GL60 ZOOM for the first time, steps 2~5 are required. In the future, the prompt box for DJI Pilot will pop up directly on the main interface of CZZN.

  • Page 16: Ⅵ. To Upgrade The Firmware

    Ⅵ. To upgrade the firmware ⅰ. Online firmware upgrade 1. Open the CZZN software, click the menu button in the upper right, and click the firmware. 2. Find the latest version of firmware and click Upgrade.
  • Page 17 3. Click Update Now. 4. Wait for the firmware upgrade to succeed.

  • Page 18: Ⅱ. Tf Card Firmware Upgrade

    5. After the firmware upgrade is successful, GL60 ZOOM will enter the recalibrated state. You need to wait a few seconds to complete the upgrade operation. (Reminder: if GL60 ZOOM does not respond, you need to restart the aircraft and wait for the successful calibration.) ⅱ.
  • Page 19 ChengZhi Support 成至 技术支持 成至 技術支持 www.gzcczn.com If you have any questions or suggestions on the manual, please contact us through the following email: dev@gzczzn.com Printed in China...
