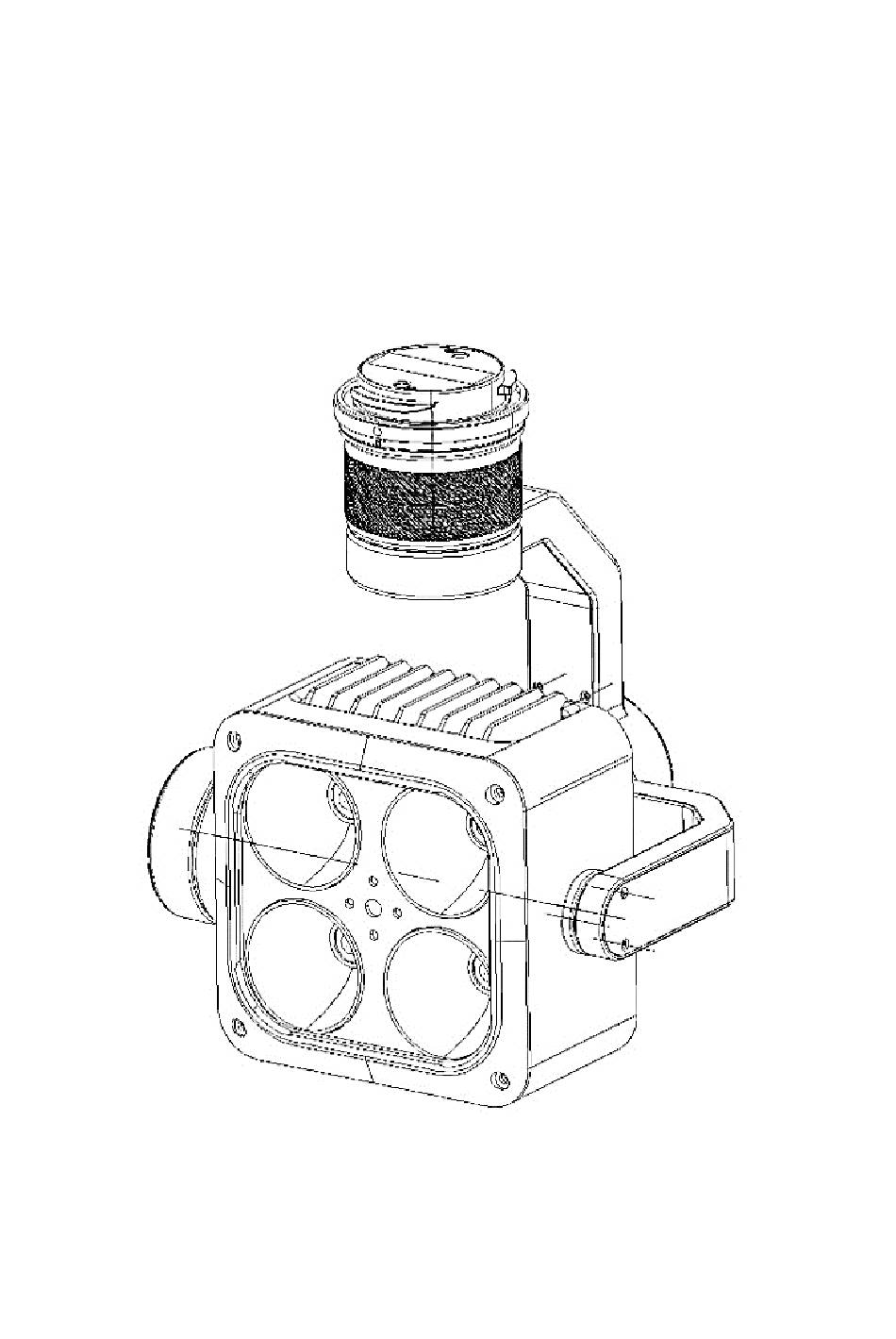

- Page 1 ALADDIN SPOTLIGHT The user manual V1.1 20190328...
-
Page 2: Product Overview
Product Overview Introduction ALADDIN is a uav searchlight designed based on DJI PAYLOAD SDK. It integrates a triaxial stabilized cradle head and a laser pointer, which can be directly mounted to the cradle head interface. It supports the DJI industry uav dual cradle head linkage, and can provide multi-angle illumination and laser indication for the target object.Can be widely used in... - Page 3 Remote Control Operation Dial the wheel around Left wheel control pitch right wheel control translation Shortcut keys ⚫ One-click back to center (professional version remote control should be set by yourself) ⚫ More shortcuts open with the DJI Pilot update...
- Page 4 DJI PILOT Control Connect to DJI Pilot APP 1. Open the aircraft and remote control, ground mobile equipment; 2. When the connection is successful, DJI PILOT displays the "ALADDIN Spotlight" load name. The Function Menu...
- Page 5 Load setting page: ⚫ Laser indicator switch (Laser control) ⚫ Laser indicator mode ⚫ Searchlight switch :(Led control) ⚫ Searchlight mode :(Led mode) ⚫ Gimbal return head ⚫ Gimbal speed ⚫ Gimbal set offset ⚫ Panel information display ⚫ Temp protect Functional Specifications Gimbal One key back to the cradle head: the cradle head rotates to the forward position...
- Page 6 ⚫ It is normal that the cradle head will have a slight swing or the level is not enough. ⚫ Dji pilot occasionally appears abnormal display and other phenomena, can be solved by restarting the software; ⚫ High frequency abnormal sound and vibration or vibration occur in the cradle head shaft.
- Page 7 Parameters Population parameter The product name Aladdin spotlight Electrical interface Average SKYPORT size 100 * 110 * 150 mm weight 470 g Rated power 48 w LED lights, The LED type CREE XHP50.2 / copper substrate System voltage power 40 w Luminous flux 10200 lm Vacuum...
