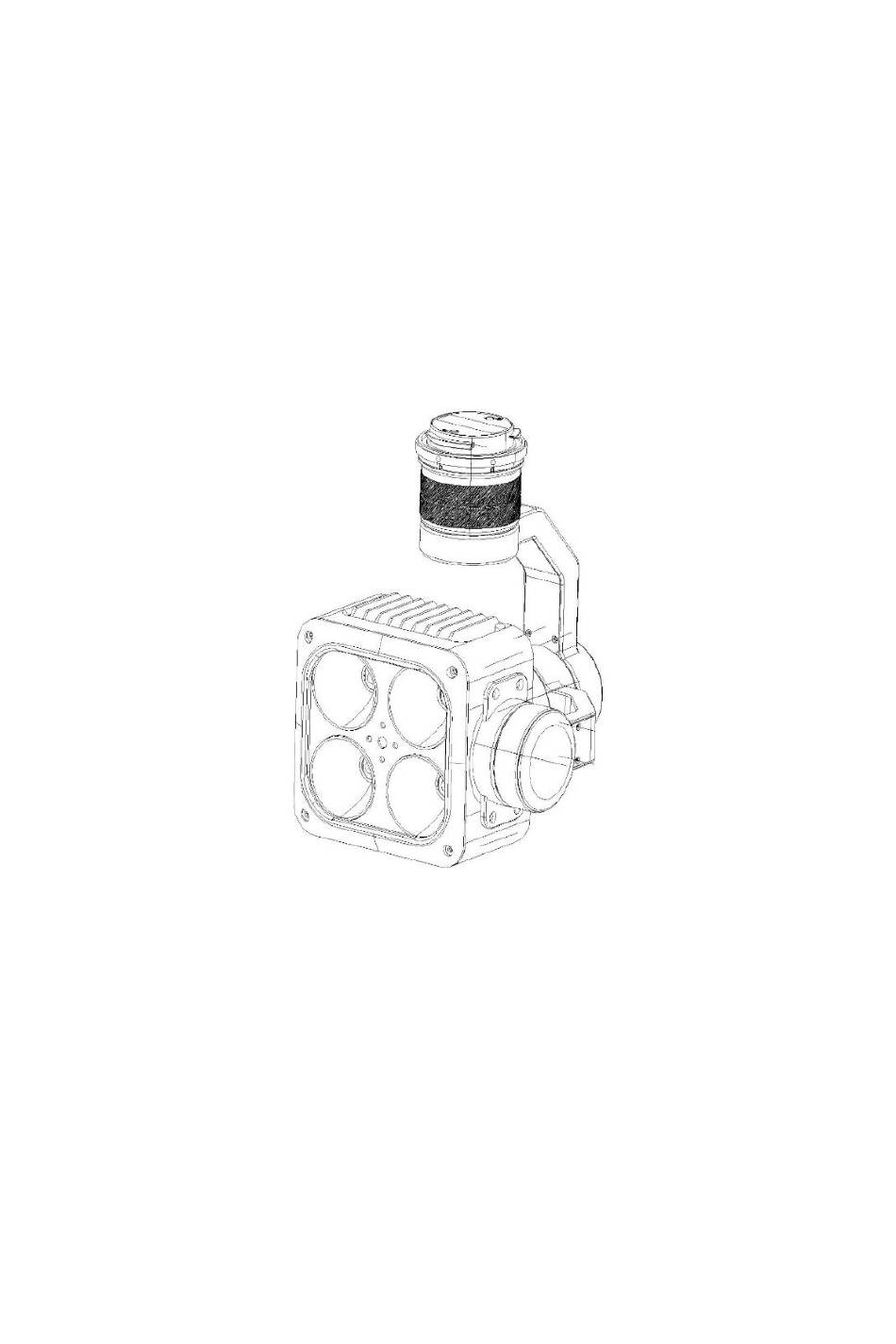

WINGSLAND Z15 Gimbal
Spotlight
USER MANUAL
V1.2
2019.07
This content is subject to change.
Copyright © 2019 BOOY All Rights Reserved
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WINGSLAND Z15 and is the answer not in the manual?

Questions and answers

Summary of Contents for dji WINGSLAND Z15

  • Page 1 WINGSLAND Z15 Gimbal Spotlight USER MANUAL V1.2 2019.07 This content is subject to change. Copyright © 2019 BOOY All Rights Reserved...
  • Page 2: Legends

    DJI Pilot supprots Andriod or later. *For increased safety, the flight is restricted to heigth of 30m and distance of 50m when not connected or logged into the app during flight, including DJI Pilot and apps compatible with DJI aircraft.
  • Page 3: Before Flight

    It is normal for the gimbal to swing slightly or not level enough. It will return to normal after power on or posture synchronization; DJI pilot will occasionally display abnormal phenomenon, restart the software can be solved; 10. If abnormal high frequency sound, vibration or shock occurs to the hold er shaft, and over heat,...
  • Page 4: Table Of Contents

    Contents Legends ......................... 2 Down the DJI PILOT App ....................2 Before Flight ........................3 Contents ......................Product Profile ..................... Introduction ........................5 Spotlight Diagram ......................5 Mounting ......................Before mounting ......................6 Mounting the Gimbal and Spotlight ................... 6 Controlling the Gimbal ..................
  • Page 5: Product Profile

    Product Profile Introduction WINGSLAND Z15 is a drone spotlight based on the DJI PAYLOAD SDK. It integrates a three -axis stabilized gimbal and can be directly mounted to the DJI payload interface. It support simultaneous movement of a PSDK payload and a DJI gimbal camera when they are used together. It can widely used in night lighting and indications such as fire, military and emergency rescue departments;...
  • Page 6: Mounting

    Mounting Before mounting Supported DJI aircraft : M200 V2 series ; M200 series(update latest firmware to suporot the Simultaneous movement ) ; Make sure that all the devices’ firmware is up-to-date; Make sure the preflight checklists are normal; Mounting the Gimbal and Spotlight Press the Gimbal Datachment button to remove the cover;...
  • Page 7: Dji Pilot App

    Turn on the aircraft and remote controller. Connect your mobile device to the remote controller via USB cable; When the connection is established, your mobile device will display “ 阿拉丁 Wingsland Z15 Spotlight” payload’s name. Function list After entering the DJI Pilot home page, click the icon...
  • Page 8: Spotlight's Setting

    (in the upper right corner of the screen) to enter the spotlight control page Simultaneous movment notes Simultaneous movement with DJI gimbal camera; Supported DJI gimbal camera: X5S, Z30, X7 and XT2; don’t support X4S; Mount the spotlight on gimbalⅡ, when use M210 or M210RTK;...
  • Page 9: Professional Remote Controller Custom Key Settings

    Professional remote contro ller custom key Settings After entering the Pilot home page, click the icon in the upper right corner of the screen to enter the customized button setting of the professional remote control.
  • Page 10: Appendix

    Appendix Specification GENERAL Dimensions 100×110×150 mm Weight 500g Total Power LED part number CREE XHP50.2 / Copper Plate Substrate System Voltage Power Total Brightness 10200lm Reflective Cup Silver PLATE 15° Working Distance 150m Irradiation Area 1863m²@flight altitude at 120m; 323m²@flight altitude at 50m Illuminance 2.5LUX@ flight altitude at 120m;...
