Constant Current

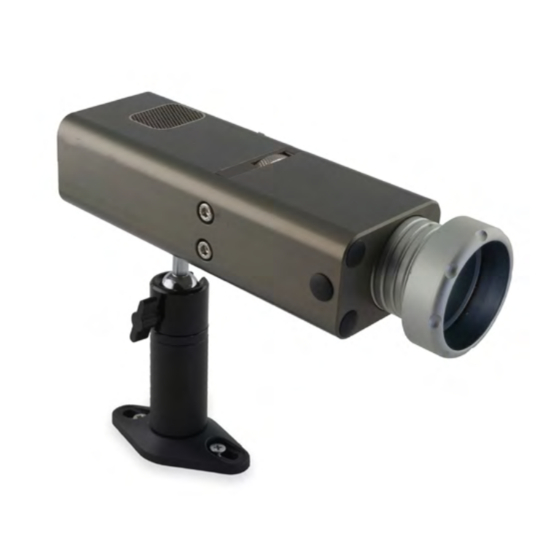

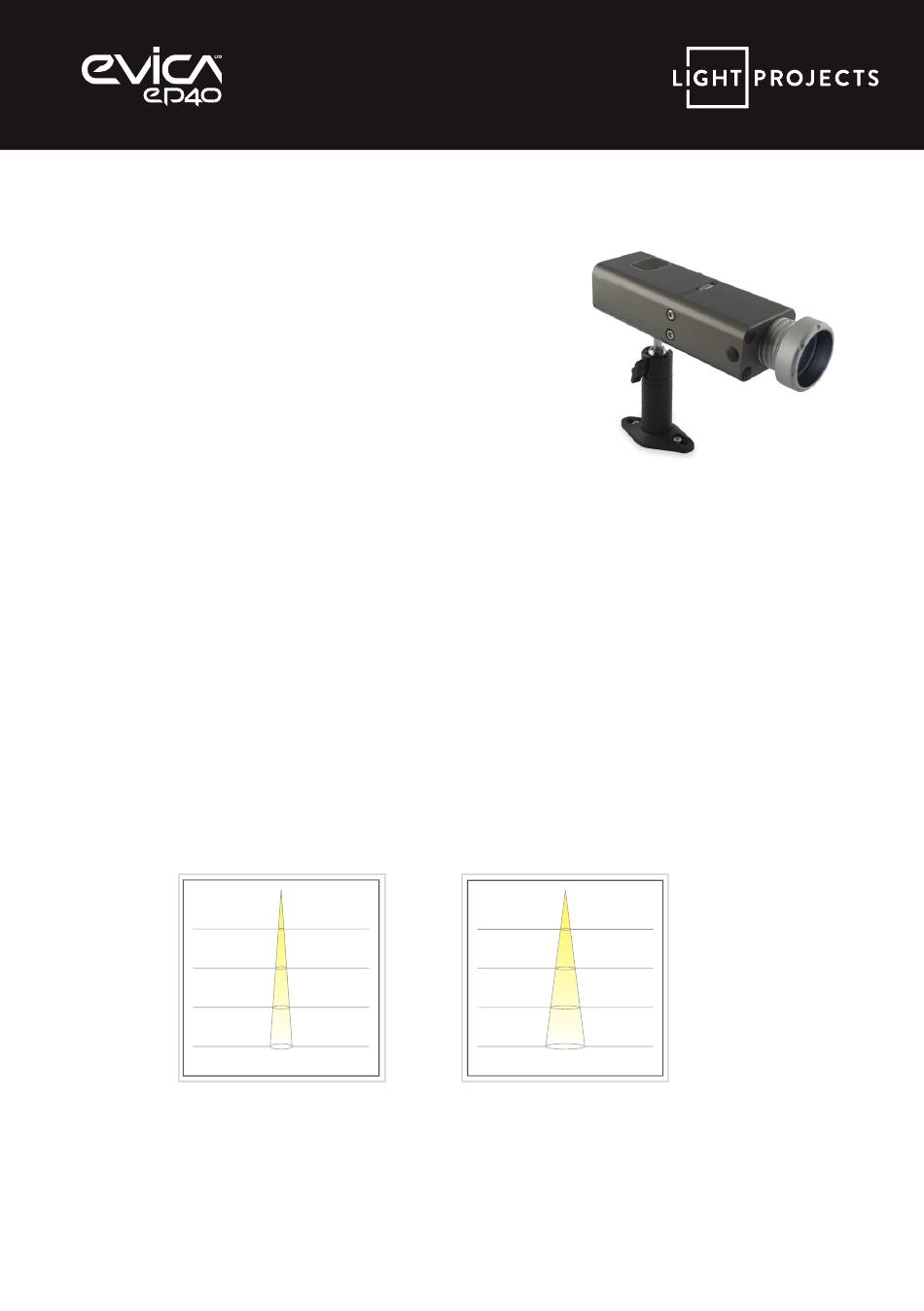

EVICA EP40 CONTANT CURRENT LED EFFECTS PROJECTOR
Contents
Safety instructions and precautions
Installation
Safety instructions and precautions
• Never look directly into the beam or shine in anyone's eyes.
• Do not block the ventilation inlet or outlets on the unit.
• Ensure that there is sufficient ventilation around the unit, recommended minimum 1m².
• This product is designed for indoor use only and should not come into contact with water or excessive
dust.
• No user serviceable parts inside.
• Use only approved accessories.
• Do not use this device in the presence of flammable or oxygen rich atmospheres.
• To prevent injury, this apparatus must be securely attached to the ceiling/wall.
Installation
Prior to mounting the unit please refer to the distance/spot size charts below to achieve the required
image size.
Narrow Lens
1m
2m
3m
4m
Distance
Fix the projector to the bracket by inserting the screw thread on the top of the bracket into the projector
and screwing in place until tight.
Light Projects 23 Jacob St London SE1 2BG Tel +44 (0)20 7231 8282
Website www.lightprojects.co.uk Email info@lightprojects.co.uk
0.30m
0.60m
0.90m
1.20m
17°
Diameter
Wide Angle Lens
1m
0.44m
2m
0.89m
3m
1.33m
1.77m
4m
25°
Distance
Diameter
pg 1
Advertisement
Table of Contents
Related Manuals for Light Projects Evica ep40
Summary of Contents for Light Projects Evica ep40
- Page 1 Fix the projector to the bracket by inserting the screw thread on the top of the bracket into the projector and screwing in place until tight. Light Projects 23 Jacob St London SE1 2BG Tel +44 (0)20 7231 8282 pg 1...
- Page 2 6. To reposition the projector, loosen the butterfly screw, position as desired and tighten the butterfly screw to fix into position. Light Projects 23 Jacob St London SE1 2BG Tel +44 (0)20 7231 8282 pg 2 Website www.lightprojects.co.uk Email info@lightprojects.co.uk...
- Page 3 (1) and (2) first and then (3) and (4). Figure 4 Figure 6 shows where the blades will effect the framing on the object. Figure 5 Figure 6 Light Projects 23 Jacob St London SE1 2BG Tel +44 (0)20 7231 8282 pg 3 Website www.lightprojects.co.uk Email info@lightprojects.co.uk...
- Page 4 The information contained within this document is subject to change without notice. Light Projects Ltd makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.
- Page 5 If 0-10V signal is diconnected, the LED with come on at full output. With dimmer connected, adjust dimmer to achieve desired intensity. Light Projects 23 Jacob St London SE1 2BG Tel +44 (0)20 7231 8282 pg 5 Website www.lightprojects.co.uk Email info@lightprojects.co.uk...
