Application and Mode of Operation ...….… 2 Safety Instructions …...…..…..……….. 2 - 3 Operation Elements and Function …..….. 3 Placing into Operation ........ 4 Emptying of the Dust Collection Container ......5 Cleaning of the Filter Cartridge …....6 Replacement of Carbon Brushes …... 7 Fastening of the Filter Unit …....…..

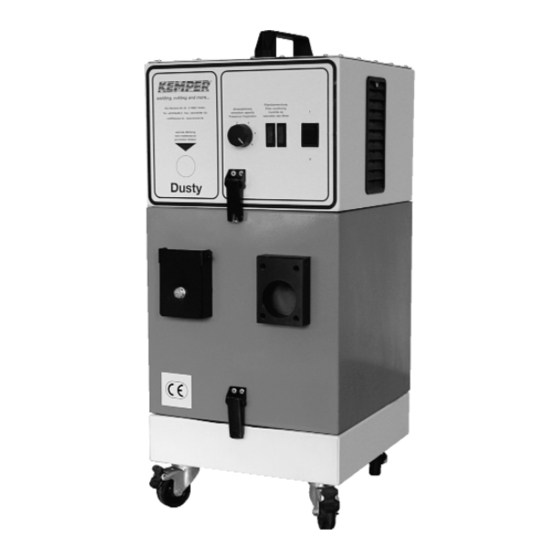

1. Application and Mode of Operation The KEMPER Dusty is designed for the extraction of hazardous substances, which are produced by several electric welding works. Basically the machine can be used for all operations where particles of hazardous substances, i.e. fumes and dusts will be discharged. No sparks (e.g. during grinding) may be absorbed into the filter device.
4. Placing into Operation • Insert the stub of the suction hose (optional) to the connection port at the front of the filter unit. You can insert up to two suction hoses to the unit. Please keep the cover of the second connection port closed if you do not use it.
5. Emptying of the Dust Collection Container You have to check the liquid level of the dust collection container regularly. The container has to be emptied if it is brimmed. The timeperiod between two emptying processes are depending on the type and the duration of the welding work. We recommend to check the liquid level inside the container before resp.
6. Cleaning of the Filter Cartridge The particles in the extracted air flow attach to the surface of the filter cartridge. The extraction capacity lowers by and by and the monitor light for filter saturation will be activated after falling under a certain extraction capacity. You have to clean the filters in this case. •...
7. Replacement of Carbon Brushes The carbon brushes of a suction turbine in a motor with collector cel can wear. The lifetime of the carbon brushes is approx. 600 working hours. We recommend to replace the carbon brushes regularly to ensure a proper operation of the unit. To replace the carbon brushes: •...
9. List of Spare Parts Item Description Part No. PTFE filter cartridge 109 0244 Set of carbon brushes 360 1194 On/Off switch 360 0580 Monitor switch for filter saturation, red / 230 V 360 1850 Monitor switch for filter saturation, red / 115 V 360 0018 Speed frequency control / 230 V 63 100 000 01...
European Community Declaration of Conformity according to European Community machine standard 89/392/EWG, appendix II A The manufacturer: KEMPER GmbH Von-Siemens-Str. 20 D-48691 Vreden confirms that the construction of the following machine (or system or part of machine, etc) KEMPER Dusty...
Welding smoke is - Unappropriate sealing - Refasten the mounting screws escaping through between filter cartridge of the filter cartridge. the outlet opening. and filter housing. - Replace the filter cartridge. - Holes in the filter cartridge. - Contact KEMPER service department.
