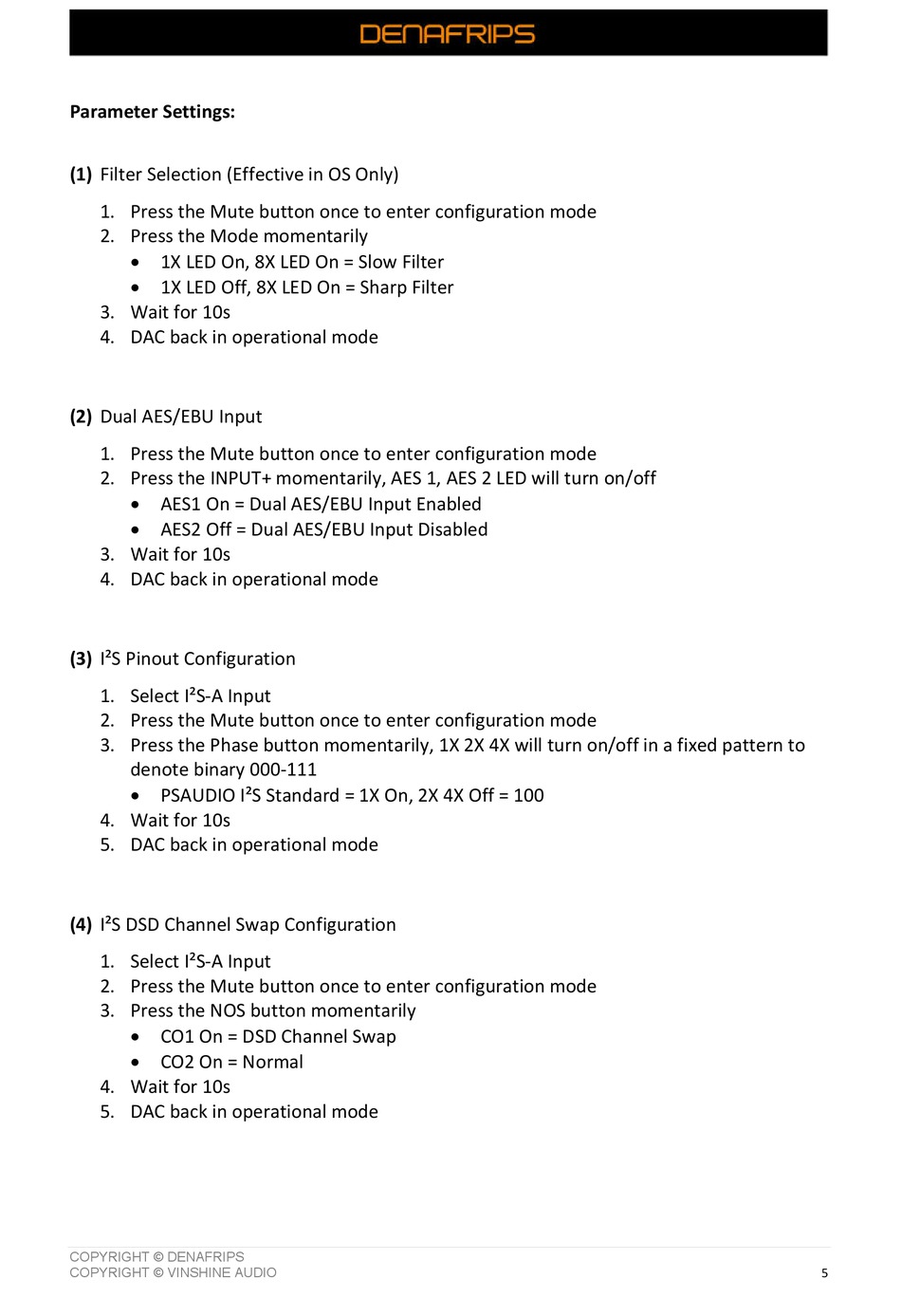

Parameter Settings:

(1) Filter Selection (Effective in OS Only)
1. Press the Mute button once to enter configuration mode
2. Press the Mode momentarily
 1X LED On, 8X LED On = Slow Filter
 1X LED Off, 8X LED On = Sharp Filter
3. Wait for 10s
4. DAC back in operational mode
(2) Dual AES/EBU Input
1. Press the Mute button once to enter configuration mode
2. Press the INPUT+ momentarily, AES 1, AES 2 LED will turn on/off
 AES1 On = Dual AES/EBU Input Enabled
 AES2 Off = Dual AES/EBU Input Disabled
3. Wait for 10s
4. DAC back in operational mode
(3) I²S Pinout Configuration
1. Select I²S-A Input
2. Press the Mute button once to enter configuration mode
3. Press the Phase button momentarily, 1X 2X 4X will turn on/off in a fixed pattern to
denote binary 000-111
 PSAUDIO I²S Standard = 1X On, 2X 4X Off = 100
4. Wait for 10s
5. DAC back in operational mode
(4) I²S DSD Channel Swap Configuration
1. Select I²S-A Input
2. Press the Mute button once to enter configuration mode
3. Press the NOS button momentarily
 CO1 On = DSD Channel Swap
 CO2 On = Normal
4. Wait for 10s
5. DAC back in operational mode
