Summary of Contents for V-Moda M-200 ANC

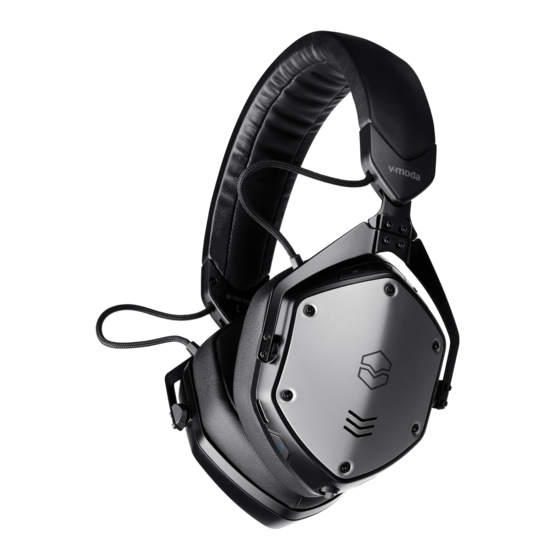

- Page 1 M-200 ANC ACTIVE NOISE CANCELLING HEADPHONES USER MANUAL...
- Page 2 Before using this product, carefully read the safety and warranty information in the booklets provided. Please then keep the documents where they can be available for immediate reference. To acquire a full printable version of the manual, please visit www.v-moda.com/manuals...
- Page 3 We sincerely hope you enjoy our headphones, the perfect blend of timeless style, modern ergonomics, and state-of-the-art technology. M-200 ANC is our first headphone built with hybrid active noise cancellation which puts you in complete control of your sound: take your music above the noise with vibrant V-MODA studio-quality sound and cutting-edge audio personalization.
- Page 4 With 20 hours of ANC-activated wireless listening on a single charge and customizable power off modes, get the most out of your day while M-200 ANC powers you through it. While soft to the touch with a 100% premium PU leather exterior, M-200 ANC is extremely durable thanks to a metal-build core and an adjustable headband.
-
Page 5: Package Contents
PACKAGE CONTENTS M-200 ANC Over-Ear Headphones Exoskeleton Carry Case Audio Only Cable USB-C Charging Cable Carabiner Clip Flight Adapter... -
Page 6: Using Your Headphones
USING YOUR HEADPHONES Very important: Place earcups on Push hair back, extend the earcups corresponding ear. “L” on left ear, from headband until they fit “R” on right ear comfortably on ear, creating a snug fit to ensure highest sound quality and comfort... - Page 7 FOLDING AND STORING YOUR HEADPHONES Hold the two ear cups lightly together, cushion to cushion Place the heel of other hand on top of headband Push gently together to activate the CliqFold hinge Place the headphones in the Exoskeleton case, with the headband placed closest to the case’s hinge Insert any cables you wish in the extra space below Zip the Exoskeleton case to close...
- Page 9 Power Button ANC Button Volume Down Volume Up Multi-Function Button Microphone Voice In Sensor 3.5mm Mini Stereo Jack Input...
-
Page 10: Getting Started
GETTING STARTED Ensure M-200 ANC is charged and within 1m of the device you want to pair it with Press and hold the Power button for 3 seconds to turn the headphones on Once the light blue LED starts to blink twice per second, release the button. -
Page 11: Pairing A Second Device
Power Off sound PAIRING A SECOND DEVICE Ensure M-200 ANC is switched off, charged and within 1m of the device Activate Bluetooth in the settings of your new device Press and hold the Power button for 6 seconds until you hear the pairing sound... - Page 12 MULTIPAIRING Note: M-200 ANC’s memory can hold up to 2 devices. You will only need to re-pair a device if M-200 ANC is reset or if you pair a 3 device. Pairing a 3 device will overwrite the first device paired.
-
Page 13: Multifunction Button
MULTIFUNCTION BUTTON Answer a call Press once Refuse incoming call Press and hold for 1-2 seconds then release Play and pause audio Press once Skip to next song Press twice Go to previous track Press three times Summon voice assistant Press and hold for three seconds VOLUME BUTTONS Volume Up... - Page 14 ACTIVE NOISE CANCELLING (ANC) CONTROLS Press the ANC button to turn noise cancellation on and off Download and open the V-MODA app to adjust your level of active noise cancellation CHARGING Connect the USB-C charging cable to charge headphones. To prevent malfunction or equipment failure, turn the volume down and turn the headphone off before connecting to a power source.
-
Page 15: Wired Mode
VOICE IN Voice In Cover the sensor on the lower part of the left earcup to momentarily lower the audio volume. WIRED MODE Plug in audio cable to activate wired mode. RESET PAIRED DEVICE HISTORY Press and hold Volume Up and Volume Down for 5 seconds until you hear the reset sound The Power button LED will blink light blue to confirm the reset... -
Page 16: Troubleshooting
TROUBLESHOOTING If you are experiencing trouble with your headphones, please refer to the troubleshooting guidelines below. If the problem persists, please contact the V-MODA Six Star Service at www.v-moda.com/support +1 888.866.3252 CANNOT PAIR WITH A BLUETOOTH DEVICE CAUSE SUGGESTIONS The headphones are not turned on... - Page 17 3 seconds to turn headphones on ANC is not turned on Press ANC button to turn ANC on ANC level is turned down in the Go to the V-MODA app and set the level V-MODA app of the ANC in the ANC settings menu...
- Page 18 Check that the audio device or the audio file listening to has problems you are listening to do not have any issues EQ settings in the V-MODA app are not Go the V-MODA app and set your EQ set properly...
- Page 19 CAUSE SUGGESTIONS Other Reboot the source / device Turn headphones off and on again Reset paired devices history of the headphones Try streaming from another device or select another track Move the device closer to the headphones Move away from any possible interference (wireless routers, other Bluetooth devices, microwaves etc.) Close any application on your device that...
- Page 20 AUDIO AND VIDEO DO NOT MATCH CAUSE SUGGESTIONS Technological limitation on the device Try streaming from another device or or the selected file select another track / file NO AUDIO (IN WIRED MODE) CAUSE SUGGESTIONS The audio cable is not securely connected Make sure the audio device and the headphone jack are free of debris and that the cable is securely connected...
- Page 21 UNEVEN SOUND (IN WIRED MODE) CAUSE SUGGESTIONS The audio cable is not securely connected Make sure the audio device and the headphone jack are free of debris and that the cable is securely connected HEADPHONES WILL NOT CHARGE CAUSE SUGGESTIONS The charging cable is not functioning Make sure the charging cable is properly...
- Page 22 CAUSE SUGGESTIONS The USB plugs are not firmly connected Make sure both USB plugs are firmly into their sockets connected into their sockets The computer you are using to charge is Make sure your computer's USB port is not turned on activated and turn on your computer HEADPHONES ARE NOT RESPONDING CAUSE...
- Page 23 RAPIDLY FLASHING RED LIGHT CAUSE SUGGESTIONS A charging error occurred Contact the retailer or V-MODA customer service...
- Page 24 ©2021 V-MODA. All rights reserved. V, V-MODA and the V-MODA logo are registered trademarks of V-MODA, LLC. Patents: roland.cm/patents The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. ® and any use of such marks by V-MODA is under license.
- Page 25 ISSUES WITH THE PRODUCT For any issues relating to your V-MODA product, please contact our Six Star Service directly. VISIT www.v-moda.com/support EMAIL support@v-moda.com CALL +1 888.866.3252...
- Page 26 REGISTER NOW AT www.v-moda.com/register...
