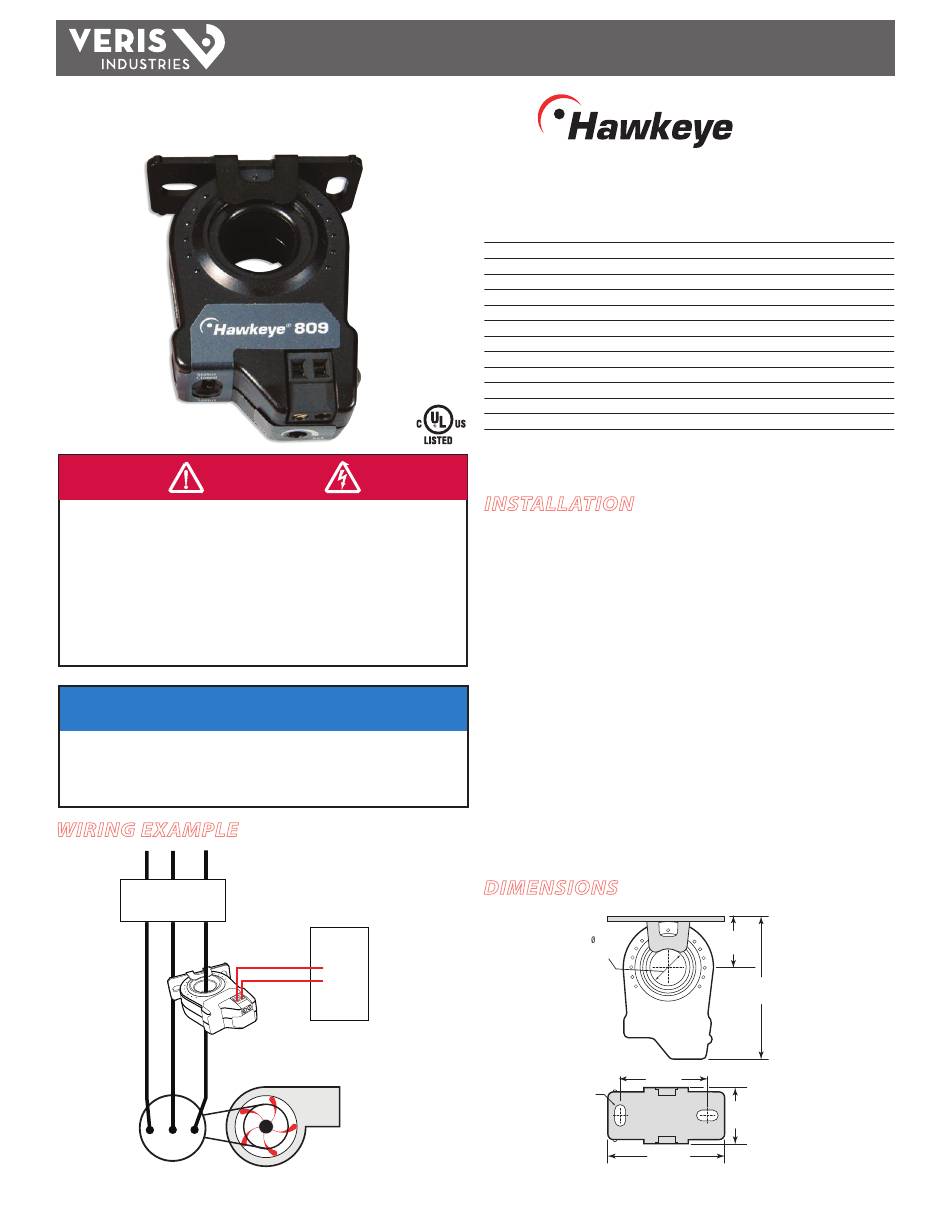

Veris Industries Hawkeye 809 Installation Manual

HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
• Follow safe electrical work practices. See NFPA 70E in the USA, or applicable local codes.
• This equipment must only be installed and serviced by qualified electrical personnel.
• Read, understand and follow the instructions before installing this product.
• Turn off all power supplying equipment before working on or inside the equipment.
• Use a properly rated voltage sensing device to confirm power is off.
DO NOT DEPEND ON THIS PRODUCT FOR VOLTAGE INDICATION
• Only install this product on insulated conductors.
Failure to follow these instructions will result in death or serious injury.
• This product is not intended for life or safety applications.
• Do not install this product in hazardous or classified locations.
• The installer is responsible for conformance to all applicable codes.
• Mount this product inside a suitable fire and electrical enclosure.

WIRING EXAMPLE

CONTACTOR
Motor
Find Quality Products Online at:
CURRENT MONITORING
TM
H809
DANGER
NOTICE
DDC CONTROLLER
-
DI
+
Fan or Pump
GlobalTestSupply
www.
INSTALLATION GUIDE

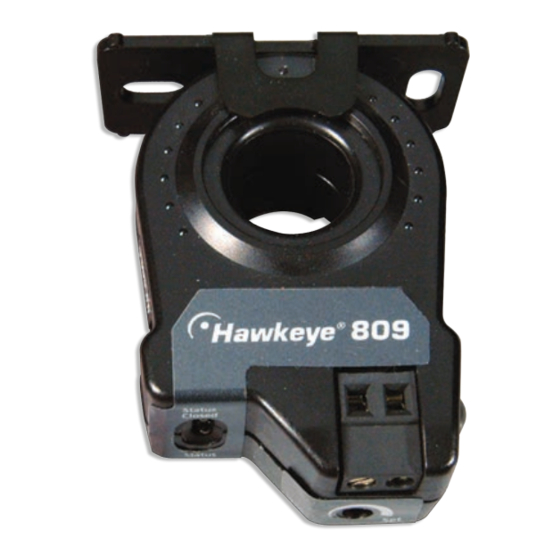

Solid-Core Current Switch, Adjustable Trip Point
Installer's Specifications
Sensor Power
Amperage Range
Insulation Class
Frequency Range
Temperature Range
Humidity Range
Hysteresis
Status Output
Off-State Resistance
On-State Resistance
Terminal Block Max. Wire Size
Terminal Block Torque (nom.)
Agency Approvals
The product design provides for basic insulation only.
* When operating at 50 Hz, low threshold may be 0.9 A.

INSTALLATION

Disconnect and lock out power to the enclosure containing the
conductor to be monitored.
1. Locate a mounting surface for the removable mounting bracket that will allow
the monitored conductor to pass through the center window when it is installed
and that will keep the device at least 1/2" from any uninsulated conductors.
Determine cable routing for the controller connection, allowing wiring to reach
the mounting location.
2. Drill holes to mount the bracket to the chosen surface using the included screws.
3. Wire the output connections and relay between the sensor and the controller
(solid-state contact).
4. Route the conductor through the sensor's center window and slip the assembly
into the mounting bracket.
5. Secure enclosure and reconnect power.
6. Calibrate sensor with load running normally.

DIMENSIONS

Removable/Adjustable Mounting Bracket
0.7"
(18 mm)
1.7
(43 mm)
0.4" x 0.2"
Slot (x2)
2.3"
(58 mm)
.com
809
TM
Induced from the monitored conductor
0.75 to 50 A continuous*
600 VAC RMS (UL)
50/60 Hz
-15° to 60°C (5° to 140°F)
10-90% RH non-condensing
10% typical
N.O. 0.2 A@120 VAC, polarity sensitive
14 AWG
4 in-lbs (0.45 N-m)
UL508 E150462
0.9"
(23 mm)
2.8"
(71 mm)
1.1"
(27 mm)
sales@GlobalTestSupply.com
1 MΩ
20 Ω
