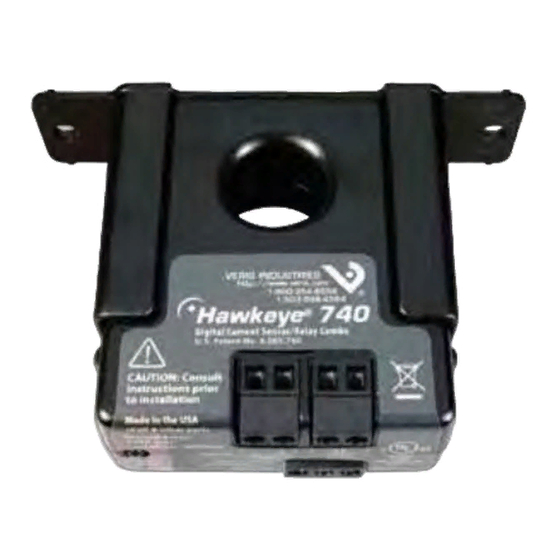

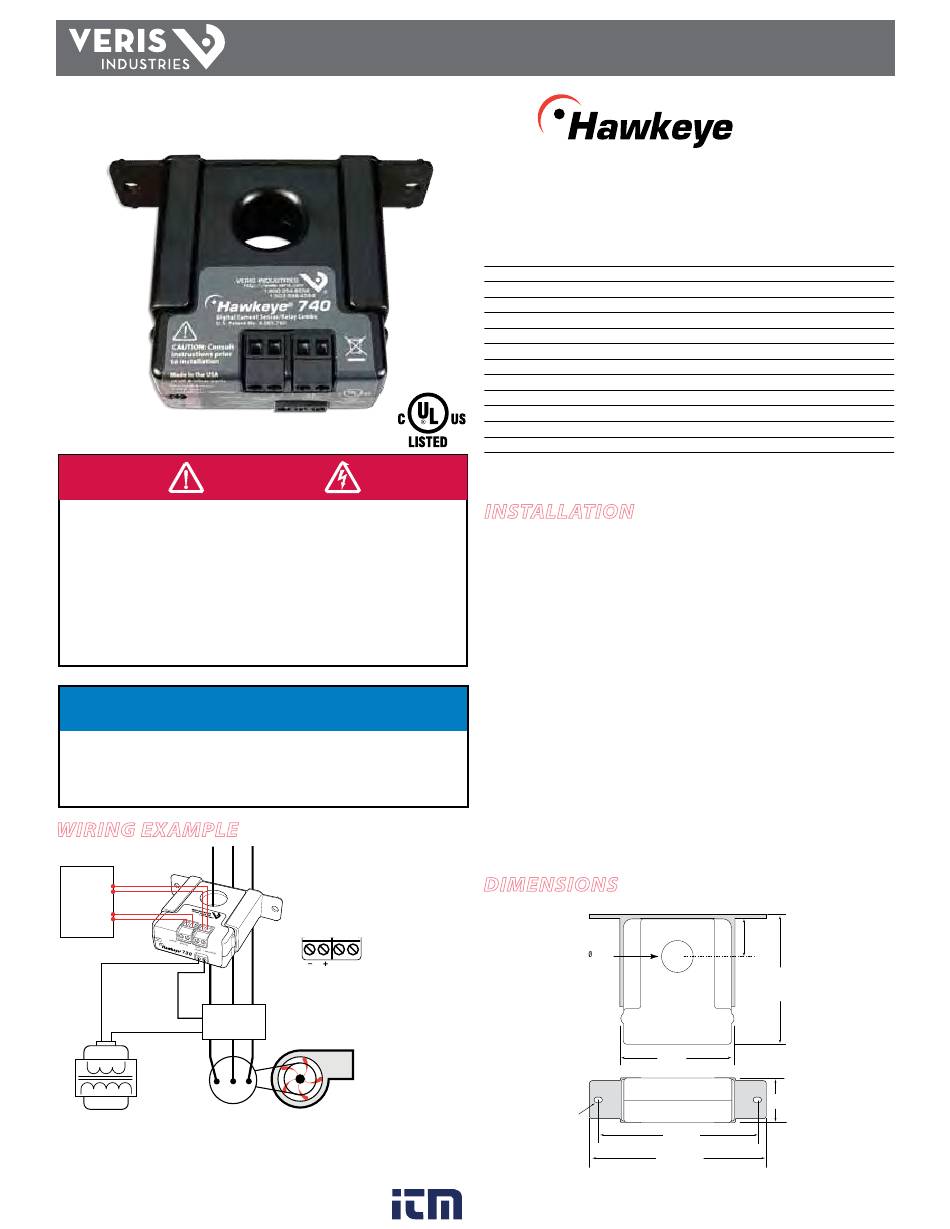

Veris Industries Hawkeye 740 Installation Manual

HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
• Follow safe electrical work practices. See NFPA 70E in the USA, or applicable local codes.
• This equipment must only be installed and serviced by qualified electrical personnel.
• Read, understand and follow the instructions before installing this product.
• Turn off all power supplying equipment before working on or inside the equipment.
• Use a properly rated voltage sensing device to confirm power is off.
DO NOT DEPEND ON THIS PRODUCT FOR VOLTAGE INDICATION
• Only install this product on insulated conductors.
Failure to follow these instructions will result in death or serious injury.
• This product is not intended for life or safety applications.
• Do not install this product in hazardous or classified locations.
• The installer is responsible for conformance to all applicable codes.
• Mount this product inside a suitable fire and electrical enclosure.

Wiring ExamplE

Digital Control
DI
(Status)
DO
(Relay
Coil)
Control
Power
1.800.561.8187
CURRENT MONITORING
TM
H740
DANGER
NOTICE
* Observe this polarity
RELAY COIL
when connecting the
relay coil to DC Voltage.
CONTACTOR
Fan or Pump
Motor
www.
INSTALLATION GUIDE
Installer's Specifications
Sensor Power
Amperage Range
Insulation Class
Frequency Range
Temperature Range
Humidity Range
Relay Coil
Relay Contact
Status Output
Off-State Resistance
Terminal Block Max. Wire Size
Terminal Block Torque (nom.)
Agency Approvals
The product design provides for basic insulation only.

installation

Disconnect and lock out power to the enclosure containing the
conductor to be monitored.
1. Locate a mounting surface for the removable mounting bracket that will allow
the monitored conductor to pass through the center window when it is installed
and that will keep the device at least 1/2" from any uninsulated conductors.
Determine cable routing for the controller connection, allowing wiring to reach
the mounting location.
2. Drill holes to mount the bracket to the chosen surface using the included screws.
3. Wire the output connections and relay between the sensor and the controller
(solid-state contact).
4. Wire sensor to control power.
5. Route the conductor through the sensor's center window and slip the assembly
into the mounting bracket.
6. Secure enclosure and reconnect power.

DimEnsions

Removable/Adjustable Mounting Bracket
0.7"
(19 mm)
0.2" x 0.15"
slot (2x)
information@itm.com
.com
740
TM
Induced from monitored conductor
0.5 to 200 A continuous
-15° to 60°C (5° to 140°F)
10-90% RH non-condensing
24 VAC/DC; 10 mA
8(3.5) A@250 VAC/DC, 30 VDC, 1/4 HP
N.O. 1.0 A@30 VAC/DC
0 (open switch represents >1 MΩ)
4 in-lbs (0.45 N-m)
UL508 E150462
0.9"
(23 mm)
3.0"
(75 mm)
2.8"
(68 mm)
1.1"
(27 mm)
3.8"
(95 mm)
4.2"
(106 mm)
600 VAC RMS
50/60 Hz
14 AWG
