Operating Manual
KE8100
KE8200
Optical light source
Version 1.3
© KURTH ELECTRONIC GmbH
All rights reserved, including translations.
All reprints and electronic copies, including excerpts, require prior written approval
of Kurth Electronic GmbH.
All of the brand names and trademarks cited herein are the property of their registered owners.
Kurth Electronic GmbH | Muehleweg 11 | D 72800 Eningen u.A. GERMANY |
Tel. +49(0)7121 9755 0 | Fax +49(0)7121 9755 56 |
info@kurthelectronic.de | www.kurthelectronic.de
Advertisement
Related Manuals for Kurth Electronic KE8100
Summary of Contents for Kurth Electronic KE8100
- Page 1 Kurth Electronic GmbH. All of the brand names and trademarks cited herein are the property of their registered owners. Kurth Electronic GmbH | Muehleweg 11 | D 72800 Eningen u.A. GERMANY | Tel. +49(0)7121 9755 0 | Fax +49(0)7121 9755 56 |...
- Page 2 The laser could injure your eyes, never look directly at the laser out- put or the connected optical fibre. Do not install fibres while the light source is active and make sure that your eyes are protected at all times. © Kurth Electronic GmbH, All Rights Reserved...

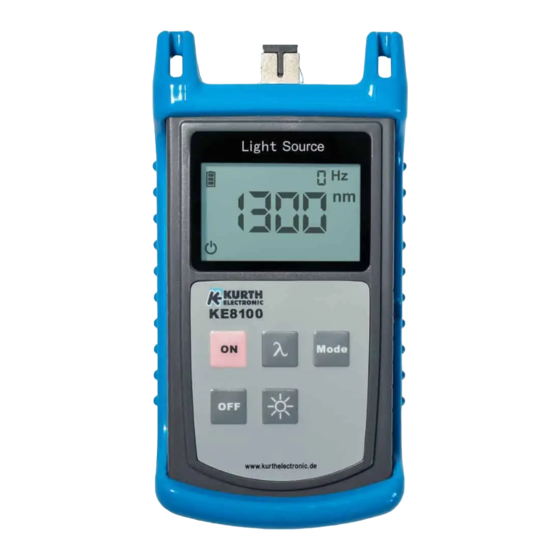

- Page 3 Usage The two light sources KE8100 and KE8200 with their stabilized laser diodes support different wavelengths (KE8100: 850 and 1300 nm; KE8200: 1310, 1490 and 1550 nm), the precise identification of fibres, the determination of fibre attenuation and thus the assurance of sufficient transmission quality.
-
Page 4: Operation
By default, the device is set to the wavelengths 1310 nm (KE8200), 850 nm (KE8100) and DC light (0 Hz). Press the OFF button for 2 seconds to turn off the unit. - Page 5 System power levels can, for example, be measured directly at the transmitter output Tx of an optical transmission system. Likewise, all types of optical connections can be checked to see whether an optical signal level is emitted. © Kurth Electronic GmbH, All Rights Reserved...
- Page 6 The power meter now displays a relati- KE8000 KE8x00 ve power level in dB. This value corres- Mode ponds to the attenuation of the fibre path www.kurthelectronic.de www.kurthelectronic.de www.kurthelectronic.de plus the insertion loss of the connector (coupling). © Kurth Electronic GmbH, All Rights Reserved...
- Page 7 2,4″ LCD Operating range -10 °C .. +40 °C Dimensions 160 x 76 x 28 mm Weight 220 g Delivery includes Measuring device with drop protection, batteries and operation manual Article number 0.49120 0.49130 © Kurth Electronic GmbH, All Rights Reserved...
-
Page 8: Maintenance
„ The device is protected from splash water and dust by the front foil. However, it is not waterproof. Last revision: 09 / 2018 © Kurth Electronic GmbH, All Rights Reserved...
