MRC DW-6160 Operation Manual

Watt/leakage meter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

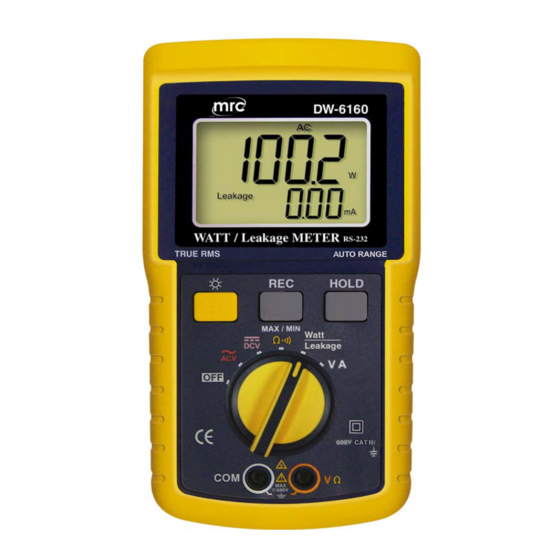

WATT/Leakage METER
Model : DW-6160
OPERATION MANUAL
Your purchase of this
WATT/Leakage
marks a step forward for
you into the field of
precision measurement.
A l t h o u g h
WATT/Leakage
is
a
complex
delicate instrument, its
durable
structure
allow many years of use
if
proper
t e c h n i q u e s
developed. Please read
t h e
f o l l o w i n g
instructions
and always keep this
manual
within
reach.
METER
t h i s
METER
and
will
operating
a r e
carefully
easy

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DW-6160 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MRC DW-6160

Summary of Contents for MRC DW-6160

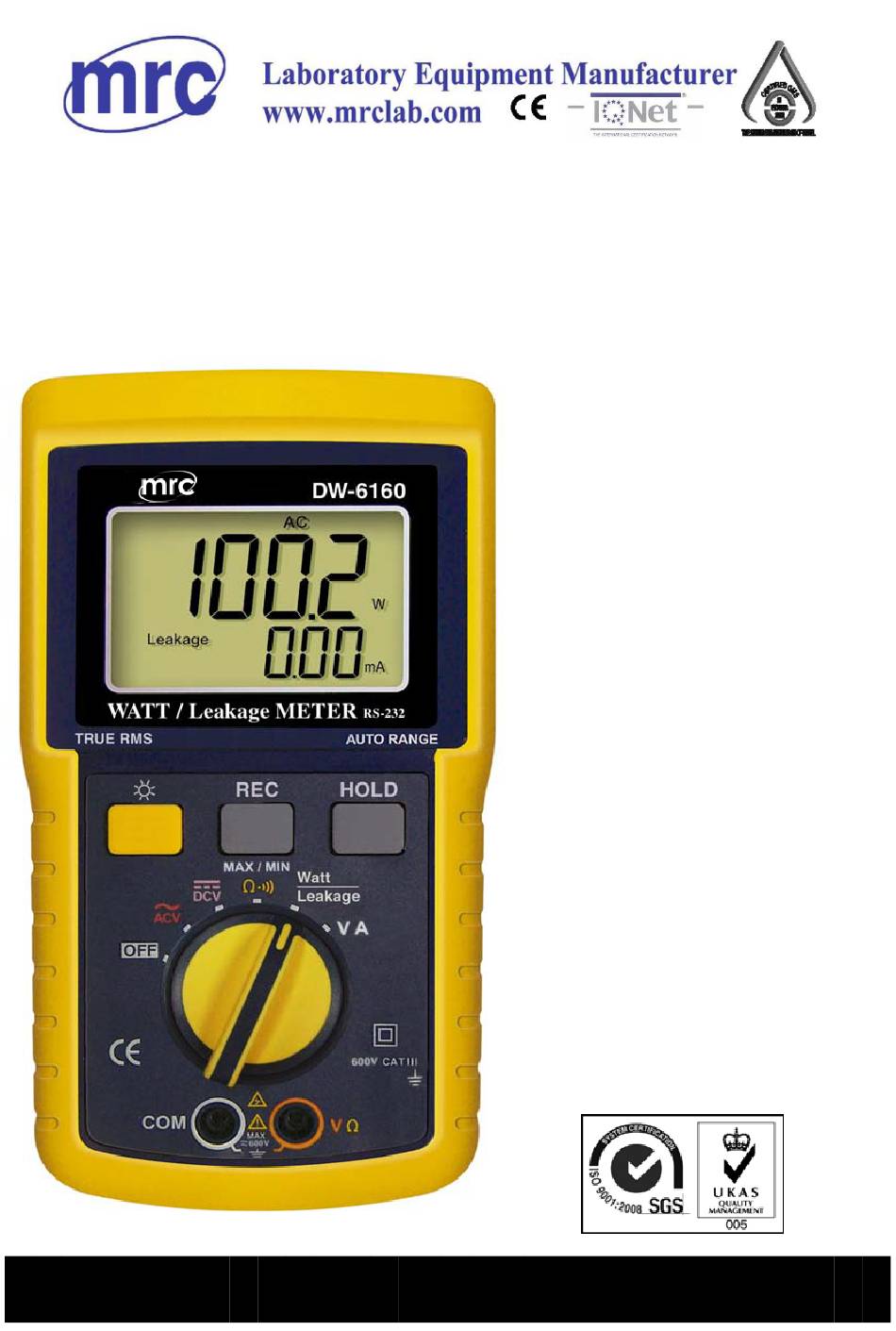

  • Page 1 WATT/Leakage METER Model : DW-6160 Your purchase of this WATT/Leakage METER marks a step forward for you into the field of precision measurement. A l t h o u g h t h i s WATT/Leakage METER complex delicate instrument, its...
  • Page 2 Caution Symbol Caution : * Risk of electric shock ! Caution : * Do not apply the overload voltage, current to the input terminal ! * Remove test leads before open the battery cover ! * Cleaning - Only use the dry cloth to clean the plastic case ! Environment Conditions * Installation Categories II 600V.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1. FEATURES..............1 2. SPECIFICATIONS............ 2-1 General Specifications..........2 2-2 Electrical specifications...........3 3. FRONT PANEL DESCRIPTION........6 3-1 Display..............6 3-2 Backlight button..........3-3 Record button ( MAX. / MIN. )....... 6 3-4 Data hold button..........6 3-5 Power & function rotary switch ......3-6 ACV / DCV &...

  • Page 4: Features

    1. FEATURES * Professional WATT meter with Leakage current tester digital display , battery operated . * LSI - circuit provides high reliability and durability . * Measurement WATT ( AC ) : 2500W x 0.1 W / 1 W. Leakage current ( AC mA ) : 80.00 mA x 0.01 mA.

  • Page 5: Specifications

    2. SPECIFICATIONS 2-1 General Specifications Circuit Custom one-chip of microprocessor LSI circuit. Display Large LCD display Max. reading 9999. LCD size :90.5 x 64.5 mm. Dual value display with backlight. Measurement 0 to 600.0 V 0 to 600.0 V Ω 0 Ω...

  • Page 6: Electrical Specifications

    Power Supply Alkaline or heavy duty DC 1.5 V battery ( UM3, AA ) x 8 PCs, or equivalent. DC 9V adapter input. ( AC/DC power adapter is optional ). Power Approx. DC 33 mA Consumption Weight 883 g / 1.95 LB Dimension 224 x 125 x 65 mm ( 8.8x 4.8 x 2.5 inch )
  • Page 7 OHMS ( Resistance ) Range Resolution Accuracy 0 to 999 Ω 1 Ω ± (1 % + 1d ) 1.000 to 9.999 KΩ 0.001 KΩ ± (1 % + 1d ) 10 to 20 KΩ 0.01 KΩ ± (1 % + 1d ) * Auto range.
  • Page 8 V, A ( true rms ) Range Resolution Accuracy ACV 250 V ± (1 % + 5d ) 0.01 V/0.1 V ACA 10 A ± (1 % + 3d ) 0.001 A/0.01A * ACV, 0.01 V resolution is valid from 0.01 V to 99.99 V. ACV, 0.1 V resolution is valid from >...

  • Page 9: Front Panel Description

    3. FRONT PANEL DESCRIPTION Fig. 1 3-1 Display 3-2 Backlight button 3-3 Record button ( MAX. / MIN. ) 3-4 Data hold button 3-5 Power & function rotary switch 3-6 ACV / DCV & Ω input terminal 3-7 Load terminal 3-8 Power source terminal 3-9 Battery Cover / Compartment 3-10 Stand...

  • Page 10: Measuring Procedures

    4. MEASURING PROCEDURE 4-1 ACV measurement procedure 1) Rotate the function switch to the " ACV " position and Power ON the meter. 2) Connect Red test lead to the " V Ω " input terminal and Black test lead to " COM " input terminal. 3) Use the test lead measurement unknown AC voltage.

  • Page 11: Maintenance

    3) Read the display . The show value will indicate correspond to the position selected. If the display shows " ---- " it indicates an out-of-range measurement. 4) When resistance < 4Ω the buzzer will continuity beeper . 4-4 Watt measurement procedure 1) Rotate the function switch to the "...

  • Page 12: Rs232 Pc Serial Interface

    3) Instruments used in dusty environments should be stripped and cleaned periodically. 4) Do not leave the instrument exposed to direct heat from the sun for long periods. 5) Before removing the battery compartment cover, ensure that the instrument is disconnect from any circuit and the power switch is on the OFF position.

  • Page 13: Battery Replacement

    Each digit indicates the following status : End Word D1 & D8 Display reading, D1 = LSD, D8 = MSD For example : If the display reading is 1234, then D8 to D1 is : 00001234 Decimal Point(DP), position from right to the left 0 = No DP, 1= 1 DP, 2 = 2 DP, 3 = 3 DP Polarity...

  • Page 14: The Address Of After Service Center

    2) Open the screw of "Battery Cover "by screwdriver, then move the batteries. 3) Replace with 1.5V x 8 PCs batteries and reinstate the cover. 8. THE ADDRESS OF AFTER SERVICE CENTER 3, Hagavish st. Israel 58817 Tel: 972 3 5595252, Fax: 972 3 5594529 mrc@mrclab.com MRC. 7.18...
