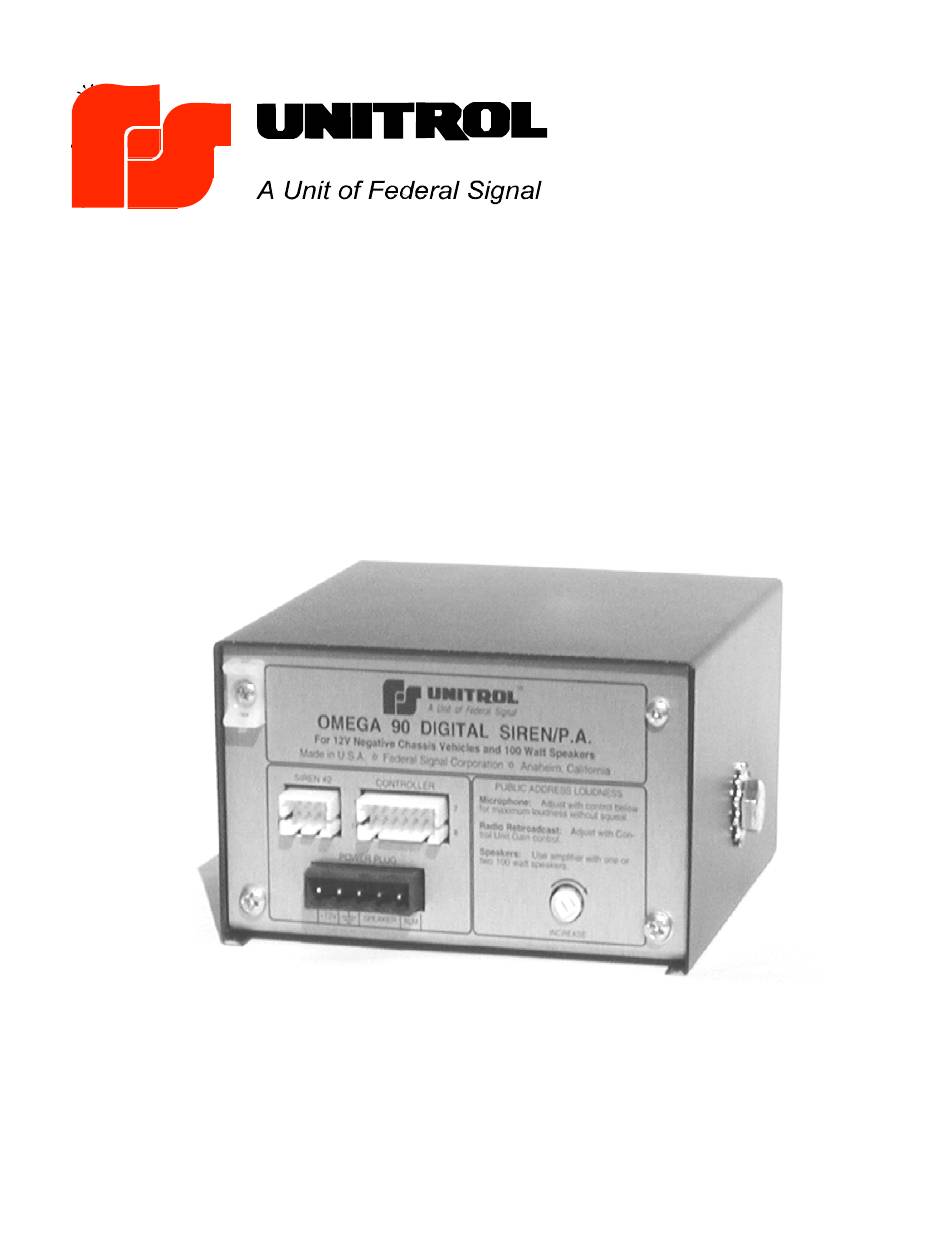

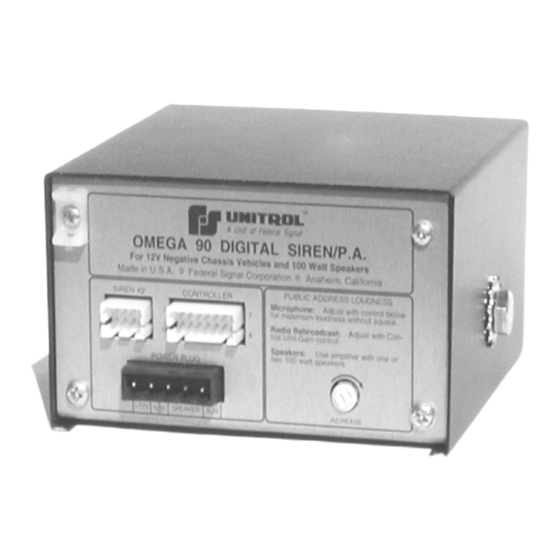

- Page 1 22-U90-00 ECO# 104-06-MAN I N S T A L L A T I O N Omega 90 Amplifier FS UNITROL • 1108 RAYMOND WAY • ANAHEIM, CA 92801 • (714) 871-3336 • (800) 854-3375 • FAX (714) 871-3418...
- Page 2 SECTION TITLE PAGE General Information Changing Pre-Set Sounds Installing One ( 1 ) Amplifier Installing Two ( 2 ) Amplifiers Adjusting P.A. Loudness Safety Message To Operators Safety Message To Installers...
- Page 3 WARRANTY LIMITED WARRANTY FS UNITROL, a unit of Federal Signal Corporation, warrants each new FS UNITROL product to be free from defects in material and workmanship under normal use and service for a period of five year on parts replacements and one year labor from the date of purchase.
- Page 4 Section I: GENERAL INFORMATION 1: UNIVERSAL USE 4: ALARM The Omega 90 Amplifier can be used fleet-wide wherever a high- powered 12-volt siren or siren/p.a. system is required. The only restriction is that it must be installed in a water-free area. It can be A special siren loud tone is built into the amplifier to serve as controlled by a simple pushbutton switch, any Omega Controller or a burglar or high temperature alarm.
- Page 5 Section II: CHANGING PRE-SET SOUNDS 1: SWITCHES 6: USING 2 AMPLIFIERS The sounds can be changed by removing the outer Endless sound possibilities can be achieved when 2 cabinet. Selector switches are accessible from the amplifiers are installed. The brute power of up to 400 Amplifier’s left side, underside the top circuit board.
- Page 6 Section III: INSTALLATION ONE (1) AMPLIFIER Use with Any Switch or Omega Controller Use appropriate gauge wire Not used CA90 Cable to Controller 2-position SPST on/off Switch Rear view To door switches, trunk 12v gnd spkr spkr switch, motion detector or heat-sensing switch.
- Page 7 Section IV: INSTALLATION TWO (2) AMPLIFIERS No Changes required in Controller Use Appropriate Gauge Wire Amplifier #1 CA92 Interconnect Cable CA90 Cable to Maximum Sounds Controller Amplifier #2 Wail/Yelp Used SPKR SPKR BATTERY 1: PRELIMINARY RE-SETTING Failure to observe this precaution will result in erratic See Page 3, Item 6 for recommended re-setting siren performance of either or both amplifiers and/ or procedures of amplifier #2.
- Page 8 Section V: ADJUSTING P.A. LOUDNESS 1: GENERAL 3: RADIO/TAPE LOUDNESS The primary purpose of the Gain Control is to Loudness of amplified calls or recorded tape set proper microphone loudness after the must always be established with the radio or system is installed and battery connected.
- Page 9 SECTION VI SAFETY MESSAGE TO OPERATORS OF UNITROL ELECTRONIC SIRENS AND LIGHT/SOUND SYSTEMS WARNING Signaling Limitations The lives of people depend on your operation of • Be aware that the use of your visual and audible UNITROL products. It is important to read and follow all signaling devices do not give you the right to force your instructions shipped with the products.
- Page 10 SECTION VII SAFETY MESSAGE TO INSTALLERS ELECTRONIC SIRENS WARNING • Sound output will be severely reduced if any • The lives of people depend on your safe objects are in front of this speaker. If maximum installation and servicing of UNITROL products. sound output is required for your application, It is important to read and follow all instructions you should ensure that the front of the speaker is...
