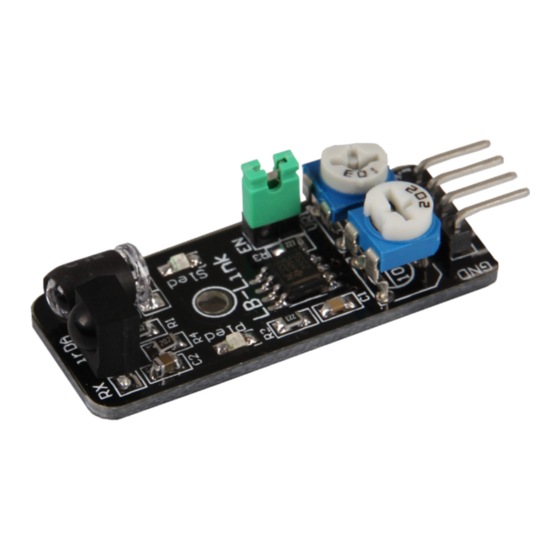

INFRARED PROXIMITY SENSOR
SEN-KY032IR
1. GENERAL INFORMATION
Dear costumer,
thank you very much for choosing our product. In following, we will
introduce you to what to observe while starting up and using this
product.
Should you encounter any unexpected problems during use, please do
not hesitate to contact us.
www.joy-it.net
Pascalstr. 8 47506 Neukirchen-Vluyn
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Joy-it SEN-KY032IR
Summary of Contents for Joy-it SEN-KY032IR
- Page 1 INFRARED PROXIMITY SENSOR SEN-KY032IR 1. GENERAL INFORMATION Dear costumer, thank you very much for choosing our product. In following, we will introduce you to what to observe while starting up and using this product. Should you encounter any unexpected problems during use, please do not hesitate to contact us.
- Page 2 2. PIN ASSIGNMENT 3. USAGE WITH A RASPBERRY PI 1. Connection KY-032 Raspberry Pi Ground (Pin 6) 3.3V (Pin 1) Signal GPIO24 (Pin 18) Enable Pin Jumper is plugged www.joy-it.net Pascalstr. 8 47506 Neukirchen-Vluyn...
- Page 3 Now, you can either use the following commands to download and unzip the file : wget http://sensorkit.joy-it.net/images/d/d8/KY-032_RPi_HindernisDetektor.zip unzip KY-032_RPi_HindernisDetektor.zip Or you can create a new file with the following command and copy the example code described into it: sudo nano KY-032_RPi_HindernisDetektor.py...
- Page 4 Press CTRL + X to exit the editor again. With both variants, the program will be performed as follows: sudo python3 KY-032_RPi_HindernisDetektor.py 4. USAGE WITH AN ARDUINO 1. Connection KY-032 Arduino Pin 5V Signal Pin 10 Enable Pin Jumper is plugged www.joy-it.net Pascalstr. 8 47506 Neukirchen-Vluyn...
- Page 5 This means that the obstacle detection is always performed. If you want to deactivate the permanent detection, remove this jumper (EN) and connect the enable pin to a pin with which a control signal can be sent. www.joy-it.net Pascalstr. 8 47506 Neukirchen-Vluyn...
- Page 6 Simac GmbH, Pascalstr. 8, D-47506 Neukirchen-Vluyn, Germany Possibility of return in your area: We will send you a parcel stamp with which you can return the device to us free of charge. Please contact us by e-mail at Service@joy-it.net or by telephone. Information on packaging: If you do not have suitable packaging material or do not wish to use your own, please contact us and we will send you suitable packaging.
