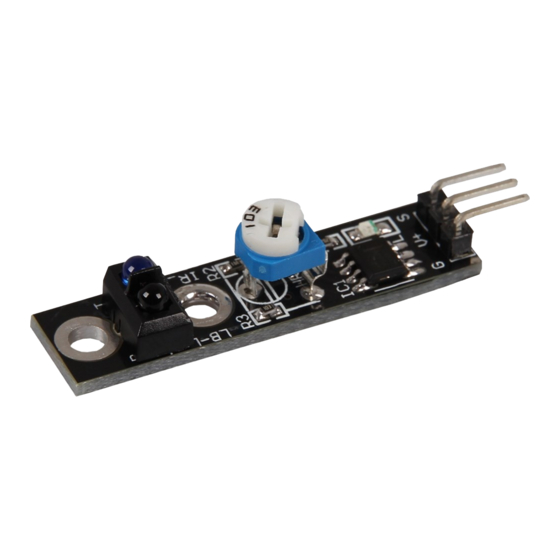

LINE TRACKER
SEN-KY033LT
1. GENERAL INFORMATION
Dear costumer,
thank you very much for choosing our product.
In following, we will introduce you to what to observe while starting up
and using this product.
Should you encounter any unexpected problems during use, please do
not hesitate to contact us
www.joy-it.net
Pascalstr. 8 47506 Neukirchen-Vluyn
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Joy-it SEN-KY033LT
Summary of Contents for Joy-it SEN-KY033LT

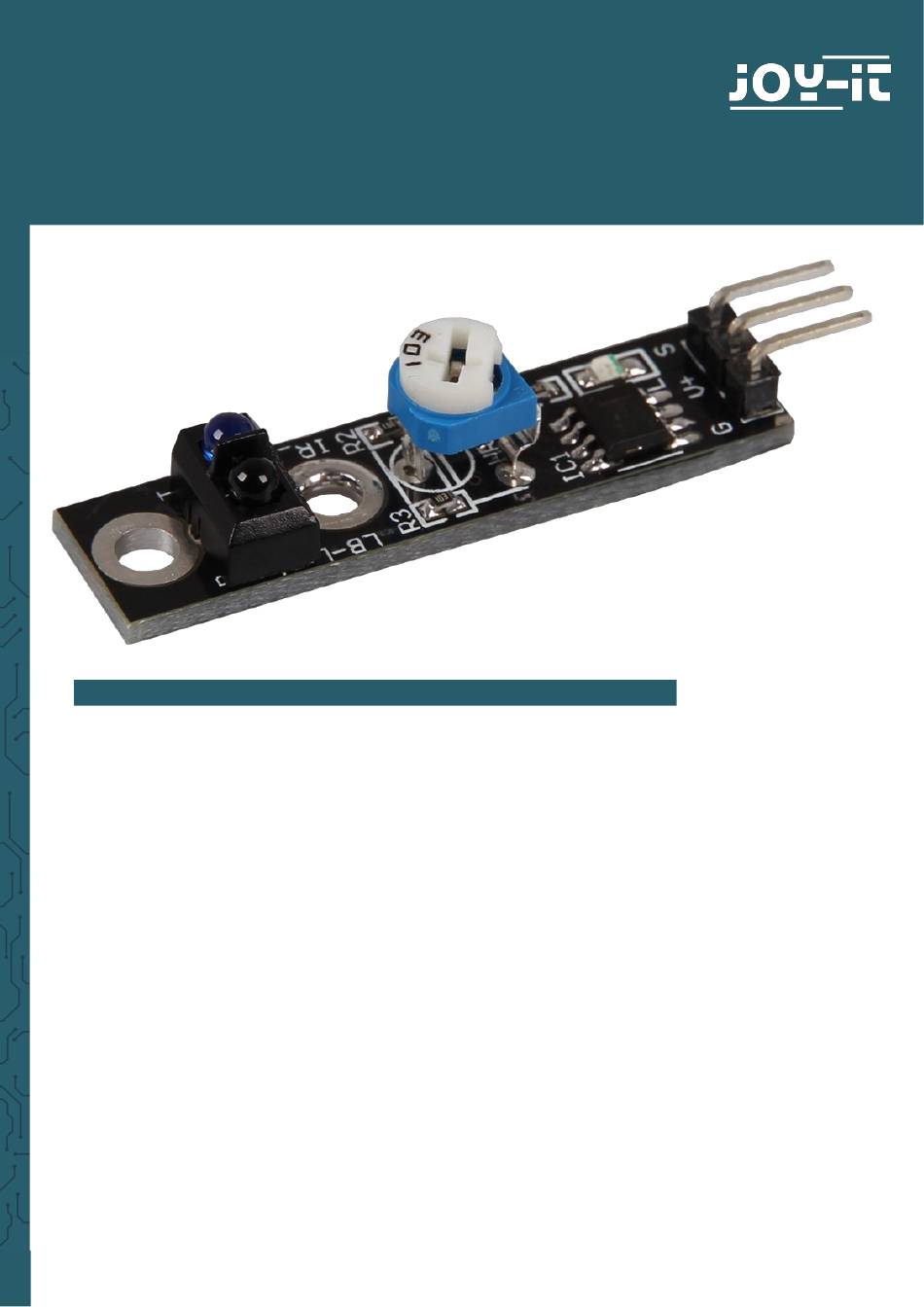

- Page 1 LINE TRACKER SEN-KY033LT 1. GENERAL INFORMATION Dear costumer, thank you very much for choosing our product. In following, we will introduce you to what to observe while starting up and using this product. Should you encounter any unexpected problems during use, please do not hesitate to contact us www.joy-it.net...
- Page 2 2. PIN ASSIGNMENT 3. USAGE WITH A RASPBERRY PI 1. Connection KY033 Raspberry Pi Ground (Pin 6) 3,3 V (Pin 1) Signal GPIO24 (Pin 18) www.joy-it.net Pascalstr. 8 47506 Neukirchen-Vluyn...
- Page 3 But first you have to install this package: sudo apt install python3-rpi.gpio Now, you can either use the following commands to download and unzip the file : wget http://sensorkit.joy-it.net/images/c/cf/KY-033_RPi_Trackingsensor.zip unzip KY-033_RPi_Trackingsensor.zip www.joy-it.net Pascalstr. 8 47506 Neukirchen-Vluyn...
- Page 4 Now, you have to save the file with CTRL + O and press Enter to confirm. Press CTRL + X to exit the editor again. With both variants, the program will be performed as follows: sudo python3 KY-033_RPi_Trackingsensor.py 4. USGAE WITH AN ARDUINO 1. Connection KY033 Arduino Signal Pin 10 www.joy-it.net Pascalstr. 8 47506 Neukirchen-Vluyn...
- Page 5 You can also download the code example hier. Furthermore, the sensor has a potentiometer with which the sensitivity can be adjusted. A LED also lights up when the sensor receives an infrared signal, i.e. leaves the line. www.joy-it.net Pascalstr. 8 47506 Neukirchen-Vluyn...
- Page 6 The Joy-Car can be found under the article no. MB-Joy-Car and is a robot kit for self assembly. It works with the help of a Micro:Bit and offers many more functions. www.joy-it.net Pascalstr. 8 47506 Neukirchen-Vluyn...
- Page 7 Simac GmbH, Pascalstr. 8, D-47506 Neukirchen-Vluyn, Germany Possibility of return in your area: We will send you a parcel stamp with which you can return the device to us free of charge. Please contact us by e-mail at Service@joy-it.net or by telephone. Information on packaging: If you do not have suitable packaging material or do not wish to use your own, please contact us and we will send you suitable packaging.
