Summary of Contents for Haug Test Line Static Meter I

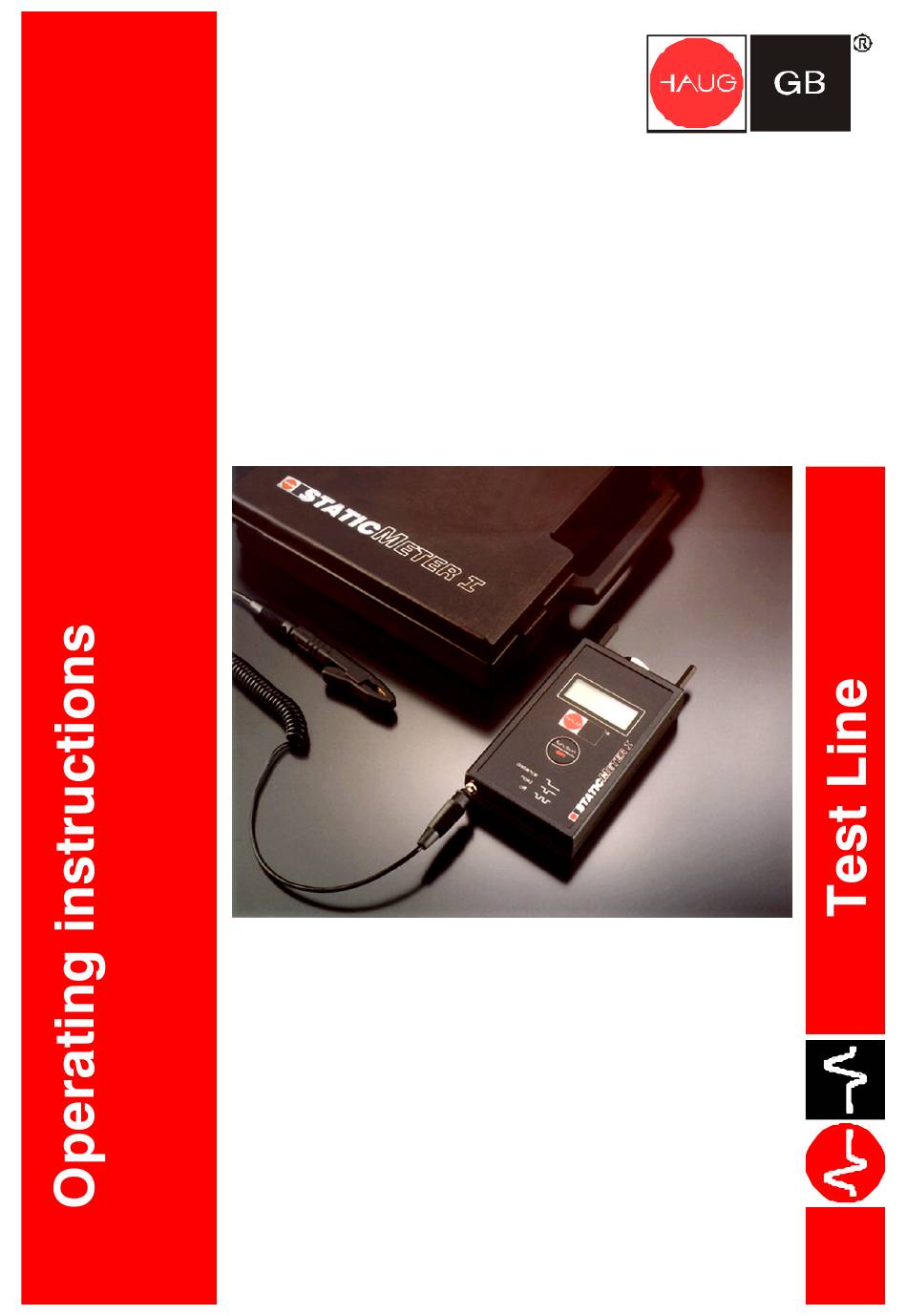

- Page 1 Electrofieldmeter Static Meter Ι...
-
Page 2: Table Of Contents
Table of contents Proper use........................3 Construction and description of measuring instrument..........4 Basic information about electrostatics............... 4 Short description....................... 4 Description........................ 4 Measurement principle....................5 Calculating the electrical field strength..............5 Operation........................6 Hold........................... 6 Measurement ranges....................6 Change measurement distance................. 7 Distance support....................... -
Page 3: Proper Use
Proper use HAUG Static Meter Ι Please retain for future reference. HAUG Static Meter Ι Type: 12.7210.000 Proper use The unit is not approved for use inside explosive areas. The use in power plants is not allowed. This unit cannot measure alternating fields > 1 Hz. -
Page 4: Construction And Description Of Measuring Instrument
(over pre-selected distance) according the fieldmill influence prlnclple. Description The electrofieldmeter HAUG Static Meter Ι is designed to measure electrostatic voltage potentials over the pre-selected distance (distance between sensor head and object). The selection of the distance is menu- driven and the following distances are available: 1 cm, 2 cm, 5 cm, 10 cm and 20 cm. -
Page 5: Measurement Principle
Construction and description of measuring instrument HAUG Static Meter Ι Measurement principle The electrofieldmeter is a parametric operating amplifier. The influenced charges, caused by the electrical field, generate an alternating current proportional to the electrical field strength. The selective operating amplifier measures the current without taking energy over the averaged time. -
Page 6: Operation
Operation HAUG Static Meter Ι Operation Press the "function/on"-key to switch the unit on. Press the "function/on"-key twice in short intervals to switch the unit off. The unit will switch off automatically when the "function/on"-key was not used for 5 minutes. -
Page 7: Change Measurement Distance
Operation HAUG Static Meter Ι Change measurement distance Press and hold the "function/on"-key (approximately 2 s) until "change distance" will appear in the second row. The pre-selected distance in cm will be displayed in the first row. Press the "function/on"-key once shortly to change the measurement distance. -
Page 8: Battery Control
Operation HAUG Static Meter Ι Battery control The measuring unit has a permanent battery voltage control. If the battery voltage is less than 7.5 volts then "Low Battery" appears in the first row of the LCD and the 9 V battery has to be replaced or the accumulator has to be charged with the supplied battery charger! If the battery voltage will become less than 7.0 volts, then "auto off"... -
Page 9: Maintenace And Repair
Any repairs or adjustments neccessary may only be carried out by HAUG GmbH & Co. KG. If a unit is faulty, take it out of operation and send it to HAUG GmbH & Co. KG. -
Page 10: Technical Data
Technical Data HAUG Static Meter Ι Technical Data Dimensions: 70 x 122 x 26 mm ( W x L x H ) Weight: Meßgerät 130 g (ohne Batterie) Power supply: 9 V - Alkaline Blockbatterie IEC 6F22 or 9 V NiCd or... - Page 11 Technical Data HAUG Static Meter Ι Legende Modulator system LCD - Display (2 x 12) alphanumeric Function key Grounding socket Battery compartment Zero adjustment trimmer function distance hold Page 11...
- Page 12 HAUG GmbH & Co.KG Friedrich-List-Straße 18 D-70771 Leinfelden-Echterdingen Telefon 07 11 / 94 98 - 0 Telefax 07 11 / 94 98 - 298 www.haug.de E-Mail: info@haug.de HAUG Biel AG Postfach CH-2500 Biel/ Bienne 6 Johann-Renfer-Strasse 60 CH-2500 Biel/ Bienne 6...
